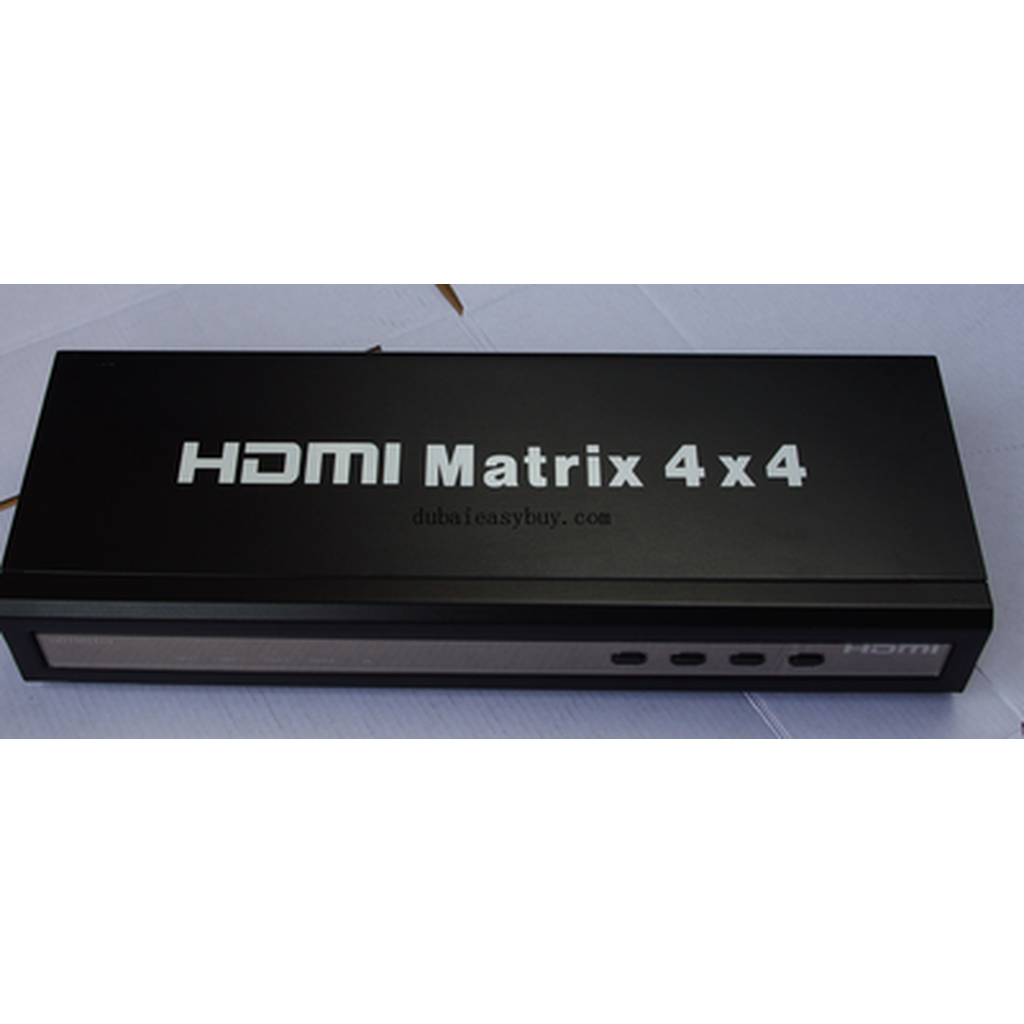

3D Hdmi Matrix 4 In 4 Output Ahd To Hdmi Digital Console

INTRODUCTION

• This HDMI matrix is a 4-by-4 DVI/HDMI true matrix. It allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously, no matter the source is HDCP or not. Extra infrared receiver extension, IR emitter, RS232 are supplied for remote control.
• HDMI matrix 4x4 has the ability of equalization and amplification to ensure HDMI signal's transmission through long cable without quality loss. This HDMI matrix offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features :

• Support HDMI 1.3
• Support 3D
• Support high definition resolutions1080p, 1080i, 720p and other standard video formats
• Support audio format DTS-HD/Dolby-true HD/LPCM/DTS/DOLBY-AC3/DSD
• Input ports can be controlled by IR Remote Control
• Via RS-232 control, the machine can upgrade the software, and the input and the output can be switched by computer
• The four outputs could show the same or different source simultaneously no matter

SPECIFICATIONS:

• HDMI resolution : 60Hz /1080p/1080i/720p/576p/576i/480p/480i/ 2160P/30Hz
• Support audio color format : 36bit
• Support audio format : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
• Max baud rate : 3.4GBPS
• Input and output TMDS signal : 0.5~1.5Volts p-p
• Input and output DDC signal : 5Volts p-p (TTL)
• Max working current : 2.0A
• Power adapter format : input :AC(50HZ, 60HZ) 100V-240V;output: DC12V/5A
• Operating Temperature range : (-15 to +55℃)
• Working humidity range: 5 to 90%RH (No Condensation)
• Dimension (L x W x H) : 410*170*45(mm)
• Weight : 1850g
