Apc Smart-ups 1500Va Lcd Rm 2U 230V (SMT1500RMI2UC)

Output

• Output power capacity

  1.0 KWatts / 1.5 kVA

• Max Configurable Power (Watts)

  1.0 KWatts / 1.5 kVA

• Nominal Output Voltage

  230V

• Output Voltage Note

  Configurable for 220 : 230 or 240 nominal output voltage

• Output Voltage Distortion

  Less than 5% at full load

• Output Frequency (sync to mains)

  47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

• Other Output Voltages

  220, 240

• Topology

  Line Interactive

• Waveform type

  Sine wave

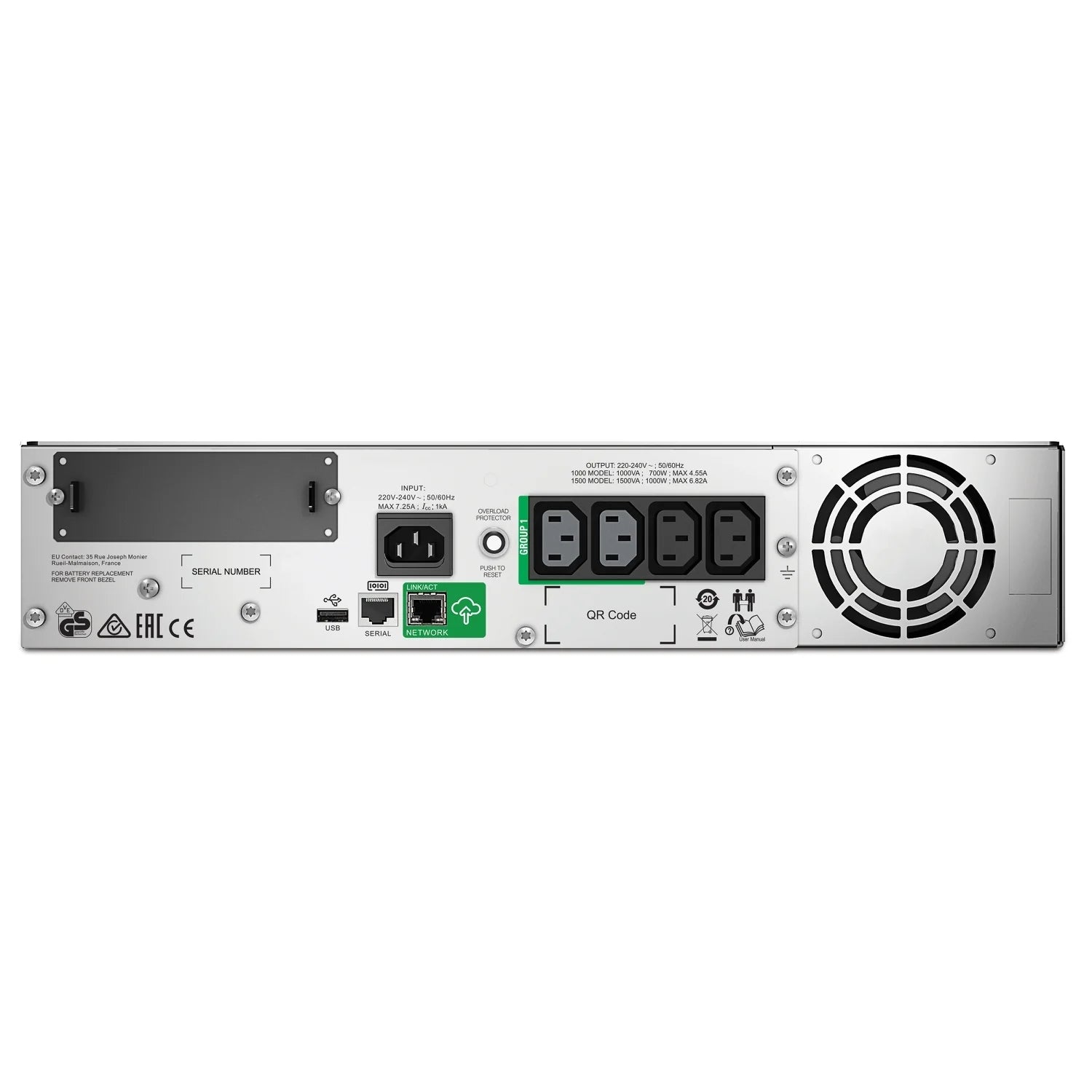

• Output Connections
  (4) IEC 320 C13 (Battery Backup)

  (2) IEC Jumpers (Battery Backup)
• Transfer Time

  2ms typical

Input

• Nominal Input Voltage

  230V

• Input frequency

  50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections

  IEC-320 C14

• Input voltage range for main operations

  160 - 286V

• Input voltage adjustable range for mains operation

  151 - 302V

• Other Input Voltages

  220, 240

Batteries & Runtime

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Typical recharge time

  3hour(s)

• Replacement Battery

  APCRBC133

• Expected Battery Life (years)

  4 - 6

• RBC Quantity

  1

• Battery Volt-Amp-Hour Capacity

  432

•





•




Communications & Management

• Interface Port(s)

  RJ-45 Serial , SmartSlot , USB

• Control panel

  Multi-function LCD status and control console

• Audible Alarm

  Alarm when on battery : distinctive low battery alarm : configurable delays

• Emergency Power Off (EPO)

  Optional

• Available SmartSlot™ Interface Quantity

  1

Surge Protection and Filtering

• Surge energy rating

  459Joules

• Filtering

  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height

  86mm , 8.6cm

• Maximum Width

  432mm , 43.2cm

• Maximum Depth

  457mm , 45.7cm

• Rack Height

  2U

• Net Weight

  28.64kg

• Shipping weight

  31.91kg

• Shipping Height

  251mm , 25.1cm

• Shipping Width

  594mm , 59.4cm

• Shipping Depth

  603mm , 60.3cm

• Color

  Black

• Units per Pallet

  8.0

Environmental

• Operating Environment

  0 - 40 °C

• Operating Relative Humidity

  0 - 95 %

• Operating Elevation

  0-3000meters

• Storage Temperature

  -15 - 45 °C

• Storage Relative Humidity

  0 - 95 %

• Storage Elevation

  0-15000meters

• Audible noise at 1 meter from surface of unit

  46.0dBA

• Online thermal dissipation

  90.0BTU/hr
