Intelligent and efficient network power protection from entry level to Scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

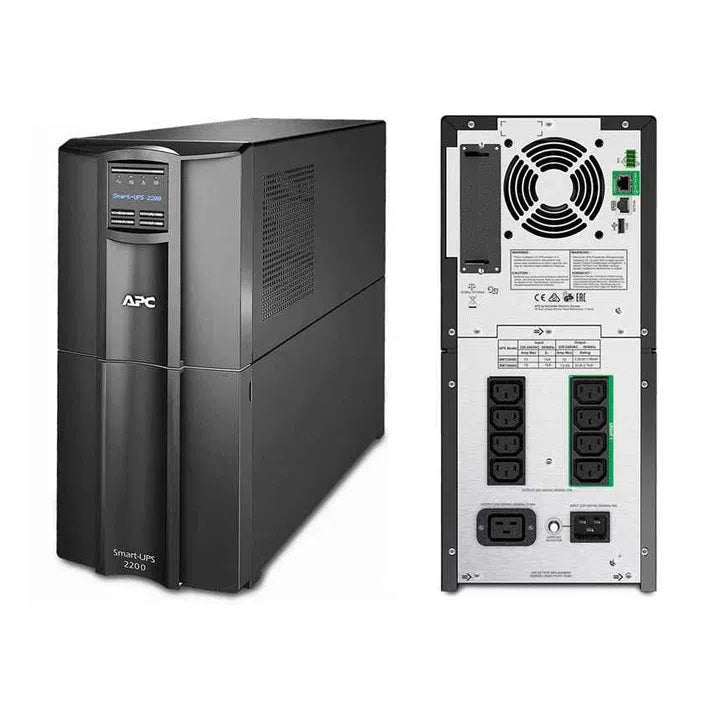

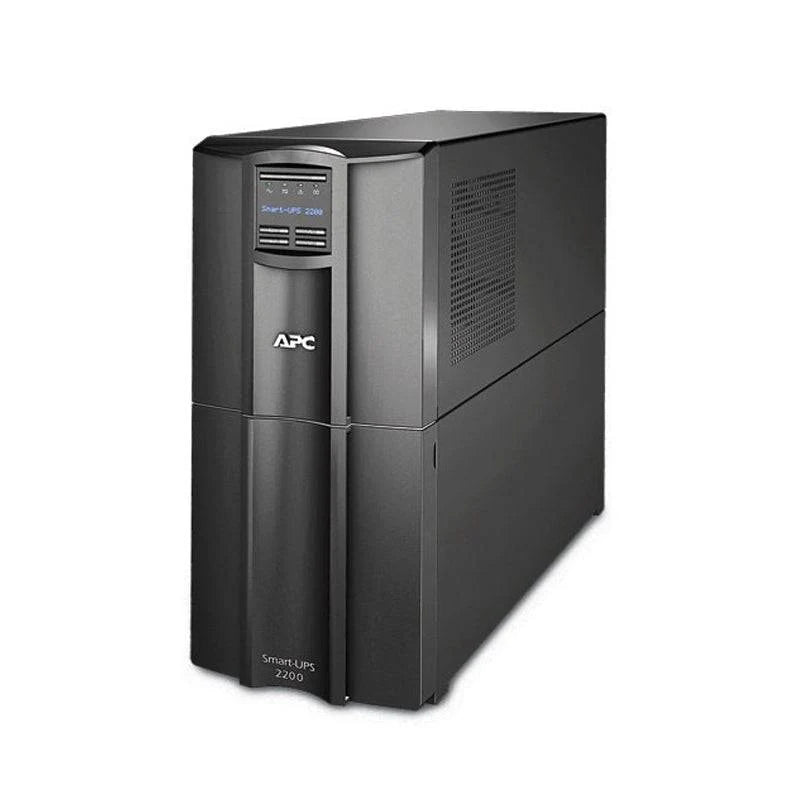

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown.
Brand | APC |
Model | APC Smart-UPS 2200VA |
Output Power Capacity | 1980 Watts / 2200 VA |
Max Configurable Power | 1980 Watts / 2200 VA |
Nominal Output Voltage | 230V |
Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
Output Voltage Distortion | Less than 5% at full load |
Output Frequency (sync to mains) | 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
Topology | Line Interactive |
Waveform Type | Sine wave |

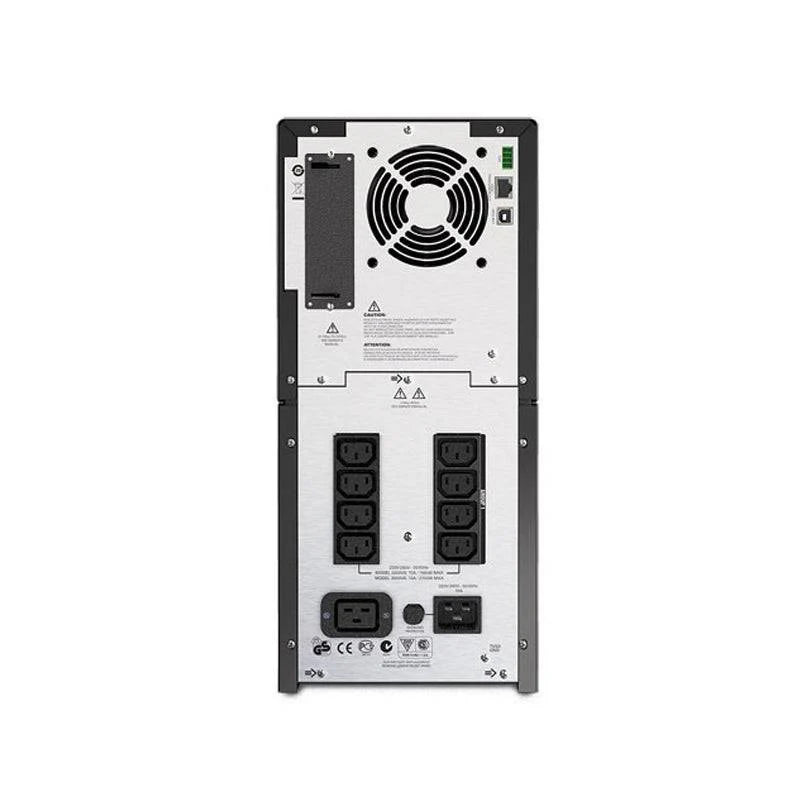

Output Connections | 8 x IEC 320 C13, 1 x IEC 320 C19, 2 x IEC Jumpers |
Color | Black |
Nominal Input Voltage | 230V |
Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections | IEC-320 C20 |
Schuko CEE 7 / EU1-16P | British BS1363A |
Input voltage range for main operations | 160 - 286V |
Input voltage adjustable range for mains operation | 151 - 302V |
Other Input Voltages | 220, 240 |
Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
Typical recharge time | 3 hour(s) |
Replacement Battery | RBC55 |
RBC™ Quantity | 1 |
Interface Port(s) | RJ-45 Serial, SmartSlot, USB |
Available SmartSlot™ Interface Quantity | 1 |
Smart Connect | Yes |
Control panel | Multi-function LCD status and control console |
Audible Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
Emergency Power Off (EPO) | Yes |
Surge energy rating | 365 Joules |
Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Operating Environment | 0 - 40 °C |
Operating Relative Humidity | 0 - 95% |
Operating Elevation | 0-3000 meters |
Storage Temperature | -15 - 45 °C |
Storage Relative Humidity | 0 - 95% |
Storage Elevation | 0-15000 meter |
Audible noise at 1 meter from surface of unit | 45.00 dBA |
Online Thermal Dissipation | 275.00 BTU/hr |
Regulatory Approvals | CE, EN 50091-1, EN 50091-2, VDE |
Maximum Height | 435.00 mm |
Maximum Width | 197.00 mm |
Maximum Depth | 544.00 mm |
Net Weight | 48.80 KG |
