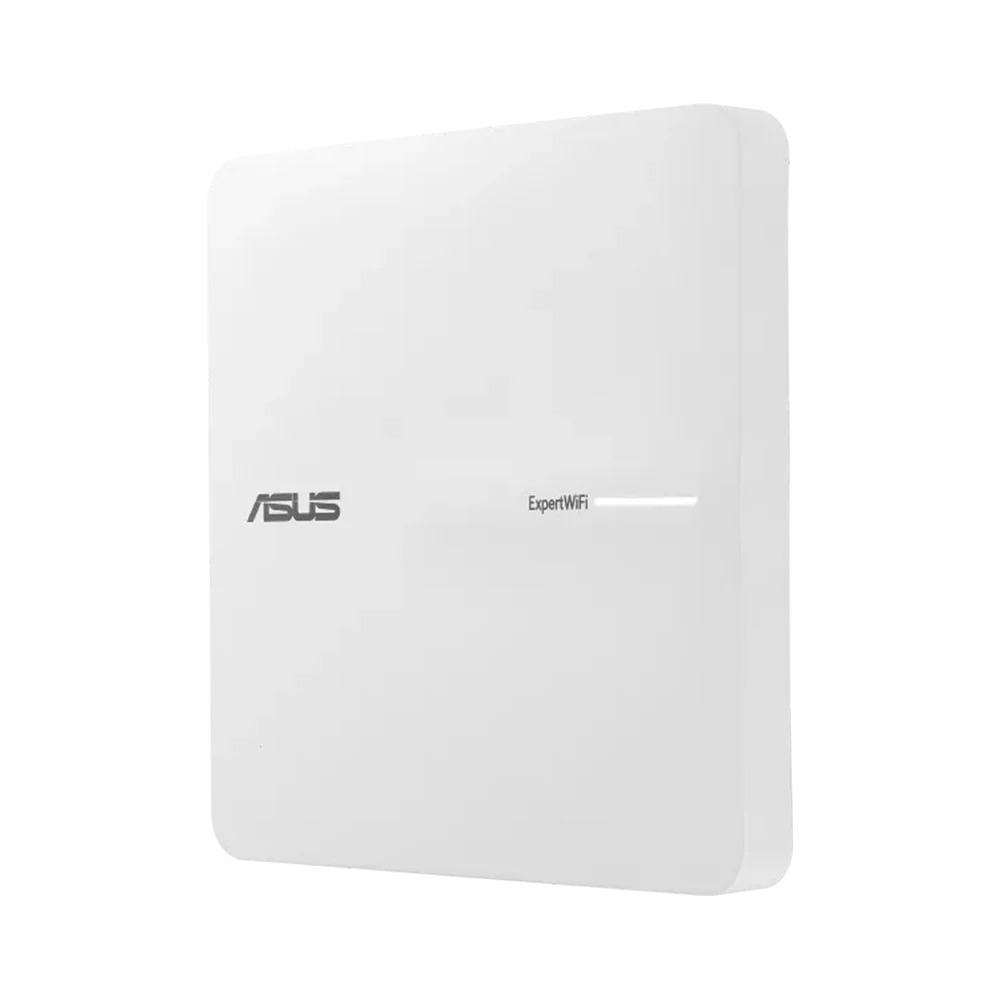

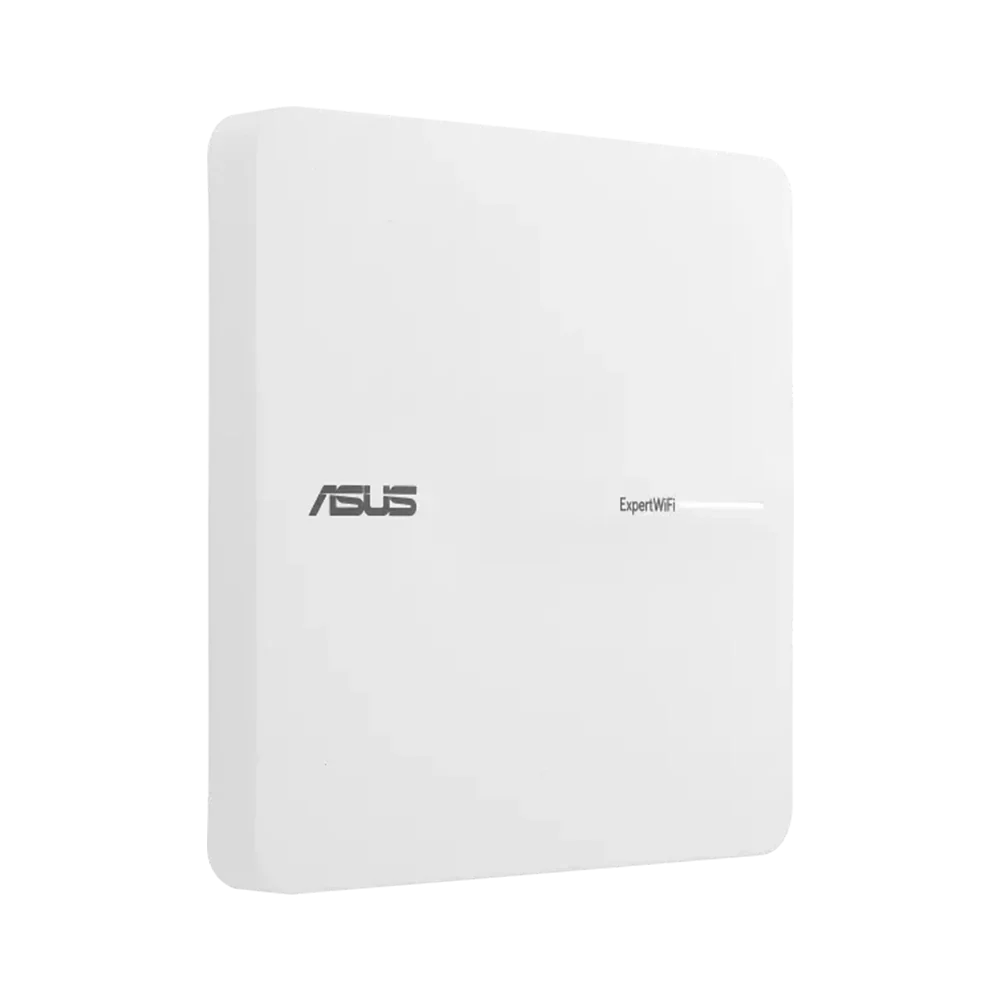

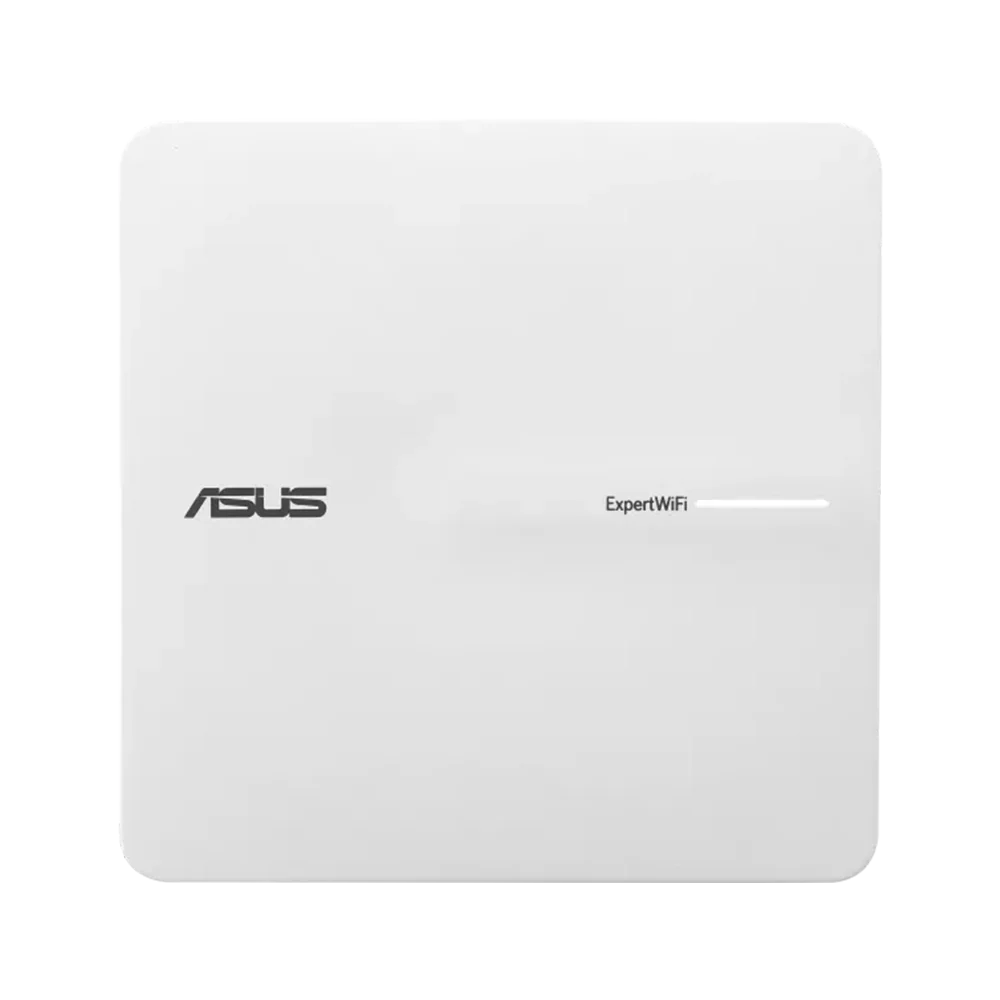

Asus Eba63 Expert Wifi Ax3000 Dual-Band Poe Access Point - White
Asus Eba63 Expert Wifi Ax3000 Dual-Band Poe Access Point - White
Asus Eba63 Expert Wifi Ax3000 Dual-Band Poe Access Point - White
Asus Eba63 Expert Wifi Ax3000 Dual-Band Poe Access Point - White

Asus Eba63 Expert Wifi Ax3000 Dual-Band Poe Access Point - White

Vendor: Asus
SKU: 90IG0880-MO3C00
Product type: Wifi
42.000 KD
47.000 KD
42.000 KD
Description

The ASUS EBA63 Expert WiFi AX3000 delivers reliable wireless connectivity for professional environments. This dual-band access point supports simultaneous 2.4GHz and 5GHz networks, enabling seamless connectivity across multiple devices. With integrated PoE support, installation becomes simplified—power and data transmission through a single cable reduces setup complexity. The AX3000 standard provides robust performance suitable for small to medium-sized deployments. Its white finish blends seamlessly into modern office spaces. Ideal for businesses seeking dependable WiFi coverage with straightforward installation and management capabilities.

Model Name EBA63
Network Standards IEEE 802.11aIEEE 802.11bIEEE 802.11gWiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)IPv4IPv6
Product Segment AX3000 ultimate AX performance: 2402 Mbps + 574 Mbps
Data Rate 802.11a: up to 54 Mbps802.11b: up to 11 Mbps802.11g: up to 54 MbpsWiFi 4 (802.11n): up to 300 MbpsWiFi 5 (802.11ac): up to 1734 MbpsWiFi 6 (802.11ax) 2.4GHz: up to 574 MbpsWiFi 6 (802.11ax) 5GHz: up to 2402 Mbps
Antenna Internal antennas × 4
Transmit / Receive 2.4GHz: 2×25GHz: 2×2
Processor 1.7 GHz quad-core processor
Memory 256 MB Flash512 MB RAM
Speed Boost Technologies OFDMABeamforming (standard-based & universal)1024-QAM20/40/80/160 MHz bandwidth160MHz may be restricted in some regions
Operating Frequency 2.4 GHz5 GHz
Operating Modes AiMesh Node ModeAccess Point Mode
I/O Ports 1 × 10/100/1000 Gigabit Ethernet Port (PoE supported)
Buttons Reset Button
LED Indicator Power × 2
Power Supply 802.3af PoE12V DC (max 1.5A, adapter included)
Power Consumption US: 10.0WEU: 9.1W
Mounting Options Wall MountCeiling Mount
Package Contents ExpertWiFi EBA63RJ-45 cablePower adapterWarranty cardQuick start guideWall-mount kit
Product Weight 426 g
Product Dimensions 160 × 160 × 42 mm
AiMesh Support AiMeshAiMesh Node
Device Access Control Time SchedulingRewardCustomized Internet ScheduleMax Profiles: 12Max Content Filter Rules: 12
Dashboard Dashboard supported
Self-Defined Network Separate networks for enhanced security & custom settings
Self-Defined Network Types EmployeeGuest NetworkScheduled NetworkMax Rules: 16
VLAN Support Yes
WiFi Scheduling One-Time AccessWeekly Schedule
WiFi Sharing QR CodePDF File
AP Isolation Supported
Security WPA/WPA2/WPA3-PersonalWPA/WPA2-EnterpriseWPSSSH
Traffic Control Real-time Traffic MonitorWired Traffic MonitorWireless Traffic Monitor
Wireless Features UTF-8 SSIDMAC Address Filter (Max 64)Wireless Scheduler
User Interface Web: ASUSWRTApp: ASUS ExpertWiFi App
Administration Configuration Backup & RestoreDiagnosis ToolsFeedback SystemSystem LogNew Device Connect NotificationLogin CaptchaConnection DiagnosisAuto Firmware Update
