Asus Expert Center PN64-B Barebone Mini PC |12th Gen| Intel Core i5
- 0.000 KD
0.000 KD- 0.000 KD
- Unit price
- per
Please Note :
-
Subject to Availability
-
Delivery Period Approximately: 10-15 Days
-
Payment Terms: 100% Advance
This mini PC is powered by a 13th generation Intel Core i7 processor, providing unbeatable speed and performance. It's perfect for professionals and experts who need a powerful and reliable machine to handle their demanding tasks with ease. With the sleek and compact design of the Asus Expert Center PN64-E1, you'll have the most advanced technology at your fingertips, allowing you to excel in your work and increase productivity. Whether you're working from home or in the office, this mini PC is the ultimate tool for your success.
Key Features
- Powered by the latest Intel 12th Generation Core processors
- Whole new hybrid architecture design with powerful performance-cores and efficient-cores for improved multitasking, streaming experience and intelligent workload optimization.
- DDR5-4800 memory support allows your computer to transfer data faster than DDR4
- Support one PCIe Gen4x4 SSD to deliver greater performance and lower latency
- 4 display located in the rear I/O panel including dual HDMI2.0
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Advanced fan control to achieve better heat dissipation
- 24/7 reliability — Extensively tested to ensure long-term dependability
Specification
| Model |
ASUS ExpertCenter PN64(Barebone)
|
| Item |
Asus Expert Center PN64-E1 Barebone Mini PC
|
| Item Code | 90MR00W2-M000E0 |
| CPU |
Intel® Core™ i7-13700H Processor, 35W TDP Intel® Core™ i5-13500H Processor, 35W TDP Intel® Core™ i7-12700H Processor, 35W TDP Intel® Core™ i5-12500H Processor, 35W TDP Intel® Core™ i3-1220P Processor, 28W TDP |
| Chipset | Integrated |
| Graphics |
Integrated - Intel® Iris® Xe Graphics (i7/i5 Processor) Integrated - Intel® UHD Graphics (i3 Processor) *Intel® Iris® Xe Graphics requires 128-bit dual channel memory for optimal performance |
| Memory |
2 x DDR5 SO-DIMM, Max. 16GB x 2(12th Gen CPU) or 32GB x 2(13th Gen CPU) * Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details. |
| Storage |
1 x M.2 2280 PCIe Gen4x4, supports 256GB~2TB NVMe™ SSD 1 x 2.5" SATA 6Gb/s, supports 1TB 7200rpm 7mm HDD * 2.5" HDD bay only supports 7mm height. ** Please check the Qualified Vendors List (QVL) for more details. |
|
Wireless Data Network
|
Intel® Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card Intel® Wi-Fi 6 (Gig+) 2x2 + Bluetooth® 5.2 Wireless Card *WiFi 7 and WiFi 6E 6GHz regulatory may vary among countries. *Bluetooth v5.2 and later version functions to be supported in Windows 11 or later. |
| LAN |
10/100/1000/2500 Mbps, 2.5G Intel® LAN
|
|
Front(Side) I/O Ports
|
1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen2 Type-A 1 x Audio Jack 1 x Kensington Lock(side) |
|
Back I/O Ports
|

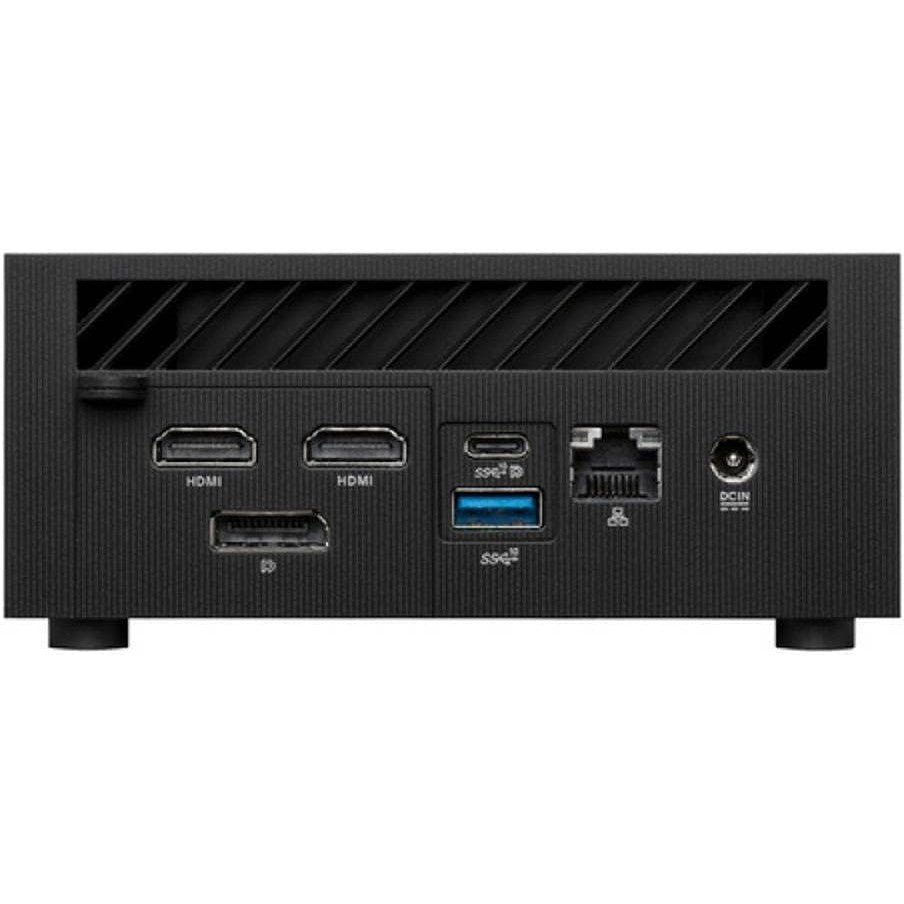

1 x USB 3.2 Gen2 Type-C (with DP1.4 output and PD input) 1 x USB 3.2 Gen2 Type-A 2 x HDMI 2.1 (Up to 4K@60Hz) 1 x Configurable Port 1 x 2.5G RJ45 LAN 1 x Padlock ring 1 x DC-in |
|
Configurable Port Options
|
1 x HDMI 2.1 (Up to 4K@60Hz) 1 x DisplayPort 1.4 1 x COM 1 x VGA 1 x 2.5G LAN |
| Speaker | No |
|
Power Supply
|
19Vdc, 6.32A, 120W Power Adapter 19Vdc, 4.74A, 90W Power Adapter |
| Dimensions (W x D x H) |
120 x 130 x 58 mm
|
|
Weight
|
0.75 kg(barebone)
|
| Color |
ECO Black ECO Black, non-logo |
|
Accessories
|
AC Adapter Driver DVD (non OS SKU only) Power Cord Screw Pack User Manual Warranty Card Keyboard & Mouse (optional) VESA Mount (optional) |
| Security | Trusted Platform Module (TPM)* *on selected model Trusted Platform Module (Firmware TPM) |
Delivery or pickup within 15 to 20 days
