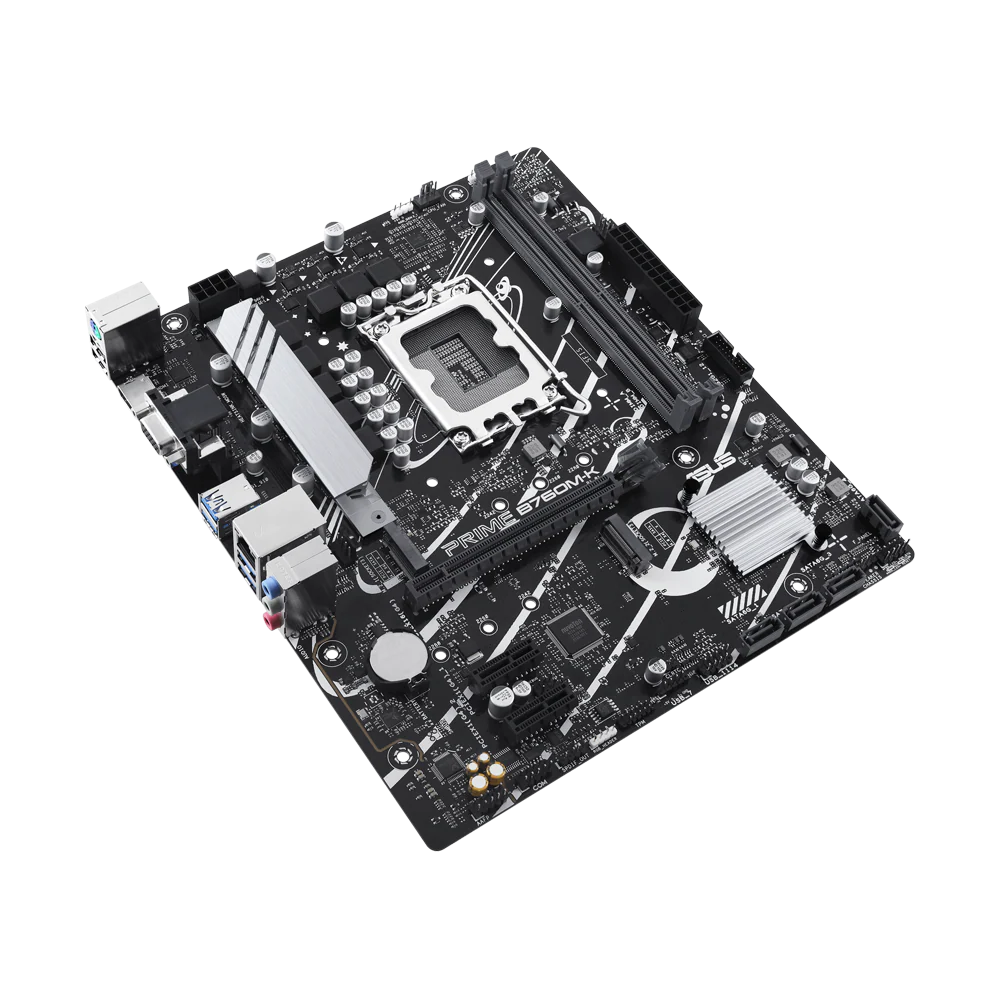

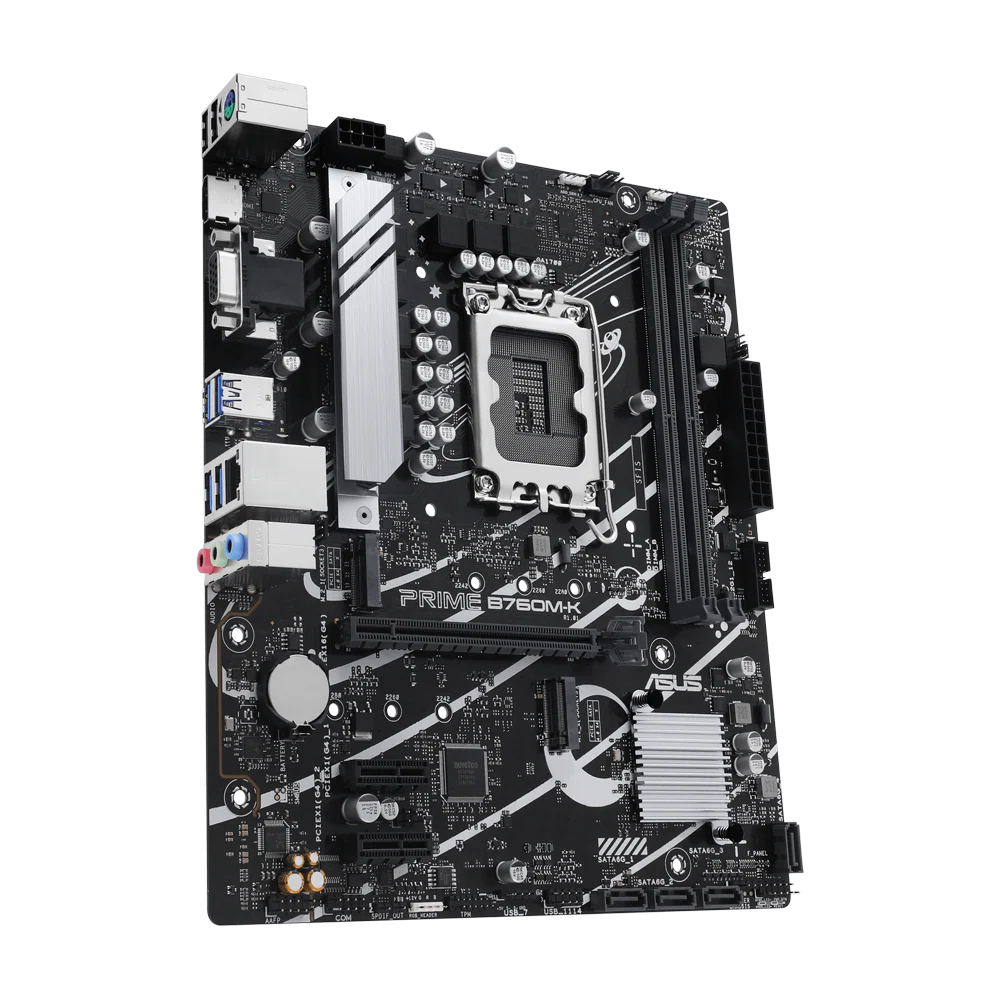

Asus Prime B760M-K Ddr5 Motherboard Black

Model

• PRIME B760M-K

CPU

• Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® B760 Chipset

Memory

• 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x VGA port
• 1 x HDMITM port**
• * Graphics specifications may vary between CPU types.
• ** Supports 4K@60Hz as specified in HDMITM 2.1.

Expansion Slots

• Intel® CoreTM Processors (14th & 13th & 12th Gen)
• 1 x PCIe 4.0 x16 slot
• Intel® B760 Chipset
• 2 x PCIe 4.0 x1 slots
• - To ensure compatibility of the device installed

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® CoreTM Processors (14th & 13th & 12th Gen)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

USB

• Rear USB (Total 6 ports)
• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A）
• Front USB (Total 5 ports)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x VGA port
• 1 x HDMITM port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports
• Miscellaneous
• 2 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Special Features

            ASUS 5X PROTECTION III

• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS EZ DIY
• - ProCool
• ASUS Thermal Solution
• - VRM heatsink design
• Aura Sync
• - Aura RGB header
• - Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software
• Armoury Crate
• - Aura Sync
• - Fan Xpert 2+
• - Power Saving
• - Two-Way AI Noise Cancellation
• AI Suite 3
• - DIGI+ VRM
• - PC Cleaner
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 2 x M.2 anchors
• Documentation
• 1 x User guide

Operating System

• Windows® 11, Windows® 10 64-bit

Form Factor

• mATX Form Factor
• 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
