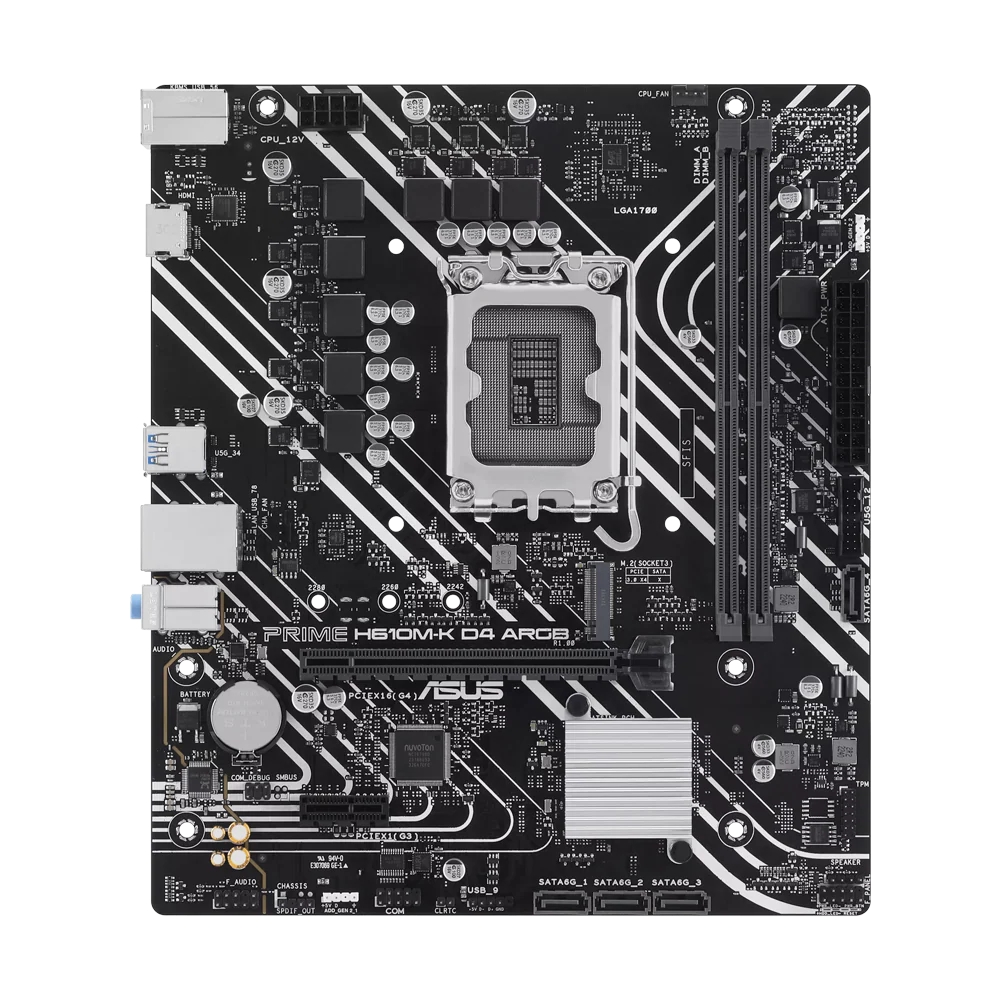

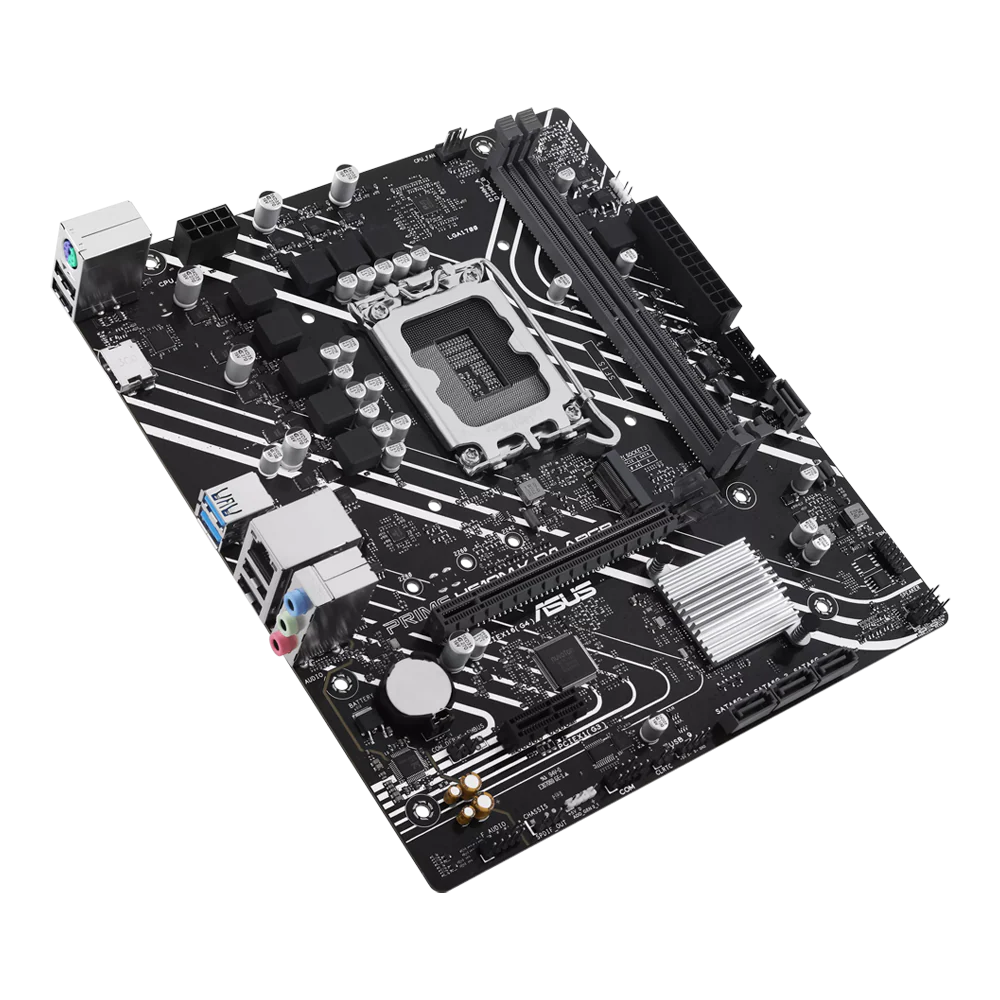

Asus Prime H610M-K Ddr4 Argb Motherboard Black

Model

• PRIME H610M-K ARGB

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® H610 Chipset

Memory

• 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

• Supports Intel® Extreme Memory Profile (XMP)

• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information

• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x VGA port

• 1 x HDMI™ port**

• * Graphics specifications may vary between CPU types.

• ** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel® Core™ Processors (14th & 13th & 12th Gen)

• 1 x PCIe 4.0 x16 slot

• Intel® H610 Chipset

• 1 x PCIe 3.0 x1 slot

Storage

• Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

• Intel® H610 Chipset

• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 1Gb Ethernet

USB

• Rear USB (Total 6 ports)

• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 3 ports)

• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

• 1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x VGA port

• 1 x HDMI™ port

• 1 x Realtek 1Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connectors

• Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 2 x 4-pin Chassis Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

Storage related

• 1 x M.2 slot (Key M)

• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

• 1 x USB 2.0 header supports 1 additional USB 2.0 port

• Miscellaneous

• 2 x Addressable Gen 2 headers

• 1 x Clear CMOS header

• 1 x Front Panel Audio header (AAFP)

• 1 x COM Port header

• 1 x S/PDIF Out header

• 1 x Speaker header

• 1 x SPI TPM header (14-1pin)

• 1 x 10-1 pin System Panel header

Special Features

• ASUS 5X PROTECTION III

• - DIGI+ VRM

• - LANGuard

• - Overvoltage Protection

• - SafeSlot Core

• - Stainless-Steel Back I/O

• ASUS Q-Design

• - Q-DIMM

• - Q-LED Core

• - Q-Slot

ASUS Thermal Solution

• - Aluminum heatsink design

Aura Sync

• - Addressable Gen 2 RGB headers

Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 2+

• - Two-Way AI Noise Cancellation

• AI Suite 3

• - EPU

• - DIGI+ VRM

• - PC Cleaner

• ASUS CPU-Z

• Norton 360 Deluxe (60 Days Free Trial)

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x I/O Shield

• 1 x M.2 Anchor

• Documentation

• 1 x User guide

Operating System

• Windows® 11, Windows® 10 64-bit

Form Factor

• micro-ATX Form Factor

• 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
