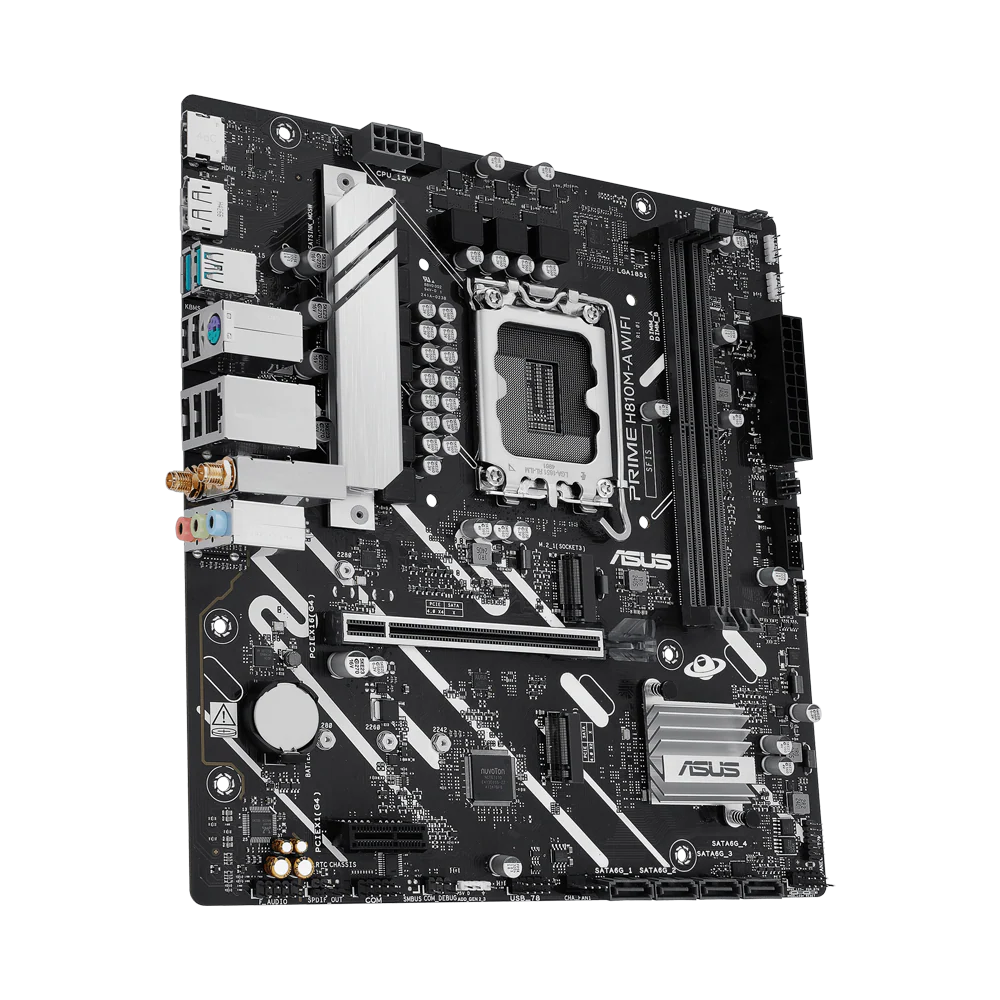

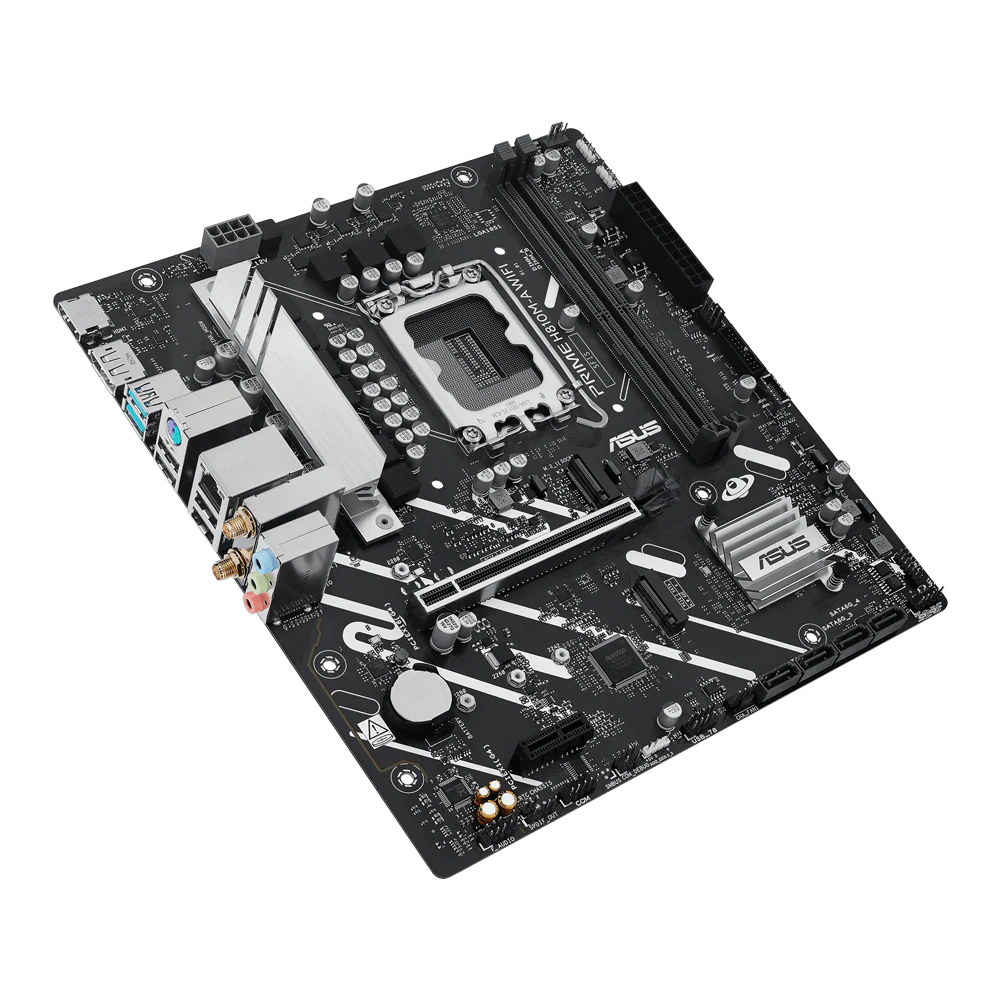

Asus Prime H810M-A Wifi Ddr5 Motherboard Black

Model

• PRIME H810M-A WIFI

CPU

• Support Intel® Core™ Ultra Processors (Series 2) , LGA1851

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® H810 Chipset

Memory

• 2 x DIMM slots, max. 128GB, DDR5

• Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

• Dual channel memory architecture

• DIMM Fit

• Supports Intel® Extreme Memory Profile (XMP) memory module

• ASUS Enhanced Memory Profile II (AEMP II)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information


• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort

• 1 x HDMI™ port

• Graphics specifications may vary between CPU types.


• Supports max. 4K@60Hz as specified in DisplayPort 1.4.

• Supports 4K@60Hz as specified in HDMI 2.1.

• VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)

• 1 x PCIe 4.0 x16 slot

• Intel® H810 Chipset

• 1 x PCIe 4.0 x1 slot

• - To ensure compatibility of the device installed.

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

• Intel® H810 Chipset

• M.2_1 slot (Key M), type 2280  (supports PCIe 4.0 x4 mode)

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Intel® 1Gb Ethernet port*

• ASUS LANGuard

• *With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

Wireless & Bluetooth

• Wi-Fi 6

• 1x1 Wi-Fi 6 (802.11ax)

• Supports 2.4/5GHz frequency band

• Bluetooth® v5.3*

• * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 6 ports)

• 2 x USB 10Gbps ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 5 ports)

• 1 x USB 5Gbps connector (supports USB Type-C®)*

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

• * USB Type-C® power delivery output: max. 5V/3A

• ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x USB 10Gbps ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Intel® 1Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors

• Fan and Cooling Related

• 1 x 4-pin CPU Fan header

• 2 x 4-pin Chassis Fan headers

• Power Related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V CPU Power connector

• Storage Related

• 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

USB

• 1 x USB 5Gbps connector (supports USB Type-C® )

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable Gen2 headers

• 1 x Clear CMOS header

• 1 x COM Port header

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x S/PDIF Out header

• 1 x SPI TPM header (14-1 pin)

• 1 x 10-1 pin Front Panel System header

Special Features

• ASUS 5X PROTECTION III

• - DIGI+ VRM

• - LANGuard

• - Overvoltage protection

• - SafeSlot Core+

• - Stainless-steel back I/O

• ASUS Q-Design

• - Q-DIMM

• - Q-Dashboard

• - Q-LED Core

• - Q-Slot

• ASUS Thermal Solution

• - VRM heatsink design

• Aura Sync

• - Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software

• Armory Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 2+

• - Power Saving

• ASUS DriverHub

• ASUS GlideX

• ASUS CPU-Z

• Norton 360 Deluxe (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• ASUS EZ DIY

• - ASUS Crash Free BIOS 3

• - ASUS EZ Flash

• - ASUS UEFI BIOS EZ Mode

• - ASUS My Hotkey

BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS Wi-Fi moving antenna

• 1 x I/O shield

• 1 x Screw package for M.2 SSD

• Documentation

• 1 x Quick start guide

Operating System

• Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor

• micro-ATX Form Factor

• 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
