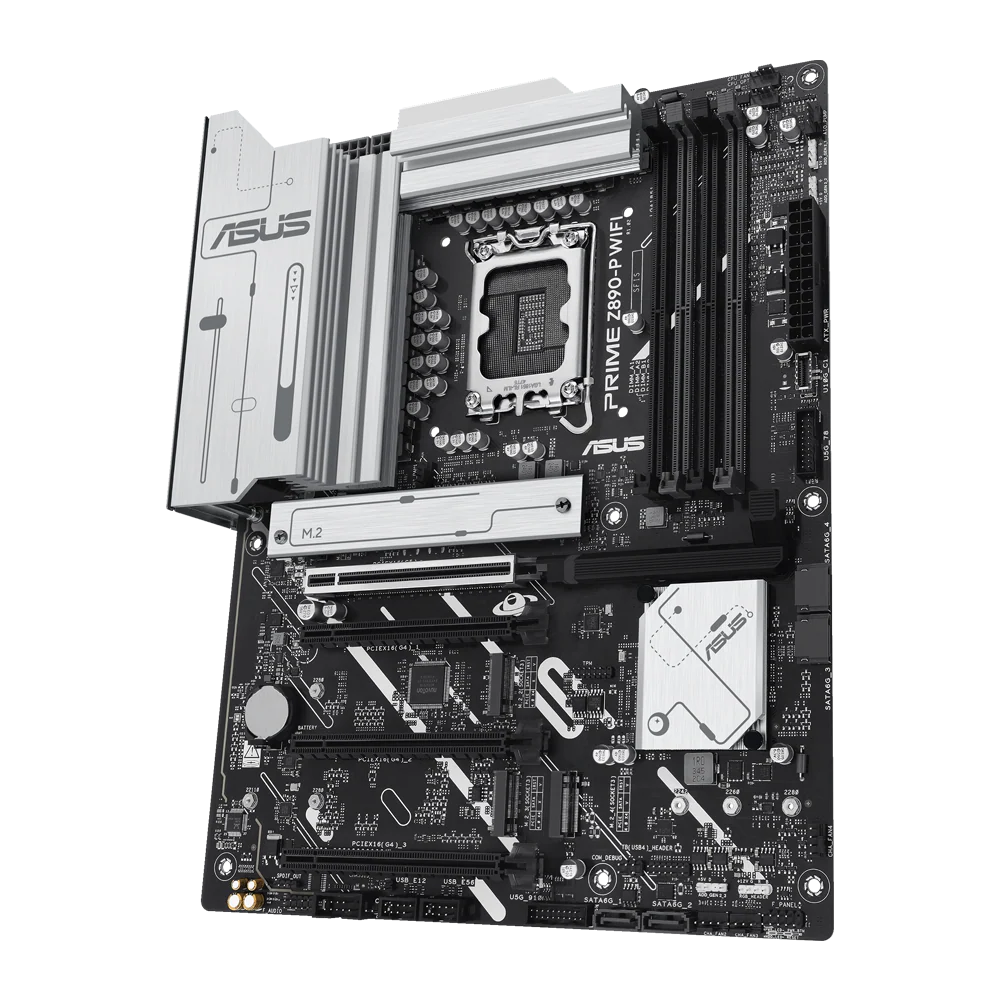

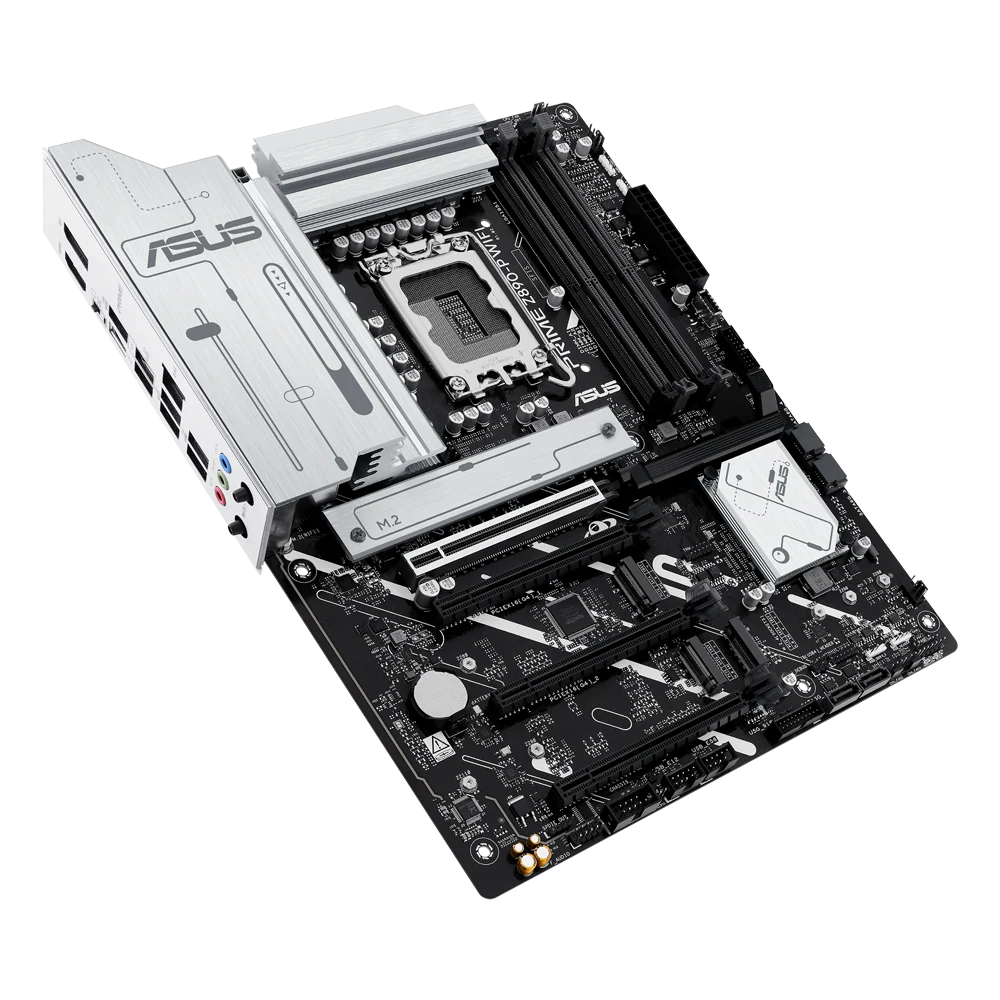

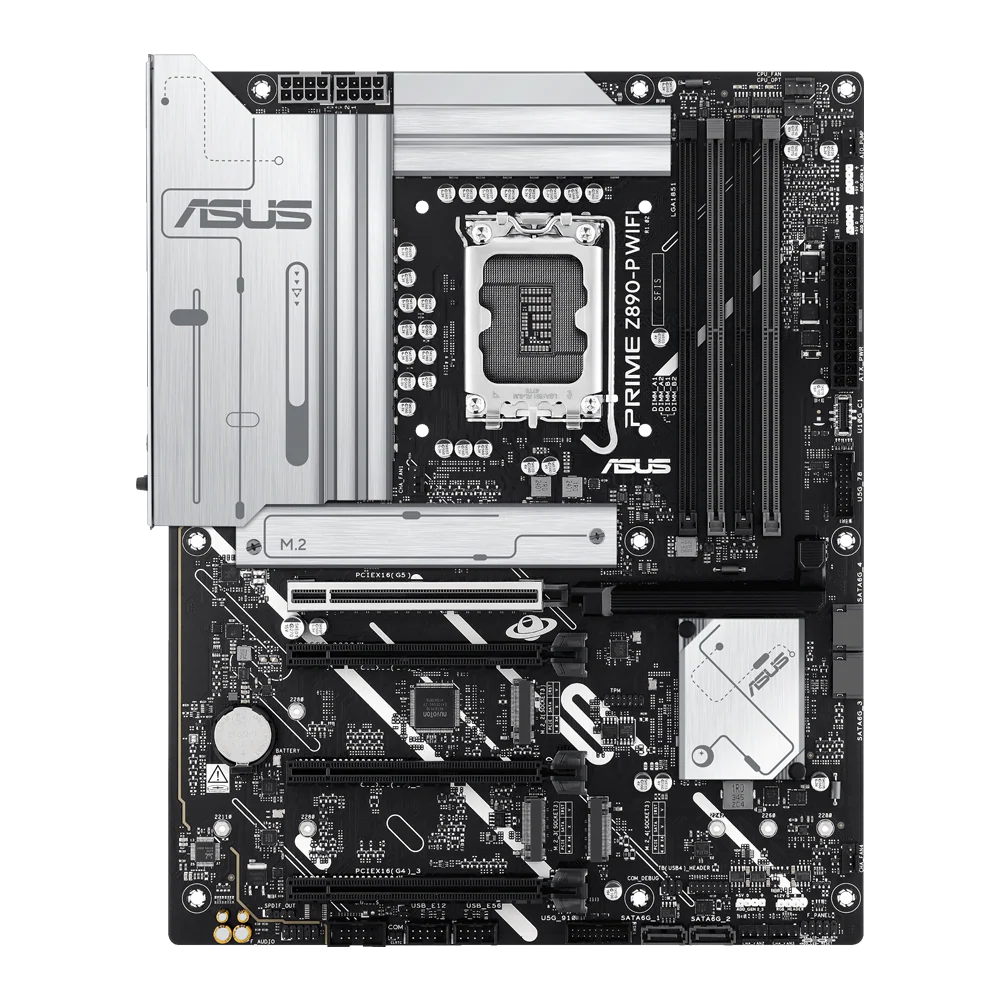

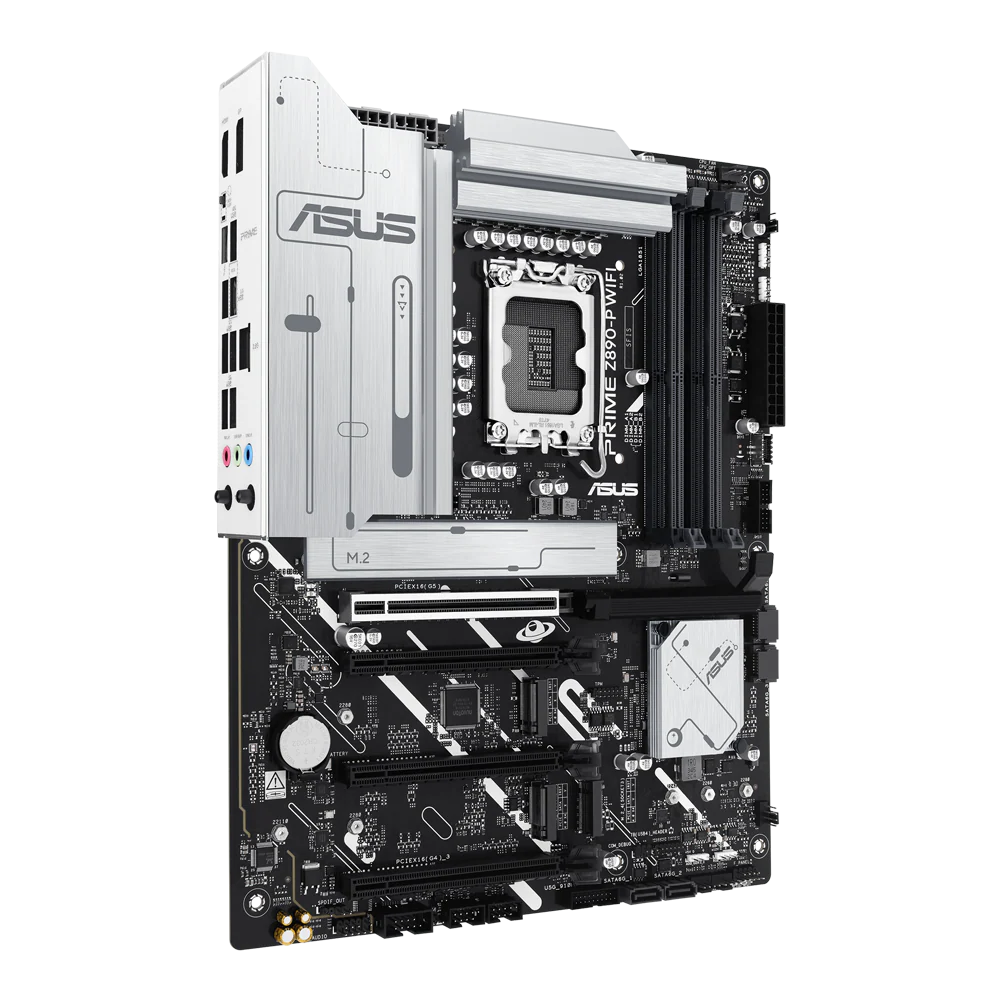

Asus Prime Z890-P Wifi Ddr5 Motherboard Black

CPU

• Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• Refer to https://www.asus.com/support/download-center/ for CPU support list.
• Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 192GB, DDR5
• Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMPIII)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab

• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs
• Graphics specifications may vary between CPU types.
• Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• Supports 4K@60Hz as specified in HDMI 2.1.
• In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
• In DP alt mode, supports up to UHBR20.
• VGA resolution support depends on processors' or graphic cards' resolution.
• While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)*
• 1 x PCIe 5.0 x16 slot
• Intel® Z890 Chipset
• 2 x PCIe 4.0 x16 slots (support x4 mode)
• 1 x PCIe 4.0 x16 slot (supports x1 mode)
• * Please check the PCIe bifurcation table

• - To ensure compatibility of the device installed


Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel® Core™ Ultra Processors (Series 2)*
• M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• Intel® Z890 Chipset
• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard
• Wireless & Bluetooth
• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4***
• *Wi-Fi features may vary depending on the operating system
•  For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 8 ports)
• 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)**
• Front USB (Total 9 ports)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports**
• USB Type-C® power delivery output: max. 5V/3A
• USB_E1 port, USB_E2 port, USB_E3 port and USB_E 4 port share the bandwidth.
• USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection,
• Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback

Audio Features

• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 1 x Thunderbolt™ 4 USB Type-C® port
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin Front Panel System header
• 1 x Thunderbolt™ (USB4®) header

Special Features

• ASUS 5X PROTECTION III
• - DIGI+ VRM (- Digital power design with DrMOS)
• - LANGuard
• - Overvoltage Protection
• - SafeSlot
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - M.2 Q-Latch
• - PCIe Slot Q-Release
• - Q-Antenna
• - Q-Dashboard
• - Q-DIMM
• - Q-LED Core
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - ProCool
• - Pre-mounted I/O shield
• Aura Sync
• - Aura RGB header
• - Addressable Gen2 headers

Software Features

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 4 (with AI Cooling II)
• - Power Saving
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• ASUS CPU-Z
• TurboV Core
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey
• NPU Boost (Intel K-series Processors only)

BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 rubber package
• 2 x Screw packages for M.2 SSD
• Documentation
• 1 x Quick start guide

Operating System

• Windows 11 (22H2 & later)

Form Factor

• ATX Form Factor
• 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
