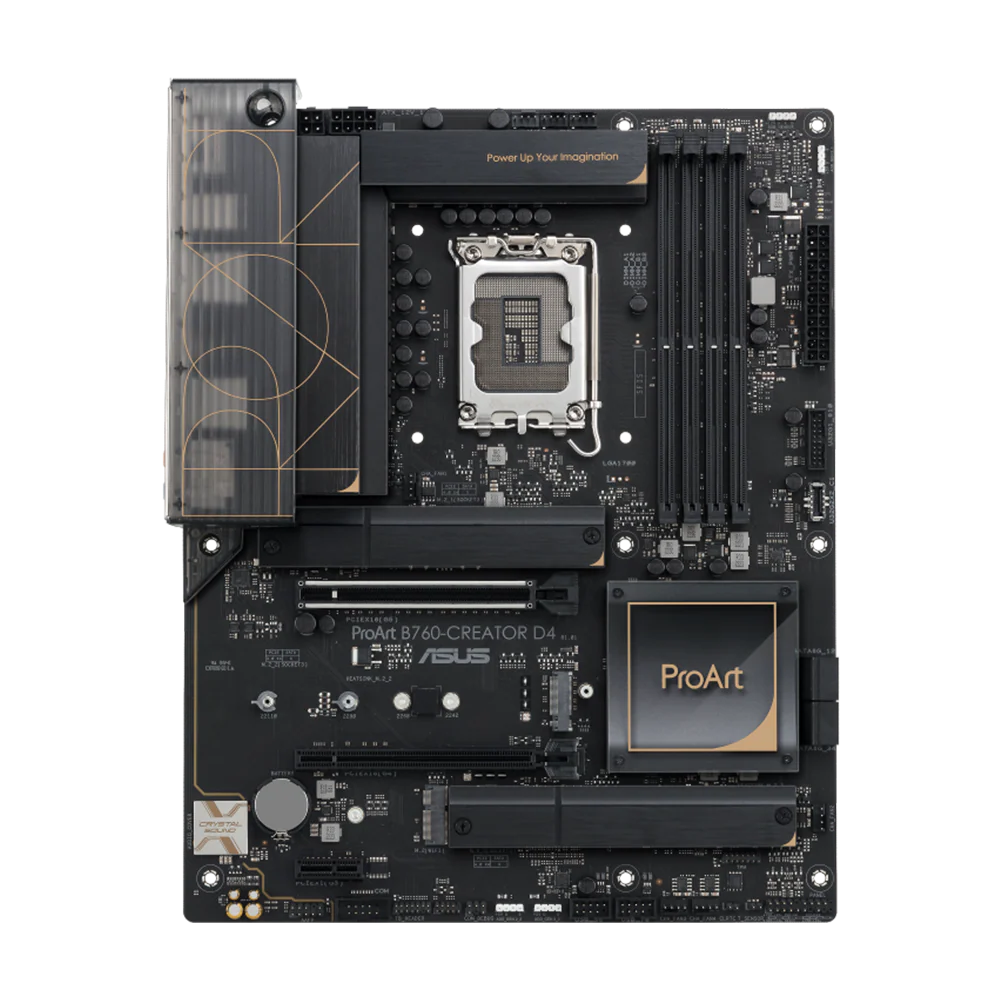

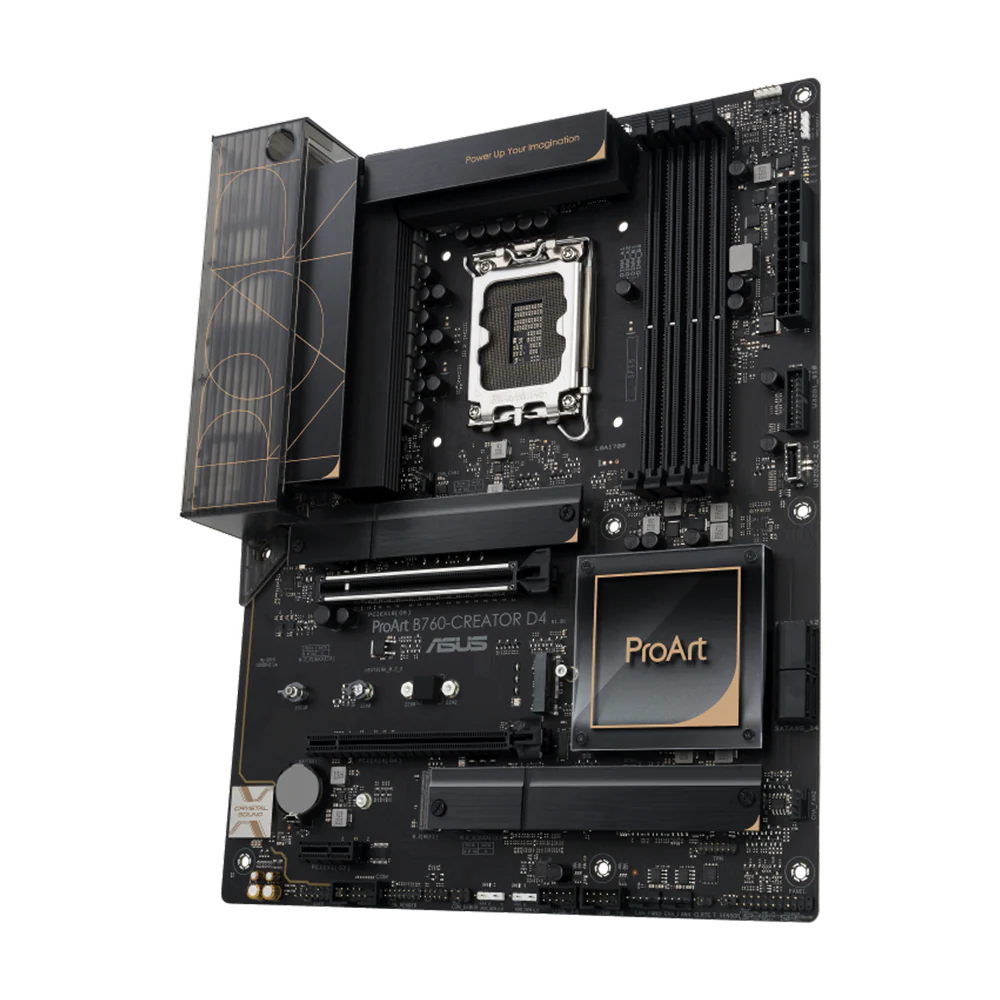

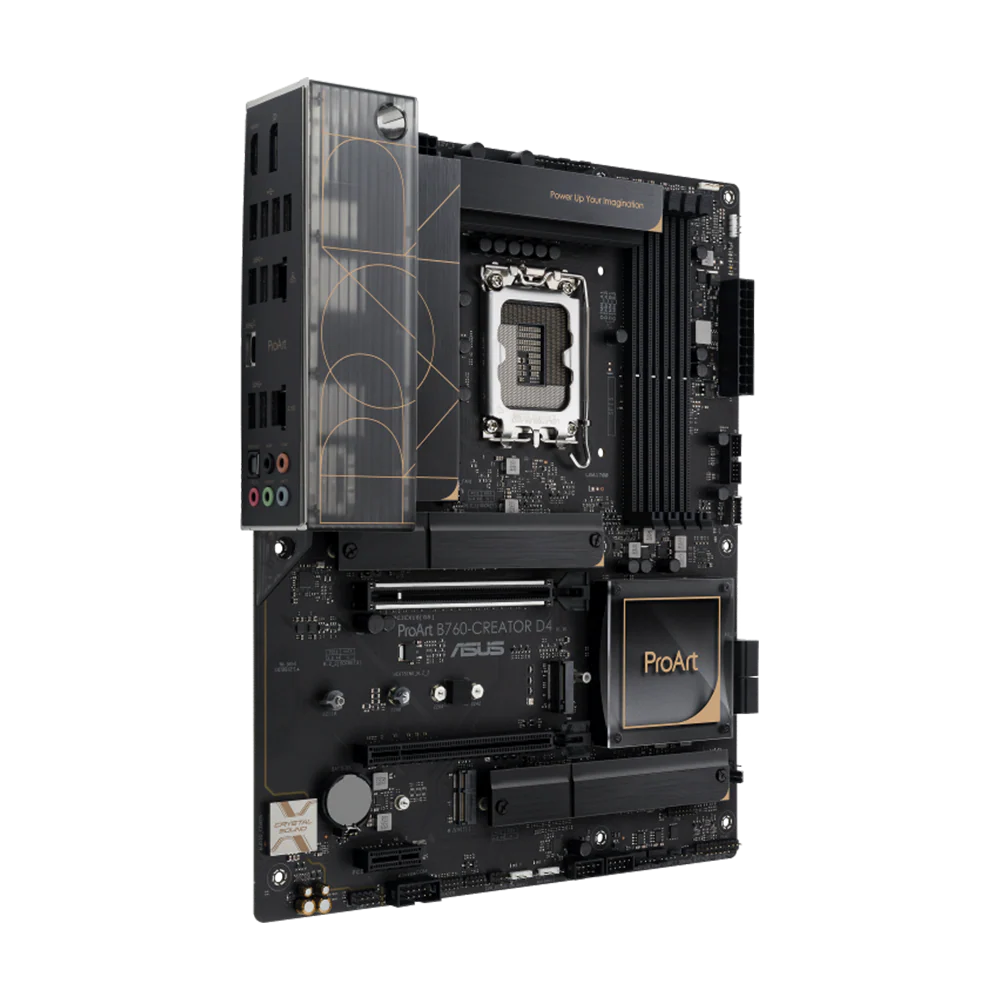

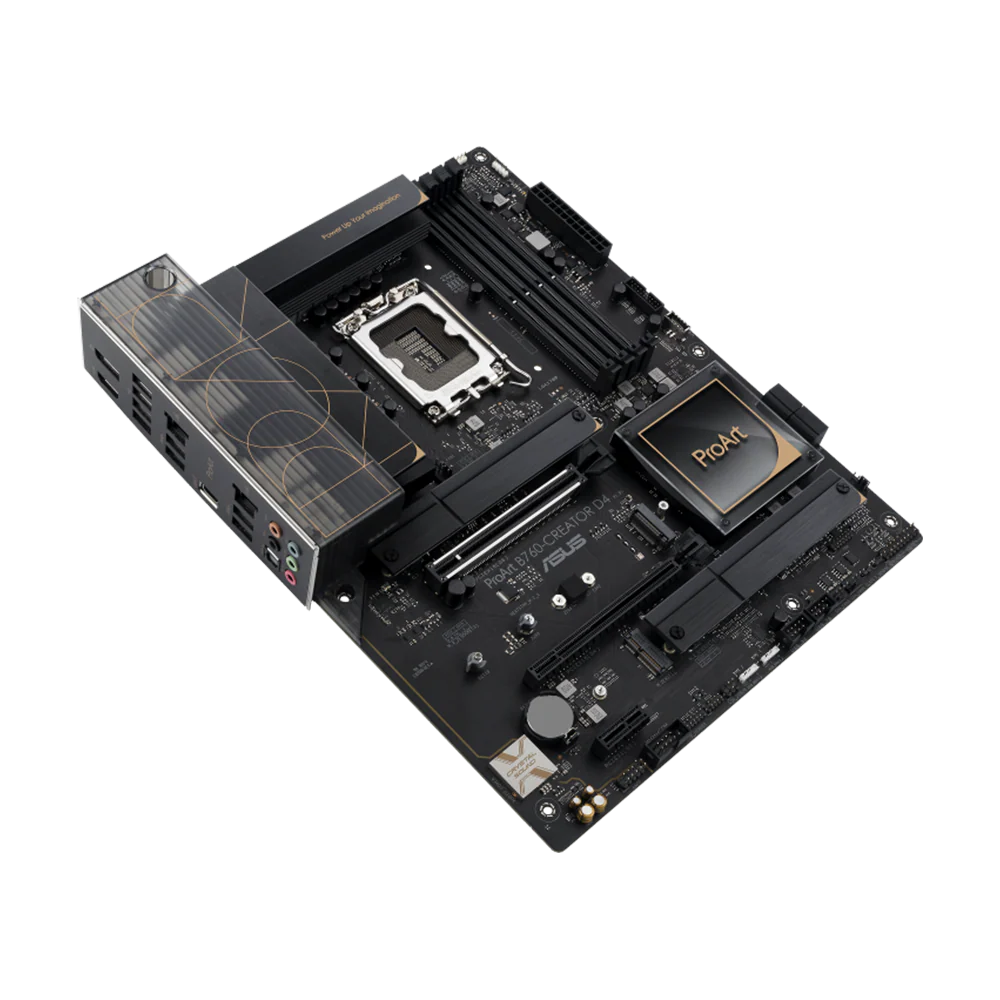

Asus Proart B760 Creator Ddr4 Atx Motherboard Black

Intel ^® Socket LGA1700 for 13th Gen Intel ^® Coreâ„¢ Processors & 12th Gen Intel ^® Coreâ„¢, Pentium ^® Gold and Celeron ^® Processors

Supports Intel ^® 10 nm CPU

Supports Intel ^® Turbo Boost Technology 2.0 and Intel ^® Turbo Boost Max Technology 3.0**

** Intel ^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

4 x DIMM, Max. 128GB, DDR4 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel ^® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information

1 x HDMI ^® port

1 x DisplayPort port

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Support 4K@60Hz as specified in HDMI 2.1.

Support max. 8K@60Hz as specified in DisplayPort 1.4.

Intel ^® 13th & 12th Gen Processors

1 x PCIe 5.0/4.0/3.0 x16 slot

Intel ^® B760 Chipset*

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slot**

** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.

Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*

Intel ^® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Intel ^® 13th & 12th Gen processors support PCIe 4.0 x4 mode.

Intel ^® B760 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)***

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports***

* Intel ^® Rapid Storage Technology supports SATA RAID 0/1/5/10.

*** M.2_2 slot shares bandwidth with PCIe X1 and WiFi Key E. M.2_2 will run at PCI 3.0 x2 mode either a device is detected at PCIe x1 or WiFi Key E slot.

1 x Realtek 2.5Gb Ethernet

1 x Intel ^® 1Gb Ethernet

ASUS LANGuard

M.2 slot only (Key E, PCIe)*

*Wi-Fi module is sold separately.

Rear USB (Total 9 ports)

1 x USB 3.2 Gen 2 Type-C ^® port

4 x USB 3.2 Gen 1 ports (4 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ^®)

1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

1 x USB 3.2 Gen 2 port (1 x USB Type-C ^®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI ^® port

1 x Realtek  2.5Gb Ethernet port

1 x Intel ^® 1Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ^®)

1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

1 x Thunderboltâ„¢  header

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- LANGuard

- Overvoltage Protection

- SafeSlot

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- Flexible M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- ProCool

- Pre-mounted I/O shield

AURA Sync

- AURA RGB header

- Addressable Gen 2 headers

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Power Saving

- Two-Way AI Noise Cancelation

AI Suite 3

- Performance And Power Saving Utility

 DIGI+ VRM

 Turbo app

ASUS CPU-Z

IT Management software supported

- ASUS Control Center Express(ACCE)

ProArt Creator Hub

CreationFirst

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Cables

2 x SATA 6Gb/s cables

Miscellaneous

2 x M.2 Rubber packages

1 x Screw package for M.2 Key E

1 x ProArt ruler

1 x Q-connector

Documentation

1 x ACC Express Activation Key Card

1 x User guide

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
