| Brand |
Asus |
| Model |
Asus ROG Rapture GT-AX11000 Pro |
| Network Standard |
IEEE 802.11ax, IPv4, IPv6 |
| Product Segment |
AX11000 ultimate AX performance |
| AX technology |
Yes |
| Data Rate |
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps, 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps, 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps |
| Antenna |
External antenna x 8 (non-detachable) |
| Transmit/Receive |
2.4GHz 4x4, 5GHz-1 4x4, 5GHz-2 4x4 |
| Processor |
2.0GHz quad-core processor |
| Memory |
256MB NAND flash and 1GB DDR4 RAM |
| Boosts speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate, 20/40/80/160 MHz bandwidth |
| Operating Frequency |
Tri-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 |

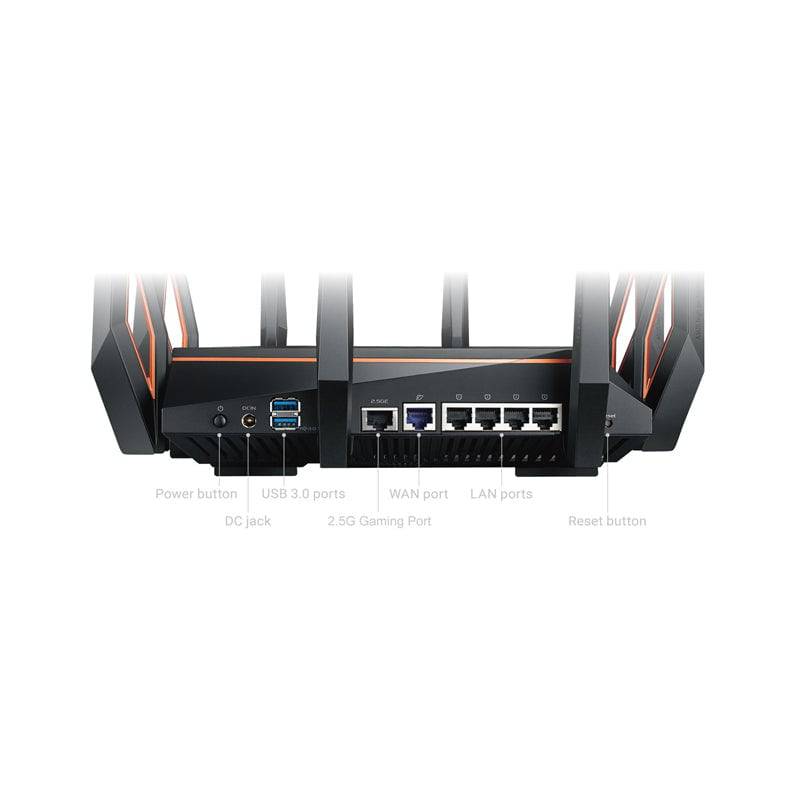

| Ports |
1 x 2.5 Gigabit WAN Port, 1 x 10 Gigabit WAN/LAN Port, 4 x Gigabit LAN Ports, 1 x USB 3.2 Gen 1 Port, 1 x USB 2.0 Port |
| Button |
WPS Button, LED Button, Reset Button, Power Switch |
| LED Indicator |
Power x 1, 2.4G x 1, 5GHz-1 x 1, 5GHz-2 x 1, WPS x 1, 10GE x 1, LAN x 1, WAN x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A ；19.5 V with max. 3.33 A |
| Operating mode |
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge |
| Operating system |
ASUSWRT |
| AiMesh |
Yes, Primary AiMesh router, AiMesh node |
| Router APP |
ASUS Router APP |
