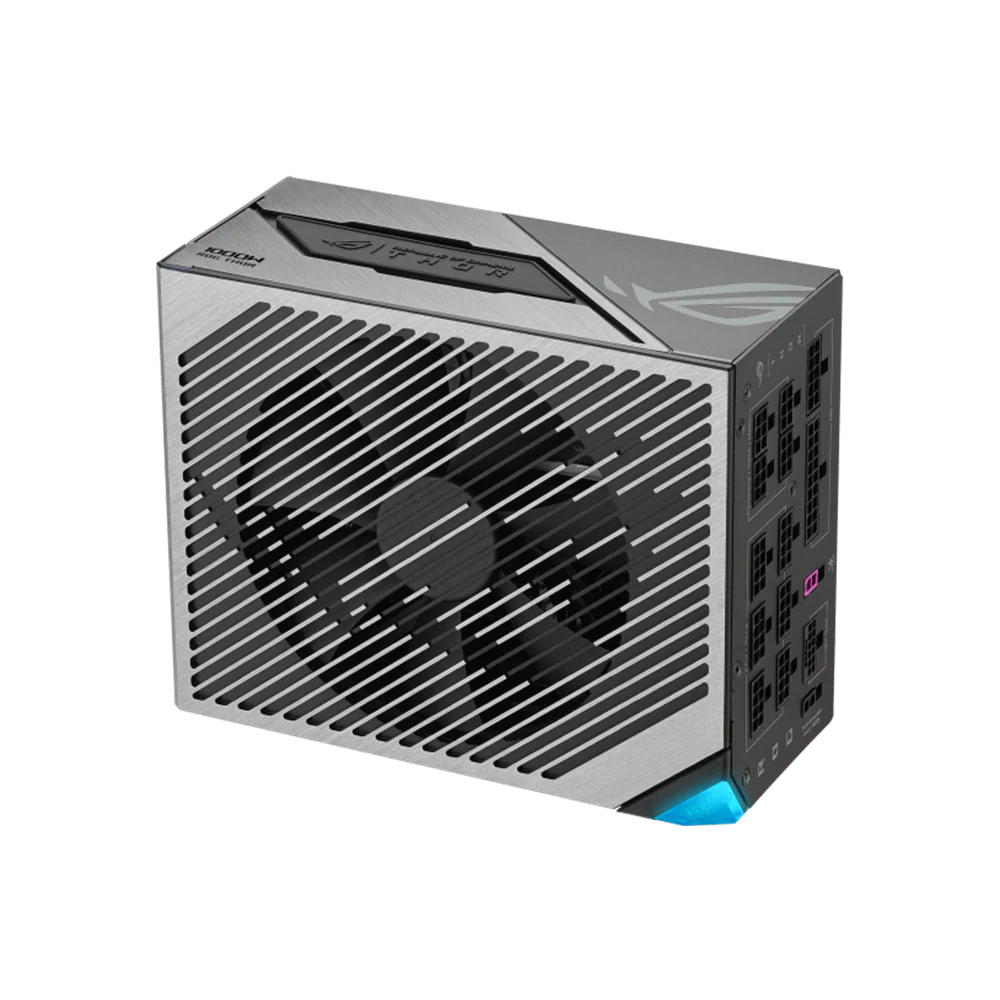

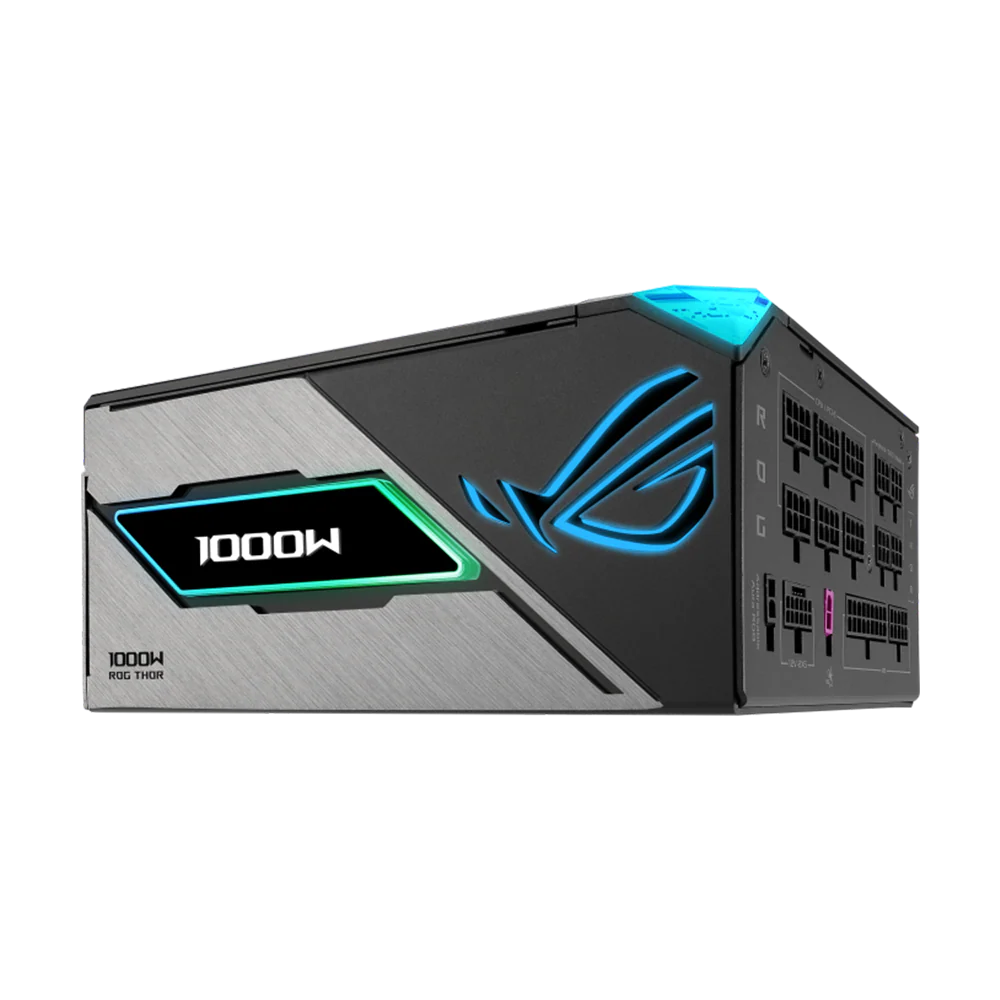

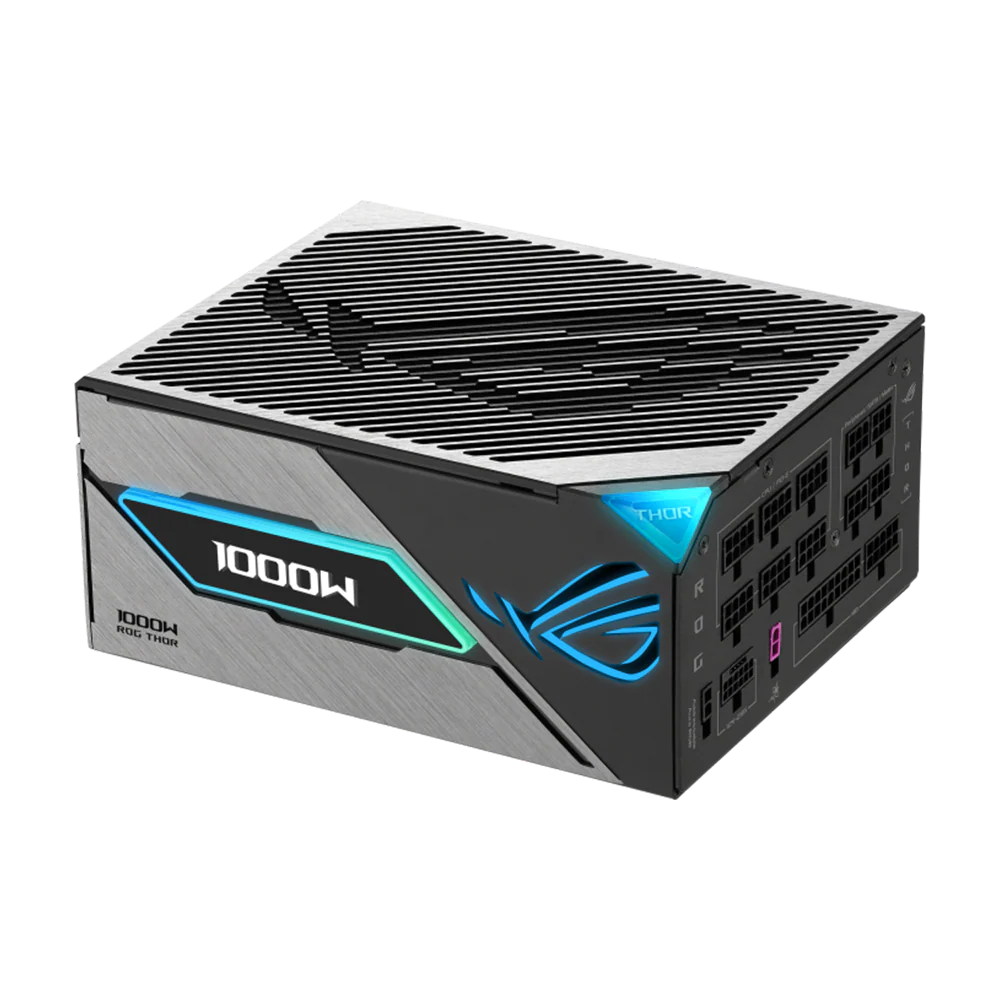

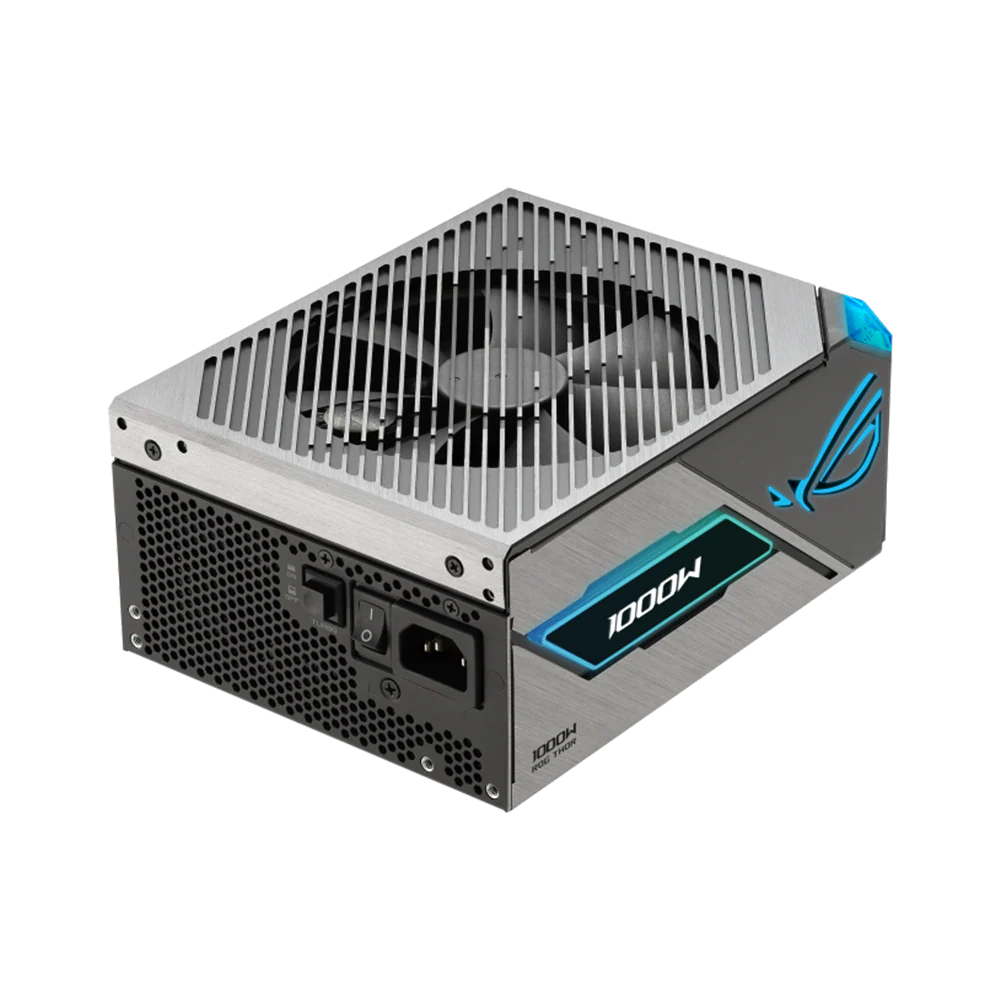

Asus Rog Thor 1000W Platinum Iii 80 Plus Platinum Atx 3.1 Pcie Gen 5 Power Supply - Black

The ROG Thor 1000W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

The ROG Thor 1000W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

ENGINEERING

GaN MOSFET

The ROG Thor 1000W Platinum III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

Key Features:

• GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
• "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
• Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
• Turbo Mode : Premium components and a fine-tuned fan curve unlock support for extended power excursions.
• ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
• Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
• ATX 3.1 compatible : ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
• Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety.
• 80 PLUS Platinum certified : ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency.

Specifications

• Model : ROG Thor 1000W Platinum III
• PFC Type : Active PFC
• ATX Standard : ATX 3.1
• Dimensions : 190 x 150 x 86 mm
• Efficiency : 80Plus Platinum
• MTBF : >120,000 hrs @ 25°C
• Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials : ROHS
• AC Input Range : 100-240Vac
• DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
• Maximum Load : 30A 25A 83.33A 0.3A 3A
• Combined Load : 125W 125W 1000W 3.6W 15W
• Total Output : 1000W
