Asus Rog Thor 1200W Platinum Iii 80 Plus Platinum Atx 3.1 Pcie Gen 5 Power Supply - Black

The ROG Thor 1200W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

The ROG Thor 1200W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

ENGINEERING

GaN MOSFET
The ROG Thor 1200W Platinum III PSU boasts an innovative GaN MOSFET that deliver up to 30% more power efficiency than standard MOSFETs. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation.

Key Features:

• GEN 5
• 1200W Max Power
• 80Plus Platinum Efficiency
• ARGB Aura Sync
• Fully Modular
• ATX 3.1
• Thor OLED display

Specifications

• Model : ROG Thor 1200W Platinum III
• PFC Type : Active PFC
• ATX Standard : ATX 3.1
• Dimensions : 190 x 150 x 86 mm
• Efficiency : 80Plus Platinum
• MTBF : >120,000 hrs @ 25°C
• Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials : ROHS
• AC Input Range : 100-240Vac
• DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
• Maximum Load : 30A 25A 100A 0.3A 3A
• Combined Load : 125W 125W 1200W 3.6W 15W
• Total Output : 1200W

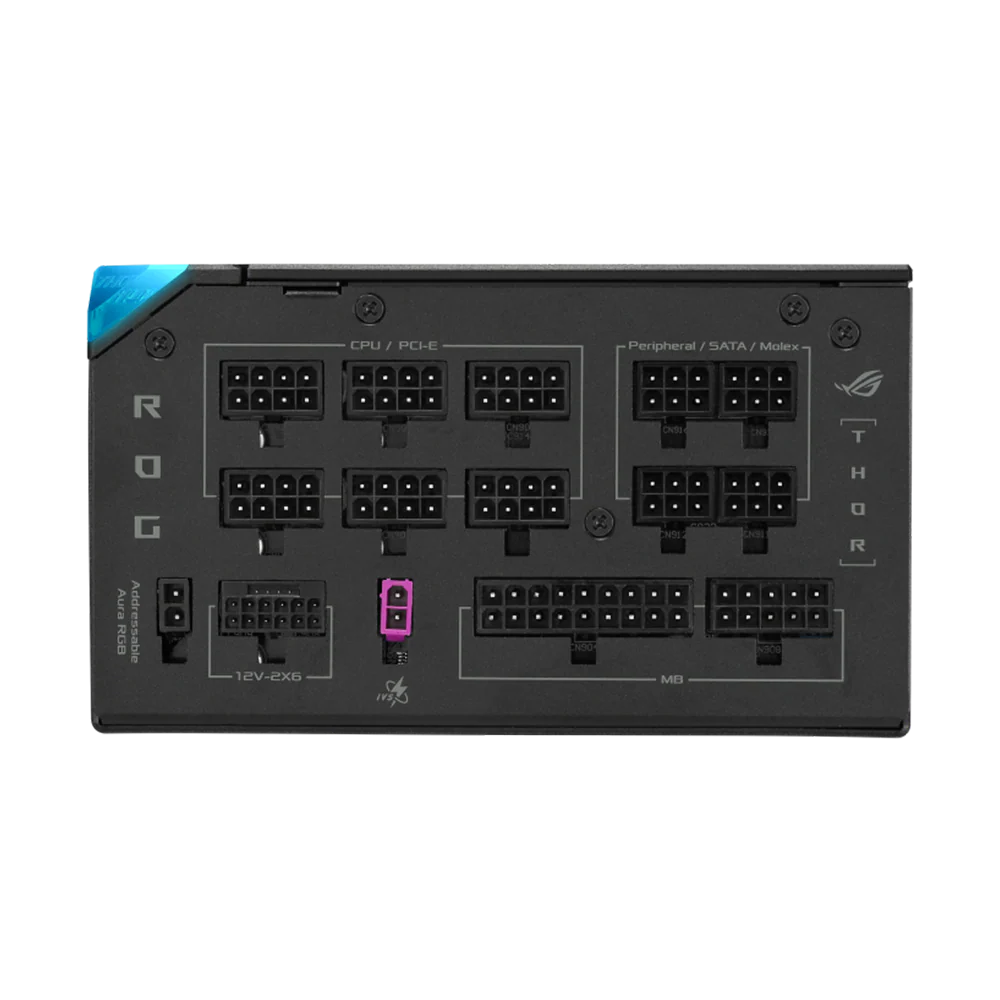

• Cable Connectors
• MB 24/20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 16-pin x 1
• PCI-E 6+2-pin x 4
• SATA x 7
• PERIPHERAL x 6
• Package Contents : Power Cord x 1
• Motherboard Power Cable x 1 (610mm)
• CPU Cable x 2 (1000mm)
• PCI-E Gen 5.1 16-pin Cable x 1 (750mm)
• PCI-E Cable 1-to-1 x 4 (750mm)
• SATA Cable 1-to-4 x 1 (400+120+120+120mm)
• SATA Cable 1-to-3 x 1 (400+120+120mm)
• Peripheral 1-to-3 x 2 (400+150+150mm)
• Addressable RGB Cable x 1 (800mm)
• ROG sticker x 1
• ROG cable tie x 6
• Chassis Screws Package x 1
• Cable Tie x 12
• User Manual x 1
• Weight : 2.37 KG (single PSU)
• AURA SYNC : ARGB
• Cybenetics Noise Level Certification : A++
• 0dB Technology : Supported. The fan shuts off entirely when the PSU is under certain load
• 0dB Fan Button : Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
