Brand | EZVIZ |

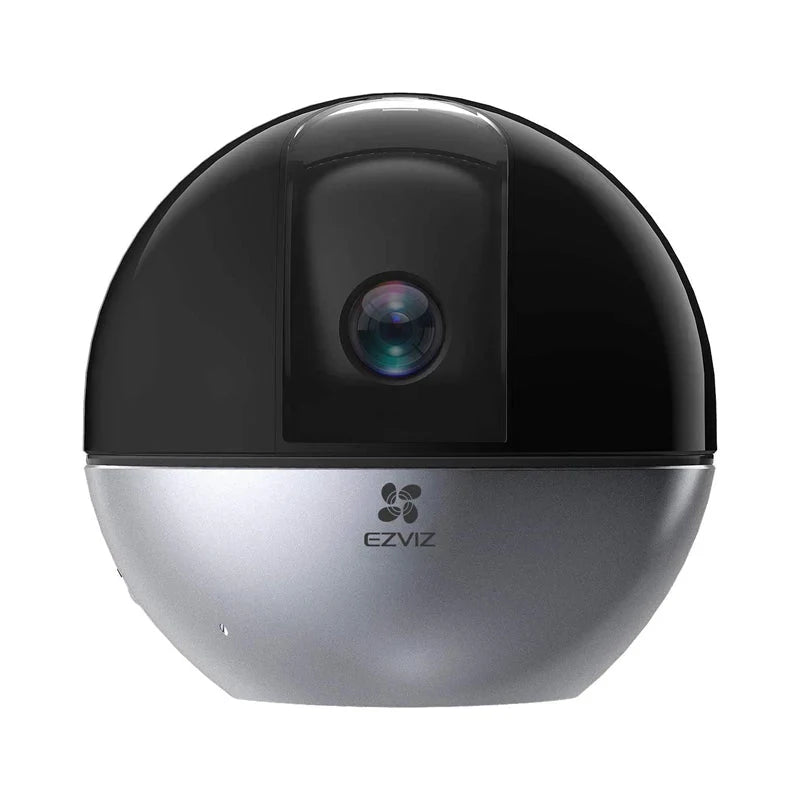

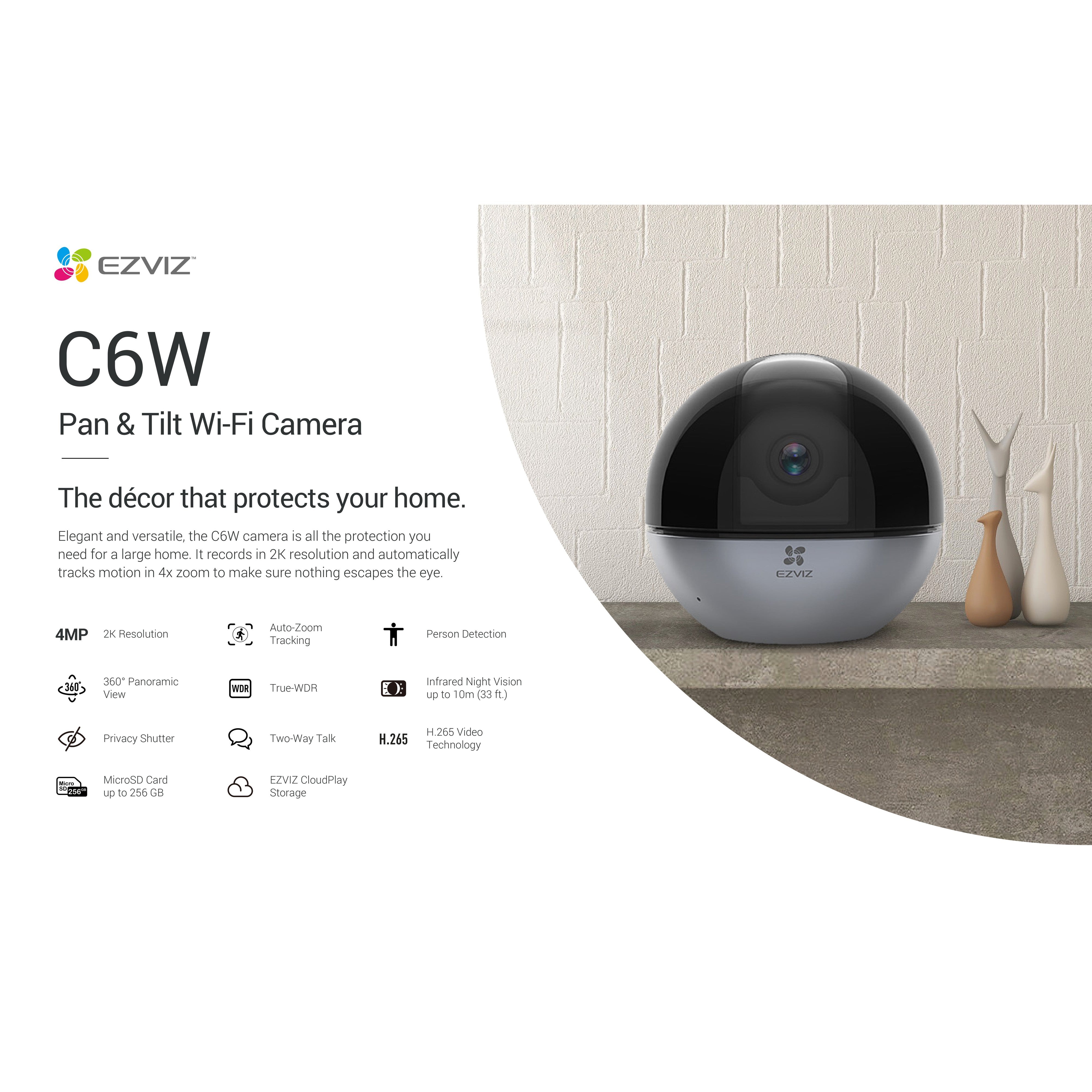

Model | CS-C6W Indoor Wi-Fi Camera |
Image Sensor | 1/2.7" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 4mm@ F2.0, view angle: 83° (Horizontal), 57° (Vertical), 104° (Diagonal) |
PT Angle | Pan: 340°, Tilt: 75° |
Minimum Illumination | 0.5 Lux @ (F2.0, AGC ON), 0 Lux with IR |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |

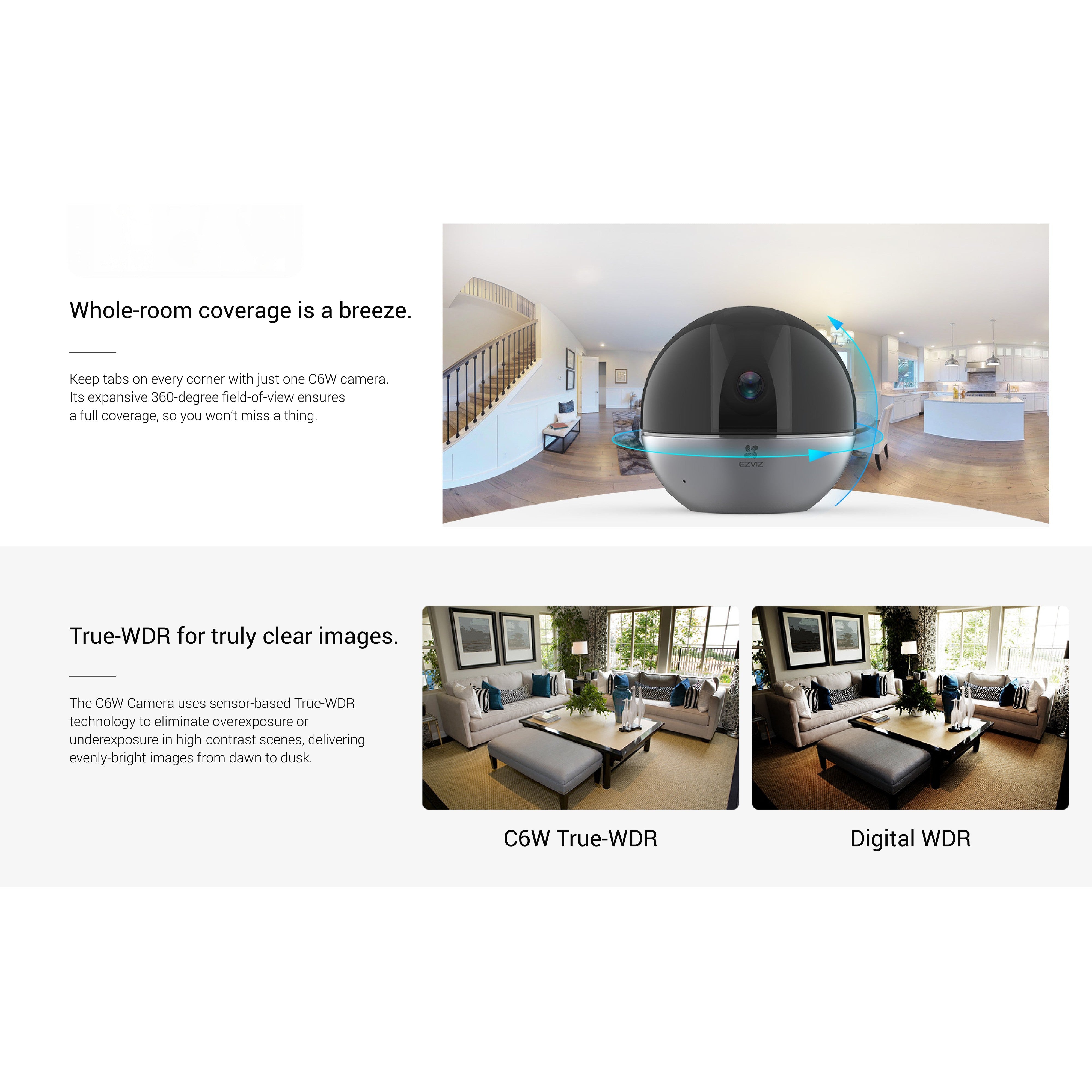

WDR | True-WDR |
BLC | Supports |
Night Vision | 10m |

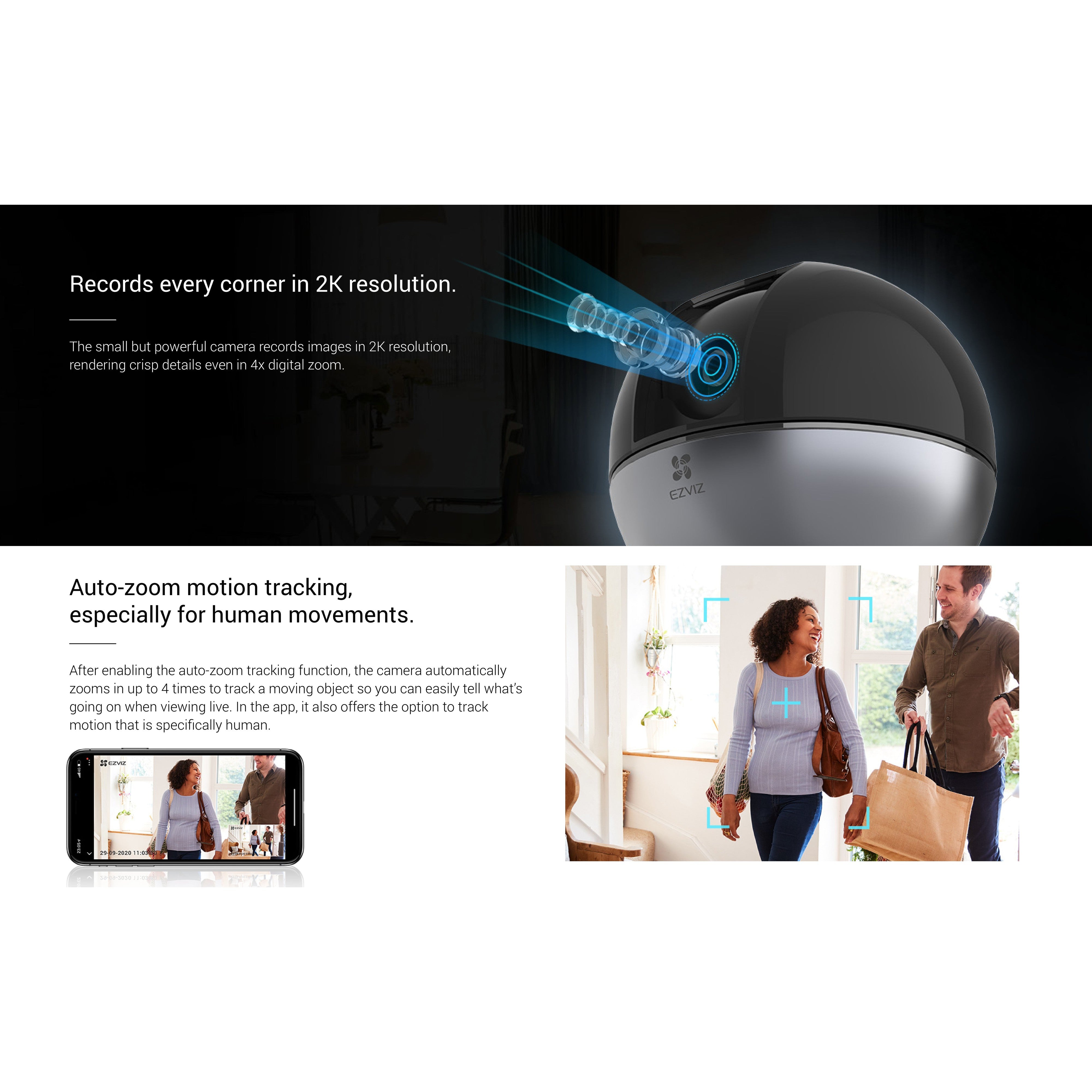

Max. Resolution | 2560 × 1440 |
Frame Rate | Max: 25fps; Self-Adaptive during network transmission |
Video Compression | H.265 / H.264 |
Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. |
Audio Bit Rate | Self-Adaptive |
Max. Bitrate | 4Mbps |
Local Storage | MicroSD card slot (Max. 256G) |
Cloud Storage | EZVIZ Cloud Storage |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.412 GHz ~ 2.472 GHz |
Channel Bandwidth | Supports 20MHz |
Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission Rate | 11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ cloud proprietary protocol |
Interface Protocol | EZVIZ cloud proprietary protocol |
Wired Network | RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
Smart Alarm | AI Person Detection |
Customized Alert Area | Supports |

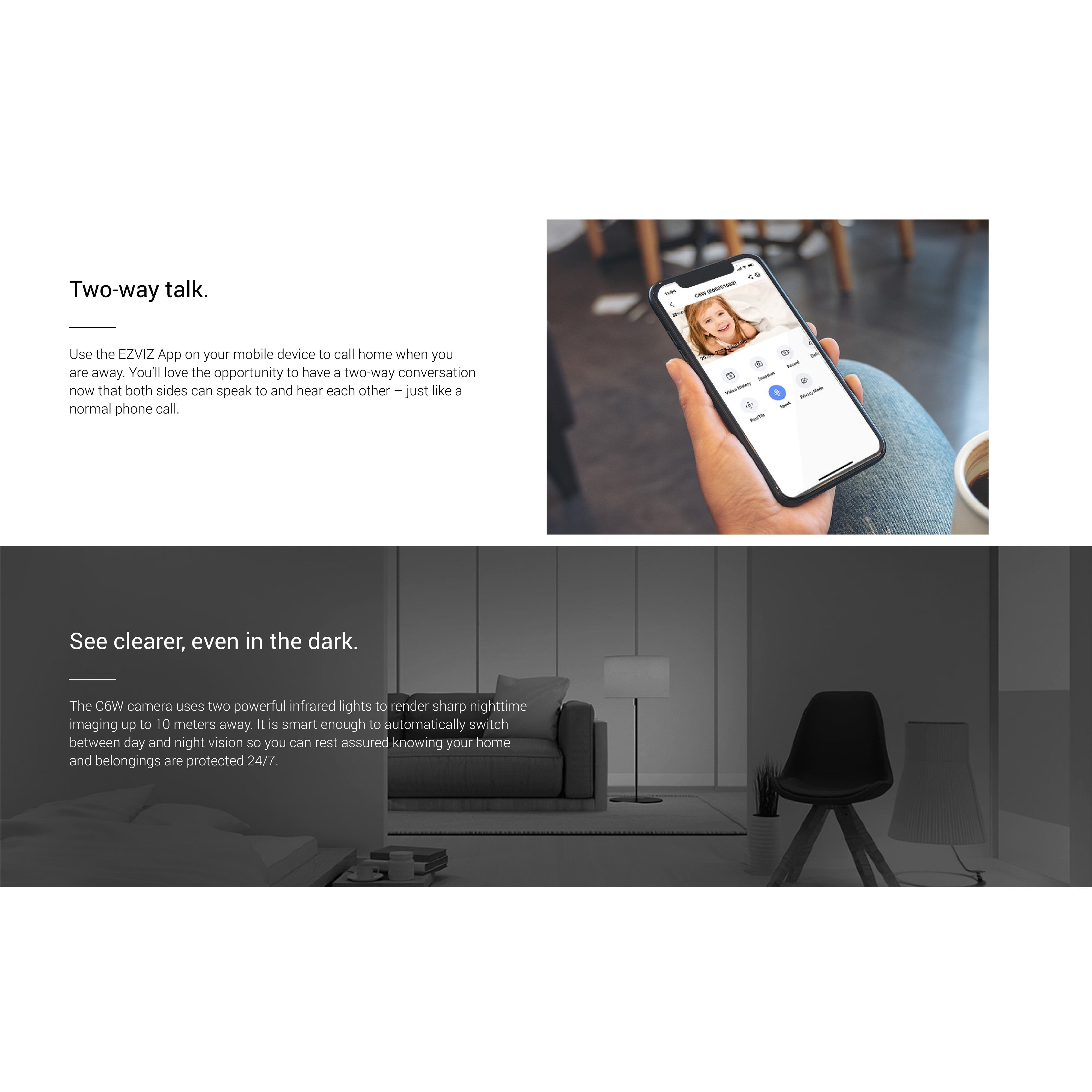

Two-Way Talk | Supports |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
Operating Conditions | -10°C ~ 45°C (14°F to 113 °F), Humidity 95% or less (non-condensing) |
Power Supply | DC 5V / 2A |
Power Consumption | MAX. 8W |
Dimensions | 95.8 x 95.8 x 90.6 mm |
Packaging Dimensions | 126 x 126 x 160 mm |
Weight | 513 g |
