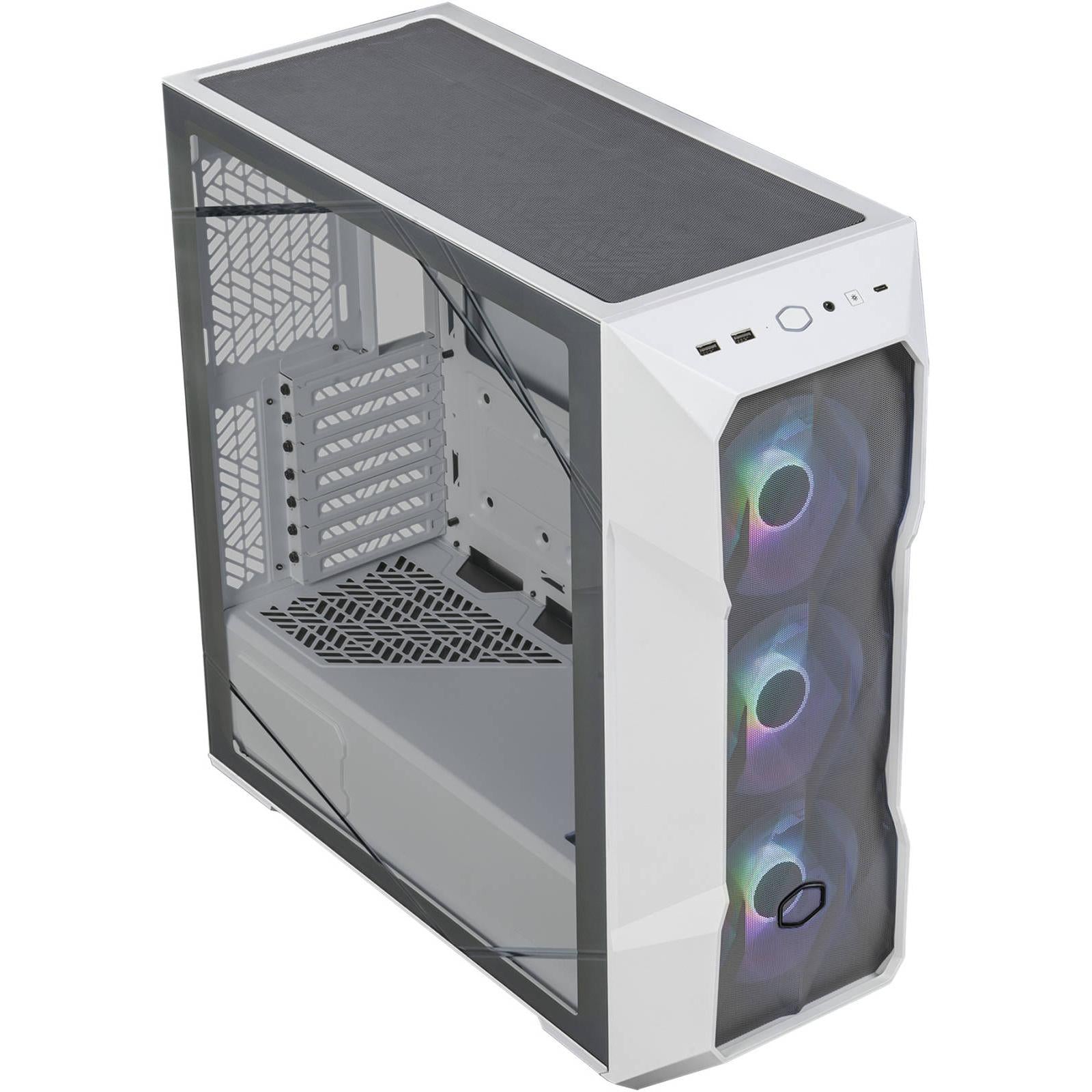

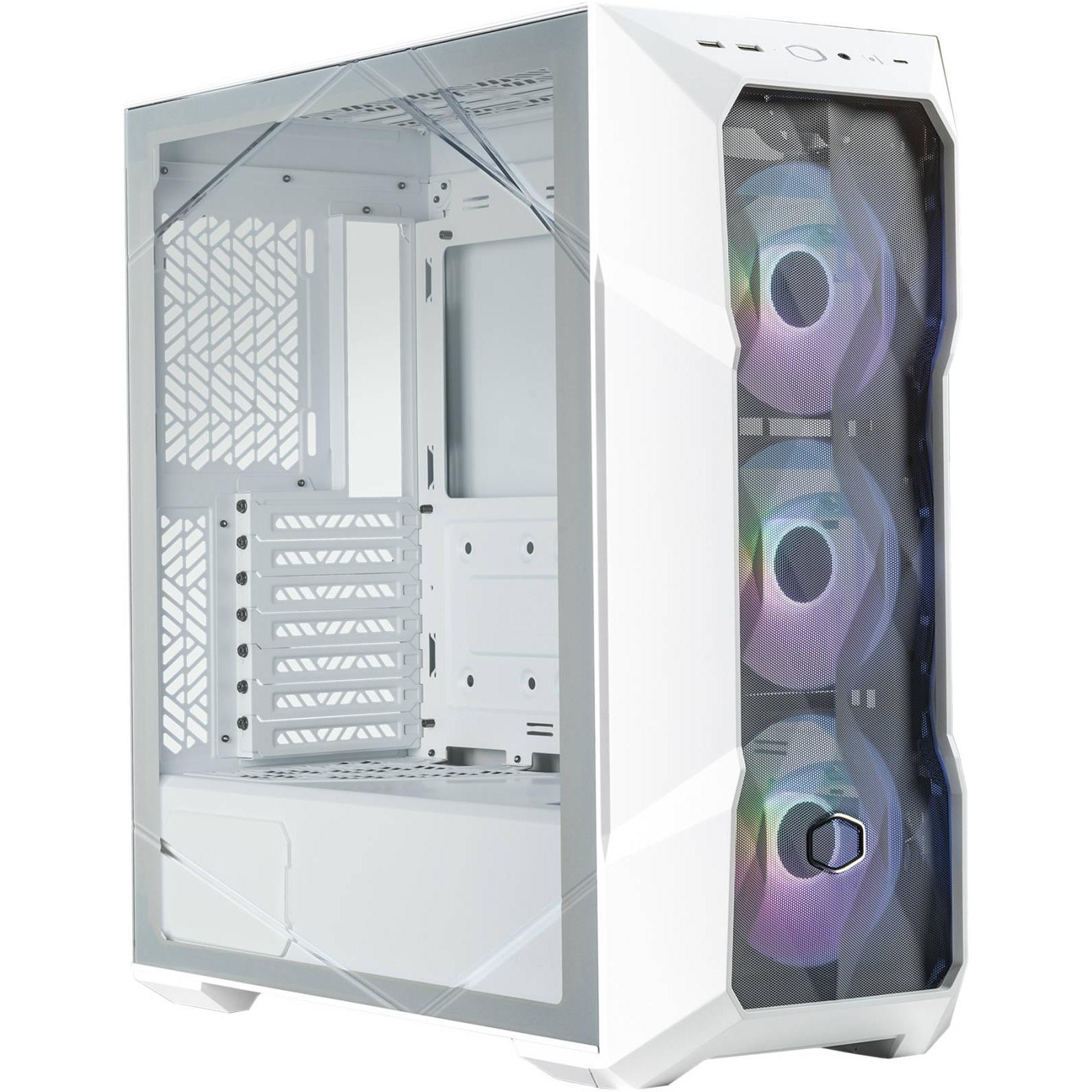

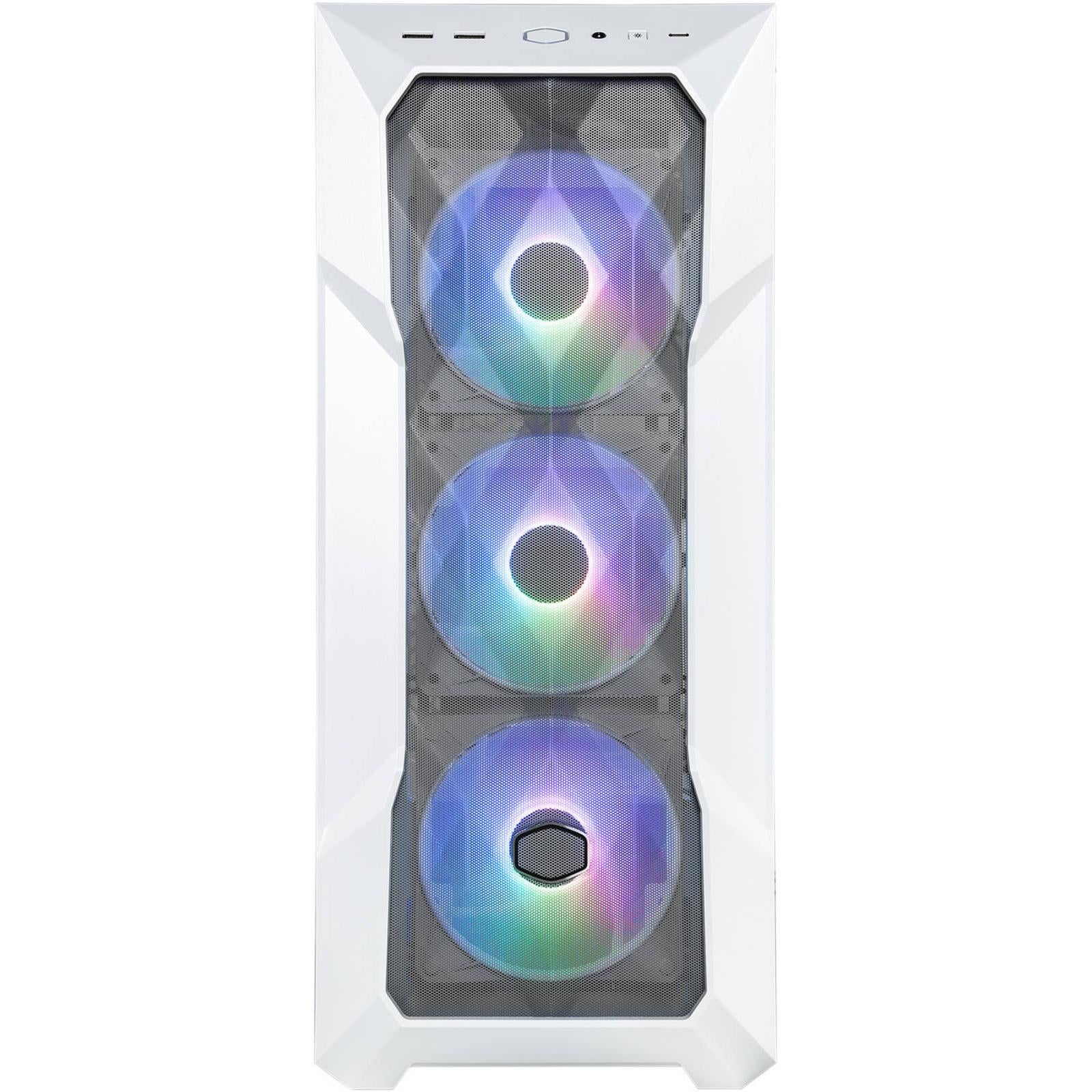

The Cooler Master MasterBox TD500 Mesh V2 ARGB ATX Mid Tower Case in White delivers exceptional thermal performance with contemporary minimalist aesthetics for discerning system builders. This mid-tower chassis supports standard ATX, Micro-ATX, and Mini-ITX motherboards, accommodating graphics cards exceeding 370mm and high-performance tower coolers reaching 180mm in height. The prominent mesh front panel in white finish maximizes intake airflow while integrated dust filtration preserves component longevity during intensive computing sessions. Integrated addressable ARGB lighting synchronizes seamlessly with compatible RGB ecosystems, enabling sophisticated color coordination and dynamic lighting effects throughout your build. The V2 design iteration features refined internal architecture with optimized cable management solutions and tool-free fan mounting mechanisms that expedite assembly and future upgrades.
Removable HDD cage
| Model Number | TD500V2-WGNN-S00 |
| Exterior Color | Black, White |
| Materials - Exterior | Steel, Mesh, Plastic |
| Materials - Left Side Panel | Tempered Glass |
| Dimensions (L x W x H) | 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions) |
| Motherboard Support | Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature) |
| Expansion Slots | 7 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 3 |
| I/O Panel - USB Ports | 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C |
| I/O Panel - Audio In / Out | 1x Audio Jack |
| I/O Panel - Other | 1x ARGB Fan Hub |
| Pre-installed Fans - Front | 3x 120mm CF120 ARGB |
| Pre-installed Fans - Rear | N/A |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Radiator Support - Top | 120mm, 140mm, 240mm, 280mm, 360mm (recommended maximum thickness - 55mm) |
| Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support - Rear | 120mm |
| Clearance - CPU Cooler | 165mm/6.49" |
| Clearance - PSU | 200mm (Recommended up to 170mm) |
| Clearance - GFX | 410mm / 16.14" |
| Cable Routing - Behind Motherboard Tray | 19mm / 0.74" |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Series | MasterBox Series |
| Size | Mid Tower |
