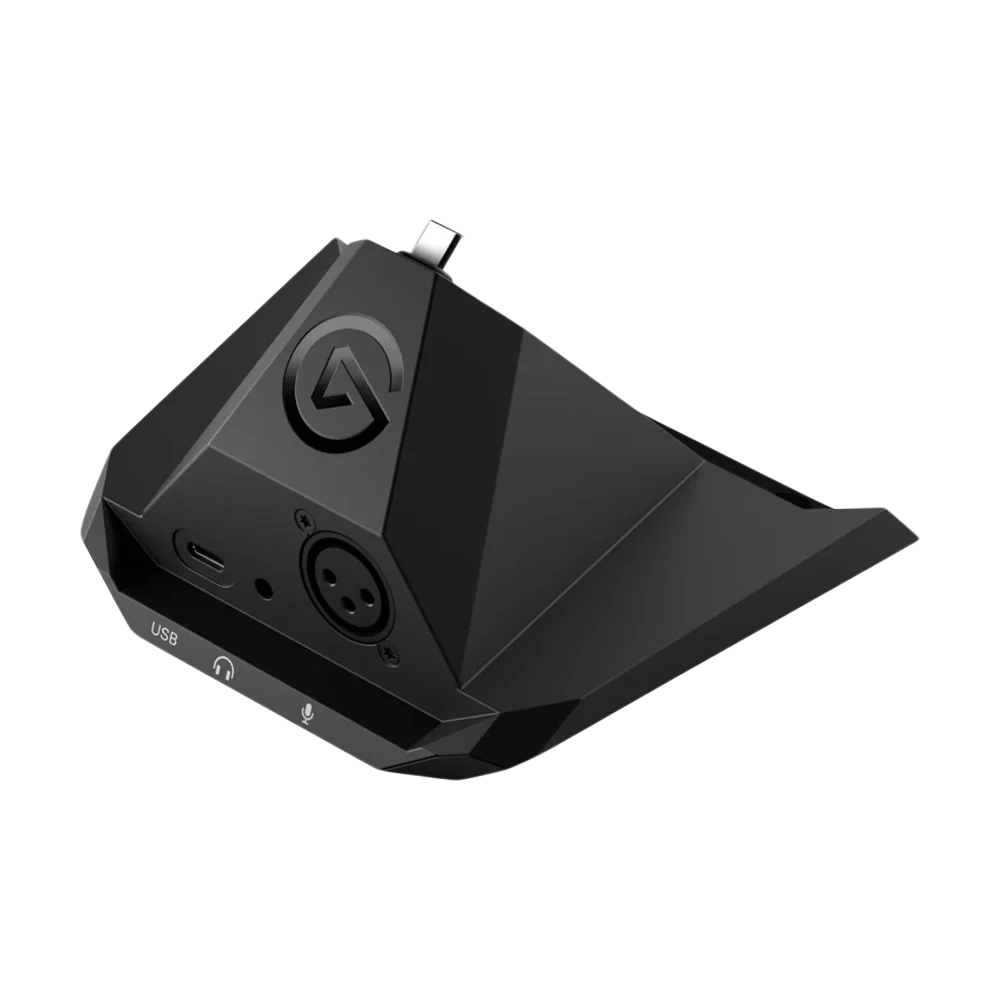

Elgato Xlr Dock For Stream Deck +

Mic interface for Stream Deck +

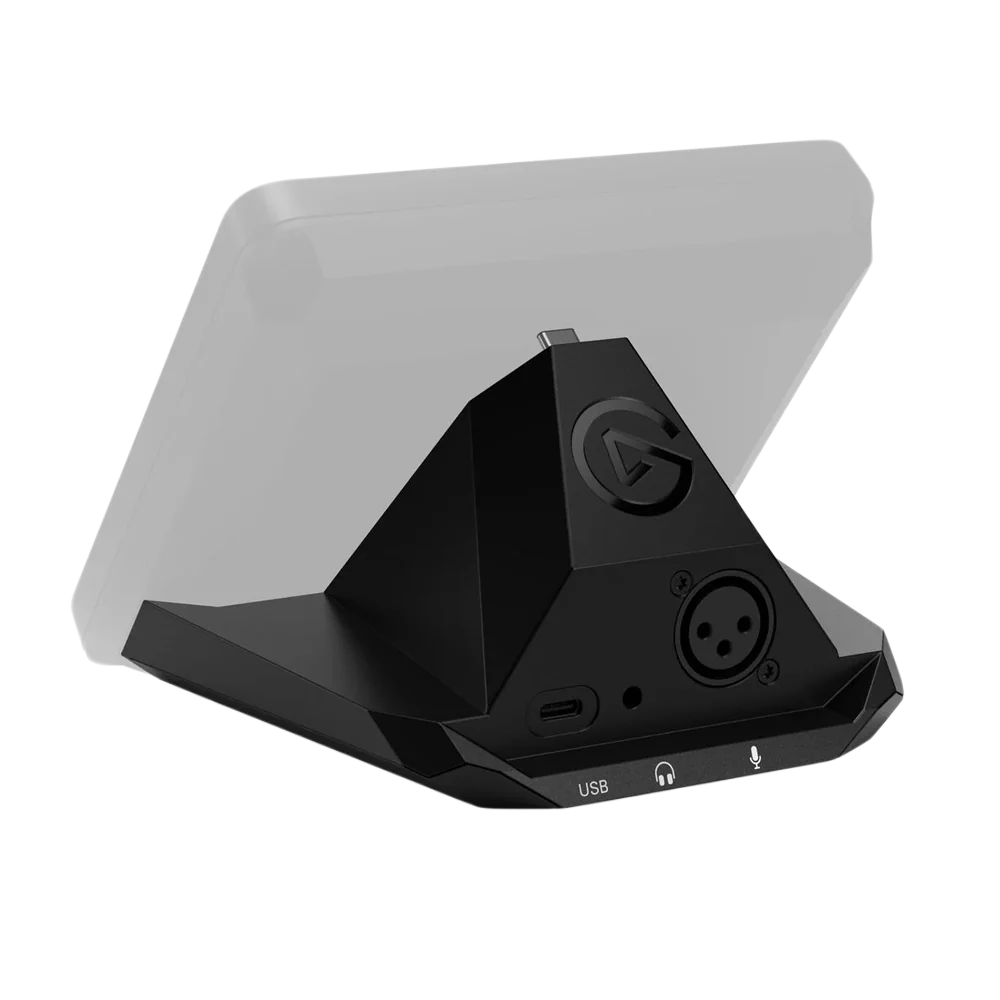

Equipped with XLR Dock, Stream Deck + becomes the ultimate audio station. In back, plug in your XLR microphone for studio-like sound. Up front, customize controls to mix, monitor, or do just about anything. It's all your audio in one place, saving you focus and desk space.

Your Audio Controller
Adjust mic gain, mute Spotify, or switch from speakers to your headset

Your Mic Interface
Connect your high-end XLR microphone to any computer

MINI PROFILE, BIG-TIME SOUND
Not to be underestimated, XLR Dock does everything a professional audio interface can do—and then some.

It's your mixer. Soundboard. Sampler.
And so much more
Stream Deck + and XLR Dock bring all your audio controls together—not just hardware, but also your apps. Tap to use a voice changer or push to talk in Discord. Turn to adjust headphone volume. Even monitor audio levels in real time. Everything is customizable and it's all in one place.

A snap to assemble
Short on DIY skills? No problem. XLR Dock installs in a few easy steps using only a Phillips screwdriver.

• REQUENCY RESPONSE : 20 Hz – 20 kHz
• DYNAMIC RANGE : 100 dB (120 dB with Clipguard)
• EQUIVALENT INPUT NOISE (EIN) : -130 dBV at 60 dB gain
• GAIN RANGE : 0 – 75 dB
• PHANTOM POWER : 48 V DC, 7 mA
• MAX INPUT LEVEL : 10 V at 0 dB gain (with Clipguard)
• MAX OUTPUT LEVEL : 77 mW
• RESOLUTION : 24-bit
• SAMPLE RATE : 48 kHz
• INTERFACE : USB 2.0, Type-C
• DIMENSIONS : 137 (W) x 115 (D) x 76 (H) mm | 5.39 x 4.53 x 2.99 in
• WEIGHT : 169 g | 5.96 oz
• In The Box : XLR Dock for Stream Deck +
• Quick Start Guide
• System Requirements
• OS : Windows 10 (64-bit) or later
