Specifications | |
---|---|

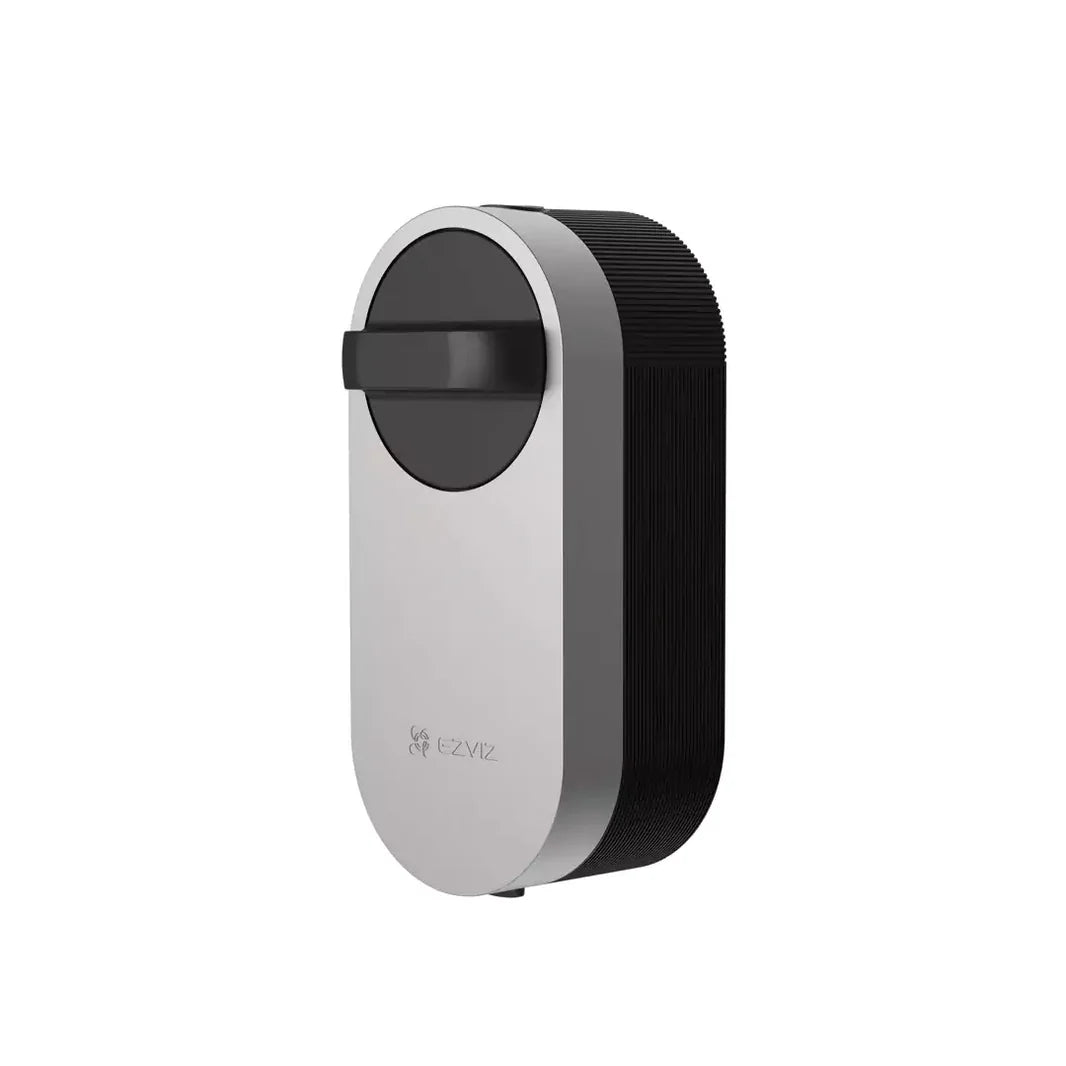

Model | CS-DL01S |
Parameters | |
Material | Plastic Casing, Aluminum Alloy Knob |
Dimensions | 126.9 × 43.2 × 56.9 mm (4.99× 1.70 × 2.24 inch) |
Communication | EZVIZ Connect Zigbee (Requires using with the Home Gateway A3, which is sold separately) |
Battery Type | 4 AA Alkaline Batteries |
Operation Conditions | -25°C to 55°C (-13°F to 131°F), humidity 10% to 95% (non-condensing) |
Function | |
Automatic locking | Supports (Works with the door sensor) |
User rights management | Supports |
Mobile Push Notification | Supports (Requires using with the Home Gateway A3, which is sold separately) |
Privacy Mode | Supports |
Low Battery Alert | Supports |
In the box | |
In the box | - DL01S Smart Lock ×1 |
- Mounting Plate ×2 | |
- AA-sized Battery ×4 | |
- Hexagon Wrench ×1 | |
- Plus Driver ×1 | |
- Screw Kit ×1 | |
- Door Sensor ×1 | |
- Quick Start Guide ×1 | |
- Installation Guide ×1 | |
- Regulatory Information ×1 | |
Certifications | |
Certifications | CE / UKCA / RoSH / WEEE / REACH |
Specifications | |
---|---|

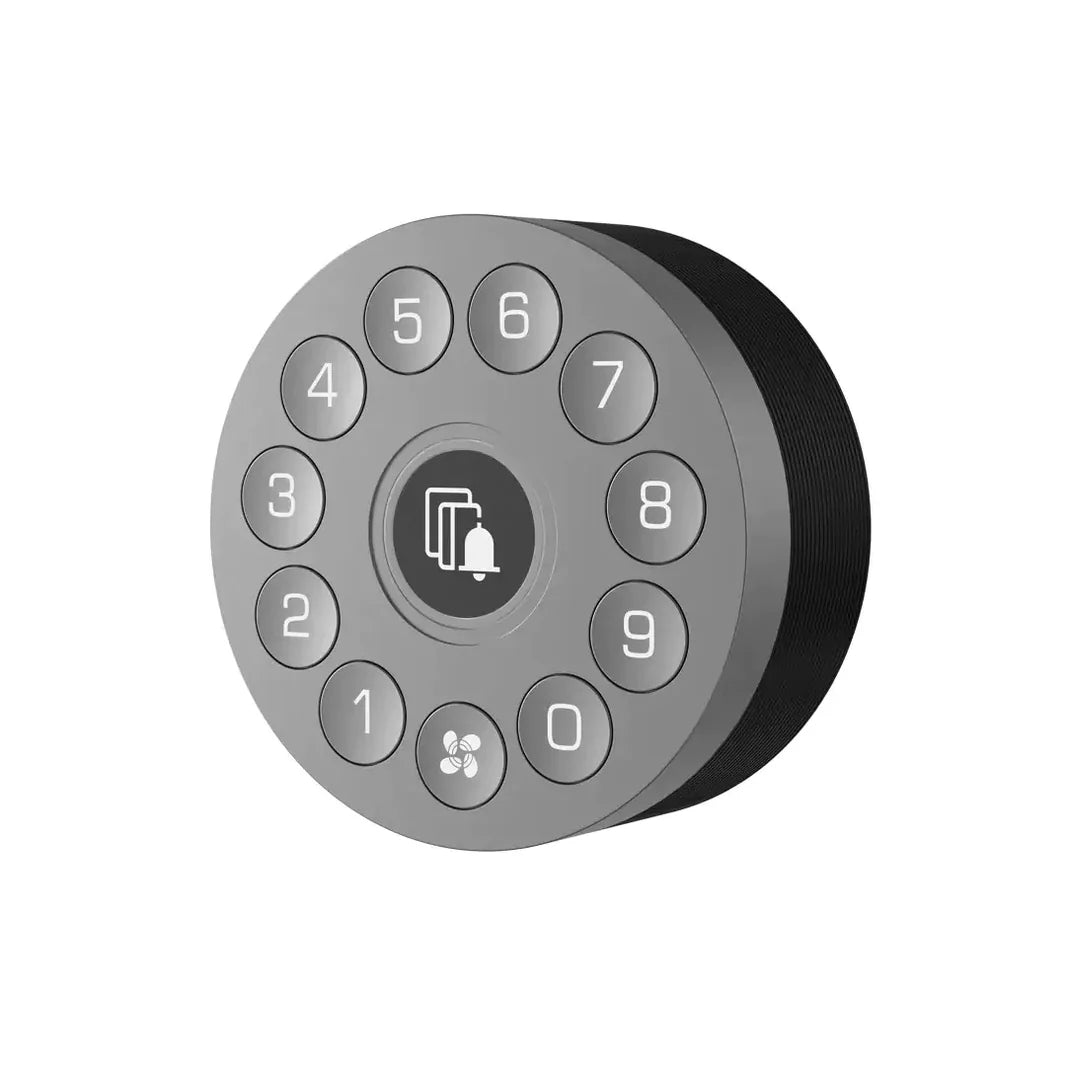

Model | CS-DL01CP |
Parameters | |
Material | Plastic casing |
Dimensions | Φ 71 × 30 mm (2.80 × 1.18 inch) |
Battery Type | 2 AA Alkaline Batteries |
Operation Conditions | -25°C to 55°C (-13°F to 131°F), humidity 10% to 95% (non-condensing) |
IP Ratings | IP56 |
Function | |
Password Unlocking | Supports (Up to 50 sets of password with 6-10 digits each) |
Anti-Peeping Technology | Supports |
Electronic Doorbell | Supports |
Low Battery Alarm | Supports |
Anti-Tamper Alarm | Supports |
Auto Lockdown Against Wrong-Try Attempts | Supports (The default lockdown time is 3 minutes if someone tries to unlock with wrong password in 5 consecutive times within 5 minutes) |
Temporary Password | Supports (Requires using with the Home Gateway A3, which is sold separately) |
Lock Activity Log | Supports (Requires using with the Home Gateway A3, which is sold separately) |
In the box | |
In the box | - DL01CP Keypad ×1 |
- Mounting Plate ×2 | |
- AA Battery ×2 | |
- CPU Proximity Card ×2 | |
- Screw Kit ×1 | |
- Double-sided Tape ×1 | |
- Quick Start Guide ×1 | |
- Installation Guide ×1 | |
- Regulatory Information ×1 | |
Certifications | |
Certifications | CE / UKCA / RoSH / WEEE / REACH |
