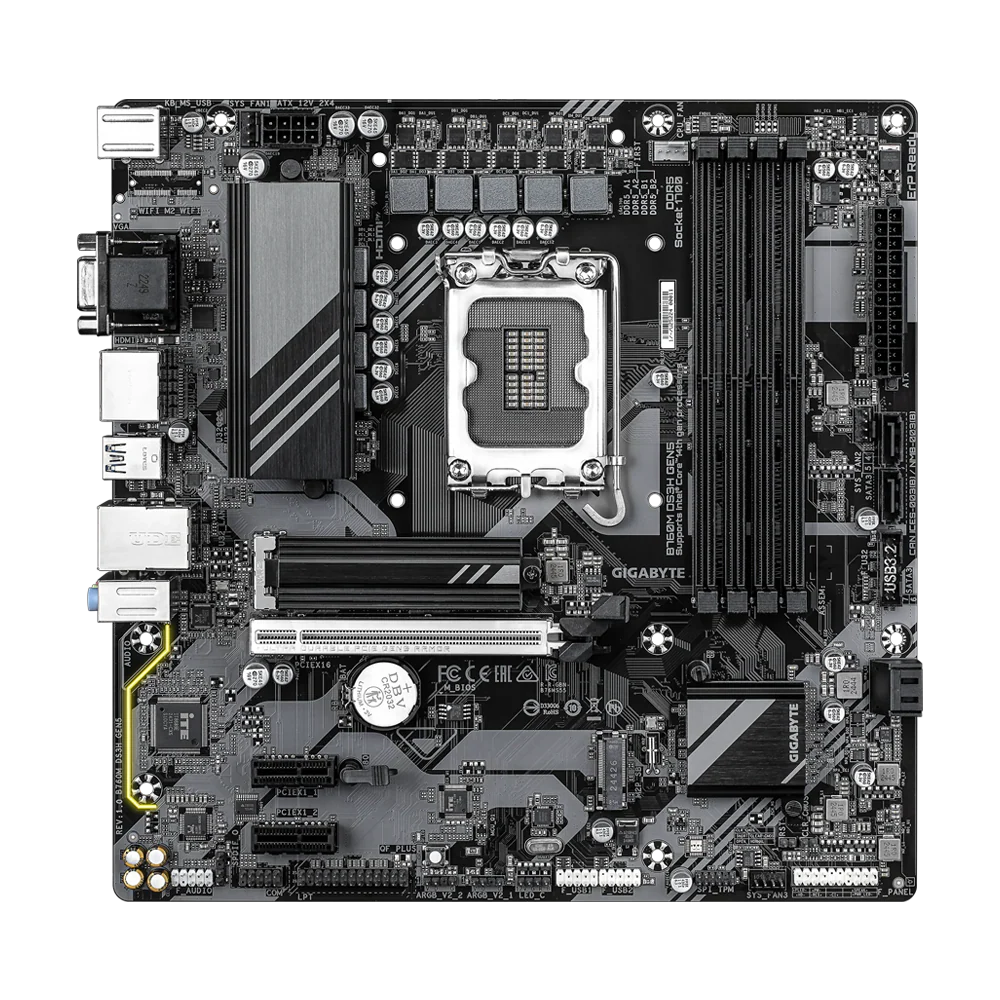

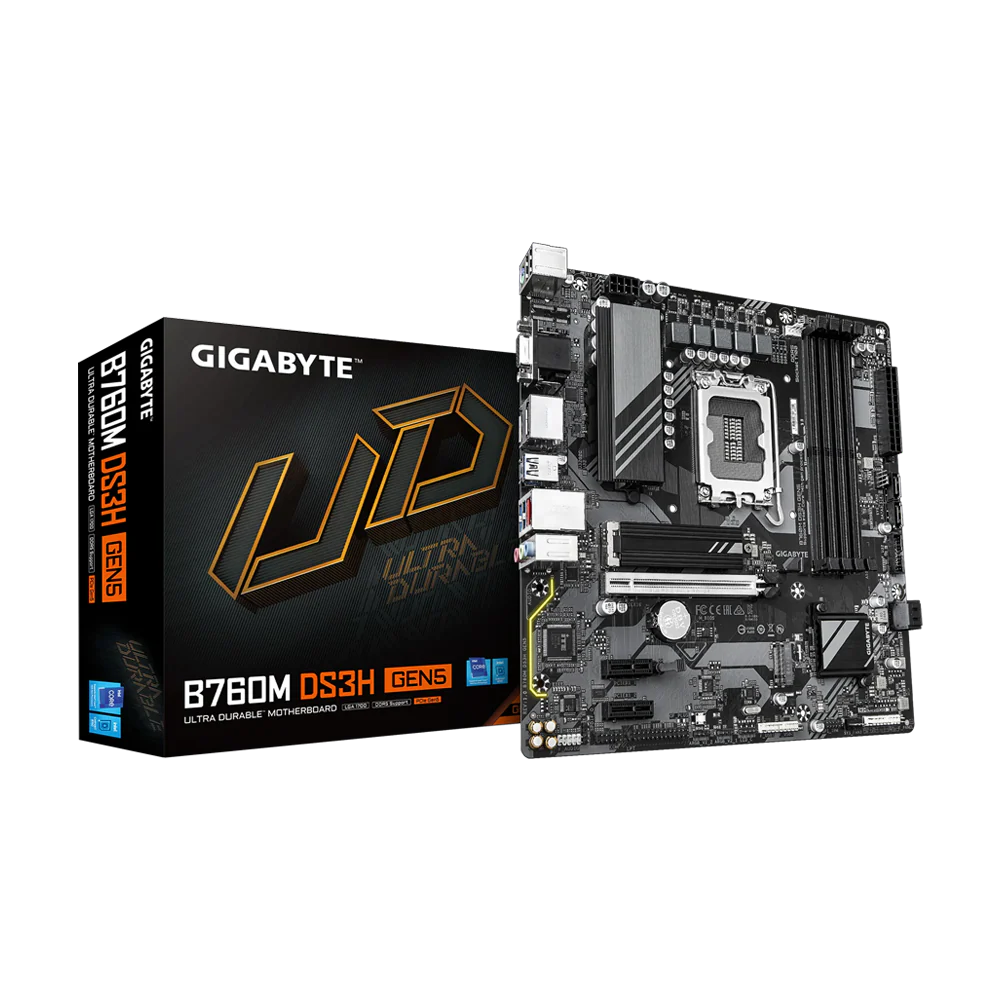

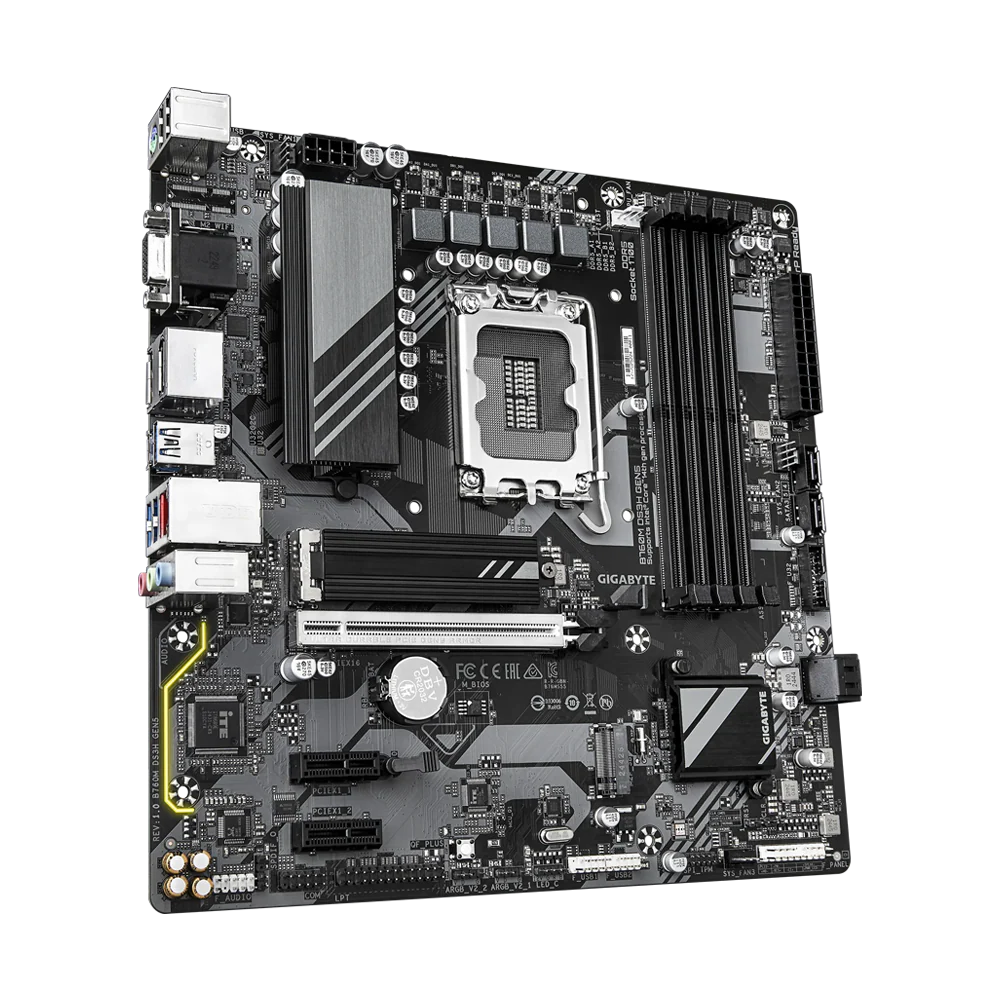

GIGABYTE B760M DS3H GEN5 DDR5 Motherboard - Black
- 39.000 KD
44.000 KD- 39.000 KD
- Unit price
- per
The GIGABYTE B760M DS3H GEN5 DDR5 is a compact micro-ATX motherboard built for Intel's 12th and 13th generation processors. Featuring DDR5 memory support, it delivers faster data speeds and improved performance for gaming and productivity tasks. This board includes PCIe 5.0 support for next-generation graphics cards and storage devices, ensuring future-proof connectivity. The robust power delivery system handles demanding workloads with stability, while the integrated thermal solutions keep components cool during extended use. Perfect for building a high-performance mini-ITX or micro-ATX system without compromising on features. The B760M DS3H GEN5 combines affordability with modern technology, making it an excellent choice for enthusiasts and builders seeking reliable performance in a compact form factor.
| CPU | LGA1700 Socket |
| Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, Celeron® processors | |
| L3 cache varies by CPU | |
| Chipset | Intel® B760 Express |
| Memory Type | DDR5 |
| Memory Speed Support | 14th/13th Gen i9/i7: 7600(O.C), 7400(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C), 6200(O.C), 6000(O.C), 5800(O.C), 5600, 5200, 4800, 4400 MT/s |
| 13th Gen i5/i3 & 12th Gen CPUs: 4800 / 4400 MT/s | |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| Memory Architecture | Dual Channel |
| ECC Support | ECC Un-buffered DIMM supported (operates in non-ECC mode) |
| Non-ECC Support | 1Rx8 / 2Rx8 / 1Rx16 |
| Memory Profile Support | Intel XMP |
| Integrated Graphics | Intel® HD Graphics (depends on CPU) |
| Video Output 1 | 1 × D-Sub (1920×1200 @ 60Hz) |
| Video Output 2 | 1 × HDMI (4096×2160 @ 60Hz) |
| HDMI 2.1, HDCP 2.3 | |
| Video Output 3 | 2 × DisplayPort (4096×2304 @ 60Hz) |
| DisplayPort 1.2 | |
| Multi-Display | Supports up to 4 displays simultaneously |
| Audio Codec | Realtek Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1 channel HD Audio |
| Digital Audio | S/PDIF Out support |
| LAN | Realtek 2.5GbE LAN (2.5Gbps / 1Gbps / 100Mbps) |
| PCIe Slot (CPU) | 1 × PCIe x16 (PCIe 5.0 x16) |
| Supports GPU or NVMe SSD | |
| PCIe Slot (Chipset) | 2 × PCIe x1 (PCIe 3.0 x1) |
| M.2 Slot (CPU) | 1 × M.2 (PCIe 4.0 x4/x2, type 2280) |
| M.2 Slot (Chipset) | 1 × M.2 (PCIe 4.0 x4/x2, type 2280) |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 (SATA) |
| USB Type-C | 1 × USB-C (USB 3.2 Gen 2) rear |
| USB 3.2 Gen1 | 5 ports (3 rear + 2 internal header) |
| USB 2.0 Rear | 2 ports |
| USB 2.0 Internal | 4 ports via headers |
| Power Connector | 1 × 24-pin ATX |
| CPU Power | 1 × 8-pin ATX 12V |
| Fan Headers | 1 × CPU fan |
| 3 × system fan | |
| RGB Headers | 2 × Addressable RGB Gen2 |
| 1 × RGB LED | |
| Internal Storage Connectors | 2 × M.2 |
| 4 × SATA | |
| Front Panel Headers | Front panel, front audio |
| Internal USB Headers | 1 × USB 3.2 Gen1 header |
| 2 × USB 2.0 headers | |
| Other Internal Headers | TPM header |
| Serial port header | |
| Parallel port header | |
| S/PDIF out header | |
| Q-Flash Plus button | |
| Reset jumper | |
| Clear CMOS jumper | |
| Back Panel USB | 2 × USB 2.0 |
| 3 × USB 3.2 Gen1 | |
| 1 × USB-C (USB 3.2 Gen2) | |
| Back Panel Video | 1 × D-Sub |
| 1 × HDMI | |
| 2 × DisplayPort | |
| Back Panel Other Ports | PS/2 keyboard/mouse |
| RJ-45 LAN | |
| 3 × audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| Hardware Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 128 Mbit Flash |
| AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 | |
| Special Features | GIGABYTE Control Center (GCC) |
| Q-Flash | |
| Q-Flash Plus | |
| Smart Backup | |
| Bundled Software | Norton Internet Security (OEM) |
| Operating System Support | Windows 11 64-bit |
| Windows 10 64-bit | |
| Form Factor | Micro-ATX |
| Dimensions | 24.4 cm × 24.4 cm |
