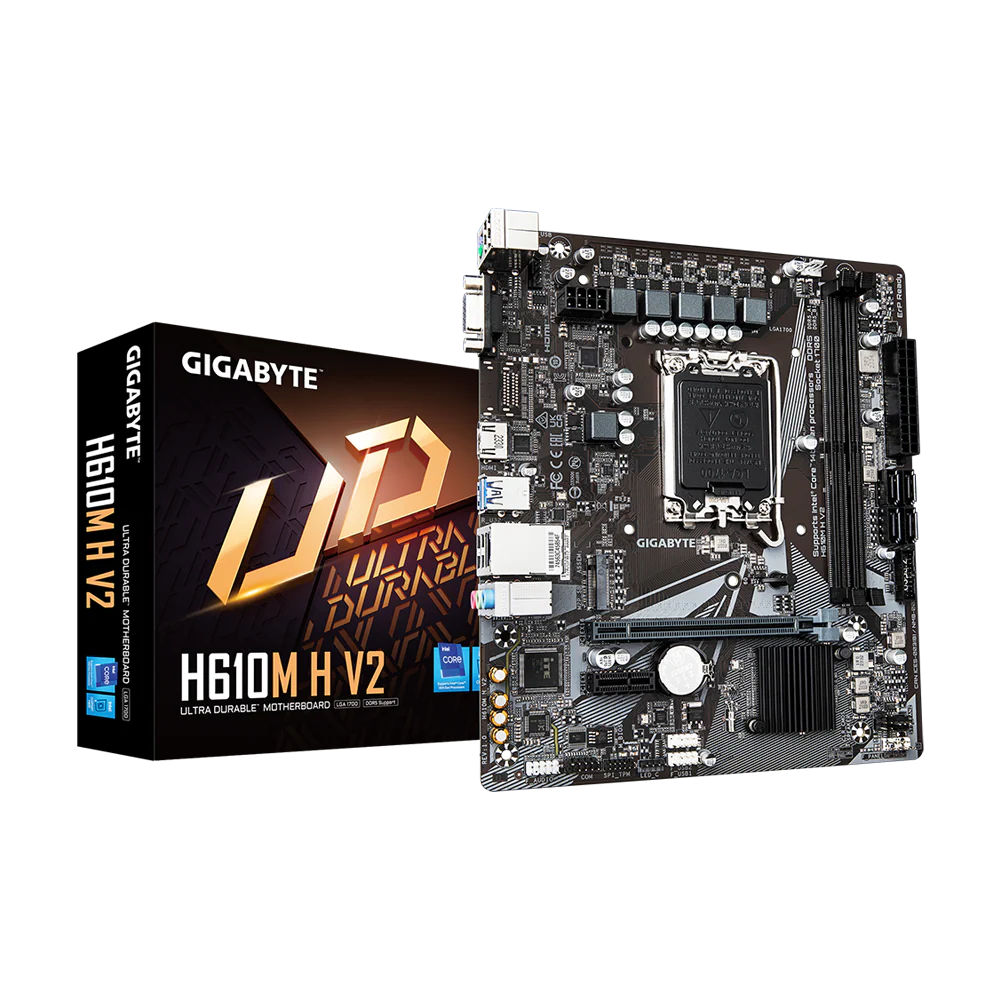

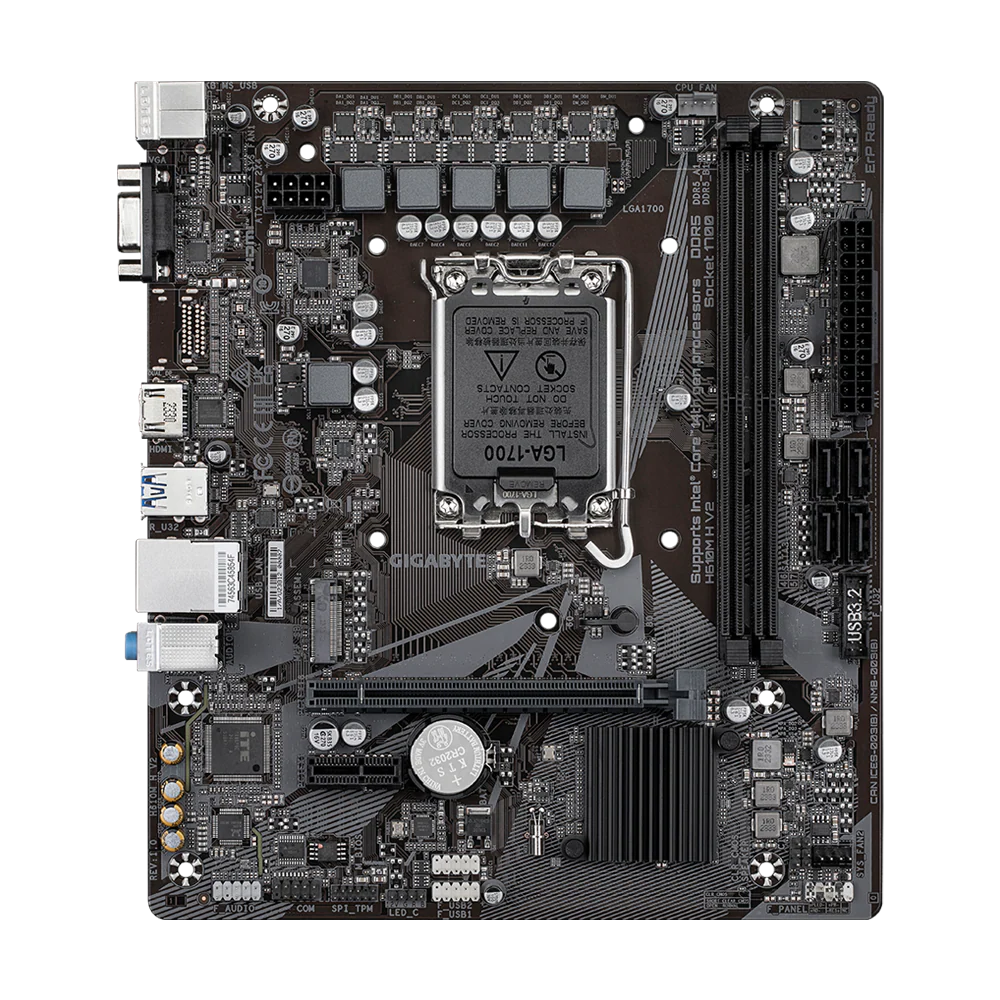

GIGABYTE H610M H V2 DDR5 MICRO ATX Motherboard - Black
- 22.000 KD
24.000 KD- 22.000 KD
- Unit price
- per
Compact and reliable micro ATX motherboard designed for budget-conscious builders. The GIGABYTE H610M H V2 supports DDR5 memory for improved performance and future-proofing. Features a straightforward layout ideal for small form factor builds, with essential connectivity for storage, USB, and audio. Perfect for office work, everyday computing, and light gaming setups. Built with GIGABYTE's quality standards for stability and durability.
| CPU Socket | LGA1700 |
| Supported CPUs | 12th, 13th, and 14th Gen Intel Core™, Pentium® Gold, Celeron® |
| L3 Cache | Varies with CPU |
| Chipset | Intel® H610 Express |
| Memory Slots & Channels | 2 × DDR5 DIMM, Dual-channel |
| Maximum Memory | 96 GB (48 GB per DIMM) |
| Memory Speed Support | DDR5 4400–5600 MT/s (depending on CPU) |
| Memory Type | ECC/non-ECC Un-buffered DIMM, XMP supported |
| Onboard Graphics | Intel HD Graphics (depending on CPU) |
| Video Output | 1 × D-Sub (1920×1200@60Hz), 1 × HDMI 2.1 (4096×2160@60Hz, HDCP 2.3) |
| Audio Codec | Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1 channels |
| LAN | Realtek GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| PCIe Slots | 1 × PCIe x16 (CPU, PCIe 4.0) 1 × PCIe x1 (Chipset, PCIe 3.0) |
| Storage | 1 × M.2 PCIe 3.0 x4/x2 (2280/2260) 4 × SATA 6Gb/s |
| RAID Support | Not specified (typically SATA only) |
| USB (Rear) | 2 × USB 3.2 Gen1, 4 × USB 2.0/1.1 |
| USB (Internal) | 1 × USB 3.2 Gen1 header, 6 × USB 2.0/1.1 headers |
| Internal Connectors | 1 × 24-pin ATX, 1 × 8-pin ATX 12V, CPU fan, 2 × system fan headers, M.2, SATA, RGB header, front panel/audio/speaker headers, TPM header, serial port header, Clear CMOS jumper, chassis intrusion header |
| Back Panel Connectors | PS/2, D-Sub, HDMI 2.1, 2 × USB 3.2 Gen1, 4 × USB 2.0/1.1, RJ-45, 3 audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Hardware Monitoring | Voltage, Temperature, Fan speed, Fan fail warning, Fan speed control |
| BIOS | 128 Mbit Flash, AMI UEFI, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | APP Center (@BIOS, EasyTune, Smart Backup, System Info Viewer), Q-Flash |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX |
| Dimensions | 22.3 × 19.6 cm |
