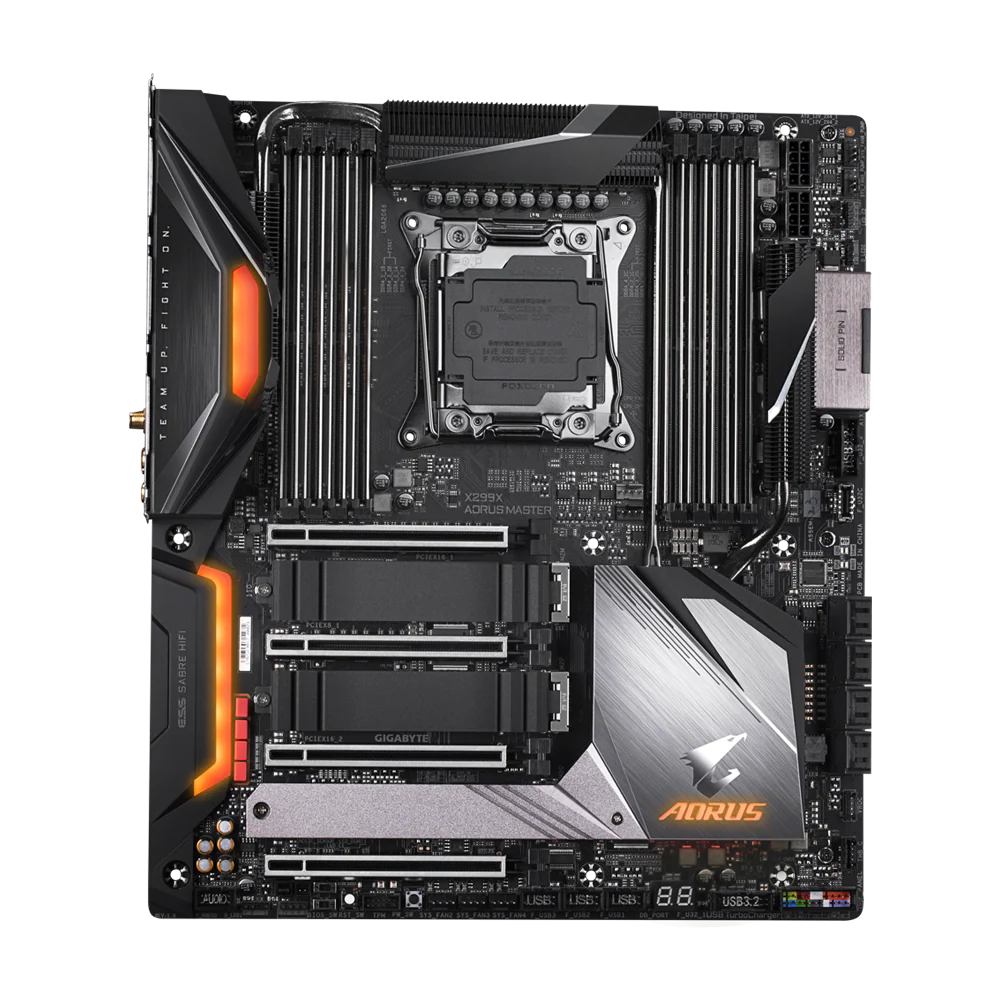

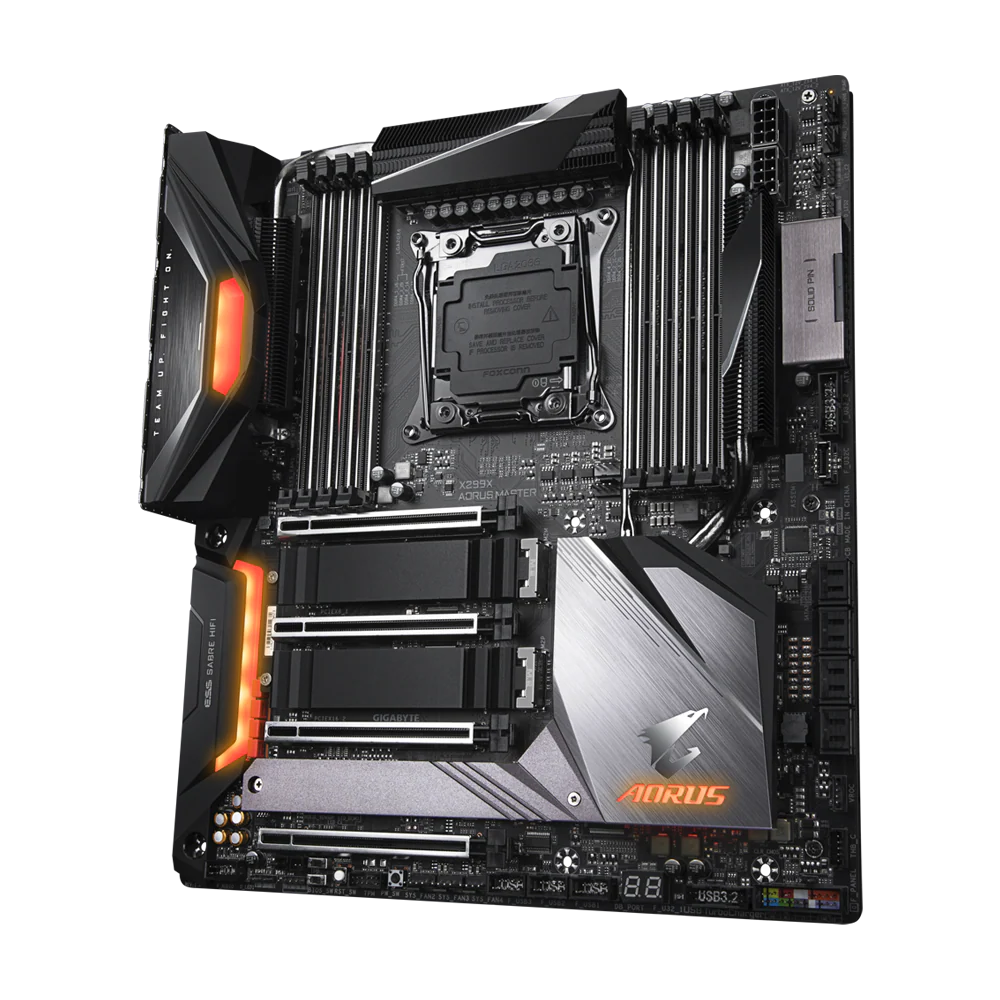

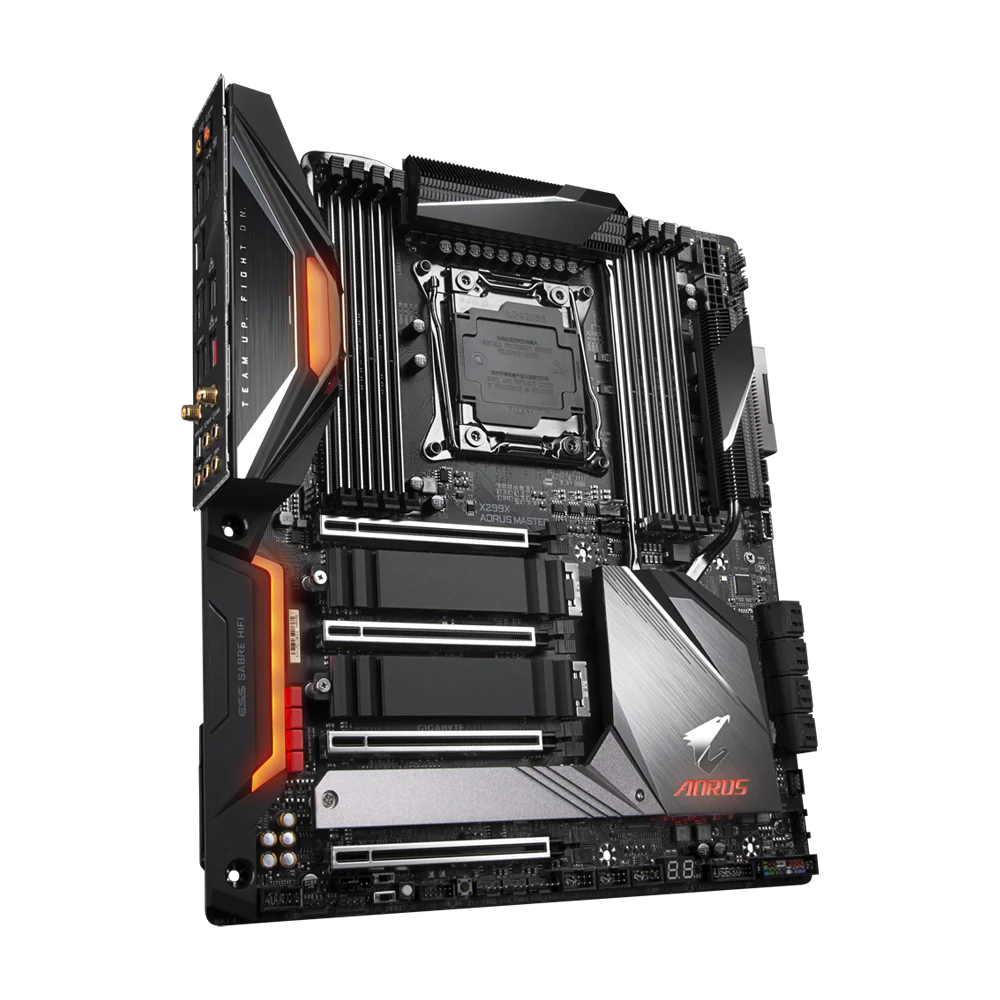

GIGABYTE X299X AORUS MASTER E-ATX Motherboard - Black
- 65.000 KD
70.000 KD- 65.000 KD
- Unit price
- per
The GIGABYTE X299X AORUS MASTER is a premium E-ATX motherboard engineered for high-performance computing and content creation. Built on the Intel X299 chipset, it supports Intel Core X-series processors with exceptional multi-core performance. This motherboard features robust power delivery with 16+2 phase digital VRM, ensuring stable operation under demanding workloads. The E-ATX form factor provides ample expansion slots for graphics cards, storage controllers, and networking upgrades. Key features include dual M.2 slots with thermal guards for NVMe SSDs, comprehensive cooling options with multiple fan headers, and advanced BIOS controls for overclocking enthusiasts. The reinforced PCIe slots and premium capacitors enhance durability and signal integrity. Connectivity includes USB 3.1 ports, Gigabit Ethernet, and audio enhancements for a complete workstation experience. The sleek black design with AORUS branding complements modern PC builds. Ideal for professionals, creators, and enthusiasts seeking a reliable platform for intensive applications, video editing, 3D rendering, and gaming at the highest levels.
| CPU Socket | LGA2066 |
| Supported CPUs | Intel Core X-Series i7-7800X and above, Intel Core X-Series i9 |
| Chipset | Intel X299 Express |
| Memory Type | DDR4 |
| Memory Slots & Channels | 8 × DDR4 DIMM, 4-channel |
| Maximum Memory | 256 GB (48-lane CPUs), 128 GB (44/28-lane CPUs) |
| Memory Speed Support | 2133–4333 MT/s (OC), depends on CPU |
| Audio Codec | Realtek ALC1220-VB + ESS SABRE9218 DAC |
| Audio Channels | 2 / 4 / 5.1 / 7.1 HD Audio, S/PDIF Out, DSD support |
| LAN | 1 × Aquantia 5GbE (LAN1) 1 × Intel GbE (LAN2) |
| Wireless | Wi-Fi 6/6E 802.11a/b/g/n/ac/ax 2.4/5 GHz, Bluetooth 5.0, 2T2R |
| PCIe Slots (CPU) | 48-lane: 2 × x16, 2 × x8 44-lane: 2 × x16, 1 × x8, 1 × x4 28-lane: 1 × x16, 1 × x8, 1 × x4 |
| Multi-GPU | NVIDIA Quad-GPU SLI / 2-Way SLI AMD Quad-GPU CrossFire / 2-Way CrossFire |
| M.2 Slots | CPU: 2 × M.2 PCIe x4/x2 (2260–22110) Chipset: 1 × M.2 SATA/PCIe x4/x2 (2242–22110) |
| SATA Ports | 8 × SATA 6Gb/s |
| RAID Support | NVMe & SATA RAID 0/1/5/10 |
| Intel Optane Ready | Only 48-lane CPUs |
| Intel VROC Ready | Yes (requires VROC Upgrade Key for M.2 RAID) |
| USB Ports | Rear: 1 × USB-C 3.2 Gen2, 1 × USB 3.2 Gen2 Type-A (red), 6 × USB 3.2 Gen1, 2 × USB 2.0/1.1 Internal: 1 × USB-C Gen2 header, 2 × USB 3.2 Gen1 headers, 3 × USB 2.0/1.1 headers |
| Power Connector | 1 × 24-pin ATX |
| CPU Power | 2 × 8-pin ATX |
| Fan Headers | 1 × CPU, 1 × CPU Water Cooling, 4 × System, 2 × System/Water Pump |
| RGB Headers | 2 × Addressable LED, 2 × RGB LED |
| Other Internal Connectors | 3 × M.2, 8 × SATA, VROC Key header, front panel, front audio, TPM header, noise detection, Thunderbolt add-in connector, power/reset/Clear CMOS buttons, 2 × temperature sensor headers, 2 × BIOS switches |
| Back Panel Connectors | 1 × Q-Flash Plus button, 1 × Clear CMOS button, 1 × USB-C 3.2 Gen2, 1 × USB 3.2 Gen2 Type-A (red), 6 × USB 3.2 Gen1, 2 × USB 2.0/1.1, 2 × RJ-45 (LAN), 2 × SMA antenna connectors, 1 × optical S/PDIF, 5 × audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| Hardware Monitoring | Voltage, Temperature, Fan Speed, Water Flow, Overheat Warning, Fan Fail Warning, Fan Speed Control, Noise Detection |
| BIOS | 2 × 128 Mbit Flash, DualBIOS, AMI UEFI, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Special Features | APP Center: @BIOS, AutoGreen, Cloud Station, EasyTune, Easy RAID, Fast Boot, Game Boost, Platform Power Management, RGB Fusion, Smart Backup, Smart Keyboard, Smart Survey, System Info Viewer, USB Blocker, USB TurboCharger, Q-Flash, Q-Flash Plus, Xpress Install |
| Bundled Software | Norton Internet Security, cFosSpeed, XSplit Gamecaster + Broadcaster (12 months) |
| OS Support | Windows 10 64-bit |
| Form Factor | E-ATX |
| Dimensions | 30.5 × 26.9 cm |
