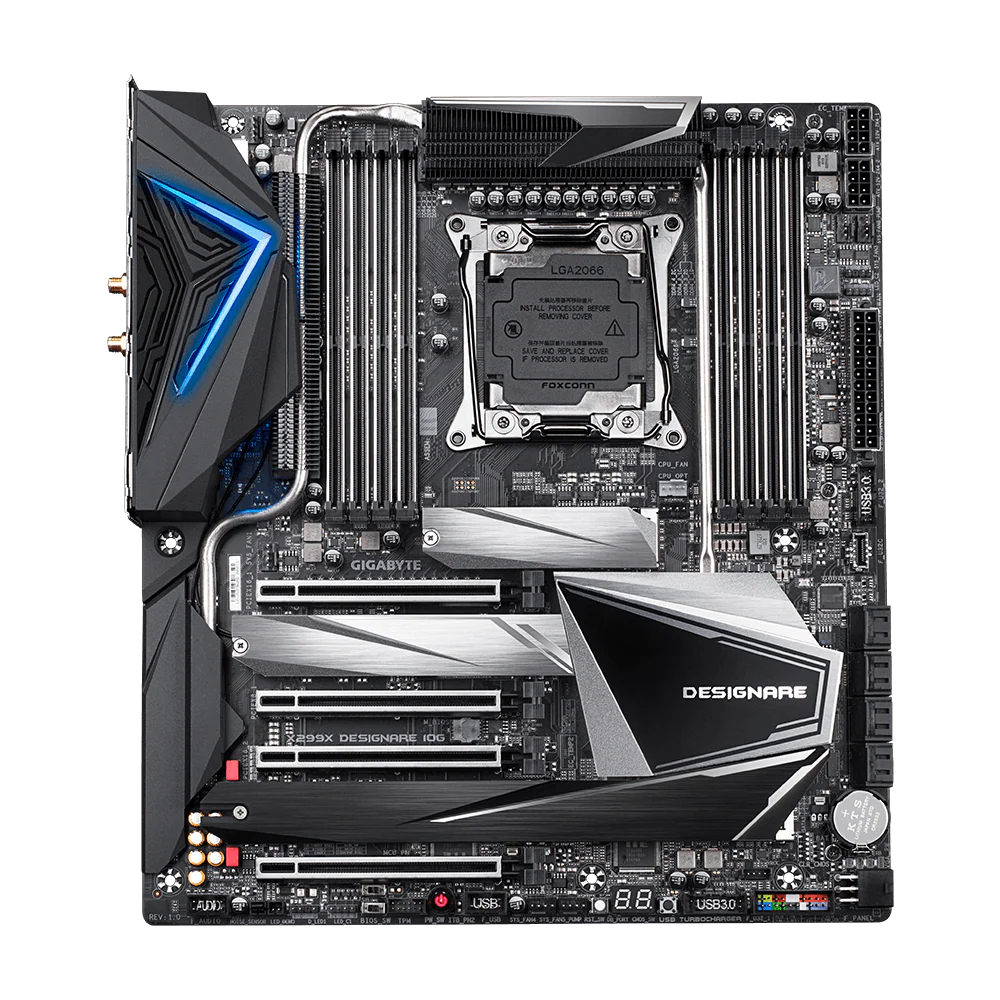

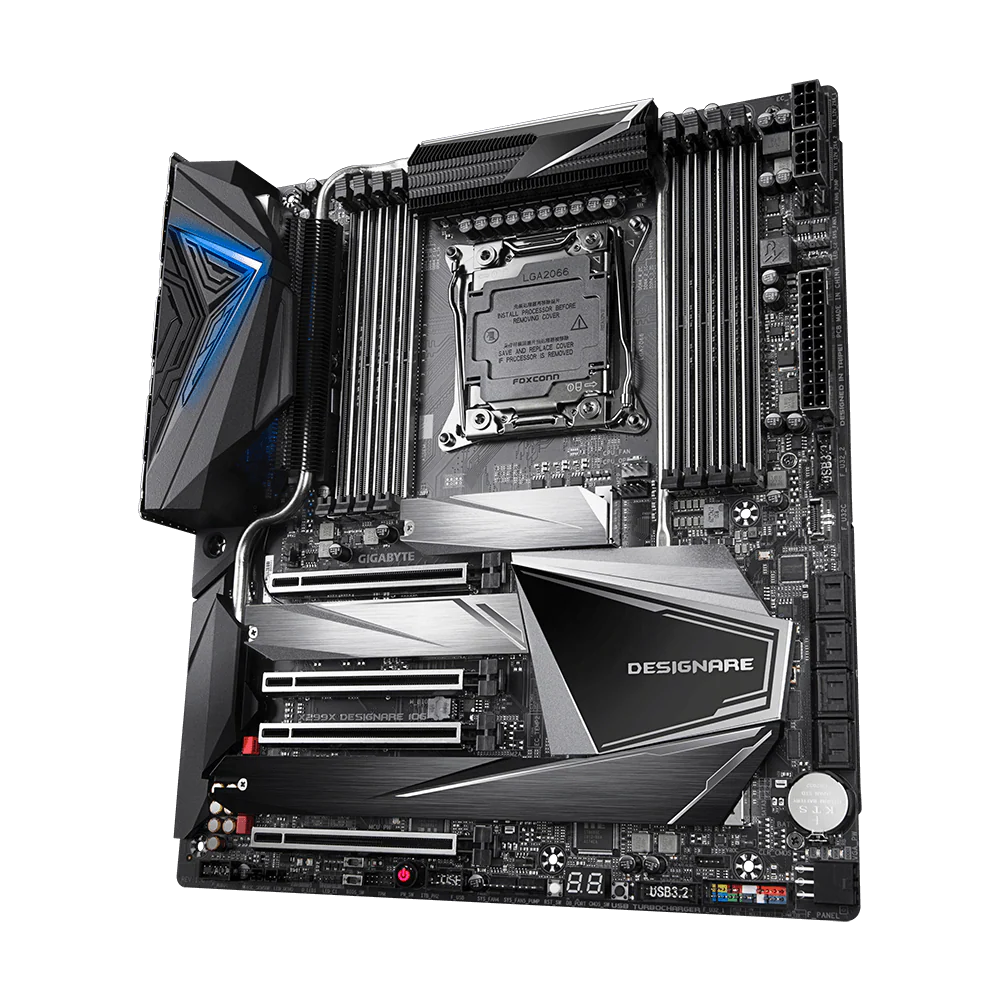

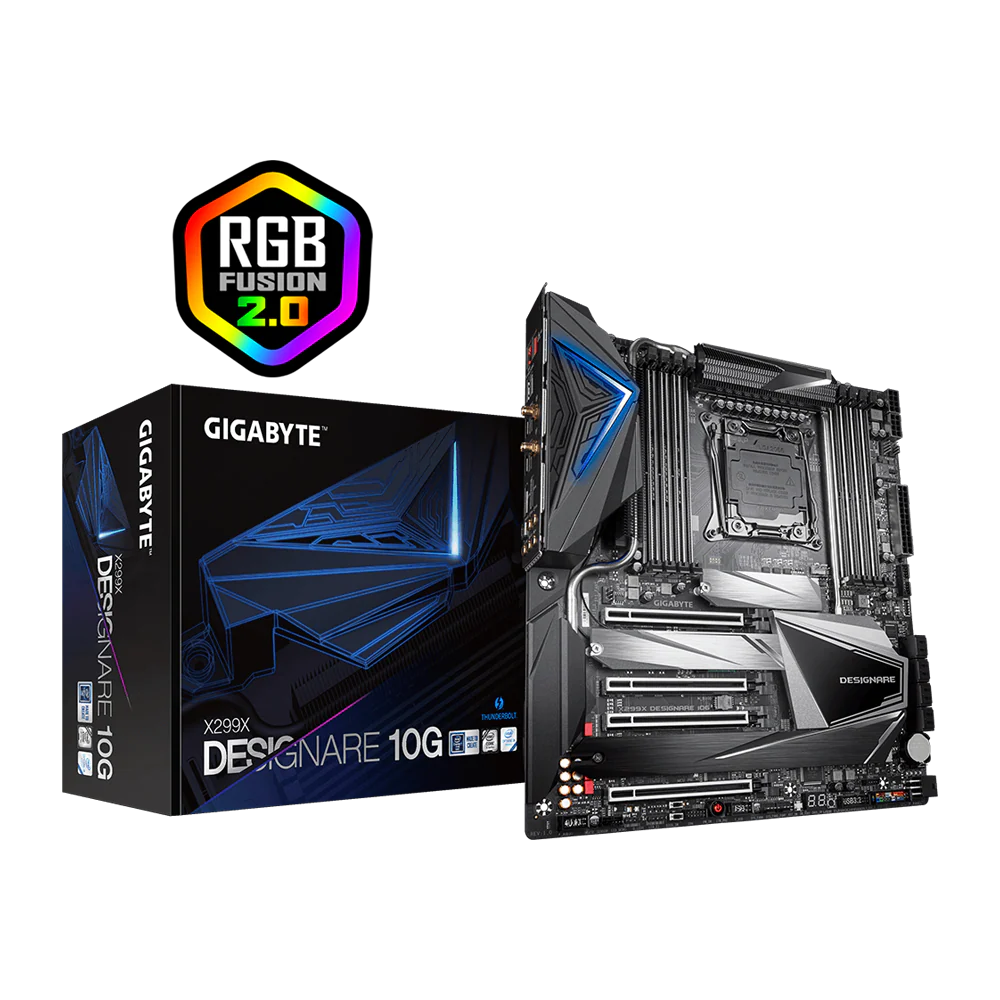

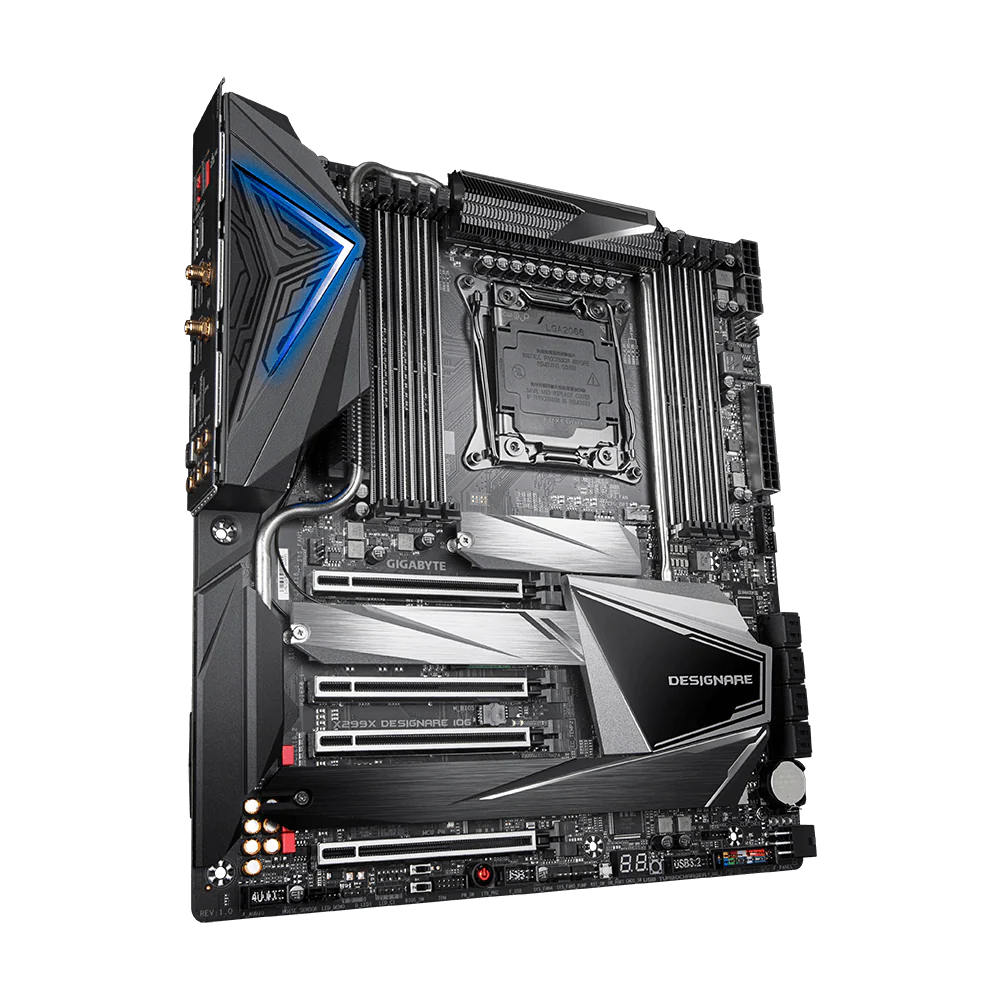

GIGABYTE X299X DESIGNARE 10G E-ATX Motherboard - Black
- 69.000 KD
74.000 KD- 69.000 KD
- Unit price
- per
The GIGABYTE X299X DESIGNARE 10G is a premium E-ATX motherboard engineered for high-performance computing and content creation. Built on the Intel X299 chipset, it supports Intel Core X-series processors for exceptional multi-threaded performance. Key features include integrated 10G Ethernet for ultra-fast network connectivity, dual Thunderbolt 3 ports for rapid data transfer, and comprehensive power delivery for stable overclocking. The board offers extensive storage options with multiple M.2 slots and SATA connections, plus robust audio with Realtek ALC1220 codec. Designed with professional users in mind, the DESIGNARE 10G delivers reliability and expandability for workstations, streaming setups, and demanding applications. The black aesthetic complements modern builds while the reinforced PCIe slots and quality components ensure longevity. Perfect for creators, engineers, and enthusiasts seeking a feature-rich platform for intensive workloads.
| CPU Socket | LGA2066 |
| Supported CPUs | Intel Core X-Series i7-7800X and above, Intel Core X-Series i9 |
| Chipset | Intel X299 Express |
| Memory Type | DDR4 |
| Memory Slots & Channels | 8 × DDR4 DIMM, 4-channel |
| Maximum Memory | 256 GB (48/44-lane CPUs), 128 GB (28-lane CPUs) |
| Memory Speed Support | 2133–4333 MT/s (OC) depending on CPU |
| Integrated Graphics | Thunderbolt 3 Controller: 2 × USB-C (DisplayPort), 4096 × 2304 @ 60 Hz |
| Audio Codec | Realtek ALC1220-VB |
| Audio Channels | 2 / 4 / 5.1 / 7.1 HD Audio, S/PDIF Out |
| LAN | Intel 10GbE (2 × RJ-45, 10/5/2.5/1/0.1 Gbps) |
| Wireless | Wi-Fi 6/6E 802.11a/b/g/n/ac/ax 2.4/5 GHz, Bluetooth 5.0, 2T2R |
| PCIe Slots (CPU) | 48-lane: 2 × x16, 2 × x8 44-lane: 2 × x16, 1 × x8, 1 × x4 28-lane: 1 × x16, 1 × x8, 1 × x4 |
| PCIe Slots (Chipset) | Conforms to PCIe 3.0 |
| Multi-GPU | NVIDIA Quad-GPU SLI / 2-Way SLI AMD Quad-GPU CrossFire / 2-Way CrossFire |
| M.2 Slots | CPU: 1 × PCIe x4/x2 (2260/2280/22110) Chipset: 2 × SATA & PCIe x4/x2 (2242–2280) |
| SATA Ports | 6 × SATA 6Gb/s (Chipset) + 2 × SATA 6Gb/s (ASMedia) |
| RAID Support | NVMe & SATA RAID 0/1/5/10 |
| Intel Optane Ready | Only on 48-lane CPUs |
| USB Ports | Rear: 2 × Thunderbolt 3 USB-C (USB 3.2 Gen2), 4 × USB 3.2 Gen1, 2 × RJ-45, 2 × SMA antenna, 1 × S/PDIF Out, 5 × audio jacks Internal: 1 × USB-C Gen2 header, 2 × USB 3.2 Gen1 headers, 1 × USB 2.0/1.1 header |
| Power Connector | 1 × 24-pin ATX |
| CPU Power | 2 × 8-pin ATX + 1 × VGA_PW |
| Fan Headers | 1 × CPU, 1 × CPU Water Cooling, 4 × System, 2 × System/Water Pump |
| RGB Headers | 2 × Addressable LED, 2 × RGB LED |
| Other Internal Connectors | 3 × M.2 sockets, 8 × SATA 6Gb/s, VROC Key header, front panel, front audio, TPM header, noise detection, 2 × temperature sensors, Clear CMOS / Reset / Power buttons, 2 × BIOS switches |
| I/O Controller | iTE I/O Controller Chip |
| Hardware Monitoring | Voltage, Temperature, Fan Speed, Water Flow, Overheat Warning, Fan Fail Warning, Fan Speed Control, Noise Detection |
| BIOS | 2 × 128 Mbit Flash, DualBIOS, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Special Features | APP Center (BIOS/Software Utilities): @BIOS, AutoGreen, Cloud Station, EasyTune, Easy RAID, Fast Boot, Game Boost, Platform Power Management, RGB Fusion, Smart Backup, Smart Keyboard, Smart Survey, System Info Viewer, USB Blocker, USB TurboCharger, Q-Flash, Q-Flash Plus, Xpress Install |
| Bundled Software | Norton Internet Security (OEM), cFosSpeed, XSplit Gamecaster + Broadcaster (12 months) |
| OS Support | Windows 10 64-bit |
| Form Factor | E-ATX |
| Dimensions | 30.5 × 27.5 cm |
