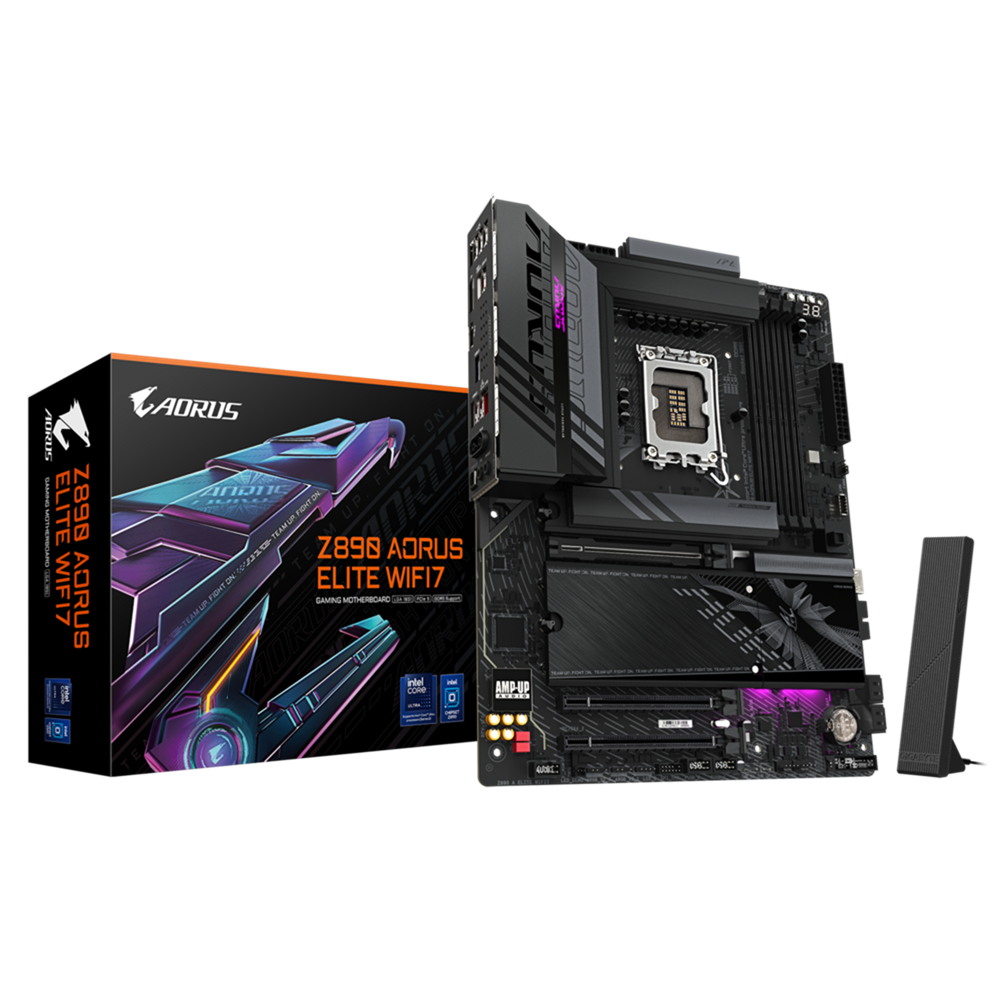

GIGABYTE Z890 AORUS Elite WiFi7 ATX Motherboard
- 94.000 KD
102.000 KD- 94.000 KD
- Unit price
- per
Experience next-generation performance with the GIGABYTE Z890 AORUS Elite WiFi7 ATX Motherboard. Built for Intel's latest processors, this powerhouse delivers exceptional stability and speed for gaming, content creation, and demanding workloads. Key features include WiFi 7 connectivity for ultra-fast wireless speeds, comprehensive power delivery for overclocking headroom, and robust thermal management to keep your system cool under load. The ATX form factor provides ample expansion slots for graphics cards, storage, and peripherals. Engineered with GIGABYTE's proven AORUS quality, this motherboard combines cutting-edge technology with reliable performance. Perfect for enthusiasts and professionals seeking a premium platform that won't compromise on features or durability.
Intel LGA1851 socket: Intel® Core™ Ultra Processors (Series 2)
Memory : 4 x DIMM, Max. 256GB, DDR5 RAM
4 x M.2 slots and 4 x SATA 6Gb/s port.
| CPU | Socket | LGA1851 |
| Support | Intel Core Ultra processors | |
| Cache | L3 cache varies by CPU | |
| Chipset | Chipset | Intel Z890 Express |
| Memory | Type | DDR5 |
| Speed | Up to 9200 MT/s (OC), down to 5600 MT/s | |
| Slots | 4 x DIMM | |
| Max Capacity | 256 GB | |
| Architecture | Dual-channel | |
| ECC Support | ECC & non-ECC (non-ECC mode) | |
| Features | XMP, CUDIMM support | |
| Graphics | Integrated GPU | Intel HD Graphics (via CPU) |
| Thunderbolt 4 Output | Up to 5120×2880 @ 60Hz | |
| USB4 Display | Up to 3840×2160 @ 240Hz | |
| HDMI | 1920×1080 @ 30Hz | |
| DisplayPort | 4096×2304 @ 60Hz | |
| Multi-display | Supports up to 3 displays | |
| Audio | Codec | Realtek ALC1220 |
| Channels | 2/4/5.1/7.1 | |
| Features | S/PDIF Out, DSD support | |
| LAN | Ethernet | Realtek 2.5GbE (2.5G/1G/100M) |
| Wireless | Wi-Fi | Wi-Fi 7 (MediaTek MT7925 / Realtek RTL8922AE) |
| Standards | 802.11 a/b/g/n/ac/ax/be | |
| Frequency | 2.4 / 5 / 6 GHz | |
| Bluetooth | 5.4 | |
| Expansion Slots | CPU Slot | 1 x PCIe 5.0 x16 |
| Chipset Slots | 2 x PCIe 4.0 x4 | |
| Storage | M.2 Slots | 4 slots (PCIe 5.0 & 4.0, SATA supported on one) |
| SATA | 4 x SATA 6Gb/s | |
| RAID | RAID 0/1/5/10 (NVMe & SATA) | |
| USB | Thunderbolt | 1 x Thunderbolt 4 (40Gbps) |
| USB 3.2 Gen 2 | 2 x Type-A (rear), 1 x Type-C (internal) | |
| USB 3.2 Gen 1 | 5 ports | |
| USB 2.0 | 8 ports | |
| Internal I/O | Power | 24-pin ATX, 2 x 8-pin CPU |
| Cooling | CPU, system & pump fan headers | |
| RGB | Addressable Gen2 + RGB headers | |
| Storage | 4 x M.2, 4 x SATA | |
| Headers | USB, audio, TPM, front panel | |
| Buttons | Power, Reset, Q-Flash Plus | |
| Back Panel | USB Ports | USB-C (TB4), USB 3.2, USB 2.0 |
| Video | DisplayPort | |
| Network | RJ-45 (2.5GbE) | |
| Audio | Optical S/PDIF, audio jacks | |
| Antenna | 2 connectors | |
| Controller | I/O Controller | iTE controller chip |
| Monitoring | Sensors | Voltage, temperature, fan speed |
| Features | Fan control, flow detection, fail warning | |
| BIOS | Type | AMI UEFI BIOS |
| Size | 256 Mbit flash | |
| Software | Utilities | GIGABYTE Control Center, Q-Flash, Smart Backup |
| Bundled | Norton Internet Security (OEM), LAN tools | |
| OS Support | OS | Windows 11 (64-bit only) |
| Physical | Form Factor | ATX |
| Dimensions | 30.5 cm x 24.4 cm |
