HIKVision DS-2CE16H0T-ITPF(2.8mm)(C)//5MP Bullet-000000000300512121

HIKVision DS-2CE16H0T-ITPF(2.8mm)(C)//5MP Bullet-000000000300512121

Vendor: Hikvision
SKU: DS-2CE16H0T-ITPF
Product type: Camera
24.750 KD
30.000 KD
24.750 KD
Description

Description

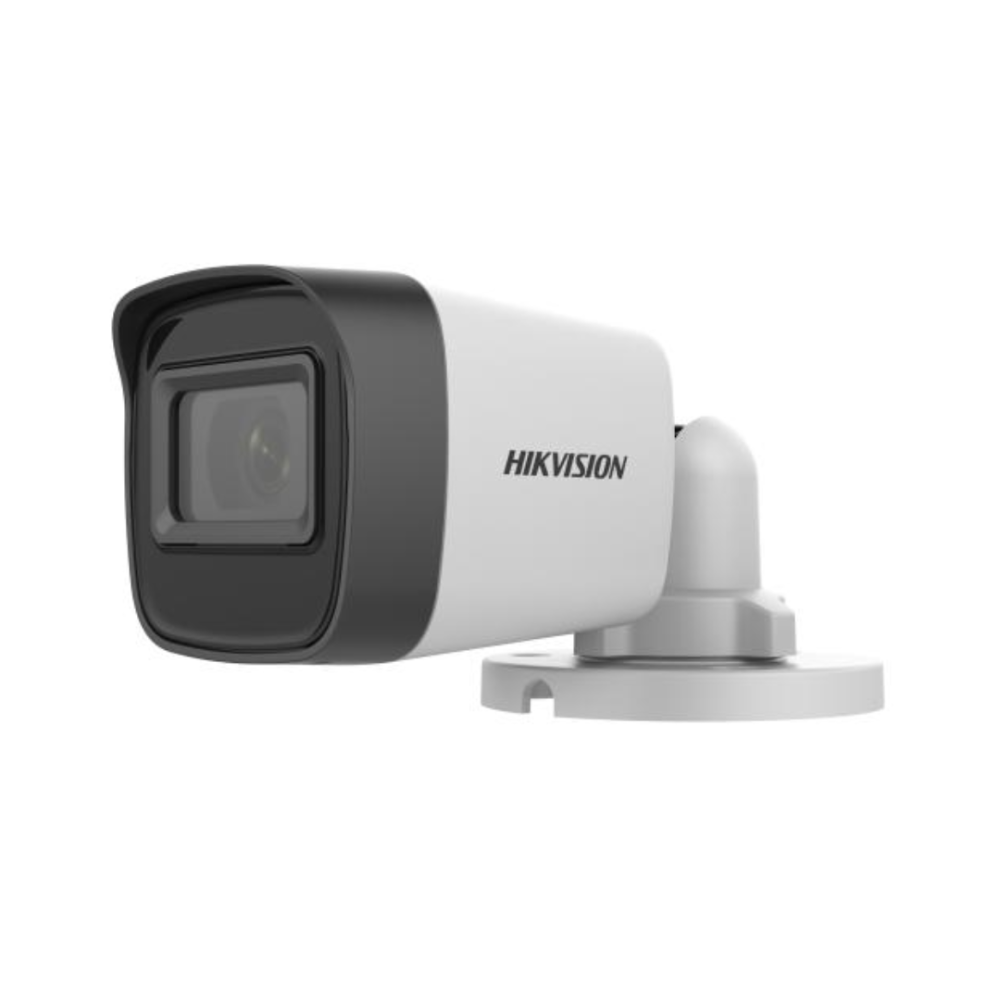

5 MP Fixed Mini Bullet Camera
  • 5 MP bullet camera
  • EXIR 2.0: advanced infrared technology with 25 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Product Specifications

Brand: HikVision

Model Number: DS-2CE16H0T-ITPF

  • Camera
  • Image Sensor5 MP CMOS image sensor
  • Max. Resolution2560 (H) × 1944 (V)
  • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Time

    PAL: 1/25 s to 1/50, 000 s

    NTSC: 1/30 s to 1/50, 000 s

  • Day & NightICR
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
  • Focal Length & FOV

    2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°

    2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°

    3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°

    6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°

  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Mirror, Smart IR
  • Frame Rate

    TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

    AHD: 5M@20fps, 4M@30fps, 4M@25fps

    CVI: 4M@30fps, 4M@25fps

    CVBS: PAL/NTSC

  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC
  • White BalanceATW/MANUAL
  • AGCSupport
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialPlastic
  • Dimension60.9 mm × 57.9 mm × 138.8 mm (2.39" × 2.28" × 5.47")
  • WeightApprox. 147 g (0.32 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC ±25%
  • Consumption

    Max. 4.3 W

  • IR RangeUp to 25 m
  • Approval
  • ProtectionIP67
