Brand: HikVision

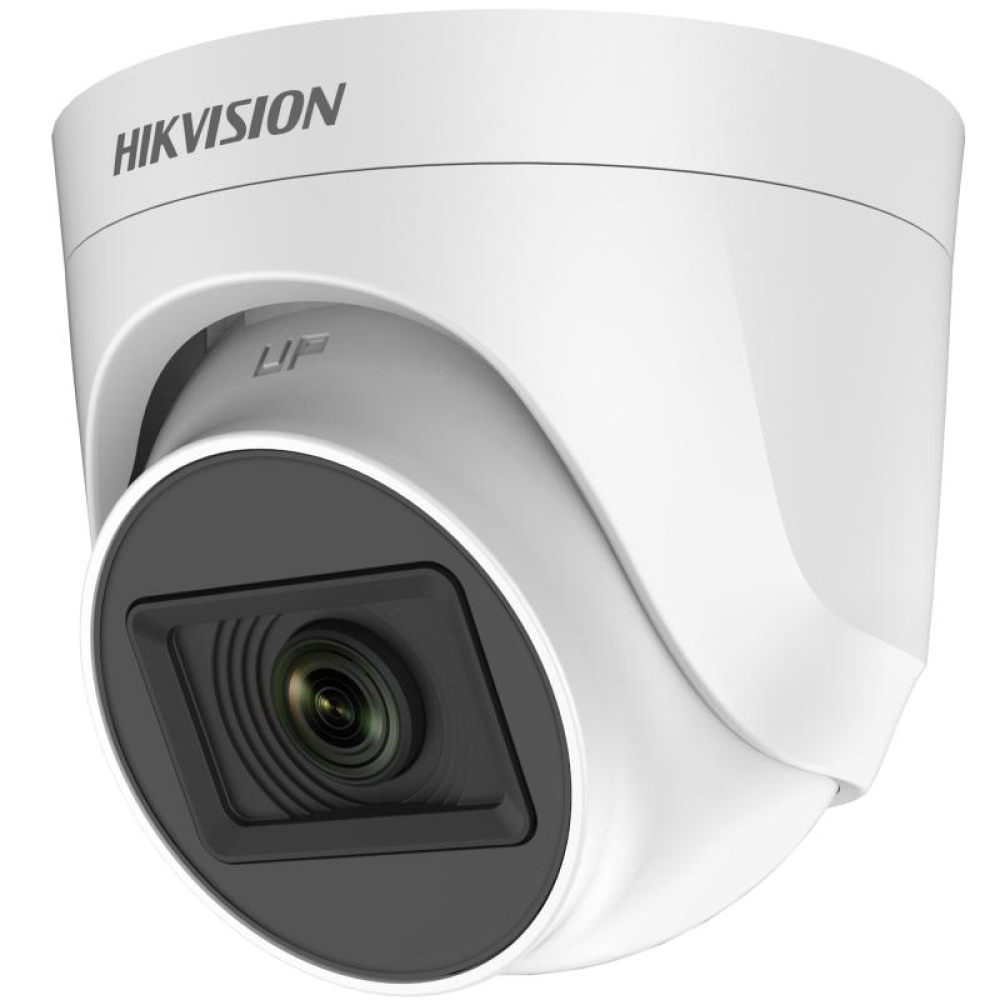

Model Number: DS-2CE76U1T-ITPF
Availability: In stock
- Camera
-
Image Sensor8.29 megapixel progressive scan CMOS
-
Max. Resolution3840 (H) × 2160 (V)
-
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
-
Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
-
Day & NightIR Cut Filter
-
Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
-
Signal SystemPAL/NTSC
- Lens
-
Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
-
Focal Length & FOVHorizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
-
Lens MountM16
- Illuminator
-
Supplement Light TypeIR
-
Supplement Light RangeUp to 30 m
-
Smart Supplement LightYes
- Image
-
Image SettingsBrightness;Sharpness;AGC
-
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
-
Day/Night ModeAuto/Color/BW (Black and White)
-
Wide Dynamic Range (WDR)Digital WDR
-
Image EnhancementBLC;HLC
-
Noise Reduction2D DNR
-
White BalanceAuto/Manual
- Interface
-
Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
