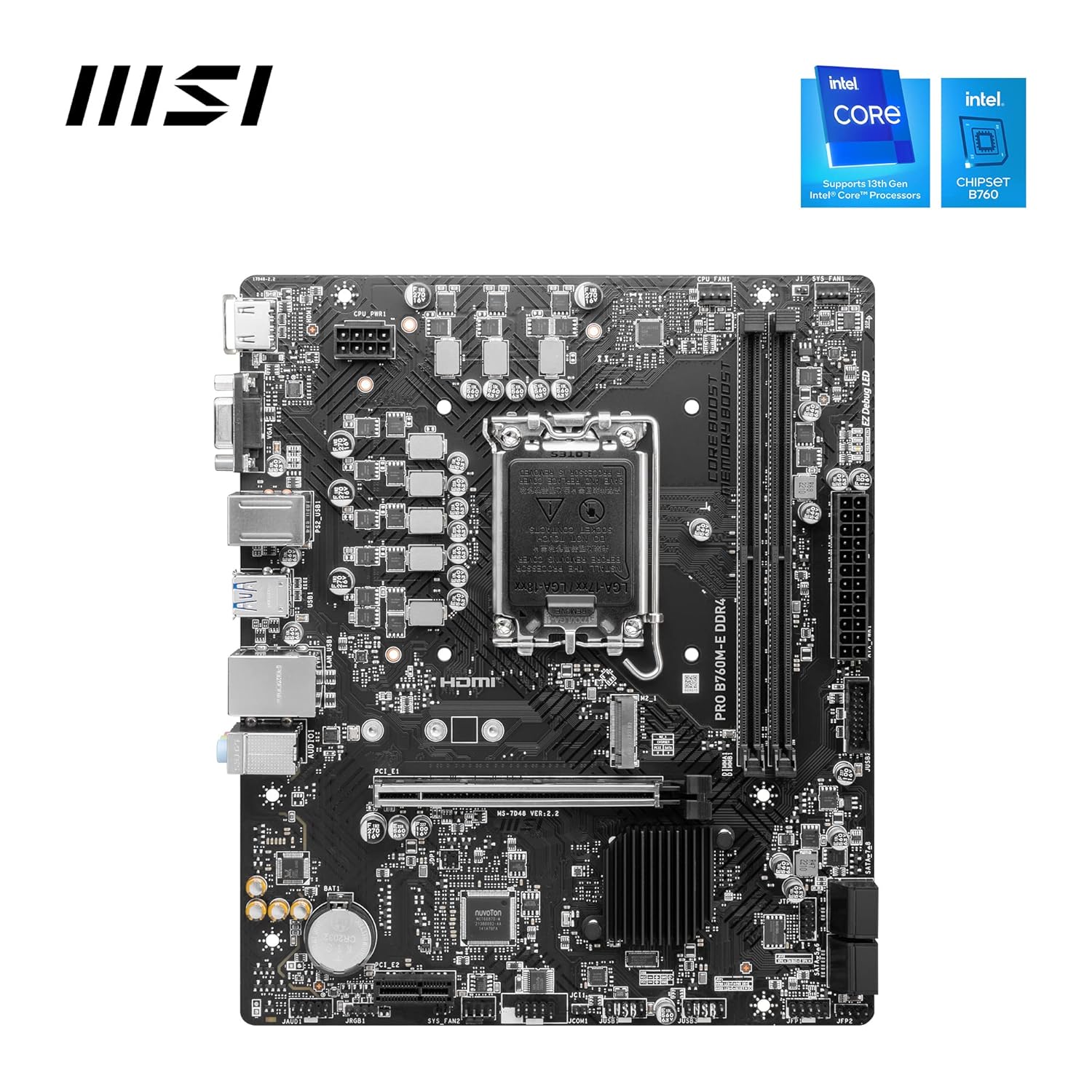

Reliable Performance for Modern Intel Builds
The MSI PRO B760M-E motherboard is designed to provide dependable and efficient performance for users building with the latest Intel 13th and 12th Gen processors on the LGA1700 socket. Built on the Intel B760 chipset, this Micro-ATX motherboard supports DDR5 memory, enabling faster speeds and improved multitasking capabilities. It’s ideal for professionals and mainstream users who want a solid foundation for productivity, office work, and everyday computing.
Efficient Connectivity and Expansion Options
Equipped with PCIe 4.0, the PRO B760M-E offers fast data transfer for compatible GPUs and storage devices, ensuring smooth performance and responsiveness. It features multiple M.2 slots and SATA ports to support various high-speed NVMe SSDs and traditional drives for versatile storage configurations. With comprehensive USB support and modern networking options, this motherboard ensures seamless connectivity for a wide range of peripherals and devices.
Durable Design with Smart Cooling Solutions
The MSI PRO B760M-E is engineered with quality components and a durable power delivery system that ensures stable and efficient operation under load. Its extended heatsink design helps dissipate heat effectively, maintaining optimal thermal performance. With MSI’s user-friendly BIOS and robust build quality, this motherboard offers an excellent balance of performance, reliability, and ease of use for all types of PC builds.
| Model No | Msi PRO B760M-E |
| Part No | 911-7D48-071 |
| Chipset | Intel B760 |
| Form Factor | microATX |
| Socket Compatibility | LGA 1700 (Intel 12th / 13th / 14th Gen, Pentium Gold, Celeron) |
| Wireless & Bluetooth | None (no onboard Wi-Fi / Bluetooth) |
| Lighting | RGB / Mystic Light header support, EZ Debug LEDs |
| Memory Type | DDR4 |
| Memory Compatibility | 2 × DDR4 UDIMM slots, up to 64 GB; supports DDR4-4800+ (OC) and XMP / overclock profiles |
| Storage Compatibility | 1 × M.2 (PCIe 4.0 ×4 / SATA), 4 × SATA 6 Gb/s ports (RAID support) |

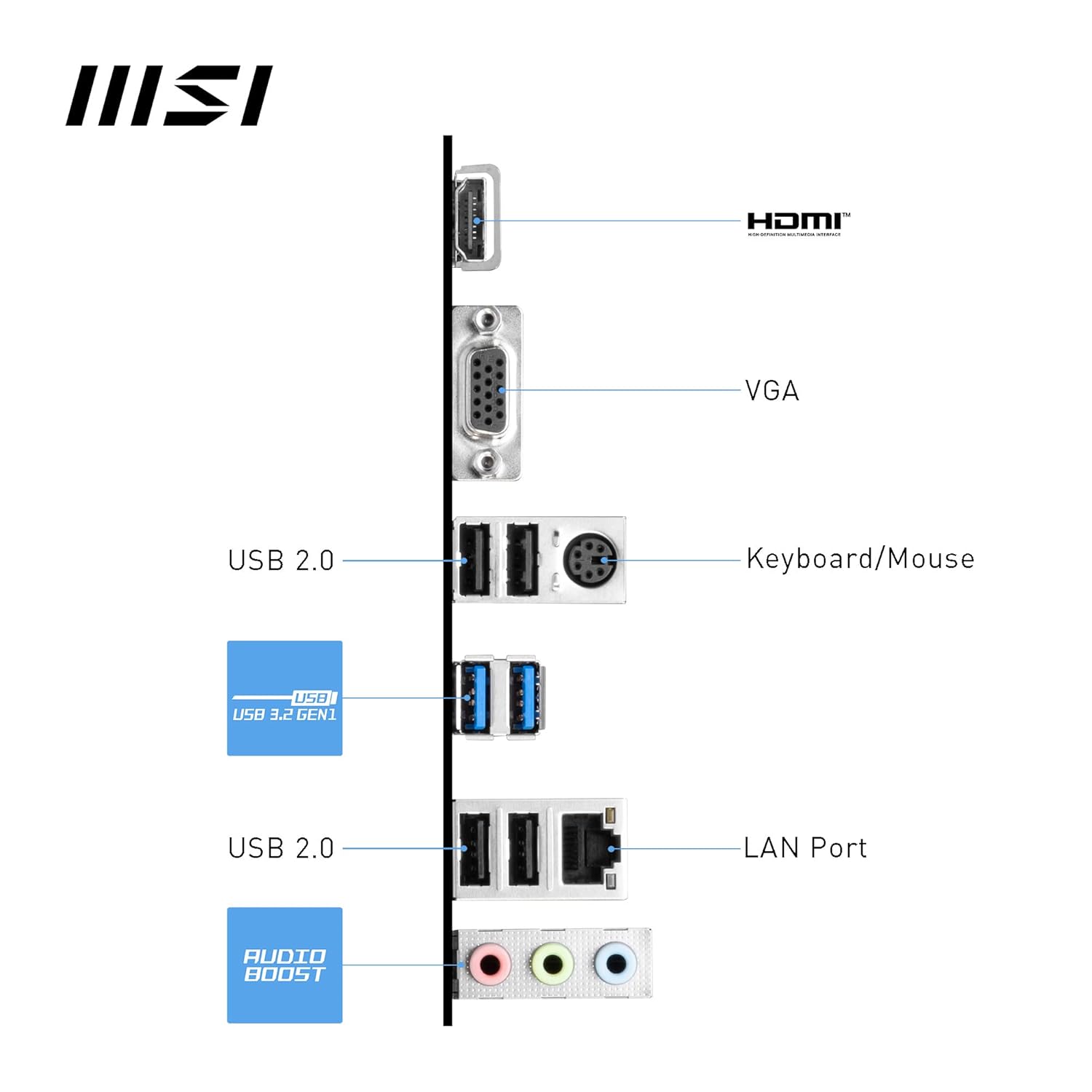

| Back Panel I/O Ports | HDMI 1.4, VGA, multiple USB 3.2 Gen1 Type-A, USB 2.0, LAN RJ-45, audio jacks, BIOS / Debug LEDs |
| USB Ports Front / Internal Support | Front / internal USB 2.0 and USB 3.2 Gen1 headers (for front panel connectivity) |
| Expansion Slots | 1 × PCIe 4.0 ×16 slot, 1 × PCIe 3.0 ×1 slot |
| Audio | Realtek ALC897, 7.1-channel HD Audio |
| Internal I/O Connectors | 24-pin ATX power, 8-pin CPU power, CPU & system fan headers, front panel headers, front audio, USB headers, RGB header, TPM header |
| Special Features | Core Boost, Memory Boost, Gen4 PCIe support, Steel Armor on main slot, EZ Debug LED, Audio Boost, chipset heatsink, Frozr AI Cooling |
| Package Content | Motherboard, SATA cables, M.2 screws, manual, I/O shield, etc. |
| Product Size (Dimension) | 244 mm × 244 mm (approx.) |
