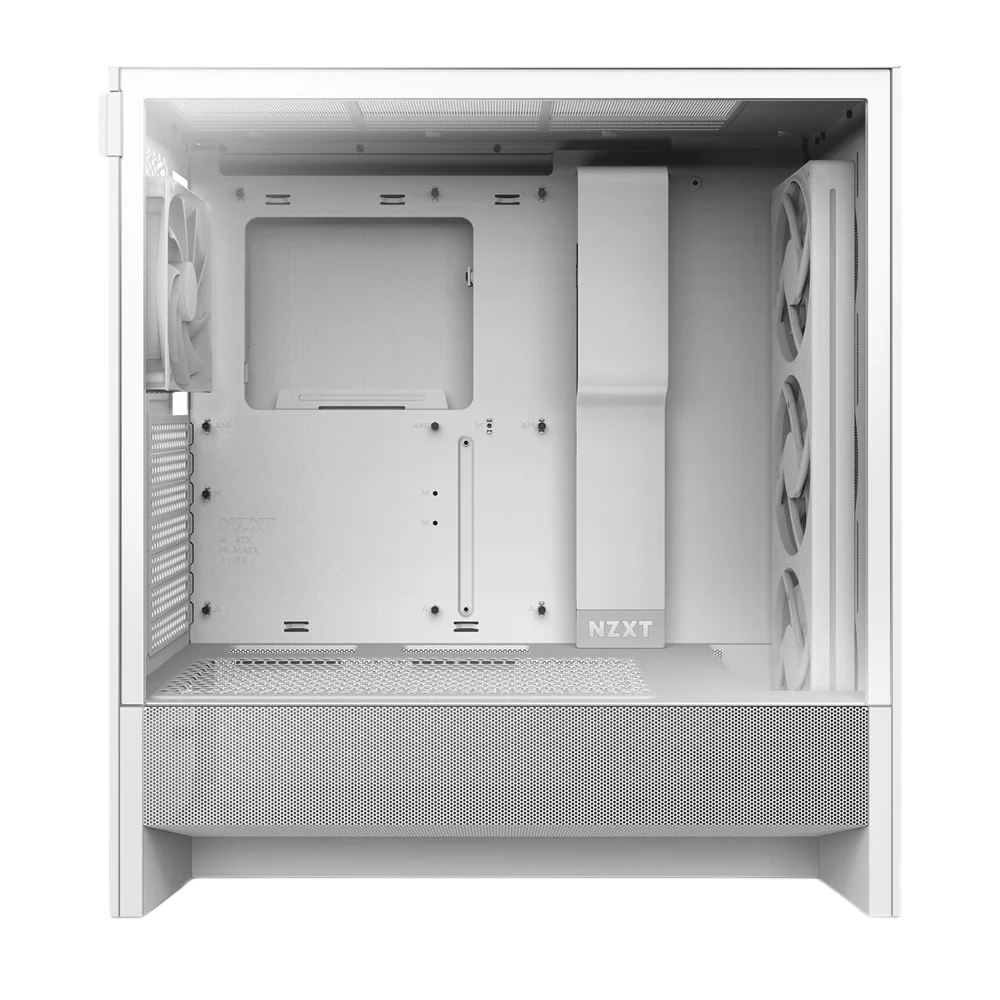

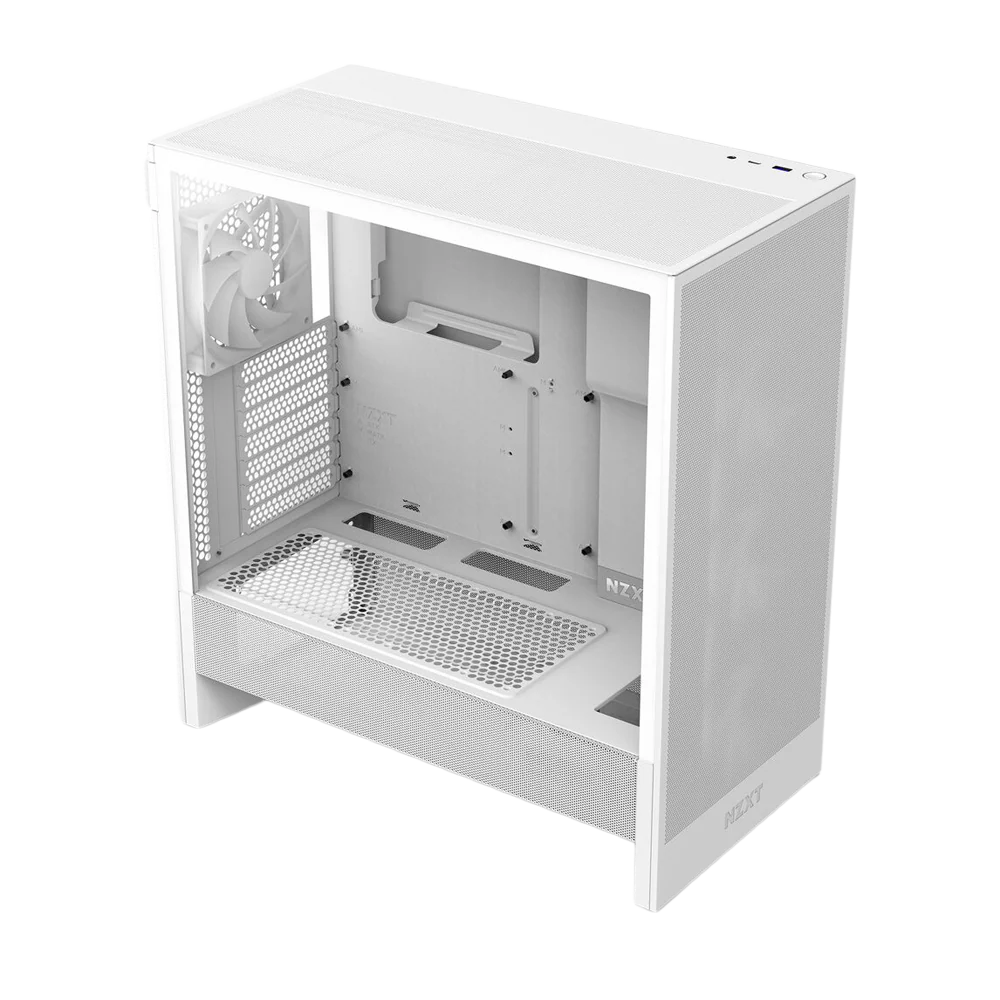

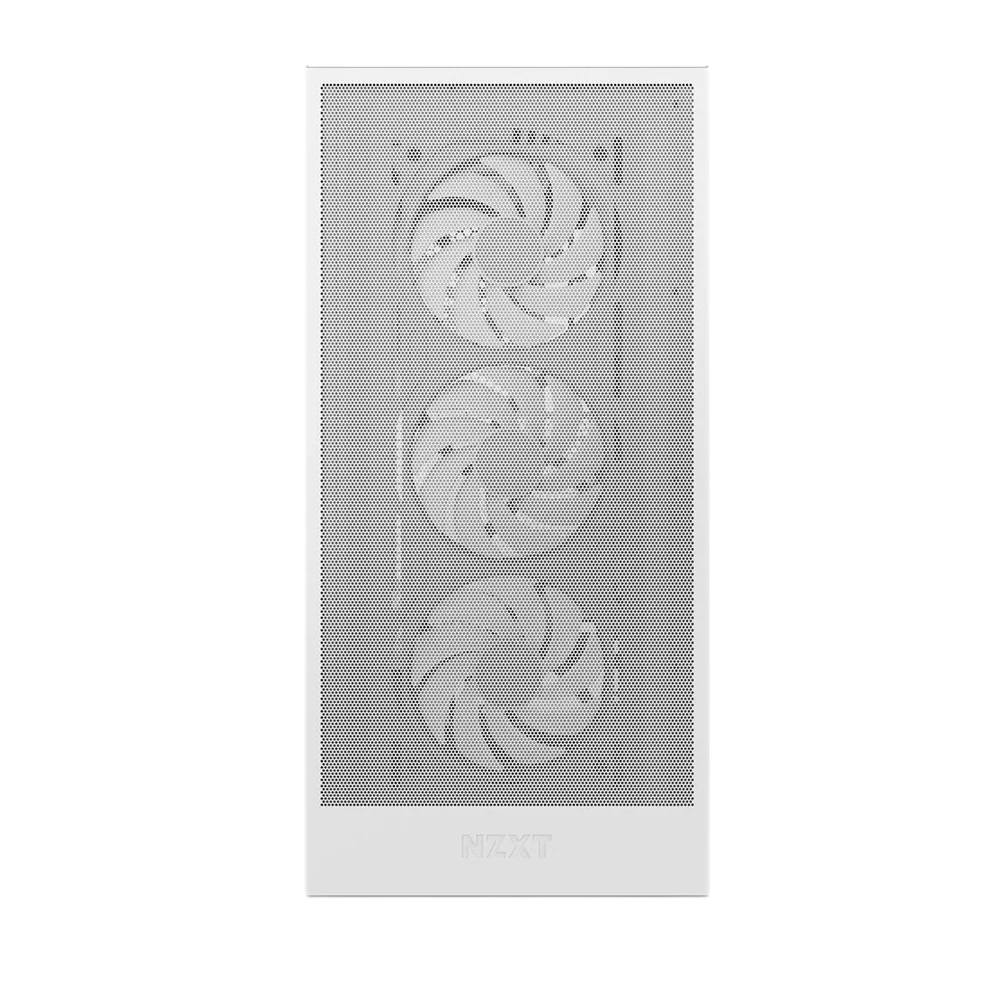

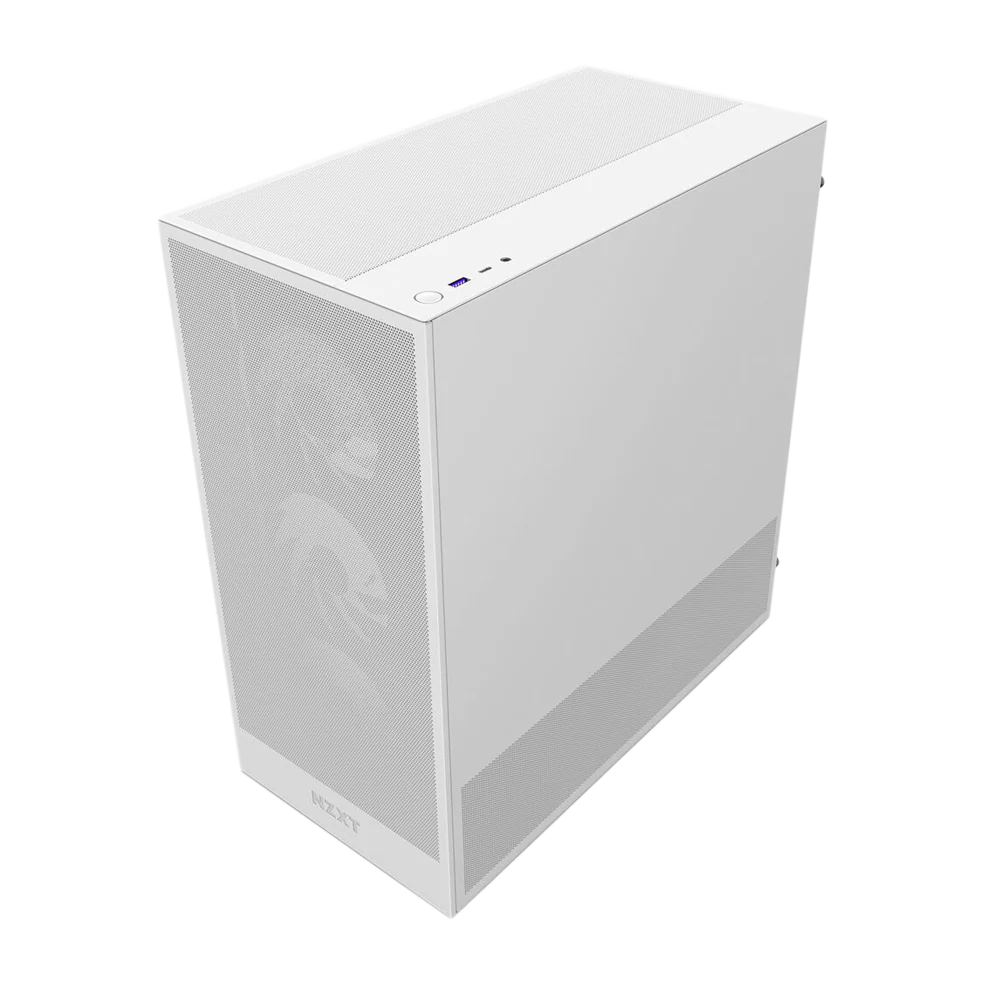

The NZXT H5 Flow RGB (2024) represents a refined approach to compact mid-tower design, delivering professional-grade cooling and aesthetics in a space-conscious form factor. This ATX-compatible case features integrated RGB fans that provide customizable lighting synchronized with your system's ecosystem. The optimized airflow design balances thermal performance with cable management efficiency, making it suitable for both gaming and content creation builds. The compact footprint doesn't compromise on expandability, accommodating modern graphics cards and tower coolers while maintaining clean lines and a minimalist aesthetic. The white finish offers versatility for various build themes, while the tempered glass panel showcases your components. Engineered for builders who demand performance without sacrificing desk real estate, this case combines NZXT's signature design philosophy with practical functionality for discerning PC enthusiasts.
|
Model No |
NZXT H5 Flow RGB (2024) Compact Mid-Tower ATX Case With RGB Fans - White |
|
Part No |
CC-H52FW-R1 |
|
Color |
White |
|
Motherboard Support |
ATX, E-ATX, Micro-ATX, Mini-ITX |
|
External Drive Bays |
No |
|
Internal Drive Bays |
2x 2.5" and 1x 3.5" |
|
Expansion Slots |
7x Full Height |
|
Maximum GPU Length |
16.1" / 410 mm |
|
CPU Cooler Height |
6.9" / 175 mm |
|
Supported PSU Size |
ATX |
|
Maximum PSU Length |
7.9" / 200 mm |
|
PSU Mounting Location |
Bottom |
|
Fan Mounting |
Front 3x 120 mm or 2x 140 mm Top 2x 120/140 mm Bottom 2x 120 mm Rear 1x 120 mm |
|
Fans Included |
Front: 3x 120 mm LED (1700 rpm) |
|
Maximum Radiator Size |
Front: 360 mm Top: 240 mm |
|
Noise Level |
24.1 dBA |
|
Fan Controller Included |
No |
|
Filter Locations |
Bottom, Front, Top |
|
I/O |
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 1x USB-C (USB 3.0 / 3.1/3.2 Gen 1) |
|
Audio I/O |
1x 3.5 mm Input/Output |
|
Display Outputs |
No |
|
Windowed Panel |
Yes |
|
Color |
Black |
|
Material |
Steel, Tempered Glass |
|
Certifications |
No |
|
Built-In Lighting |
No |
|
Tool-Less Design |
Thumbscrews |
|
Security |
No |
|
Cable Management Space |
1.1" / 28.7 mm |
|
Dimensions (W x H x D) |
16.9 x 18.3 x 8.9" / 430 x 465 x 225 mm |
|
Weight |
16.49 lb / 7.48 kg |
|
Package Weight |
21 lb |
|
Box Dimensions (LxWxH) |
21.75 x 20.5 x 12" |
