QNAP TS-364 3 Bay NAS Enclosure for Cloud Storage, 2.5GbE, RAID 5, M.2 SSD caching
- 175.000 KD
199.000 KD- 175.000 KD
- Unit price
- per
2.5GbE connectivity
Immediately multiply file transfer speeds by 2.5 times while using existing CAT5e cables.

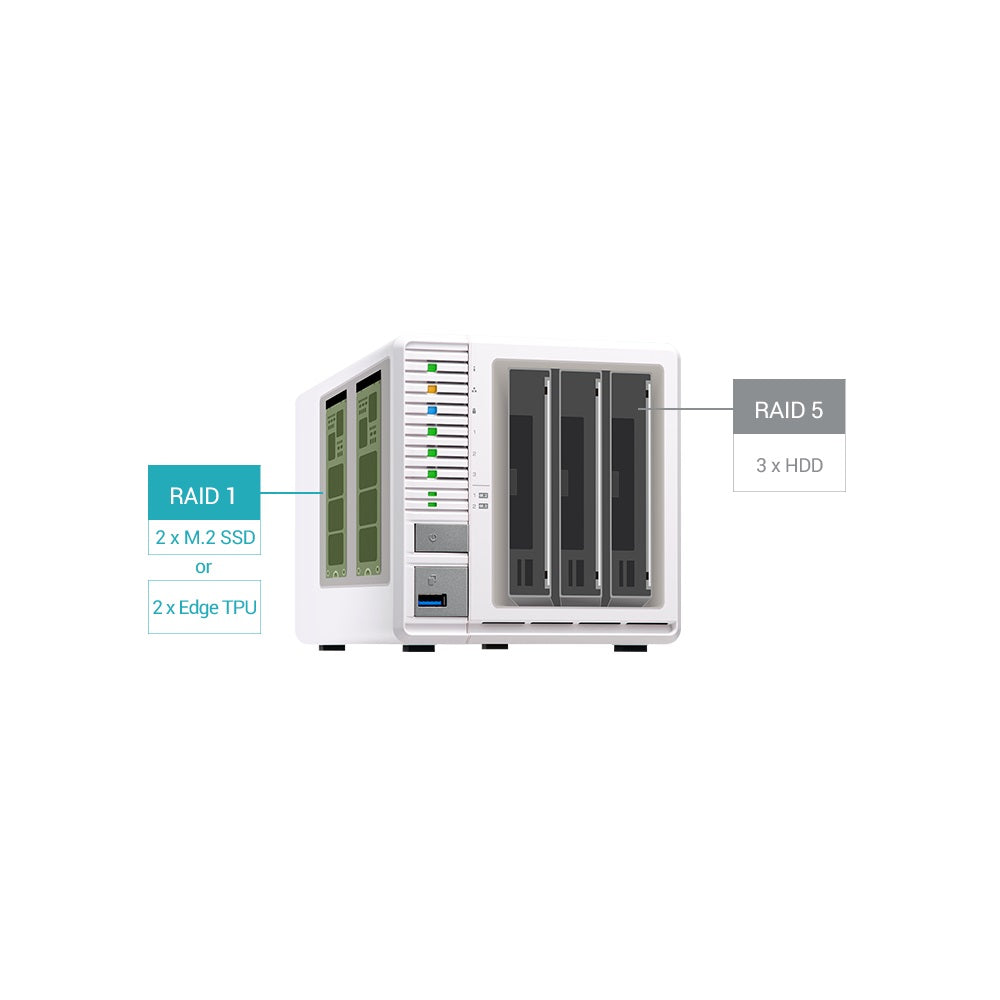

RAID 5
Build a secure RAID 5 array with three disks for optimized storage capacity and protection against one disk failing.
USB 3.2 Gen2 (10Gbps)
A USB 3.2 Gen 2 (10Gbps) port enables fast file sharing and intensive data transfer.
4K HDMI™ output
4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.
Dual M.2 PCIe slots
Dual M.2 PCIe Gen 3 slots enable cache acceleration or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
SSD cache acceleration
Qtier Technology enables constant storage optimization.
Features
-
8GB RAM
-
2.5GbE-ready
-
1x HDMI 1.4b (4K@30Hz)
-
2x Type-A (USB 3.2 Gen 2)
-
2x M.2 2280 PCIe Gen3 Slots
- 2x SODIMM DDR4 RAM Slots Max. 16GB
Specifications
| System Memory | 8 GB RAM |
| Maximum Memory | 8 GB |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 3 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives An optional 2.5″ drive tray base (TRAY-25-NK-BLK03) is needed to install a 2.5″ SSD/HDD
|
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x2 slots
Compatible with NVMe SSD PCIe Gen 3 and above.
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1(2.5G/1G/100M) |
| USB 3.2 Gen 1 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~3, M.2 SSD1~2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 146 × 142 × 257.1 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 2.6 kg |
| Weight (Gross) | 3 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 65W adapter, 100 – 240V |
| Power Consumption: HDD Sleep Mode | 18.9 W |
| Power Consumption: Operating Mode, Typical | 32.8 W
Tested with drives fully populated.
|
| Fan | 1 x 92mm, 12VDC |
| System Warning | Buzzer |
