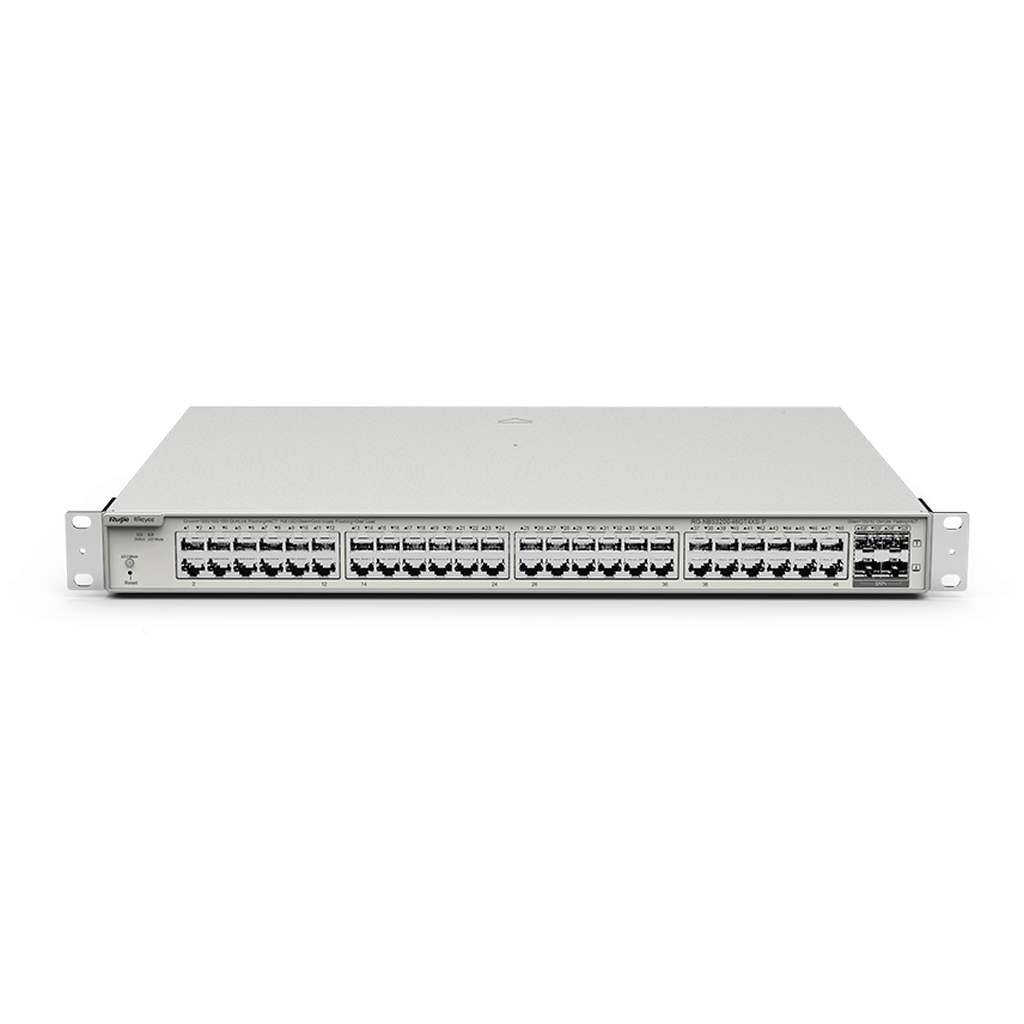

Ruijie Rg-Nbs3200-48Gt4Xs-P 48 10/100/1000Base-T Ports (Support Poe And Poe+), 4 Sfp+ 10Gbase-X Ports
- 220.000 KD
269.000 KD- 220.000 KD
- Unit price
- per
| Model | RG-NBS3200-24GT4XS | RG-NBS3200-48GT4XS | RG-NBS3200-24SFP/8GT4XS |
RG-NBS3200-24GT4XS-P
RG-NBS3200-48GT4XS-P |
| Fixed ports |
24 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply |
48 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply |
24 SFP ports (SFP: 100/1000M ports), 8 combo 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports |
24 10/100/1000Base-T ports (802.3 af/at compliant), 4 SFP+ 10GBase-X ports 48 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports |
| Switching capacity | 336Gbps | 336Gbps | 336Gbps | 336Gbps |
| Packet forwarding rate | 96Mpps | 132Mpps | 96Mpp | RG-NBS3200-24GT4XS-P 96Mpps
RG-NBS3200-48GT4XS-P 132Mpps |
| MAC address | Support static MAC address, MAC address filtering | |||
| MAC address table size |
16K |
|||
|
Number of VLANs |
4094 |
|||
| Link aggregation | Support | |||
| Port mirroring | Many-to-one mirroring | |||
| Spanning tree | STP, RSTP | |||
| LLDP | Support | |||
| IP routing | N/A | |||
| ACL | IP standard ACL
MAC extended ACL IP extended ACL Port ACL for Layer 2 ports (physical port / AP) |
|||
| QoS | Port-based speed limit (ingress/egress) | |||
| Security | Port protection
Hardware CPP |
|||
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management | |||
| DHCP | DHCP snooping | |||
| EEE | Support | |||
| Physical specifications | ||||
| Dimensions | 440×207.5×43.6mm | 440×267.5×43.6mm | 440×357.6×43.6mm | |
| PoE | N/A |
24/48 Base-T ports (support PoE and PoE+) Maximum PoE / PoE+ output power per switch: 370W Maximum output power per port: 30W |
||
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃
Storage temperature: -40 ℃ ~ 70 ℃ |
|||
| Humidity | Operating humidity: 10% ~ 90% RH
Storage humidity: 5% ~ 90% RH |
|||
