| Brand |
Synology |
| Model |

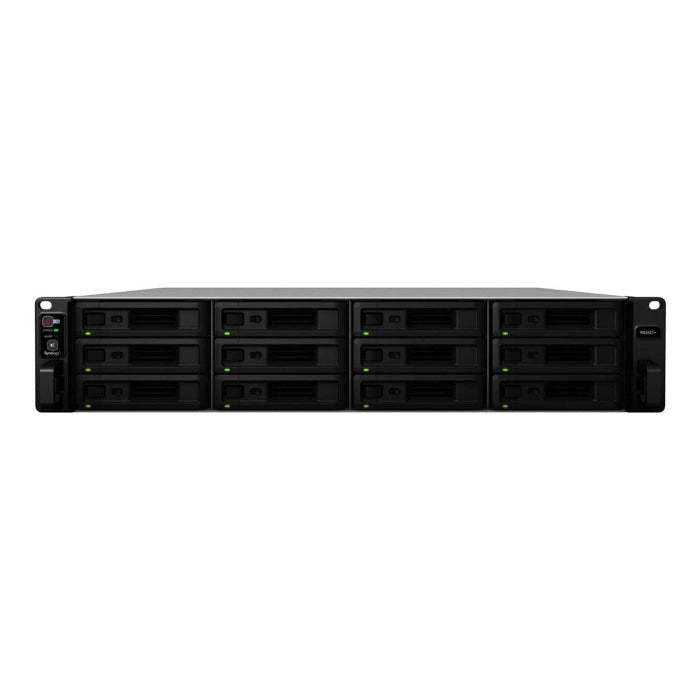

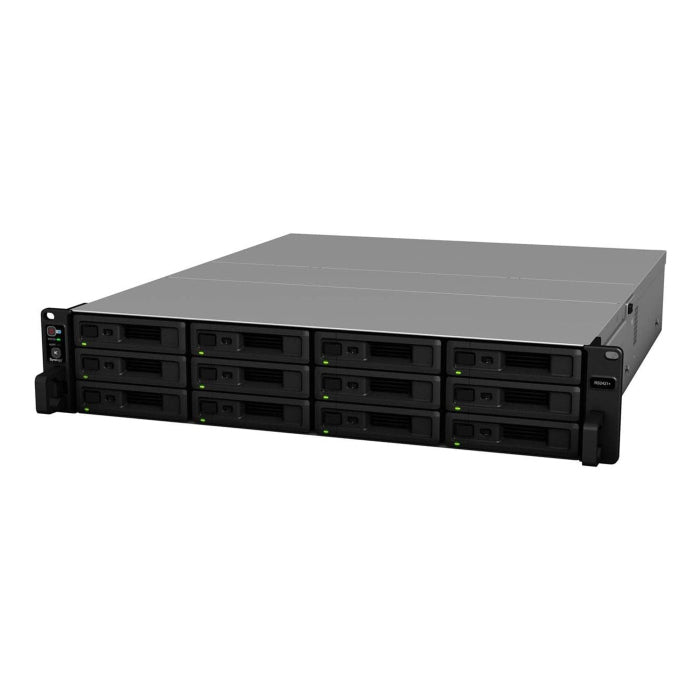

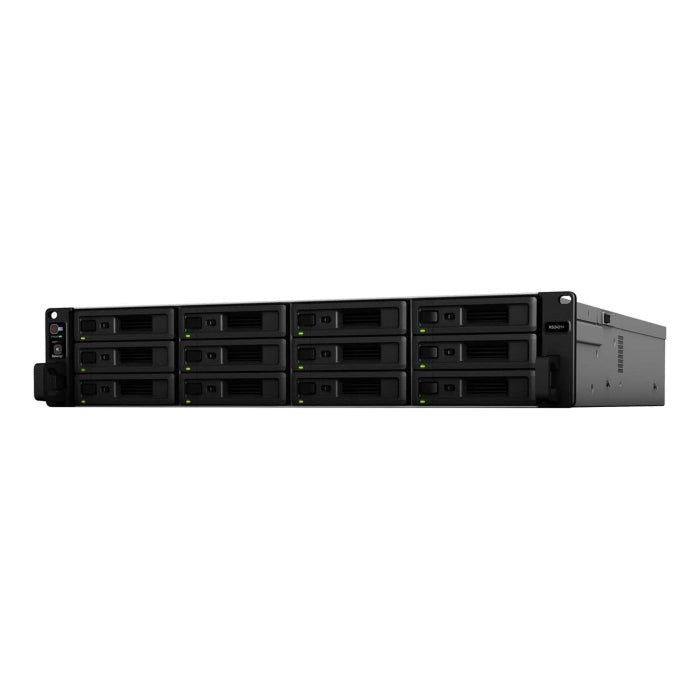

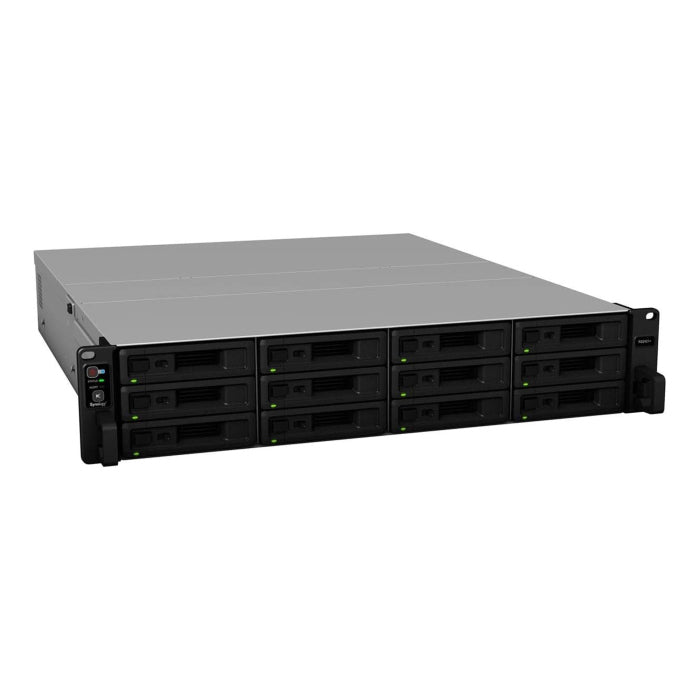

Synology RackStation RS2421+ |
| CPU Model |
AMD Ryzen V1500B |
| CPU Frequency |
Quad-Core 2.2 GHz |
| Hardware Encryption Engine (AES-NI) |
Yes |
| System Memory |
4 GB DDR4 ECC UDIMM |
| Memory Slots |
2 |
| Memory Expandable |
Up to 32 GB (16 GB x 2) |
| Hard Drive Installed |
No Hard Drive |
| Storage Drive Bay(s) |
12 |
| Compatible Drive Type |
3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD |
| Maximum Drive Bays with Expansion Unit |
24 (RX1217/RX1217RP x 1) |
| Maximum Single Volume Size |
108 TB |
| Hot Swappable Drive |
Yes |
| Supported RAID Type |
Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |

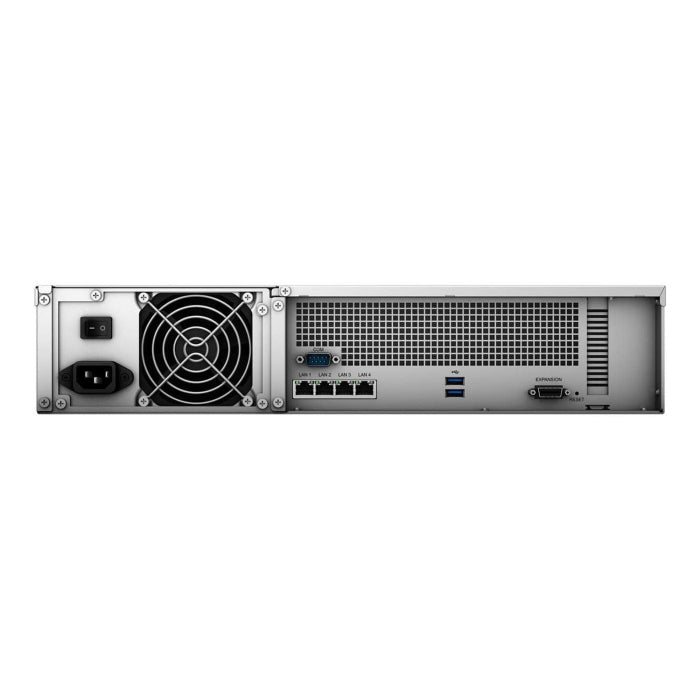

| External Ports |
USB 3.2 Gen 1 x 2, Expansion Port x 1 |
| PCIe Expansion |
1 x Gen3 x8 Slots (x4 link) |
| LAN |
(RJ-45) x 4 (with Link Aggregation / Failover Support) |
| File System |
Internal: Btrfs, EXT4 / External: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT |
| Rail Kit |
Synology RKS-02 Rail Kit |
| System Fan |
60 mm x 60 mm x 3 Pcs |
| Fan Speed Mode |
Full-Speed Mode, Cool Mode, Quiet Mode |
| Easy Replacement System Fan |
Yes |
| Noise Level |
50.1 dB(A) |
| Power Recovery |
Yes |
| Scheduled Power On/Off |
Yes |
| Wake on LAN/WAN |
Yes |
| Power Supply Unit / Adapter |
500 W |
| AC Input Power Voltage |
100V to 240V AC |
| Power Frequency |
50/60 HZ, Single Phase |
| Power Consumption |
79.56 W (Access) 34.89 W (HDD Hibernation) |
| Operating Temperature |
0°C to 35°C (32°F to 95°F) |
| Storage Temperature |
-20°C to 60°C (-5°F to 140°F) |
| Relative Humidity |
5% to 95% RH |
| Certification |
FCC, CE, BSMI, EAC, CCC, KC, UL, VCCI, RCM |
| Dimensions (W x D x H) |
482 x 552 x 88 mm |
| Weight |
11.5 Kg |
| Warranty |
Three Years |
