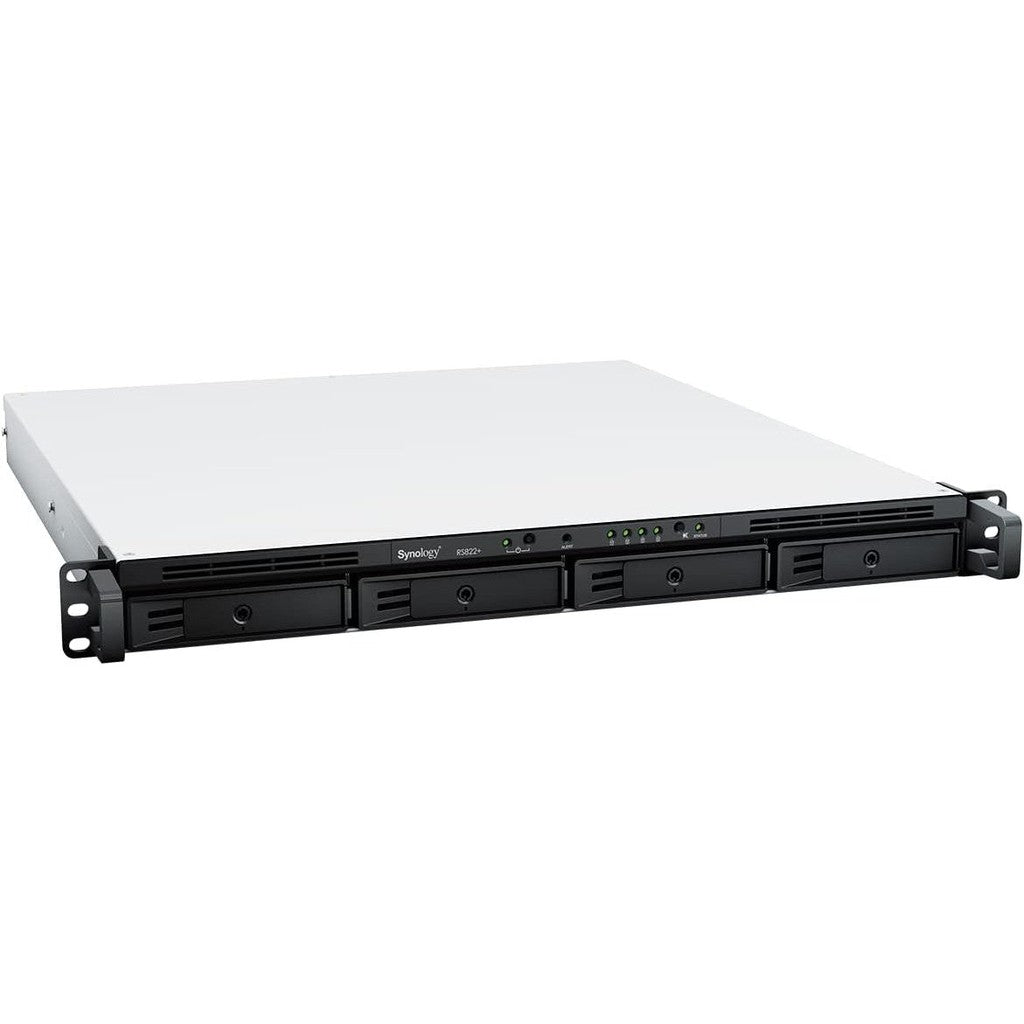

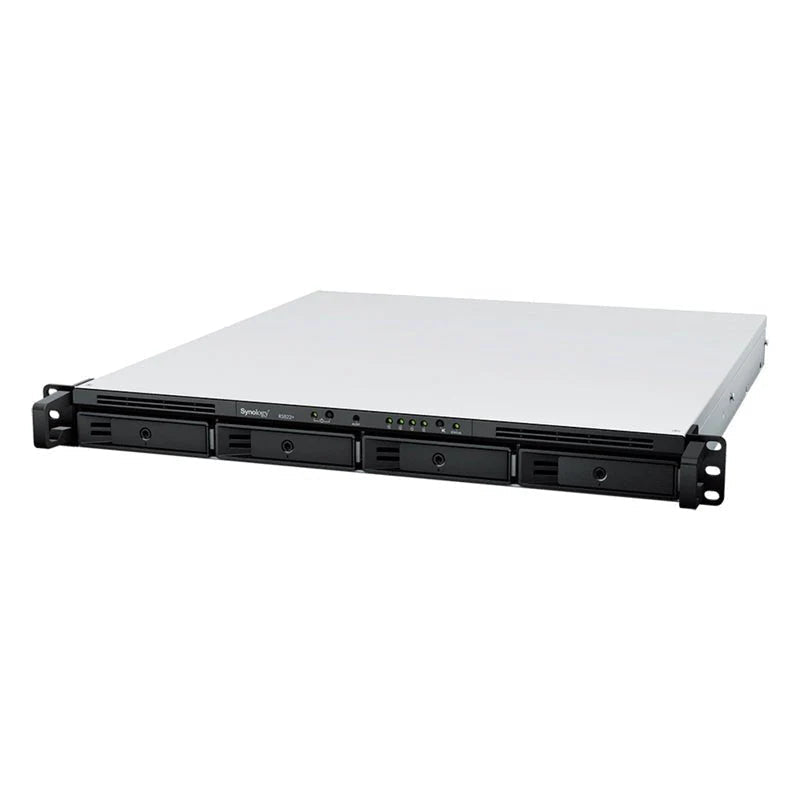

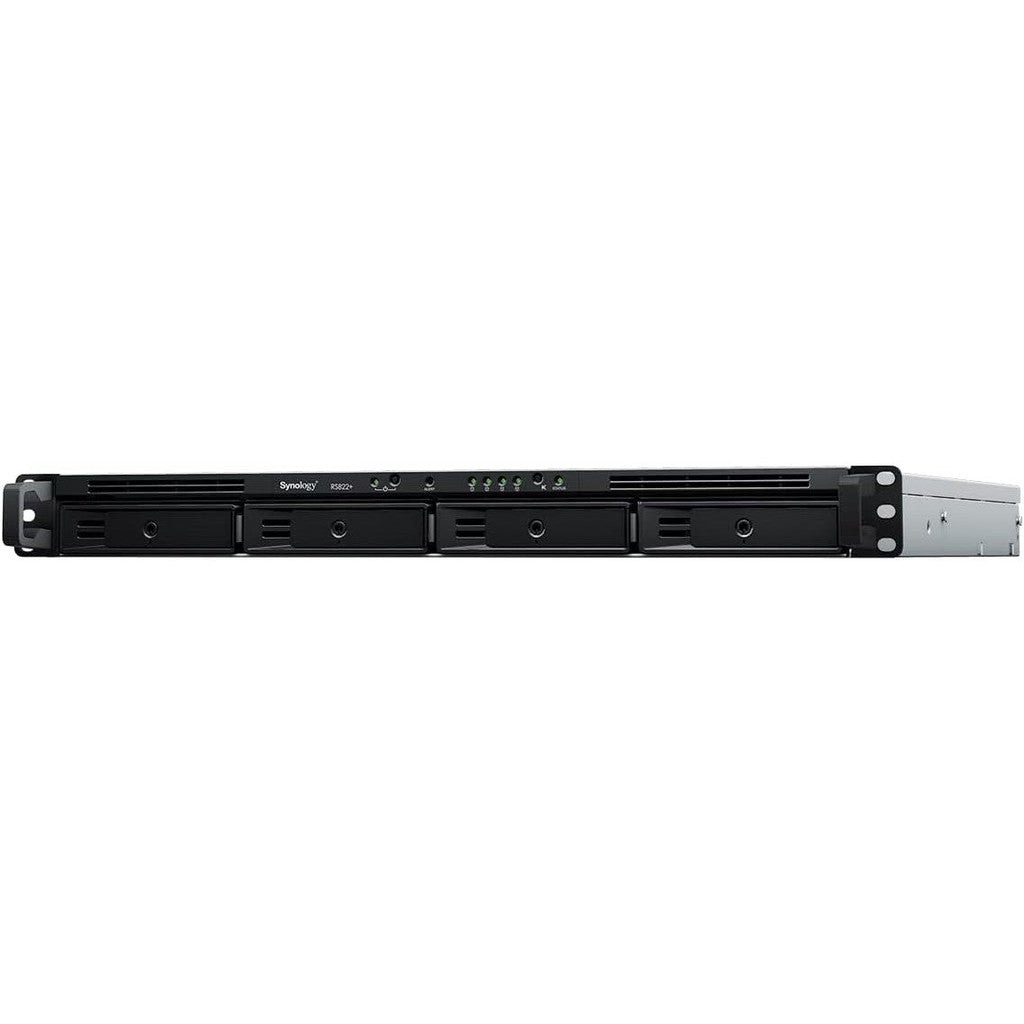

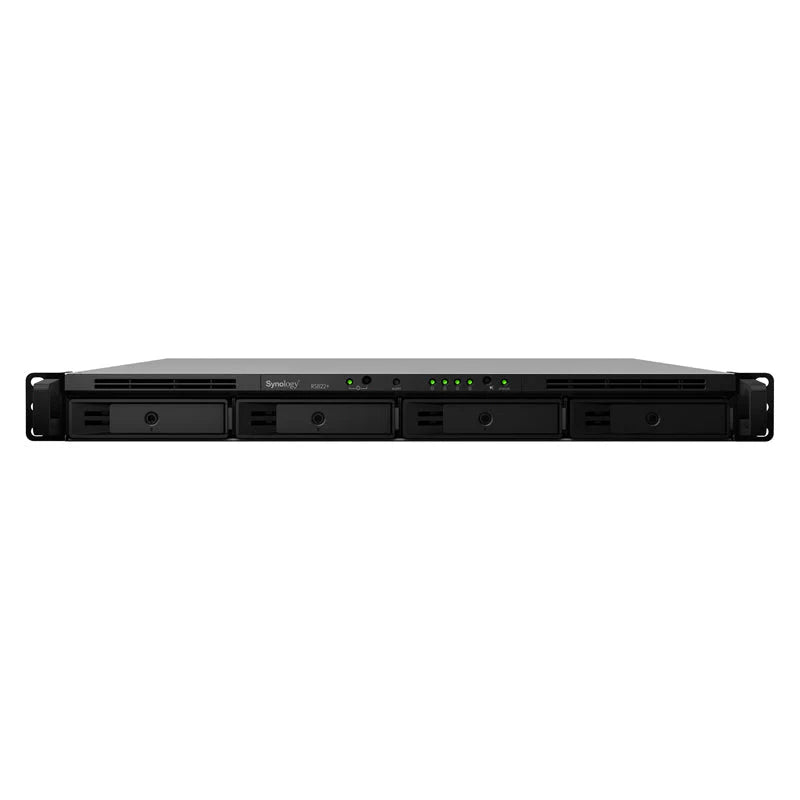

Synology RackStation RS822+ is a 4-bay rackmount NAS enclosed in a compact 1U chassis. Running the powerful Synology DiskStation Manager (DSM) operating system, it is ideal for data backup, sharing, and synchronization. Its small size, stable performance, and storage scalability make it suitable for branch offices and small and medium-sized businesses with ever-increasing data management needs.
| Brand | Synology |
| Model | Synology RackStation RS822+ |
| CPU Model | AMD Ryzen V1500B |
| CPU Frequency | Quad-Core 2.2 GHz |
| Hardware Encryption Engine (AES-NI) | Yes |
| System Memory | 2 GB DDR4 ECC SODIMM |
| Memory Slots | 2 |
| Memory Expandable | Up to 32 GB (16 GB x 2) |
| Hard Drive Installed | 18TB / 3x 6TB (HAT3300-6T) SATA HDD |
| Hard Drive Warranty | Three Years |
| Storage Drive Bay(s) | 4 |
| Compatible Drive Type | 3.5" SATA HDD, 2.5" SATA SSD |
| Maximum Drive Bays with Expansion Unit | 8 (RX418 x 1) |
| Maximum Single Volume Size | 108 TB |
| Hot Swappable Drive | Yes |
| Supported RAID Type | Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| External Ports | USB 3.2 Gen 1 x 2, eSATA Port x 1 |
| PCIe Expansion | 1 x Gen3 x8 Slot (x4 Link) |
| LAN | (RJ-45) x 4 (with Link Aggregation / Failover Support) |
| File System | Internal: Btrfs, EXT4 / External: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT |
| Rail Kit | Synology RKS-02 Rail Kit |
| System Fan | 40 mm x 40 mm x 3 Pcs |
| Fan Speed Mode | Full-Speed Mode, Cool Mode, Quiet Mode |
| Noise Level | 27.4 dB(A) |
| Power Recovery | Yes |
| Scheduled Power On/Off | Yes |
| Wake on LAN/WAN | Yes |
| Power Supply Unit / Adapter | 150 W |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 HZ, Single Phase |
| Power Consumption | 47.69 W (Access), 16.7 W (HDD Hibernation) |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification | FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, UL |
| Dimensions (W x D x H) | 480 x 493 x 44 mm |
| Weight | 6.5 Kg |
| Warranty | Three Years |
