| Brand |
TP-Link |
| Model |

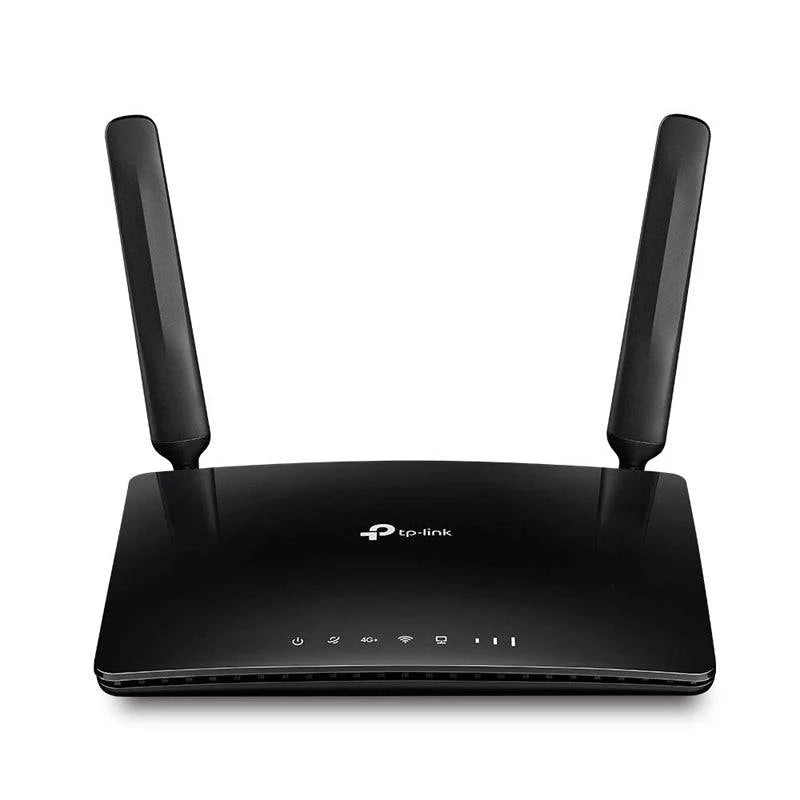

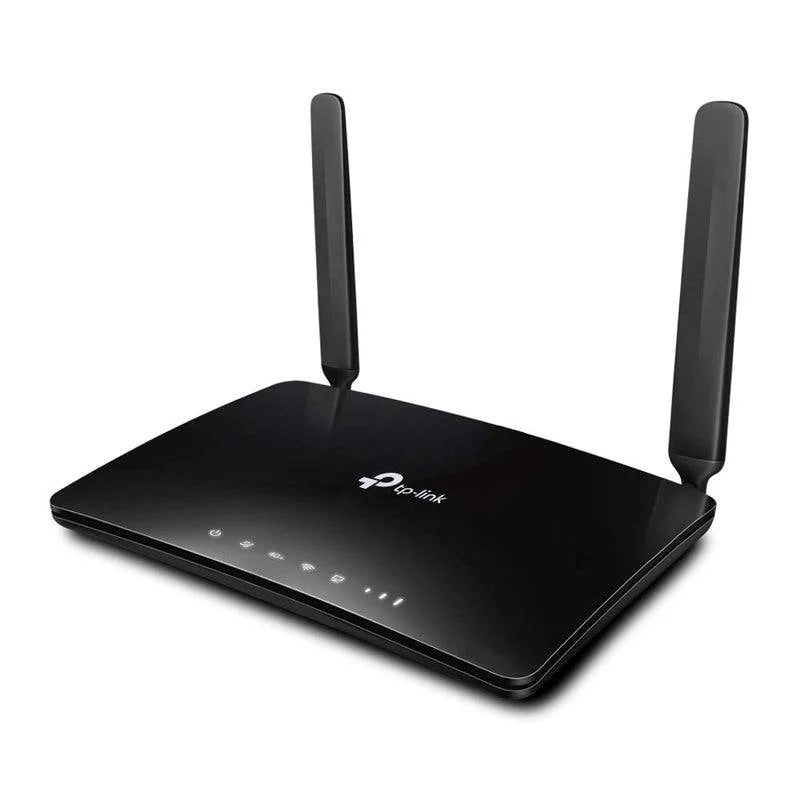

TP-Link Archer MR600 |
| Device Type |
4G LTE Wireless Router |
| Enclosure Type |
Desktop |
| Connectivity Technology |
Wireless, Wired |
| Cellular Protocol |
UMTS, FDD LTE, TDD LTE, HSPA B1, HSPA B5, HSPA B8, DC-HSPA+ B1, DC-HSPA+ B5, DC-HSPA+ B8 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band |
2.4 GHz / 5 GHz |
| Data Transfer Rate |
1200 Mbps |
| Performance |
Maximum Rata Date (2.4 GHz): 300 Mbps / Maximum data rate (5 GHz): 867 Mbps |
| Capacity |
Concurrent Devices: 64 |
| Network / Transport Protocol |
PPTP, L2TP, PPPoE, DHCP, DDNS, IPv4, IPv6 |
| Routing Protocol |
Static IP Routing |
| Remote Management Protocol |
DHCP |
| Transmit Power |
< 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Aerial |
External detachable |
| Antenna Qty |
2× Detachable 4G LTE Antennas |
| Interface |

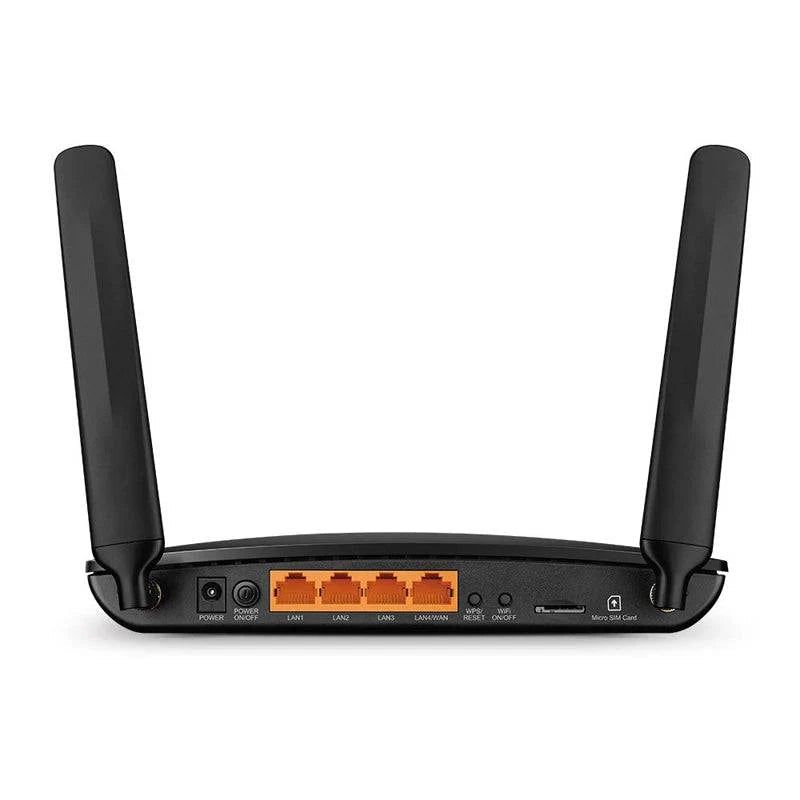

1× 10/100/1000 Mbps LAN/WAN Port / 3× 10/100/1000 Mbps LAN Ports / 1× Micro SIM Card Slot |
| Features |
VPN support, DoS attack prevention, ALG support, parental control, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), virtual server support, Wi-Fi Protected Setup (WPS), DHCP server, port forwarding, reset button, bandwidth control, port triggering, Stateful Packet Inspection Firewall (SPIF), dynamic IP mode, DHCP client, MU-MIMO technology, guest access, DMZ support, OneMesh support |
| Operating Temperature |
0℃~40℃ (32℉ ~104℉) |
| Operating Humidity |
10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
| Power |
AC 120/230 V (50/60 Hz) |
| Dimensions |
202 x 141 x 33.6 mm |
| Weight |
490 g |
