- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports Power over Ethernet (802.3af) for convenient and affordable installation
- Simple mounting design for easy attachment to a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Enterprise-class Wi-Fi security help to decrease network security threats
- Multi-SSID divides multiple wireless networks for different user types
- Supports management VLAN for an enhanced network management
Specifications
| HARDWARE FEATURES | |
|---|---|

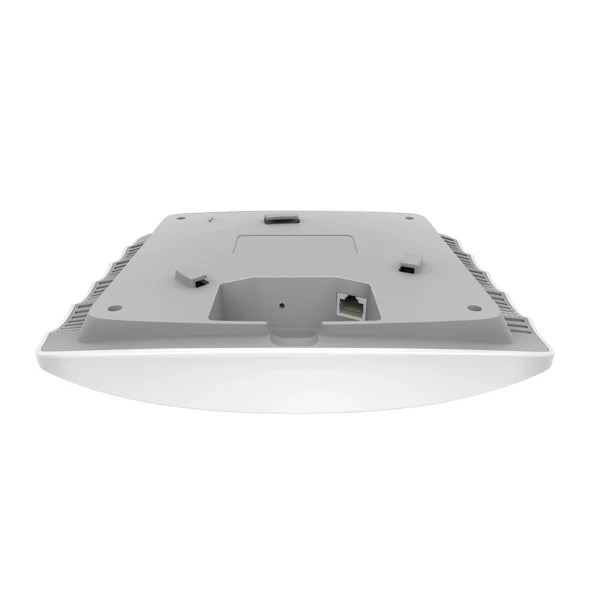

| Interface | 1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE) |
| Button | Reset |
| Power Supply | 802.3af PoE or external 9VDC/0.6A power supply |
| Max. Power Consumption | 2.8 W |
| Dimensions ( W x D x H ) | 7.5×6.7×1.2 in (189.5×170.5×29.7mm) |
| Antenna | Internal 2× 4 dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 60㎡(650ft²)§ |
| Concurrent Clients | 100+** |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4–2.4835 GHz |
| Signal Rate | • 11n: Up to 300Mbps(dynamic) • 11g: Up to 54Mbps(dynamic) • 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | • 300M: -71dBm@10% PER • 150M: -75dBm@10% PER • 54M: -78dBm@10% PER • 11M: -93dBm@8% PER • 6M: -92dBm@10% PER • 1M: -96dBm@8% PER |
| Wireless Functions | • Multiple SSIDs (Up to 8 SSIDs) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK |
| Transmission Power | • CE: ≤19 dBm (EIRP) • FCC: ≤21 dBm |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • 300Mbps Wireless N Ceiling Mount Access Point EAP115 • Power Adapter • Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows 10/8/7/Vista/XP |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing. |
