TP-Link JetStream 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
- 0.000 KD
0.000 KD- 0.000 KD
- Unit price
- per

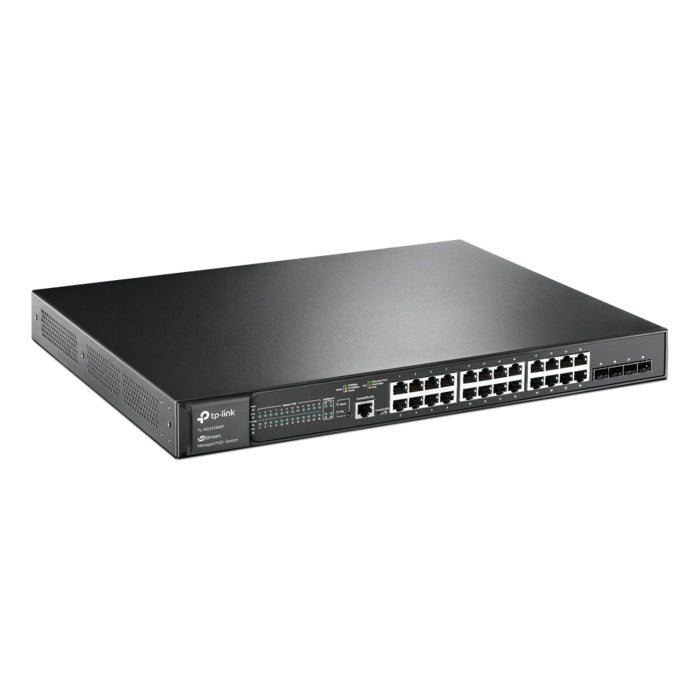

TP-Link JetStream 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+.
The TP-Link JetStream 28-Port Gigabit L2+ Managed Switch delivers enterprise-grade networking performance with comprehensive power delivery capabilities. This managed switch features 24 PoE+ ports capable of supplying up to 30W per port, enabling seamless deployment of powered devices such as IP cameras, wireless access points, and VoIP phones without requiring separate power infrastructure. The four additional Gigabit uplink ports provide flexible connectivity options for backbone network integration. Built on L2+ switching architecture, this device offers advanced traffic management through VLAN support, QoS prioritization, and comprehensive security features including port-based access control and storm control. The robust metal chassis ensures reliable operation in demanding environments, while intelligent thermal management maintains optimal performance during sustained operation. Ideal for medium to large-scale deployments requiring centralized power distribution and sophisticated network segmentation, this JetStream switch combines reliability with operational efficiency for professional installations.
| Model No | TP-Link JetStream 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ |
| Part No | TL-SG3428MP |
| Color | Black |
| Interface | • 24× 10/100/1000Mbps RJ45 Ports |
| • 4× Gigabit SFP Slots | |
| • 1× RJ45 Console Port | |
| • 1× Micro-USB Console Port | |
| Fan Quantity | 2 |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant |
| • PoE+ Ports: 24 Ports, up to 30 W per port | |
| • PoE Power Budget: 384 W* | |
| Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • V1: 463.8 W (110 V/60 Hz) (with 384 W PD connected); 31.0 W (110 V/60 Hz) (no PD connected) |
| • V2: 465.8 W (110 V/60 Hz) (with 384 W PD connected); 34.4 W (110 V/60 Hz) (no PD connected) | |
| • V3: 442.1 W (220 V/50 Hz) (with 384 W PD connected) | |
| • V4: 460.8 W (110 V/60 Hz) (with 384 W PD connected) | |
| • V5: 456.4 W (110 V/60 Hz) (with 384 W PD connected) | |
| Max Heat Dissipation | • V1: 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected); 105.78 BTU/h (110 V/60 Hz) (no PD connected) |
| • V2: 1589.31 BTU/hr (110 V/60 Hz) (with 384 W PD connected); 117.38 BTU/hr (110 V/60 Hz) (no PD connected) | |
| • V3: 1508.67 BTU/hr (220 V/50 Hz) (with 384 W PD connected) | |
| • V4: 1572.48 BTU/hr (110 V/60 Hz) (with 384 W PD connected) | |
| • V5: 1557.47 BTU/hr (110 V/60 Hz) (with 384 W PD connected) | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | • V1: 8K |
| • V2 and above: 16K | |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Quality of Service | • 8 priority queues |
| • 802.1p CoS/DSCP priority | |
| • Queue scheduling | |
| - SP (Strict Priority) | |
| - WRR (Weighted Round Robin) | |
| - SP+WRR | |
| • Bandwidth Control | |
| - Port/Flow based Rating Limiting | |
| • Smoother Performance | |
| • Action for Flows | |
| - Mirror (to supported interface) | |
| - Redirect (to supported interface) | |
| - Rate Limit | |
| - QoS Remark | |
| L3 Features | • 16 IPv4/IPv6 Interfaces |
| • Static Routing | |
| - 48 static routes | |
| • Static ARP | |
| • 316 ARP Entries | |
| • Proxy ARP | |
| • Gratuitous ARP | |
| • DHCP Server | |
| • DHCP Relay | |
| • DHCP L2 Relay | |
| L2 and L2+ Features | • Link Aggregation |
| - Static link aggregation | |
| - 802.3ad LACP | |
| - Up to 8 aggregation groups and up to 8 ports per group | |
| • Spanning Tree Protocol | |
| - 802.1d STP | |
| - 802.1w RSTP | |
| - 802.1s MSTP | |
| - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect | |
| • Loopback Detection | |
| - Port-based | |
| - VLAN based | |
| • Flow Control | |
| - 802.3x Flow Control | |
| - HOL Blocking Prevention | |
| • Mirroring | |
| - Port Mirroring | |
| - CPU Mirroring | |
| - One-to-One | |
| - Many-to-One | |
| - Tx/Rx/Both | |
| L2 Multicast | • Supports 511 (IPv4, IPv6) IGMP groups |
| • IGMP Snooping | |
| - IGMP v1/v2/v3 Snooping | |
| - Fast Leave | |
| - IGMP Snooping Querier | |
| - IGMP Authentication | |
| • IGMP Authentication | |
| • MVR | |
| • MLD Snooping | |
| - MLD v1/v2 Snooping | |
| - Fast Leave | |
| - MLD Snooping Querier | |
| - Static Group Config | |
| - Limited IP Multicast | |
| • Multicast Filtering: 256 profiles and 16 entries per profile | |
| Advanced Features | • Automatic Device Discovery |
| • Batch Configuration | |
| • Batch Firmware Upgrading | |
| • Intelligent Network Monitoring | |
| • Abnormal Event Warnings | |
| • Unified Configuration | |
| • Reboot Schedule | |
| VLAN | • VLAN Group |
| - Max 4K VLAN Groups | |
| • 802.1q Tagged VLAN | |
| • MAC VLAN: 12 Entries | |
| • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 | |
| • GVRP | |
| • VLAN VPN (QinQ) | |
| - Port-Based QinQ | |
| - Selective QinQ | |
| • Voice VLAN | |
| Access Control List | • Time-based ACL |
| • MAC ACL | |
| - Source MAC | |
| - Destination MAC | |
| - VLAN ID | |
| - User Priority | |
| - Ether Type | |
| • IP ACL | |
| -Source IP | |
| - Destination IP | |
| - Fragment | |
| - IP Protocol | |
| - TCP Flag | |
| - TCP/UDP Port | |
| - DSCP/IP TOS | |
| - User Priority | |
| • Combined ACL | |
| • Packet Content ACL | |
| • IPv6 ACL | |
| • Policy | |
| - Mirroring | |
| - Redirect | |
| - Rate Limit | |
| - QoS Remark | |
| • ACL apply to Port/VLAN | |
| Security | • IP-MAC-Port Binding |
| - DHCP Snooping | |
| - ARP Inspection | |
| - IPv4 Source Guard | |
| • IPv6-MAC-Port Binding | |
| - DHCPv6 Snooping | |
| - ND Detection | |
| - IPv6 Source Guard | |
| • DoS Defend | |
| • Static/Dynamic Port Security | |
| - Up to 64 MAC addresses per port | |
| • Broadcast/Multicast/Unicast Storm Control | |
| - kbps/ratio/pps control mode | |
| • IP/Port/MAC based access control | |
| • 802.1X | |
| - Port based authentication | |
| - Mac based authentication | |
| - VLAN Assignment | |
| - MAB | |
| - Guest VLAN | |
| - Support Radius authentication and accountability | |
| • AAA (including TACACS+) | |
| • Port Isolation | |
| • Secure web management through HTTPS with SSLv3/TLS 1.2 | |
| • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 | |
| IPv6 | • IPv6 Dual IPv4/IPv6 |
| • Multicast Listener Discovery (MLD) Snooping | |
| • IPv6 ACL | |
| • IPv6 Interface | |
| • Static IPv6 Routing | |
| • IPv6 neighbor discovery (ND) | |
| • Path maximum transmission unit (MTU) discovery | |
| • Internet Control Message Protocol (ICMP) version 6 | |
| • TCPv6/UDPv6 | |
| • IPv6 applications | |
| - DHCPv6 Client | |
| - Ping6 | |
| - Tracert6 | |
| - Telnet (v6) | |
| - IPv6 SNMP | |
| - IPv6 SSH | |
| - IPv6 SSL | |
| - Http/Https | |
| - IPv6 TFTP | |
| MIBs | • MIB II (RFC1213) |
| • Bridge MIB (RFC1493) | |
| • P/Q-Bridge MIB (RFC2674) | |
| • Radius Accounting Client MIB (RFC2620) | |
| • Radius Authentication Client MIB (RFC2618) | |
| • Remote Ping, Traceroute MIB (RFC2925) | |
| • Support TP-Link private MIBs | |
| • RMON MIB(RFC1757, rmon 1,2,3,9) | |
| Omada App | Yes, through |
| • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) | |
| • OC300 | |
| • OC200 | |
| • Omada Software Controller | |
| Centralized Management | • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) |
| • Omada Hardware Controller OC300 | |
| • Omada Hardware Controller OC200 | |
| • Omada Software Controller | |
| Cloud Access | Yes, through |
| • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) | |
| • OC300 | |
| • OC200 | |
| • Omada Software Controller | |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4) |
| Management Features | • Web-based GUI |
| • Command Line Interface (CLI) through console port, telnet | |
| • SNMPv1/v2c/v3 | |
| - Trap/Inform | |
| - RMON (1, 2, 3, 9 groups) | |
| • SDM Template | |
| • DHCP/BOOTP Client | |
| • 802.1ab LLDP/LLDP-MED | |
| • DHCP AutoInstall | |
| • Dual Image, Dual Configuration | |
| • CPU Monitoring | |
| • Cable Diagnostics | |
| • EEE | |
| • Password Recovery | |
| • SNTP | |
| • System Log | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SG3428MP Switch |
| • Power Cord | |
| • Quick Installation Guide | |
| • Rackmount Kit | |
| • Rubber Feet | |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–45 ℃ (32–113 ℉); |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing |
