| Brand |
TP-Link |
| Model |
TP-Link Archer T2u AC600 Nano Wireless USB Adapter |
| Device Type |
Network adapter |
| Form Factor |
External |
| Antenna Type |
Omni Directional |
| Connectivity Technology |
Wireless |
| Data Transfer Rate |
600Mbps |
| Data Link Protocol |
802.11ac |
| Wireless Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency Band |
5GHz, 2.4GHz |
| Interface |
USB 2.0 |
| Features |
Ad-Hoc Mode, Wi-Fi Protected Setup (WPS) |
| Signal Rate |
5GHz : 11ac: Up to 433Mbps(dynamic), 11n: Up to 150Mbps(dynamic), 11a: Up to 54Mbps(dynamic) / 2.4GHz : 11n: Up to 200Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity |
5GHz： 11a 6Mbps: -90dBm, 11a 54Mbps: -73dBm, 11n HT20 MCS0: -89dBm, 11n HT20 MCS7: -70dBm, 11n HT40 MCS0: -86dBm, 11n HT40 MCS7: -67dBm, 11ac VHT80 MCS0: -82dBm, 11ac VHT80 MCS9: -56dBm / 2.4GHz: 11b 1Mbps: -96dBm, 11b 11Mbps: -88dBm, 11g 6Mbps: -89dBm, 11g 54Mbps: -74dBm, 11n HT20 MCS0: -89dBm, 11n HT20 MCS7: -72dBm, 11n HT40 MCS0: -86dBm, 11n HT40 MCS7: -66dBm |
| Transmit Power |
<20dBm (EIRP) |
| Wireless Modes |
Ad-Hoc / Infrastructure mode |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| System Requirements |
Windows 10/8.1/8/7/XP (32/64bits), / Mac OS X 10.9-10.13 |
| Operating Temperature |
0℃~40℃ (32℉~104℉) |
| Storage Temperature |
-40℃~70℃ (-40℉~158℉) |
| Operating Humidity |
10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |

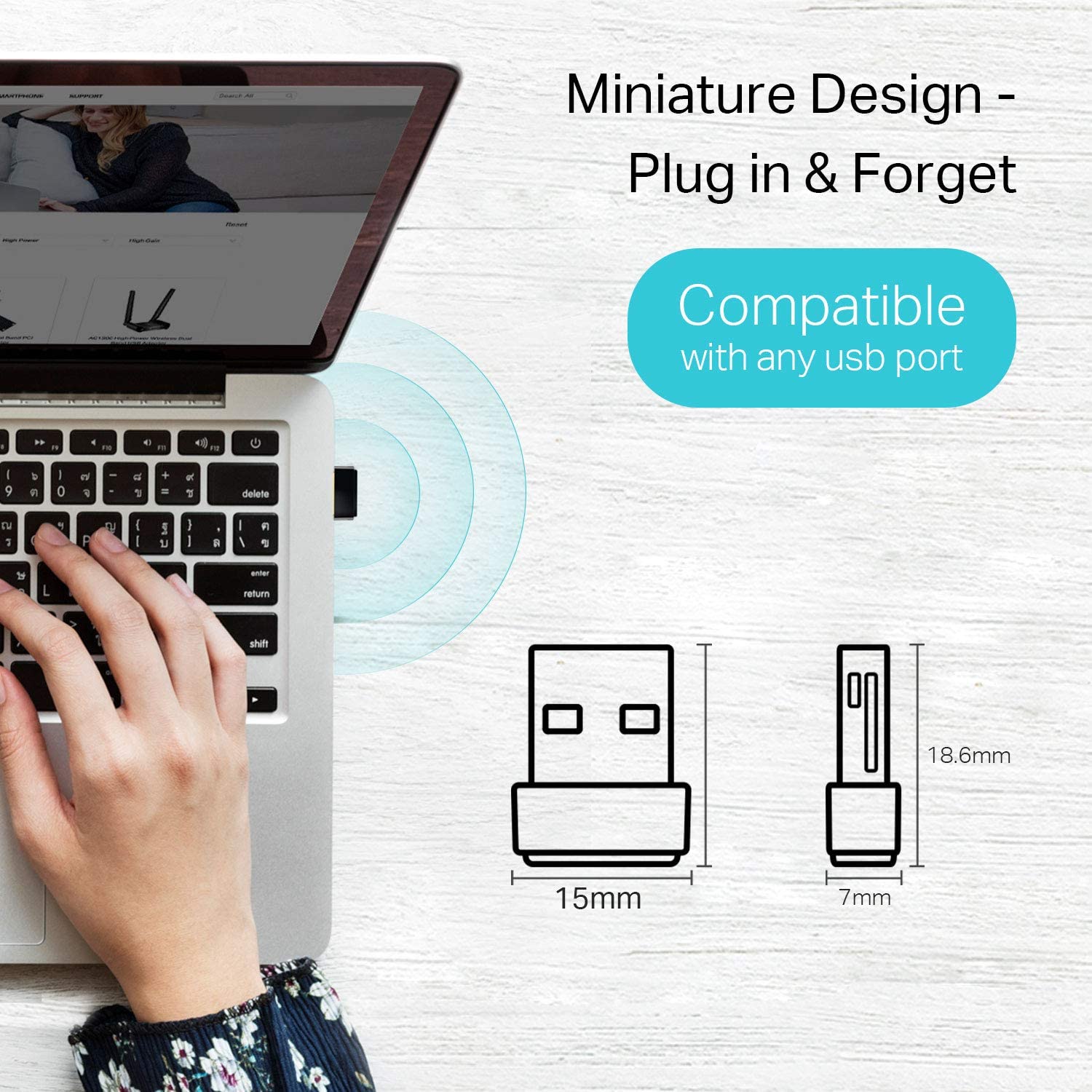

| Dimensions (W x D x H) |
18.6 x 15 x 7.1 mm |
| Weight |
9g |
| Warranty |
Six Months |
