Ubiquiti UniFi U7-Lite Compact Dual-Band WiFi 7 Access Point with 2.5 GbE Uplink

The Ubiquiti UniFi U7-Lite brings next-generation WiFi 7 performance to your network in a compact, elegant design. This dual-band access point delivers ultra-fast speeds with 2.5 GbE uplink connectivity, making it ideal for high-demand environments and seamless streaming. Built for professional-grade reliability, the U7-Lite integrates seamlessly with UniFi's centralized management platform, allowing you to monitor and control your network from anywhere. Its compact form factor fits discreetly into any space while maintaining powerful coverage and throughput. Perfect for offices, retail spaces, and growing networks that demand enterprise-level performance without complexity. Experience the speed and efficiency of WiFi 7 with UniFi's trusted ecosystem.

• Dual-band WiFi 7 access point delivering up to 4.3 Gbps (5 GHz)
• Compact ceiling/wall design with 2.5 GbE uplink port
• Efficient power consumption (~13 W) via standard PoE
• MU-MIMO support for high client capacity (200+ devices)
• Covers up to ~115 m² (1,250 ft²) reliably
• High antenna gain and transmit power for strong performance
• Managed via UniFi Network controller—no local UI needed
• Durable UV-stable black enclosure rated for −30 °C to +40 °C

Specifications

• Device Type: Indoor ceiling- or wall-mounted WiFi 7 access point

• WiFi Standard: 802.11be (WiFi 7), dual-band (2.4 GHz & 5 GHz)

• Max Data Rate: 2.4 GHz – 688 Mbps; 5 GHz – up to 4.3 Gbps

• MIMO: 2×2 MU-MIMO on both bands

• Spatial Streams: Four streams total (2 per band)

• Uplink Port: 1 × 2.5 GbE RJ45

• Max Power Consumption: 13 W via PoE (IEEE 802.3af/at, 42.5–57 V DC)

• Antenna Gain: 2.4 GHz – 4 dBi; 5 GHz – 5 dBi

• Transmit Power: 2.4 GHz – 23 dBm; 5 GHz – 24 dBm

• Coverage Area: Approximately 115 m² (1,250 ft²)

• Client Capacity: Supports over 200 concurrent clients

• Management Interface: UniFi Network via Ethernet (no local web UI)

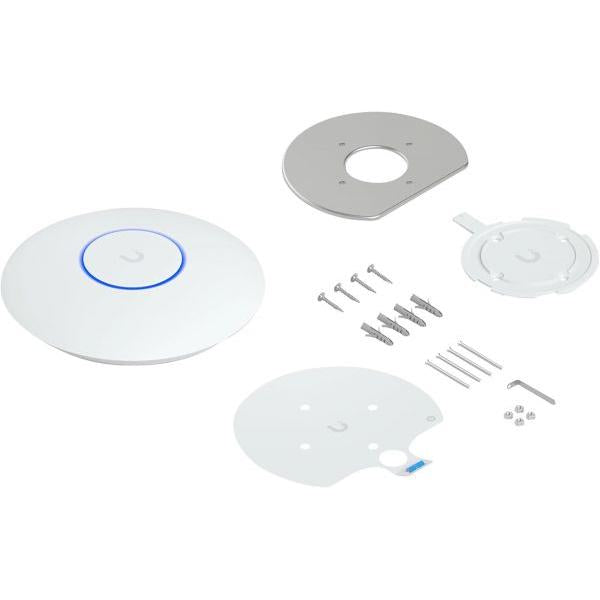

• Enclosure Material: UV-stabilized polycarbonate; mount bracket: polycarbonate & galvanized steel

• LED Indicator: White/blue ring; includes reset button

• Operating Conditions: −30 °C to +40 °C; 5–95% non-condensing humidity

• Dimensions & Weight: Ø171.5 × 33 mm; weight ~313 g (11 oz)

• Certifications: CE, FCC, IC; NDAA compliant
