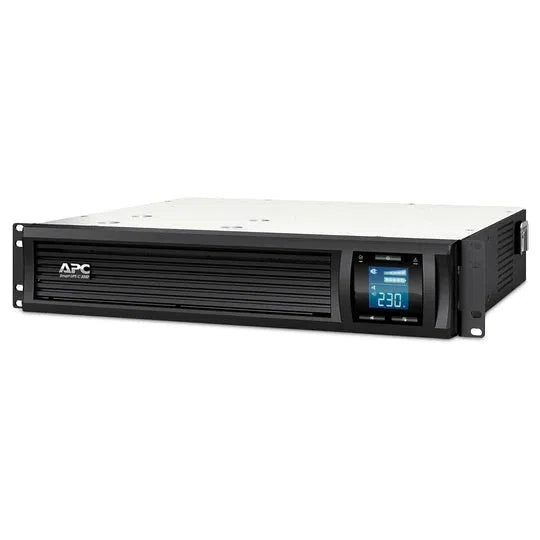

Ups Apc 2000Va Rackmount (SMC2000I-2U)
- 305.000 KD
326.000 KD- 305.000 KD
- Unit price
- per
| Main Input Voltage | 230 V |
|---|---|
| Main Output Voltage | 230 V |
| Rated power in W | 1300 W |
| Rated power in VA | 2000 VA |
| Input Connection Type | IEC 320 C20 |
| output connection type | 6 IEC 320 C13 2 IEC Jumpers |
| Number of rack unit | 2U |
| number of cables | 1 |
| battery type | Lead-acid battery |
| provided equipment | CD with software Documentation CD Installation guide Rack mounting brackets USB cable |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| product web sub-family | Entry level |
| Redundant | No |
| colour | Black |
|---|---|
| Height | 8.9 cm |
| width | 48 cm |
| Depth | 47 cm |
| Net weight | 26.2 kg |
| mounting location | Front |
| mounting preference | Lower |
| mounting mode | Rack-mounted |
| Two post mountable | 1 |
| USB compatible | Yes |
| input voltage limits | 180...287 V |
|---|---|
| network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Harmonic distortion | Less than 5 % |
|---|---|
| Maximum configurable power in VA | 2000 VA |
| Maximum configurable power in W | 1300 W |
| Transfer time | 8 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| output frequency | 50 Hz sync to mains |
| product certifications | C-Tick CE EAC GOST IRAM SABS VDE |
|---|---|
| Marking | GS Mark |
| standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 42 dBA |
|---|---|
| Heat dissipation | 81 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| relative humidity | 0…95 % |
| storage Relative Humidity | 0…95 % |
| Run Time |
View Runtime Graph
action_new_window
|
|---|---|
| extended runtime | 0 |
| number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery |
APCRBC159
action_new_window
|
| Battery power in VAH | 432 VAh runtime |
| battery charger power | 144 W rated |
| alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
|---|---|
| control panel | Multifunction LCD status and control console |
| Free slots | 0 |
| Surge energy rate | 300 J |
|---|---|
| noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
