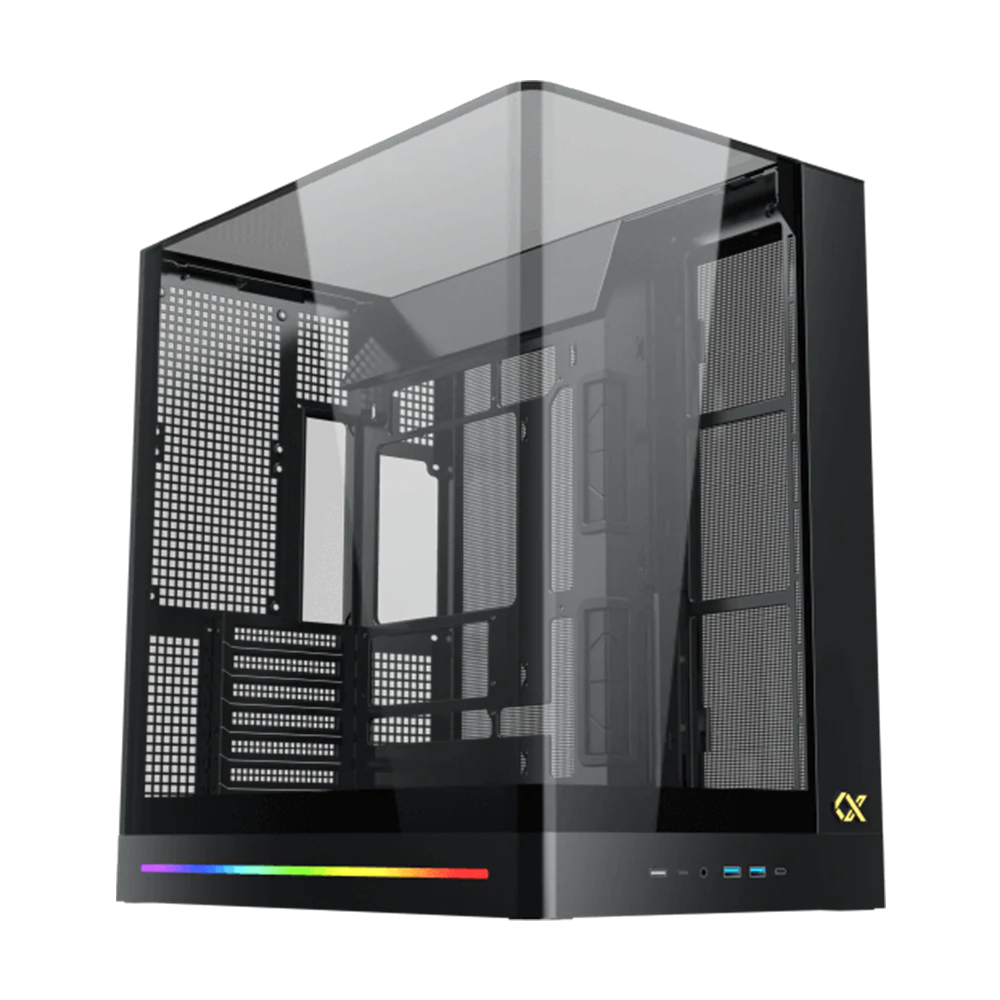

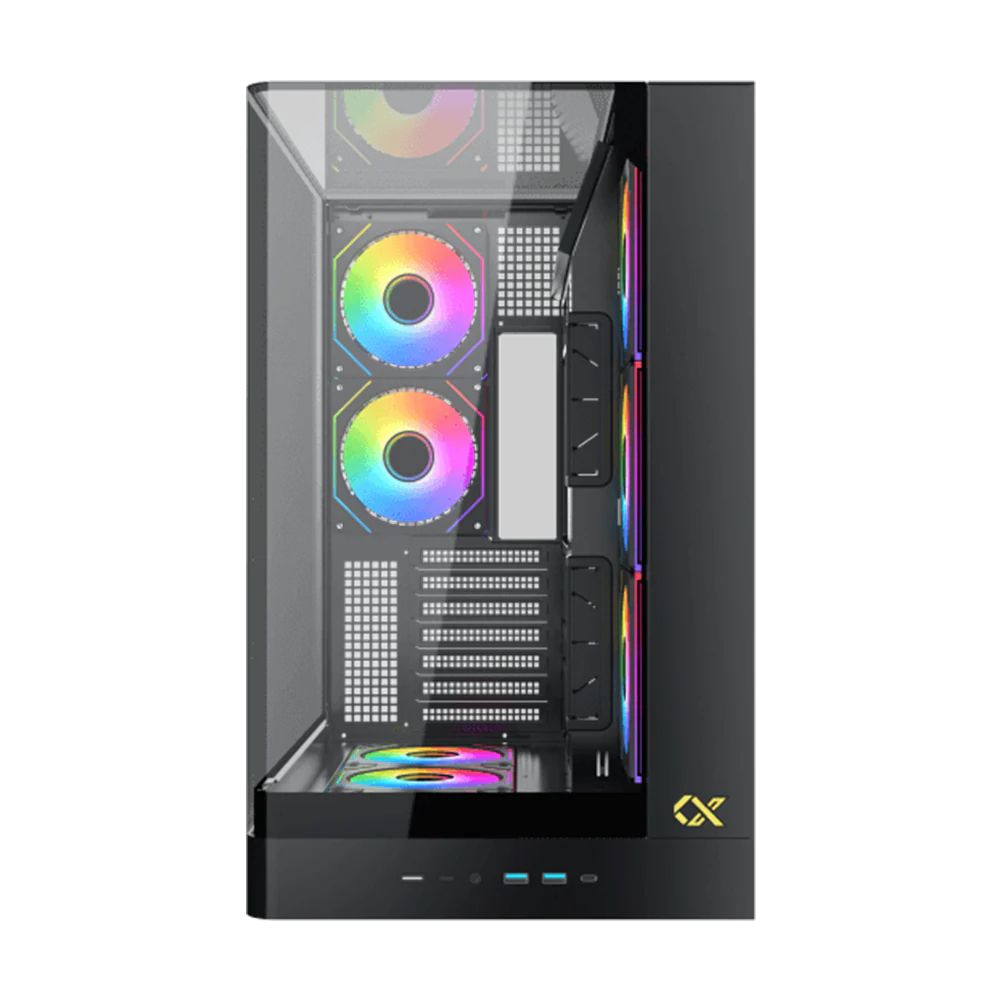

The Xigmatek Pano II Case in Black delivers a sophisticated foundation for high-performance PC builds. This mid-tower chassis combines sleek aesthetics with practical engineering, featuring a spacious interior that accommodates standard ATX, Micro-ATX, and Mini-ITX motherboards. The tempered glass side panel showcases your components while maintaining structural integrity, while optimized cable management pathways keep your build organized and visually clean. With support for multiple radiator configurations and generous GPU clearance, the Pano II adapts to various cooling solutions and graphics cards. The front mesh design promotes efficient airflow to keep temperatures in check, making it an excellent choice for builders seeking both form and function in their system enclosure.
| Model No | Xigmatek Pano II |
| Part No | EN48418 |
| Color | Black |
| Case Material | Steel |
| Case Size (Dimensions) | 447 × 285 × 466 mm (L × W × H) |
| Lighting | ARGB LED lighting with 8 pre-installed ARGB fans |
| Motherboard Support | E‑ATX (≤ 285 mm), ATX, Micro‑ATX, Mini‑ITX |
| Pre‑installed Fans | Side: 3 × 120 mm; Bottom: 3 × 120 mm; Rear: 2 × 120 mm (total 8) |
| Additional Fan Support | Same as pre-installed positions (side, bottom, rear) |
| Radiator Support | Side: 240 / 360 mm; Rear: 120 mm |
| SSD / HDD Support | Flexible: 3.5″ × 2 + 2.5″ × 1, or 3.5″ × 1 + 2.5″ × 2, or 2.5″ × 3 (flip-cover design) |
| I/O Ports | 2 × USB 3.0, 1 × USB-C, HD Audio, Power Button, Reset Button |
| CPU Cooler Limitation | Maximum height: 165 mm |
| VGA (GPU) Limitation | Maximum length: 400 mm; supports horizontal or vertical installation (vertical GPU bracket included) |
| PSU Limitation | Maximum length: 165 mm |
| Dust Filters | Not explicitly specified |
| Product Weight | Not specified |
| Package Content | Case chassis, 8 ARGB fans, ARGB/PWM remote control box, vertical GPU bracket, mounting hardware, flip-cover for drives |
