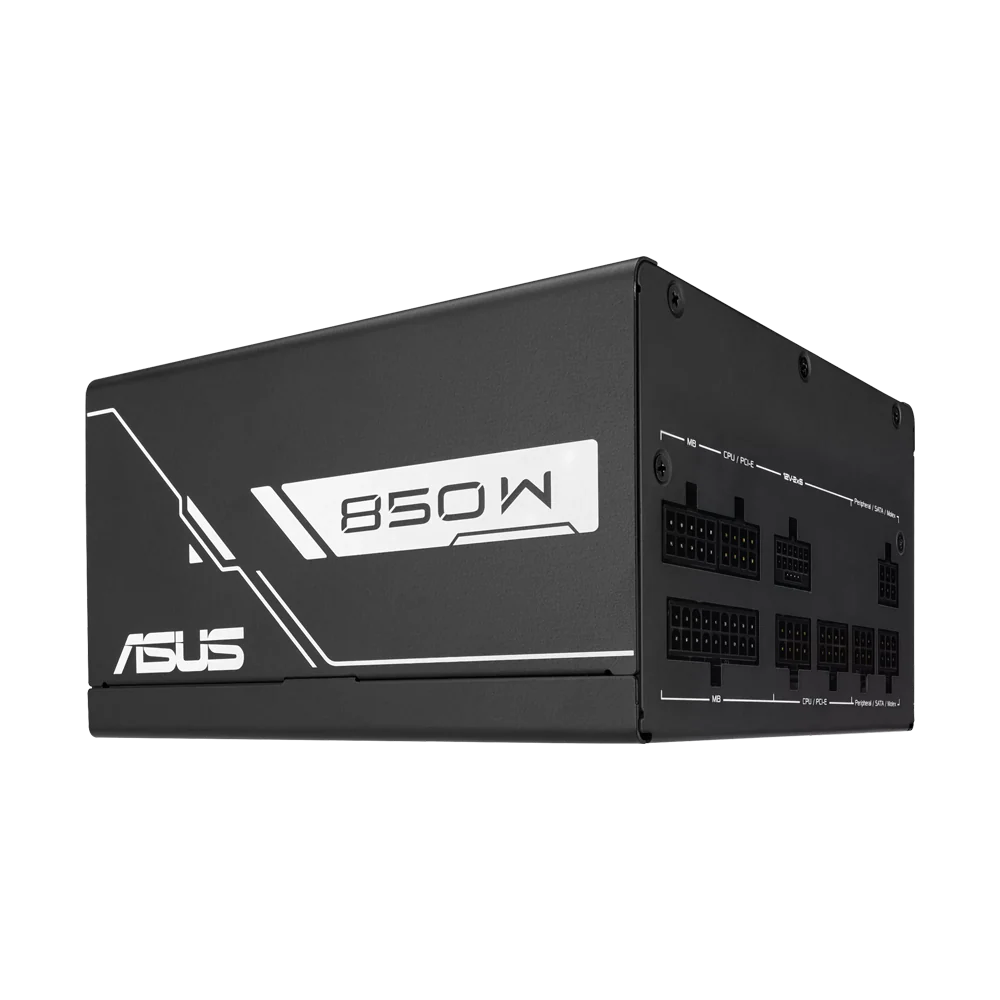

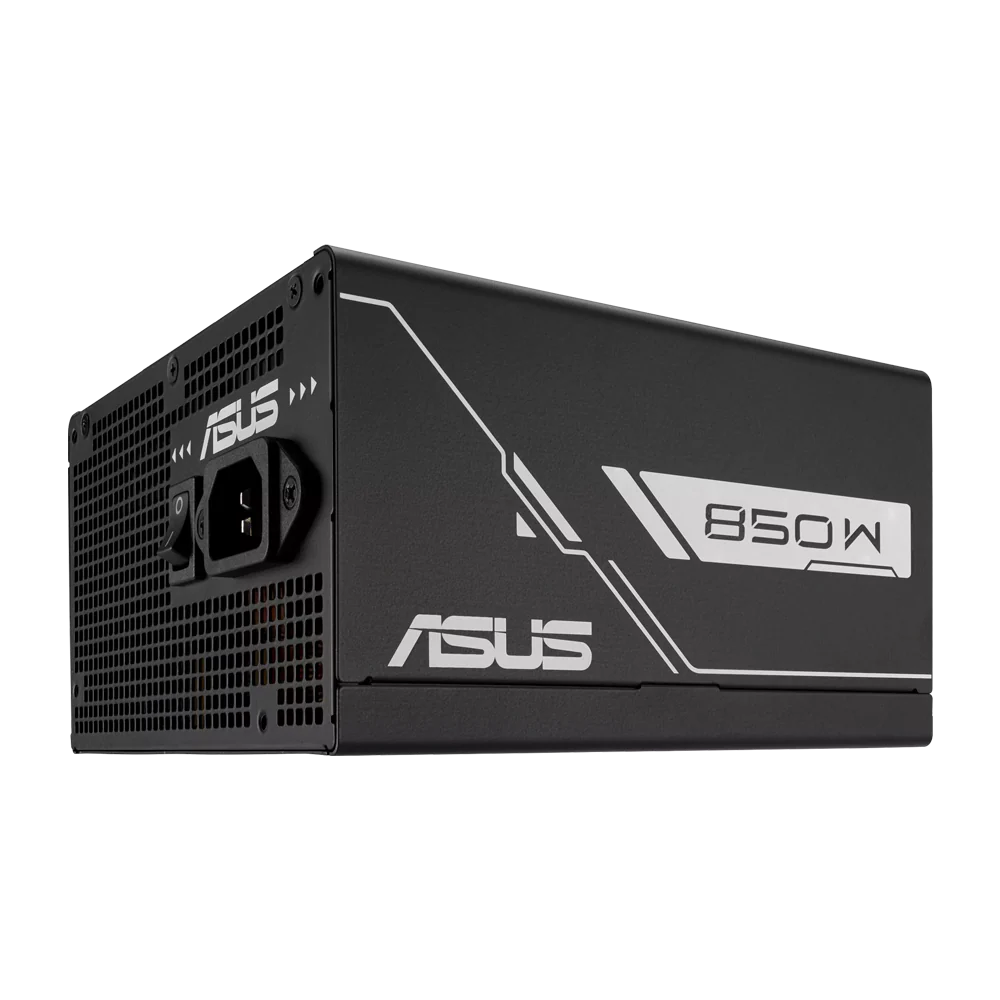

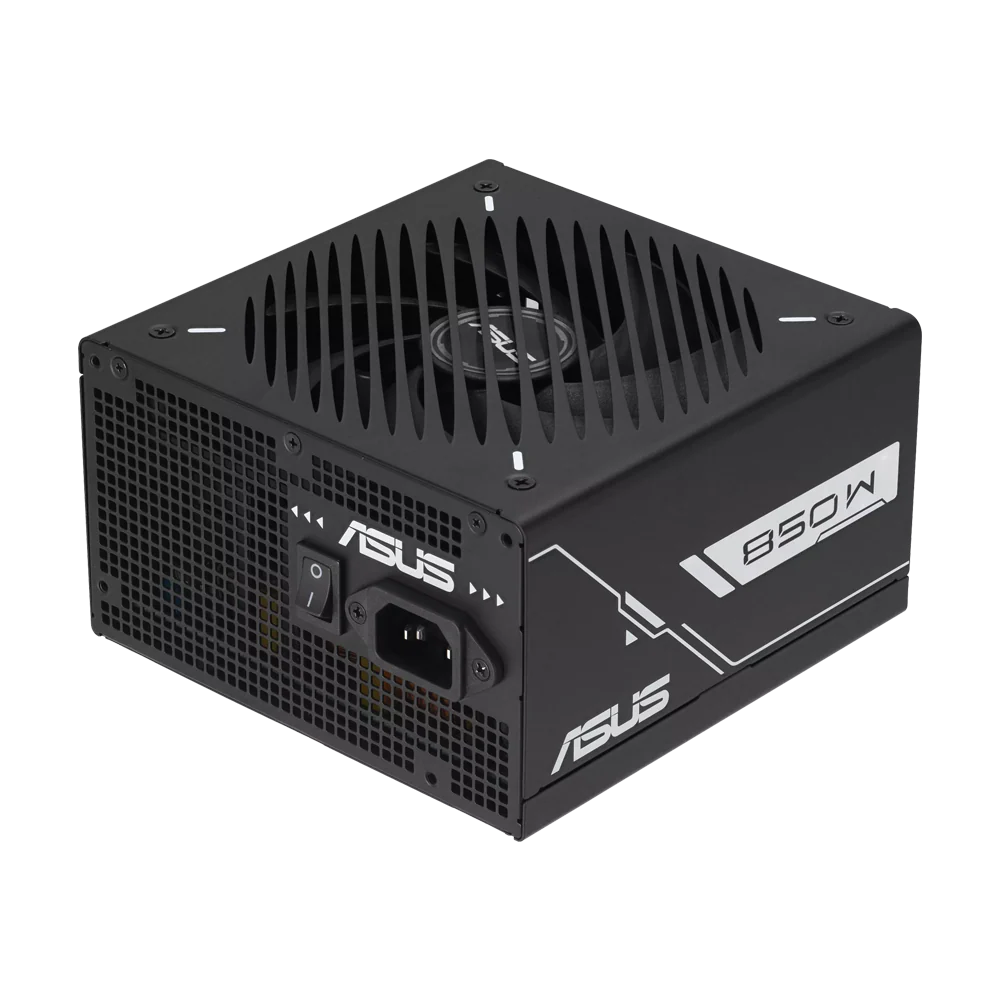

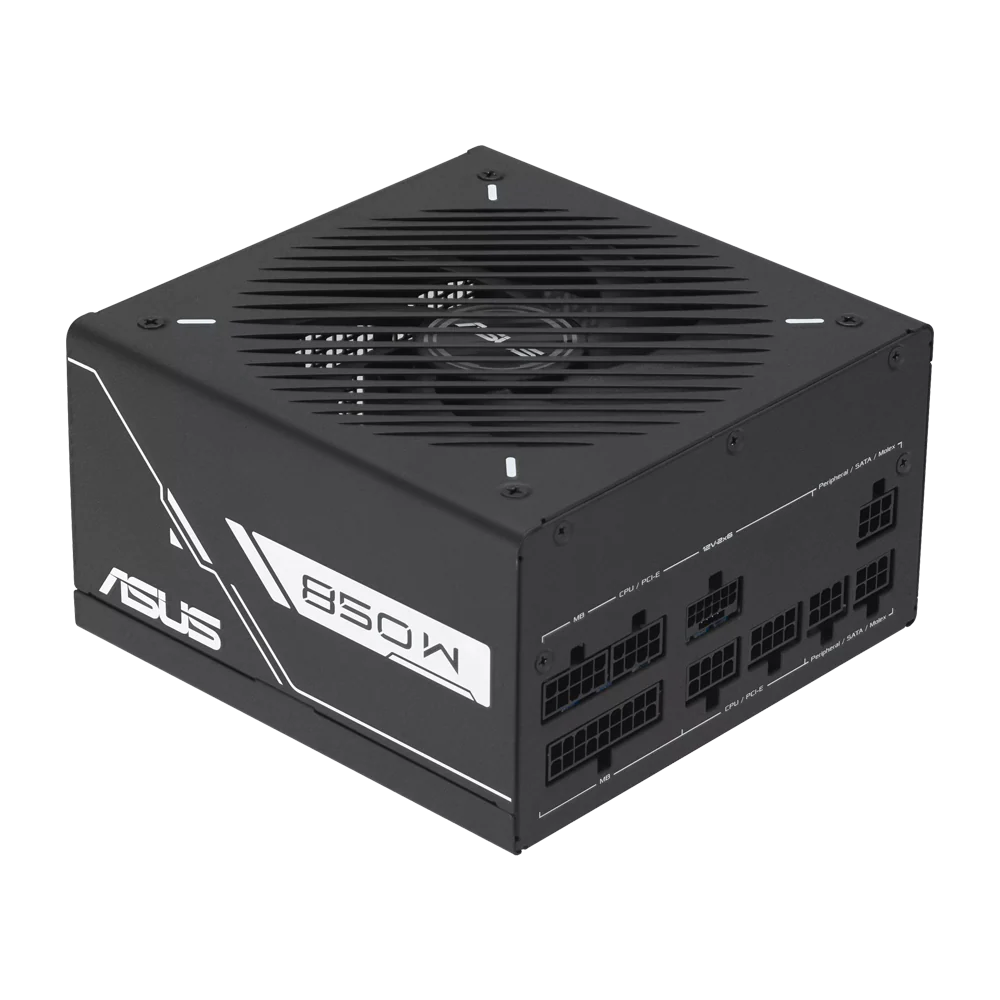

ASUS PRIME 850G 850W Power Supply Unit - Black

STELLAR PERFORMANCE

With 80 PLUS and Cybenetics Gold certification, Dual-ball fan bearings, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

ATX 3.1 & PCIe 5.1 Compatible
The Prime Gold series meets the stringent requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards. It supports total power excursions up to twice the rated power and graphics card power excursions up to three times the rated power, helping to ensure rock-solid stability for your PC.

A 16-pin PCIe cable that is compatible with PCIe Gen 5.1 graphics cards is bundled with the PSU, bringing large-scale capabilities.

80 PLUS & Cybenetics Gold Certification
The ASUS Prime 850W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

ENGINEERING

Dual-ball Fan Bearings
Exemplary cooling is provided by a 135mm fan spinning on a Dual-ball bearing setup that will last up to twice as long as a sleeve bearing design.

Key Features:

• 80 Plus & Cybenetics Gold certified: the result of low-ESR capacitors and other premium components.
• ATX 3.1 Compatible: Prime Gold series is compliant with ATX 3.1 guidelines and bundled with a 16-pin PCIe® cable that can send up to 600 watts of power to PCIe 5.1 graphics cards.
• Dual-ball fan bearings that can last up to twice as long as sleeve bearing designs.
• Fully modular etched cables keep your rig neat and tidy.

Specifications

• Model : PRIME-850G

• Intel Form Factor : ATX12V

• PFC Type : Active PFC

• ATX Standard

• ATX 3.1

• Dimensions : 150 x 150 x 86 mm

• Efficiency : 80Plus Gold

• MTBF : >120,000 hrs @ 25°C

• Protection Features : OPP/OVP/UVP/SCP/OCP/OTP

• Hazardous Materials : ROHS

• AC Input Range : 100-240Vac

• DC Output Voltage : +3.3V +5V +12V -12V +5Vsb

• Maximum Load : 20A 20A 70.5A 0.3A 2.5A

• Combined Load : 110W 110W 846W 3.6W 12.5W

• Total Output : 850W

• Cable Connectors : MB 20+4pin x 1

• CPU 4+4pin x 2

• PCI-E 16pin x1 (12V-2x6)

• PCI-E 6+2pin x 3

• SATA x 5

• PERIPHERAL x 4

• Package Contents : Power Cord x 1

• Motherboard Power cable x 1 (600mm)

• CPU 1-to-2 Cable x 1 (650mm+150mm)

• PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (600mm)

• PCI-E 1-to-1 Cable (8-pin-to-6+2pin) x 1 (600mm)

• PCI-E 1-to-2 Cable (8-pin-to-6+2pin*2) x 1 (600+150mm)

• SATA 1-to-2 Cable x 1 (400+120mm)

• SATA 1-to-3 Cable x 1 (400+120+120mm)

• Peripheral 1-to-4 Cable x1 (400+150+150+150mm)

• User Manual x 1

• Weight : 1.48 kg (single PSU)

• 0dB Technology : No
