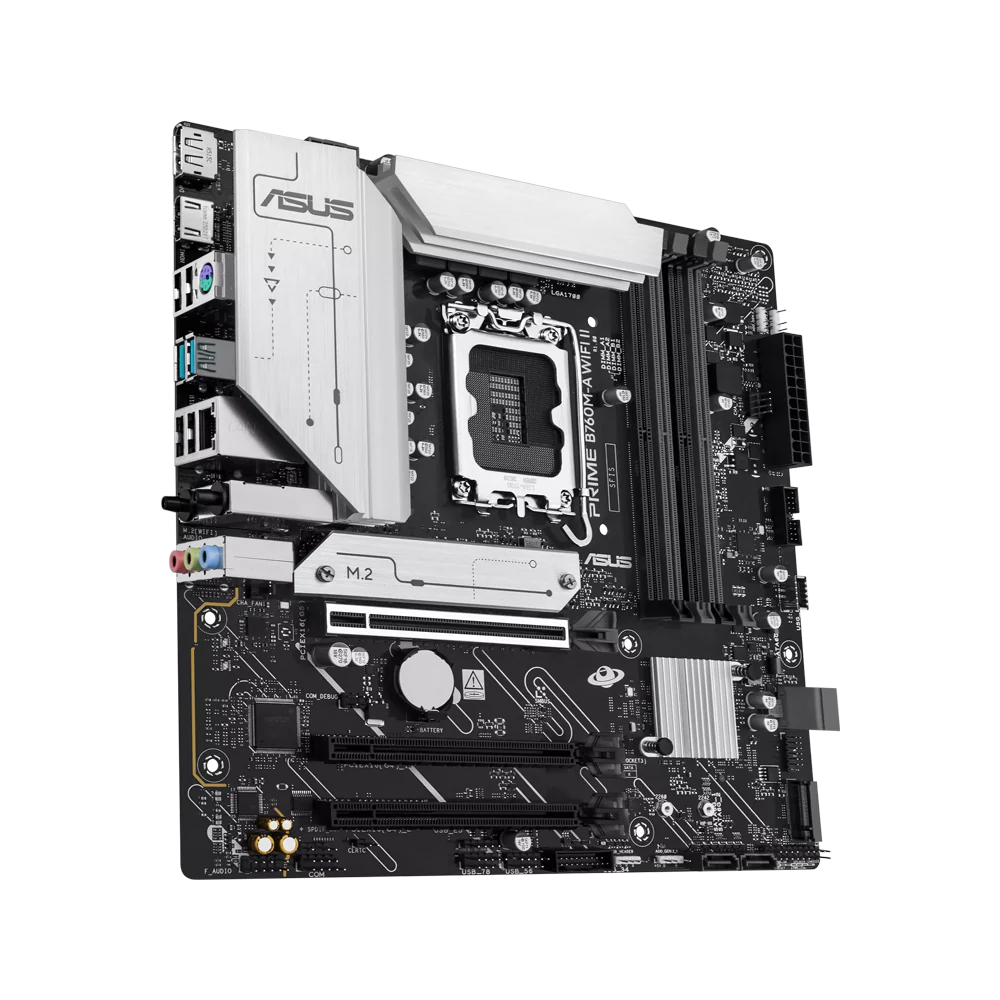

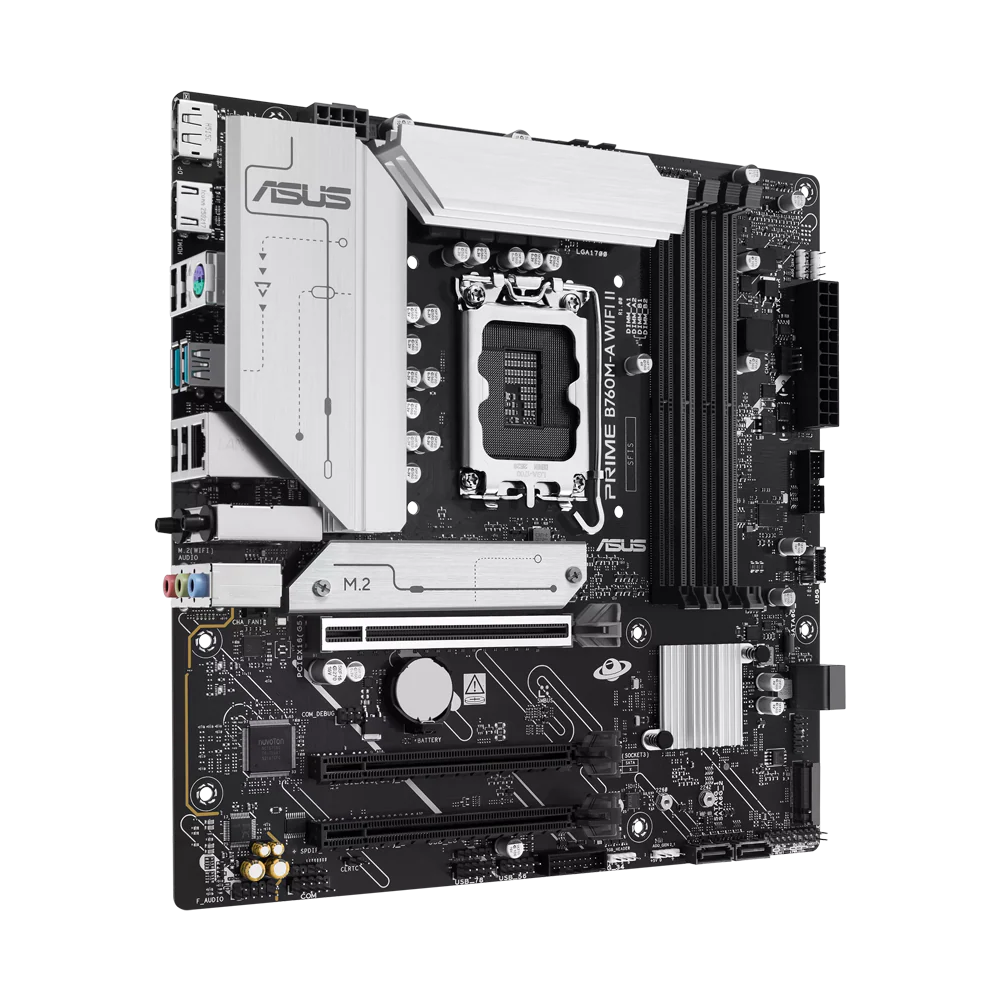

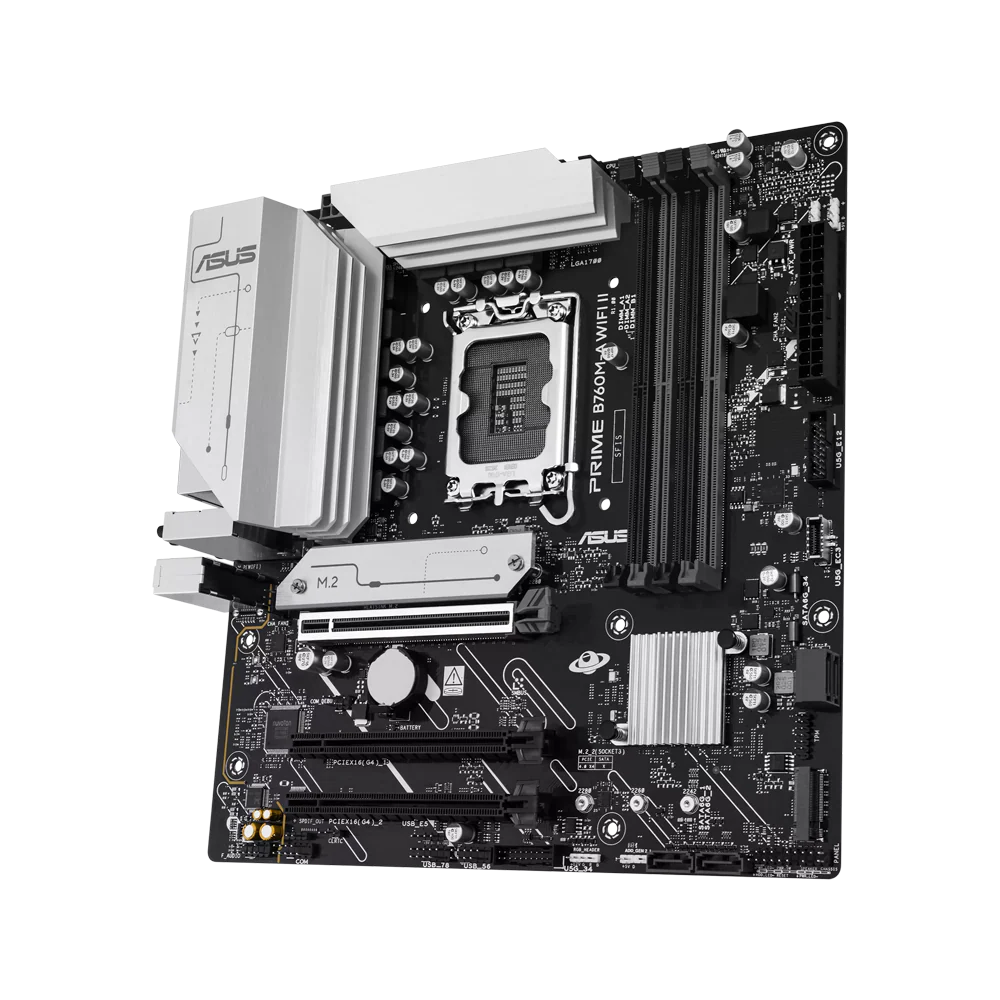

ASUS PRIME B760M-A WIFI II DDR5 Motherboard - Black

Intel^® B760 (LGA 1700) mATX motherboard, DDR5, PCIe 5.0 Ready, two M.2 slots, WIFI 6E, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps Type-A and front USB 5Gbps Type-C^®, Aura Sync.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

Key Features:

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA 1700 Socket: Ready for 14^th, 13^th and 12^th Gen Intel Core processors
• Ultrafast Connectivity: WIFI 6E, PCIe 5.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C connector
• Comprehensive Cooling: VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• Renowned Software: Armoury Crate, ASUS DriverHub

Specifications

Model

• PRIME B760M-A WIFI II

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset : el® B760 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5

• 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

• Dual Channel Memory Architecture

• Supports Intel® Extreme Memory Profile (XMP)

• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information.

• * *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort**

• 1 x HDMI™ port***

• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

• *** Supports 4K@60Hz as specified in HDMI™ 2.1.

Expansion Slots

• Intel® Core™ Processors (14th & 13th & 12th Gen)*

• 1 x PCIe 5.0 x16 slot

• Intel® B760 Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• 1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

• Intel® Core™ Processors (14th & 13th & 12th Gen)*

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• Intel® B760 Chipset

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 6E

• 2x2 Wi-Fi 6E (802.11ax)

• Supports 2.4/5/6GHz frequency band*

• Supports Wi-Fi 6E 160MHz bandwidth

• Bluetooth® v5.4**

• * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later

• ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 6 ports)

• 2 x USB 10Gbps ports (2 x Type-A )

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 10 ports)

• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

• 1 x USB 5Gbps connector (supports USB Type-C®)

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• 1x USB 2.0 header supports 1 additional USB 2.0 port

• * USB Type-C® power delivery output: max. 5V/3A

• ** U5G_EC3 and USB_E5 can only be enabled/disabled simultaneously.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x USB 10Gbps ports (2 x Type-A )

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 1 x HDMI™ port

• 1 x Wi-Fi Module

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

• Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 2 x 4-pin Chassis Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

• Storage related

• 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

USB

• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

• 1 x USB 5Gbps connector (supports USB Type-C®)

• 2x USB 2.0 headers support 4 additional USB 2.0 ports

• 1 x USB 2.0 header supports 1 additional USB 2.0 port

• Miscellaneous

• 3 x Addressable Gen 2 headers

• 1 x Aura RGB header

• 1 x Clear CMOS header

• 1 x COM Port header

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x S/PDIF Out header

• 1 x SPI TPM header (14-1pin)

• 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features

• ASUS 5X PROTECTION III

• - DIGI+ VRM

• - LANGuard

• - Overvoltage Protection

• - SafeSlot

• - Stainless-Steel Back I/O

• ASUS Q-Design

• - Q-DIMM

• -Q-LED Core

• -Q-Slot

• ASUS Thermal Solution

• - M.2 heatsink

• - VRM heatsink design

• ASUS EZ DIY

• - ProCool

• Aura Sync

• - Aura RGB header

• - Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 2+

• - Two-Way AI Noise Cancelation

• ASUS DriverHub

• AI Suite 3

• - Digi+ VRM

• - PC Cleaner

• ASUS CPU-Z

• Norton Deluxe (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

• BIOS :  Mb Flash ROM, UEFI AMI BIOS

• Manageability :  by PME, PXE

Accessories

• Cables :  SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS WiFi Q-Antenna

• 1 x I/O Shield

• 1 x M.2 Rubber Package

• 1 x Screw package for M.2 SSD

• Documentation :  Quick start guide

• Operating System : dows® 11, Windows® 10 64-bit

Form Factor

• mATX Form Factor :  inch x 9.6 inch ( 24.4 cm x 24.4 cm )
