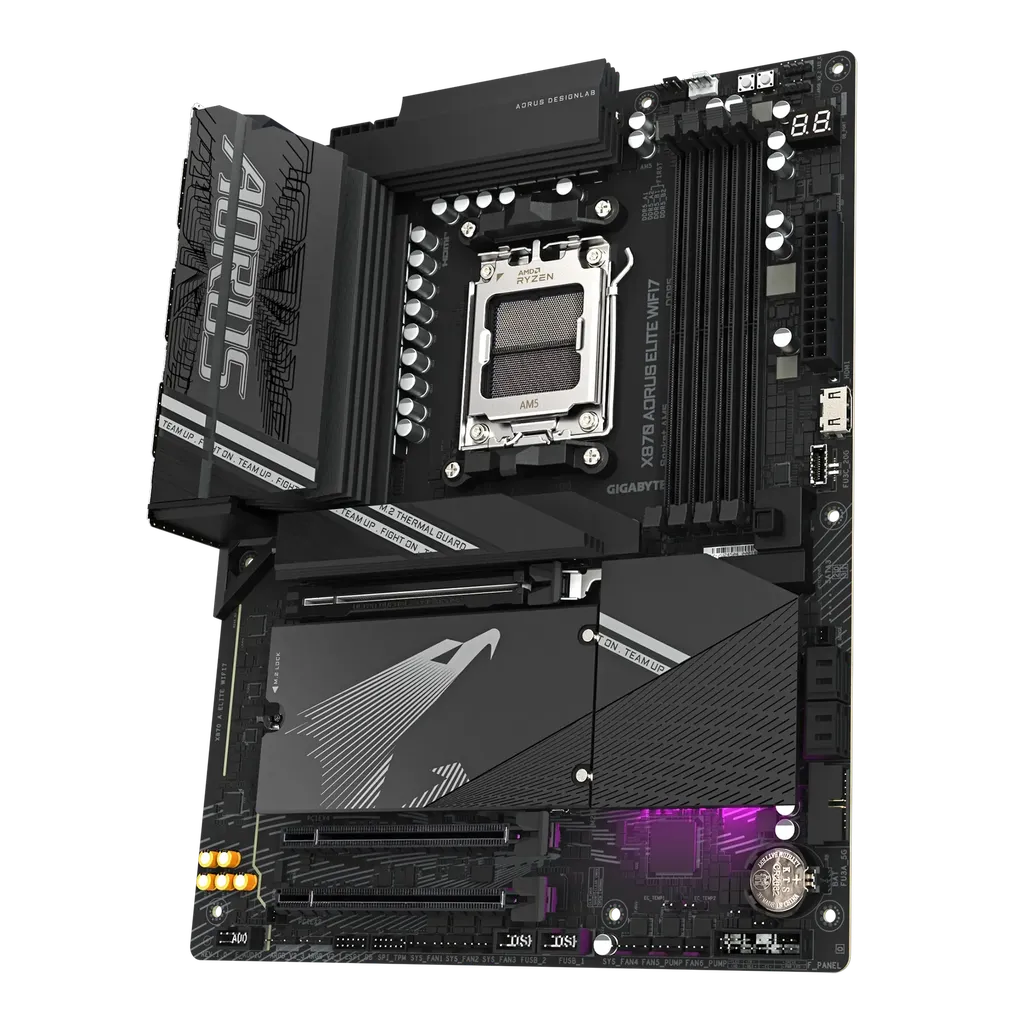

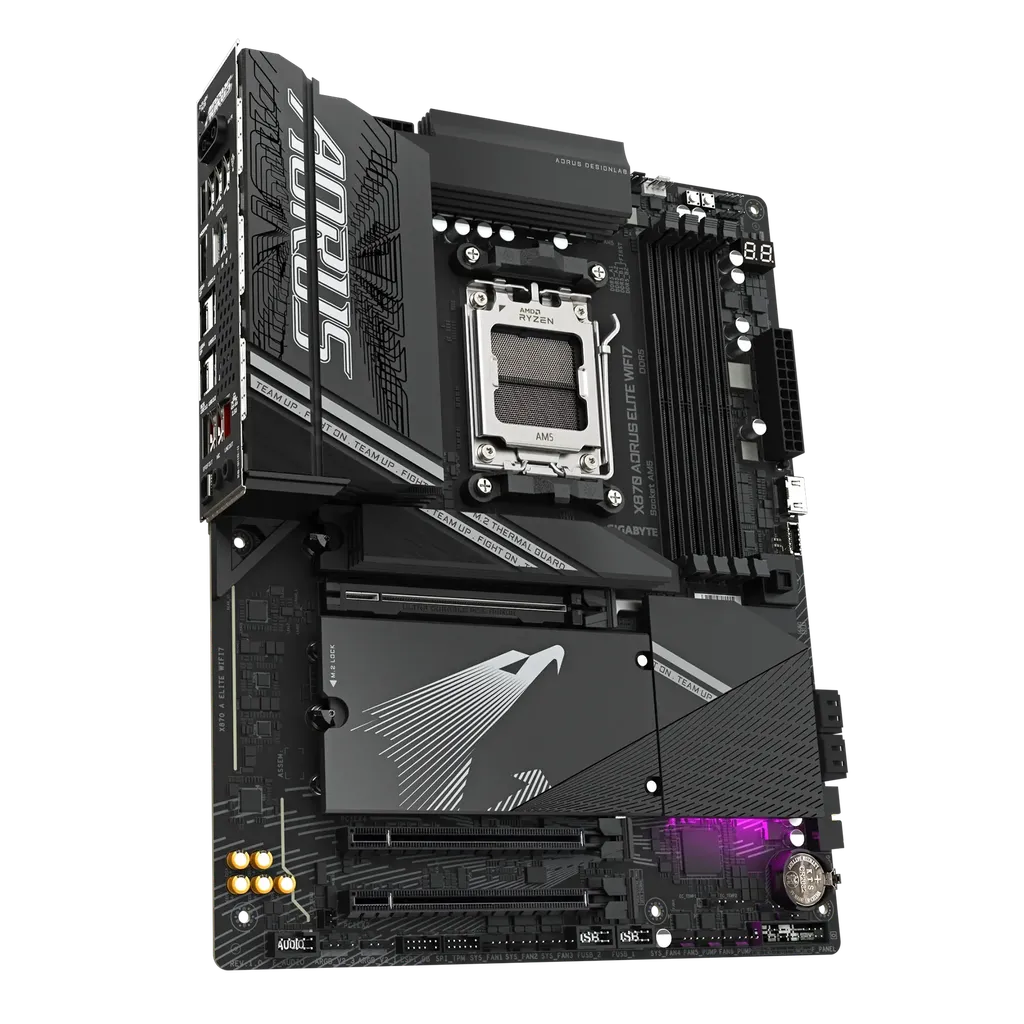

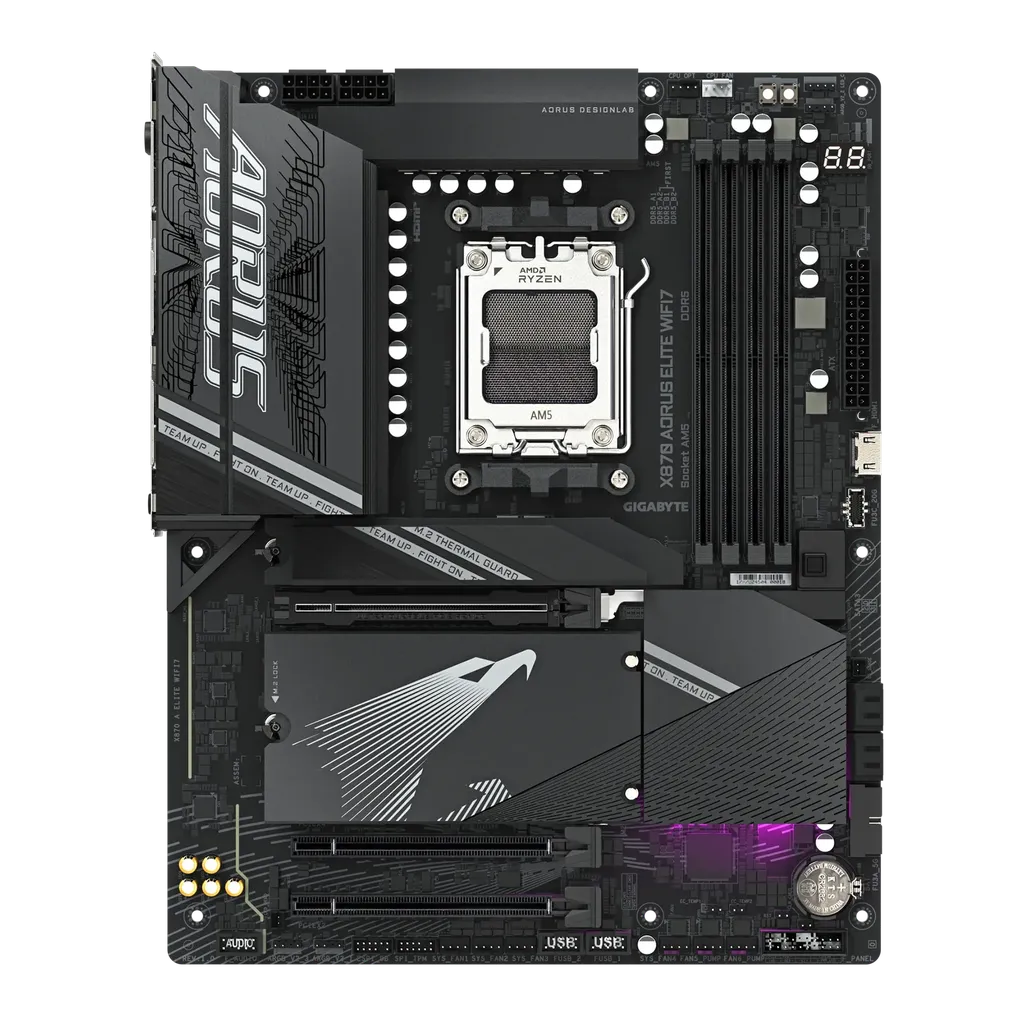

GIGABYTE X870 A ELITE X3D DDR5 Motherboard - Black
- 99.000 KD
104.000 KD- 99.000 KD
- سعر الوحدة
- لكل
Experience next-generation performance with the GIGABYTE X870-A ELITE X3D DDR5 Motherboard. Built for AMD's latest Ryzen processors, this high-performance platform delivers exceptional speed and stability with DDR5 memory support. The robust power delivery system ensures reliable operation during intense gaming and demanding workloads. Advanced cooling solutions keep temperatures in check, while the premium build quality guarantees longevity. Perfect for enthusiasts and professionals seeking a powerful foundation for their high-end PC build.
| CPU | AMD Socket AM5 |
| Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors | |
| Latest compatibility list available on GIGABYTE website | |
| Chipset | AMD X870 |
| Memory Type | DDR5 |
| Memory Speed Support | 8800(O.C), 8600(O.C), 8400(O.C), 8200(O.C), 8000(O.C), 7800(O.C), 7600(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C), 6200(O.C), 6000(O.C), 5600(O.C), 5200, 4800 MT/s |
| Memory Slots | 4 × DDR5 DIMM |
| Max Memory | 256 GB (64 GB per DIMM) |
| Memory Architecture | Dual Channel |
| Supported Memory Types | Non-ECC Unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Memory Profiles | AMD EXPO™, Intel XMP |
| Integrated Graphics (USB4 Controller) | 2 × USB4 Type-C ports |
| Supports USB4 + DisplayPort output | |
| Max resolution 3840×2160 @ 240Hz | |
| DisplayPort 1.4 + HDR | |
| Integrated Graphics (Standard) | 1 × HDMI port |
| Max resolution 4096×2160 @ 60Hz | |
| HDMI 2.1, HDCP 2.3, HDR | |
| Front HDMI | 1 × HDMI (1920×1080 @ 30Hz), HDMI 1.4 |
| Audio Codec | Realtek ALC1220 |
| Audio Channels | 2 / 4 / 5.1 / 7.1 channel HD Audio |
| Extra Audio Feature | Back panel line-out supports DSD audio |
| Audio Output | Optical S/PDIF Out |
| LAN | Realtek 2.5GbE (2.5Gbps / 1Gbps / 100Mbps) |
| Wi-Fi Module | Qualcomm Wi-Fi 7 QCNCM865 |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ax/be |
| Wi-Fi Bands | 2.4 GHz / 5 GHz / 6 GHz |
| Wi-Fi Feature | 320 MHz bandwidth (Wi-Fi 7) |
| Bluetooth | Bluetooth 5.4 |
| Wi-Fi OS Requirement | Windows 11 SV3 required for Wi-Fi 7 |
| Expansion Slot 1 | 1 × PCIe x16 (CPU) |
| Ryzen 9000 / 7000 → PCIe 5.0 x16 | |
| Ryzen 8000 Phoenix 1 → PCIe 4.0 x8 | |
| Ryzen 8000 Phoenix 2 → PCIe 4.0 x4 | |
| Expansion Slot 2 | 1 × PCIe x16 (Chipset) running at x4 |
| Shared bandwidth with M2D_SB | |
| M.2 Slot M2A_CPU | PCIe 5.0 x4/x2 (Ryzen 9000 / 7000) |
| PCIe 4.0 x4/x2 (Ryzen 8000) | |
| Supports 25110 / 22110 / 2580 / 2280 SSD | |
| M.2 Slot M2B_CPU | PCIe 5.0 x4/x2 |
| Shares bandwidth with USB4 controller | |
| M.2 Slots (Chipset) | 2 × M.2 (M2C_SB, M2D_SB) PCIe 4.0 x4/x2 |
| SATA Ports | 2 × SATA 6Gb/s |
| RAID (NVMe) | RAID 0 / 1 / 5 / 10 |
| RAID 5 Support | Only with Ryzen 9000 CPUs |
| RAID (SATA) | RAID 0 / 1 |
| USB4 | 2 × USB4 Type-C (Back panel) |
| USB 3.2 Gen2 Type-C | 1 × Back panel |
| USB 3.2 Gen2 Type-A | 2 × Back panel |
| USB 3.2 Gen1 | 8 ports (4 rear + 4 internal headers) |
| USB 2.0 | 1 rear + headers |
| Internal Power Connectors | 1 × 24-pin ATX |
| 2 × 8-pin CPU power | |
| Fan Headers | 1 CPU fan |
| 1 CPU fan / pump | |
| 4 system fan | |
| 2 system fan / pump | |
| RGB Headers | 3 × Addressable RGB Gen2 |
| 1 × RGB LED strip | |
| Internal Storage Connectors | 4 × M.2 sockets |
| 2 × SATA | |
| Front Panel Headers | Front panel, front audio |
| Internal USB Headers | USB-C Gen2x2, 2 × USB 3.2 Gen1, 2 × USB 2.0 |
| Extra Internal Headers | Noise detection, TPM, HDMI, power button, reset button, temperature sensors |
| Back Panel Ports | HDMI |
| Power button | |
| Reset button | |
| Q-Flash Plus button | |
| Clear CMOS button | |
| 2 × USB4 Type-C | |
| 1 × USB-C 3.2 Gen2 | |
| 2 × USB 3.2 Gen2 Type-A | |
| 4 × USB 3.2 Gen1 | |
| 1 × USB 2.0 | |
| RJ-45 LAN | |
| 2 × antenna connectors | |
| Optical S/PDIF | |
| 2 × audio jacks | |
| I/O Controller | iTE I/O controller chip |
| Hardware Monitoring | Voltage, temperature, fan speed, pump speed, water flow detection |
| Fan fail warning | |
| Noise detection | |
| BIOS | 256 Mbit flash |
| AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 | |
| Unique Features | GIGABYTE Control Center (GCC) |
| Q-Flash | |
| Q-Flash Plus | |
| Smart Backup | |
| Bundled Software | Norton Internet Security (OEM) |
| Operating System | Windows 11 64-bit |
| Form Factor | ATX |
| Dimensions | 30.5 cm × 24.4 cm |
