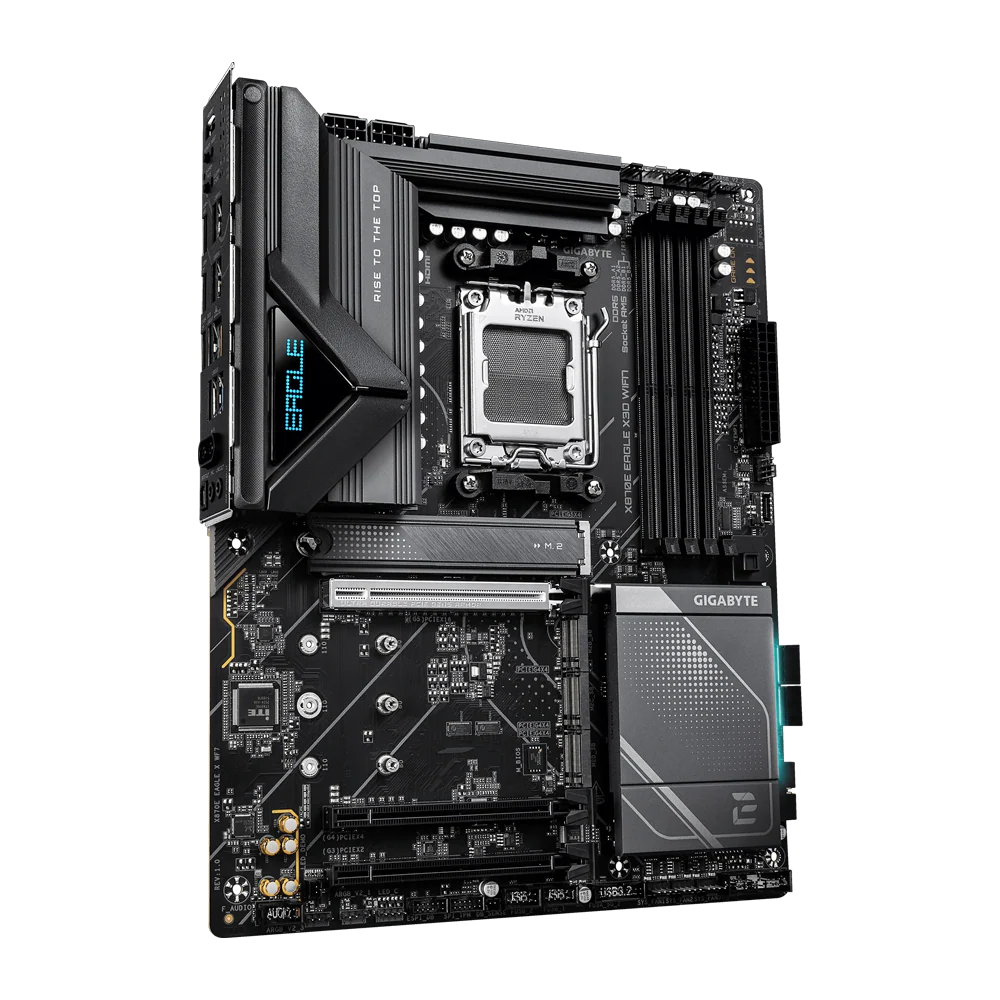

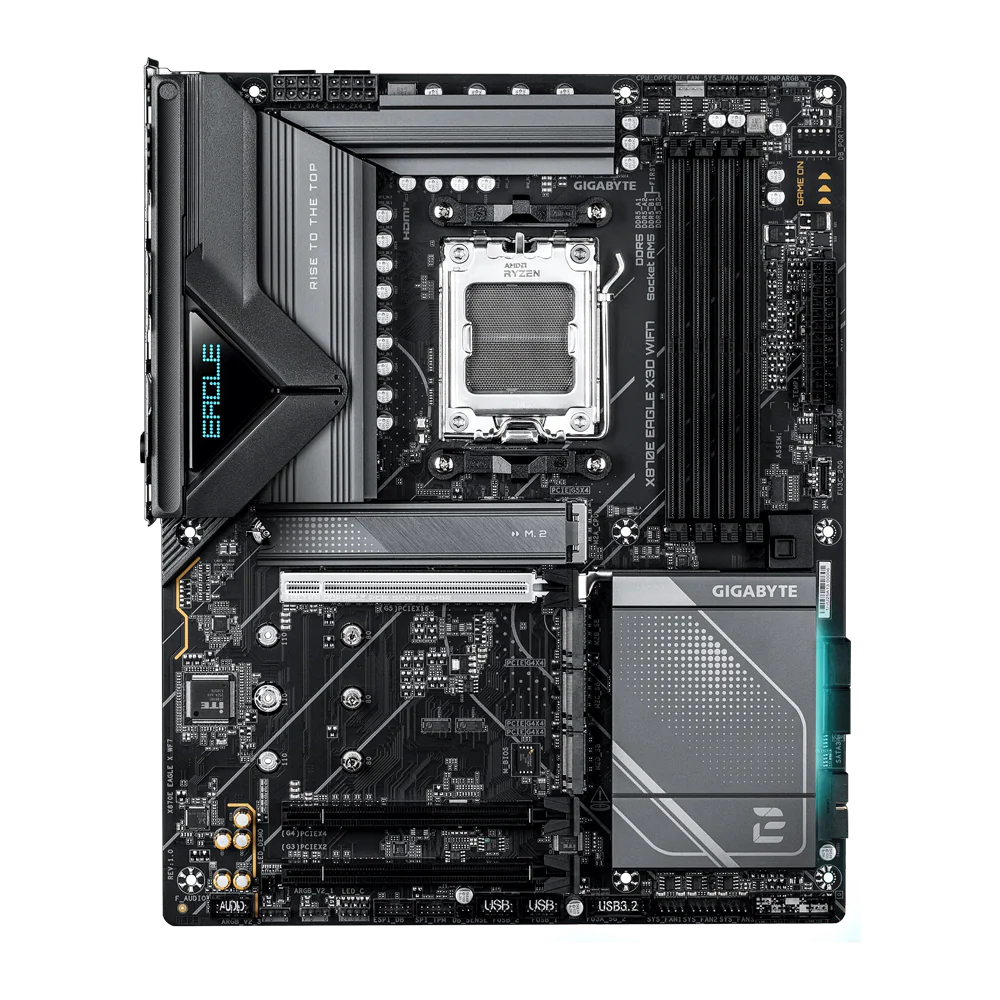

GIGABYTE X870E EAGLE X3D WIFI7 Motherboard - Black
- 109.000 KD
114.000 KD- 109.000 KD
- سعر الوحدة
- لكل
Experience next-generation performance with the GIGABYTE X870E EAGLE X3D WIFI7 Motherboard. Built for AMD Ryzen 9000 series processors, this premium platform delivers exceptional stability and speed for gaming, content creation, and demanding workloads. Key features include native WiFi 7 connectivity for ultra-fast wireless speeds, robust power delivery for CPU overclocking, and comprehensive cooling solutions. The X870E chipset ensures future-ready compatibility while the sleek black design complements any build aesthetic. Perfect for enthusiasts and professionals seeking cutting-edge performance and reliability in a feature-rich motherboard.
| CPU Socket | AMD Socket AM5 |
| Supported CPUs | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870E |
| Memory Type | DDR5 |
| Memory Speed Support | 9000(O.C), 8800(O.C), 8600(O.C), 8400(O.C), 8000(O.C), 7800(O.C), 7600(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C), 6200(O.C), 6000(O.C), 5600(O.C), 5200, 4800, 4400 MT/s |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| Memory Architecture | Dual Channel |
| Supported Memory Types | Non-ECC Unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16 |
| Memory Profiles | AMD EXPO™, Intel XMP |
| Integrated Graphics (USB4 Controller) | 2 × USB4 Type-C with DisplayPort output |
| USB4 Video Resolution | Up to 3840 × 2160 @ 240Hz |
| DisplayPort Support | DisplayPort 1.4 + HDR |
| HDMI Output | 1 × HDMI (4096 × 2160 @ 60Hz) |
| HDMI Standard | HDMI 2.1, HDCP 2.3, HDR |
| Audio Codec | Realtek ALC1220 |
| Audio Channels | 2 / 4 / 5.1 / 7.1 channel HD Audio |
| Extra Audio Feature | Back panel line-out supports DSD audio |
| Digital Audio Output | Optical S/PDIF Out |
| LAN | Realtek 5GbE (5Gbps / 2.5Gbps / 1Gbps / 100Mbps) |
| Wi-Fi Module | Qualcomm Wi-Fi 7 QCNCM865 |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ax/be |
| Wi-Fi Bands | 2.4 / 5 / 6 GHz |
| Wi-Fi Feature | 320 MHz channel support (Wi-Fi 7) |
| Bluetooth | Bluetooth 5.4 |
| PCIe Slot (CPU) | 1 × PCIe x16 |
| Ryzen 9000/7000 → PCIe 5.0 x16 | |
| Ryzen 8000 Phoenix 1 → PCIe 4.0 x8 | |
| Ryzen 8000 Phoenix 2 → PCIe 4.0 x4 | |
| PCIe Slot (Chipset) | 1 × PCIe 4.0 x16 (runs at x4) |
| 1 × PCIe 3.0 x16 (runs at x2) | |
| M.2 Slot (CPU) | 1 × PCIe 5.0 x4/x2 SSD (supports 25110 / 22110 / 2580 / 2280) |
| M.2 Slots (Chipset) | 3 × PCIe 4.0 x4/x2 SSD (22110 / 2280) |
| Total M.2 Slots | 4 |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID (NVMe) | RAID 0 / 1 / 5 / 10 |
| RAID 5 Support | Ryzen 9000 only |
| RAID (SATA) | RAID 0 / 1 / 10 |
| USB4 Ports | 2 × USB4 Type-C (rear) |
| USB-C Gen2 | 1 × USB-C (rear) |
| USB-C Gen2x2 Header | 1 × internal |
| USB 3.2 Gen2 Type-A | 4 × rear |
| USB 3.2 Gen1 Rear | 4 × rear |
| USB 3.2 Gen1 Internal | 4 × via headers |
| USB 2.0 Internal | 4 × via headers |
| Power Connector | 1 × 24-pin ATX |
| CPU Power | 2 × 8-pin ATX 12V |
| Fan Headers | 1 × CPU fan |
| 1 × CPU fan/pump | |
| 4 × system fan | |
| 2 × system fan/pump | |
| RGB Headers | 3 × Addressable RGB Gen2 |
| 1 × RGB LED | |
| Internal Storage Connectors | 4 × M.2 sockets |
| 4 × SATA | |
| Front Panel Headers | Front panel, front audio |
| Internal USB Headers | USB-C Gen2x2, 2 × USB 3.2 Gen1, 2 × USB 2.0 |
| Other Internal Headers | TPM header |
| Reset jumper | |
| Clear CMOS jumper | |
| 2 × temperature sensor headers | |
| Noise detection header | |
| Back Panel Ports | HDMI |
| Reset button | |
| Power button | |
| Clear CMOS button | |
| Q-Flash Plus button | |
| 4 × USB 3.2 Gen2 Type-A | |
| 1 × USB-C Gen2 | |
| 2 × USB4 Type-C | |
| 4 × USB 3.2 Gen1 | |
| RJ-45 LAN | |
| 2 × Wi-Fi antenna connectors | |
| 2 × audio jacks | |
| Optical S/PDIF | |
| I/O Controller | iTE I/O Controller Chip |
| Hardware Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow detection | |
| Fan fail warning | |
| Fan speed control | |
| Noise detection | |
| BIOS | 512 Mbit Flash |
| AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 | |
| Special Features | GIGABYTE Control Center (GCC) |
| Q-Flash | |
| Q-Flash Plus | |
| Smart Backup | |
| Bundled Software | Norton Internet Security (OEM) |
| Operating System Support | Windows 11 64-bit |
| Form Factor | ATX |
| Dimensions | 30.5 cm × 24.4 cm |
