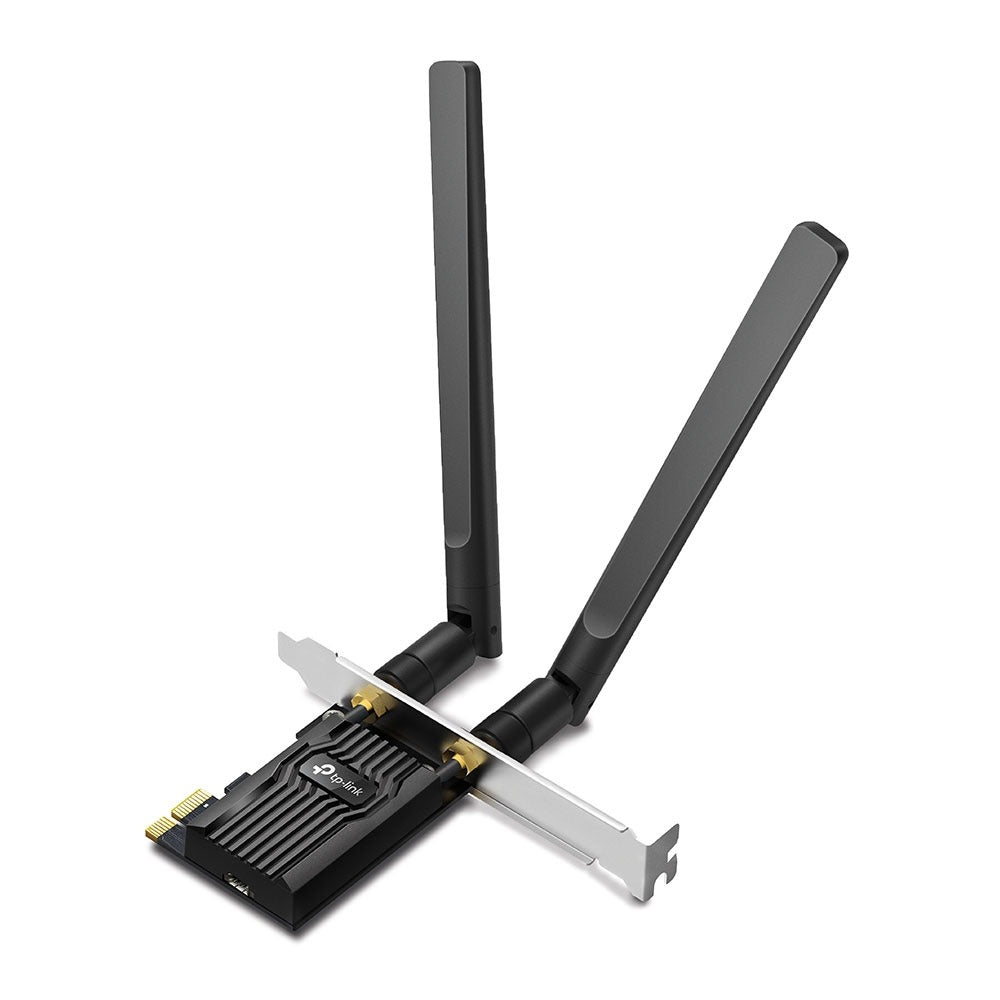

TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Model No

TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Part No

Archer TX20E

Color

Black

Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/g/b 2.4 GHz

Bluetooth 5.2

WiFi Speeds

AXE5400

6 GHz: 2402 Mbps (802.11ax, HE160)

5 GHz: 2402 Mbps (802.11ax, HE160)

2.4 GHz: 574 Mbps (802.11ax)

WLAN Signal Rate

5 GHz

11ax: Up to 1201 Mbps(dynamic)

11ac: Up to 867 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz

11ax: Up to 574 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

5 GHz :

11ax HE80: -57.0dBm

11ax HE40: -60.0dBm

11ax HE20: -63.0dBm

11ac VHT80: -59.5dBm

11ac VHT40: -62.5dBm

11ac VHT20: -67.5dBm

11n HT40: -69.5dBm

11n HT20: -72.5dBm

11a 54Mbps: -74.0dBm

11a 6Mbps: -94.5dBm

2.4GHz :

11ax HE40: -60.0dBm

11ax HE20: -63.0dBm

11n HT40: -69.5dBm

11n HT20: -72.5dBm

11g 54Mbps: -74.0dBm

11b 11Mbps: -88.0dBm

WLAN Transmit Power

5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)

2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)

WLAN Modes

Infrastructure mode

Buttons

Reset Button

Wireless Security

Support 64/128 bit WEP

WPA/WAP2/WPA3

WPA-PSK/WPA2-PSK

802.1x

Modulation Technology

DBPSK

DQPSK

CCK

OFDM

16-QAM

64-QAM

256-QAM

1024QAM

Dimension

4.76 × 3.09 × 0.82 in

(120.8 × 78.5 × 20.9 mm)

Package Content

Archer TX20E

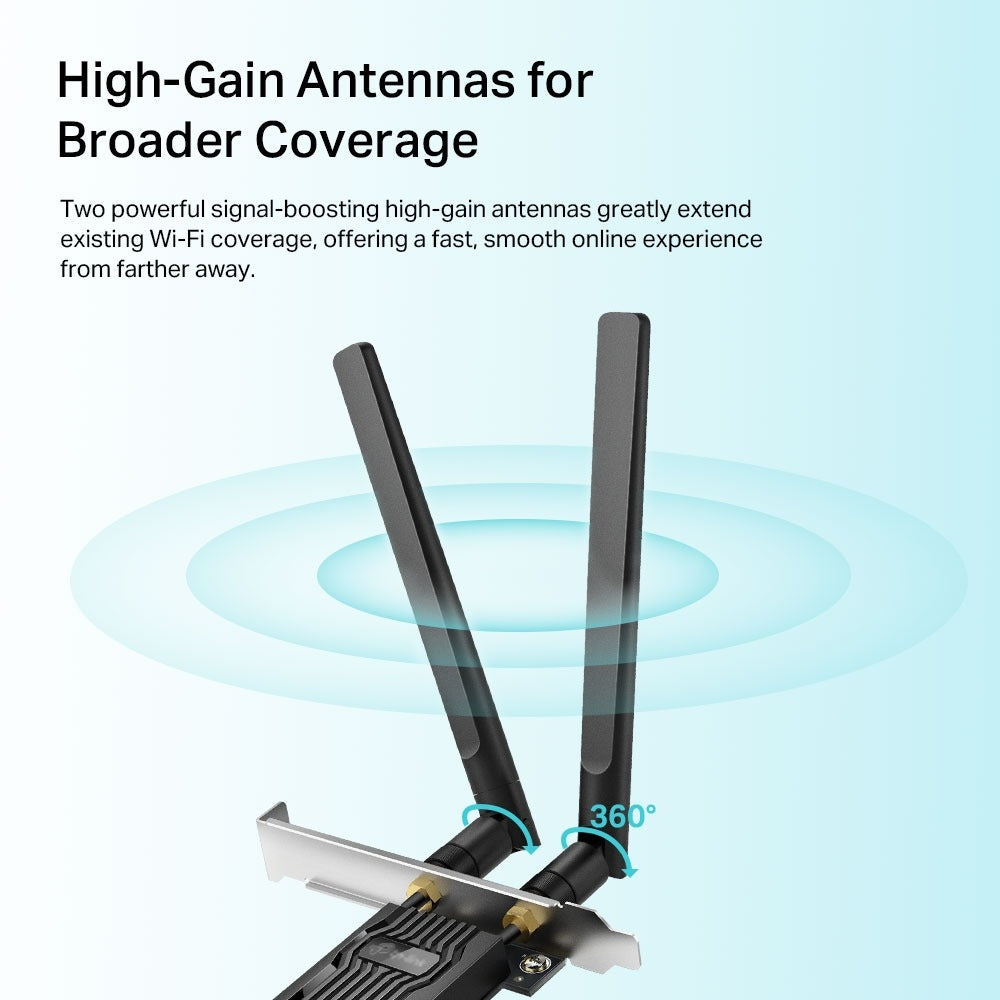

Two High-Gain Dual Band Antennas

Low-Profile Bracket

Bluetooth Header Cable

Quick Installation Guide

Resource CD

Warranty

1 Year ( As per Manufacturer Policy )
