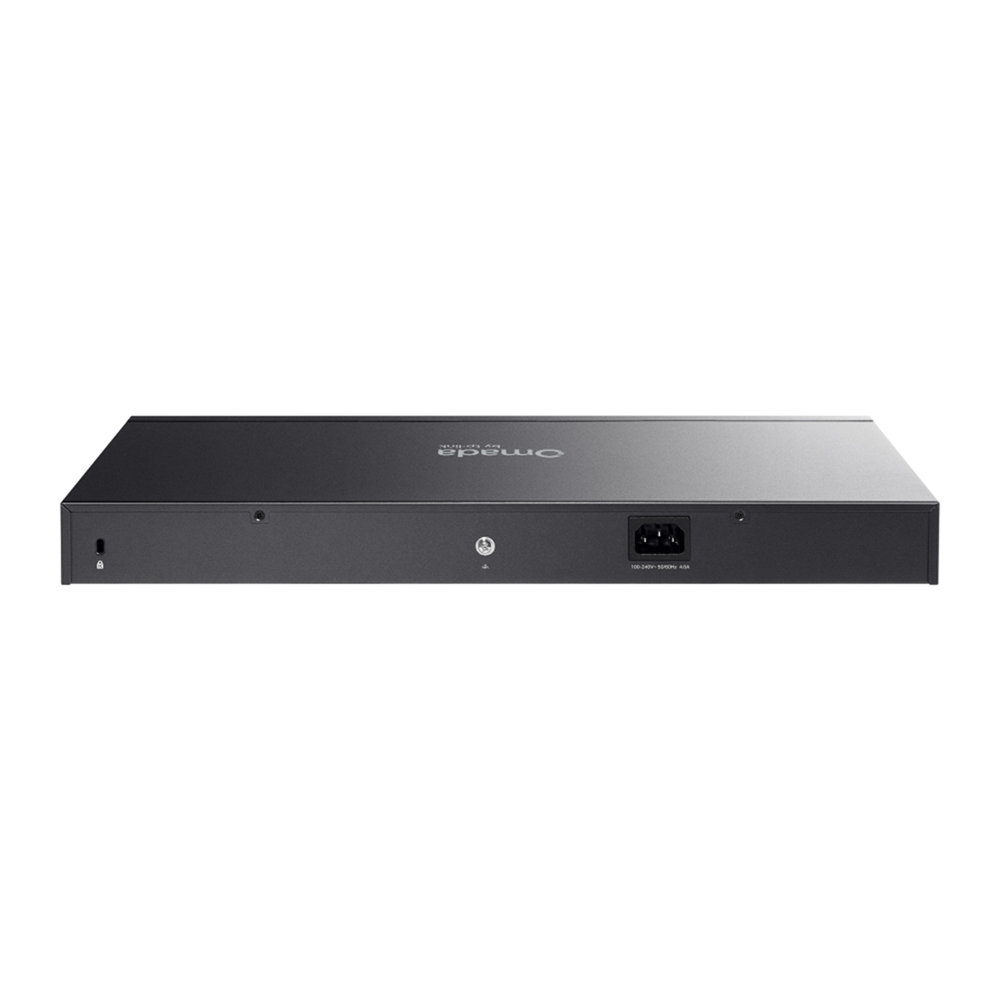

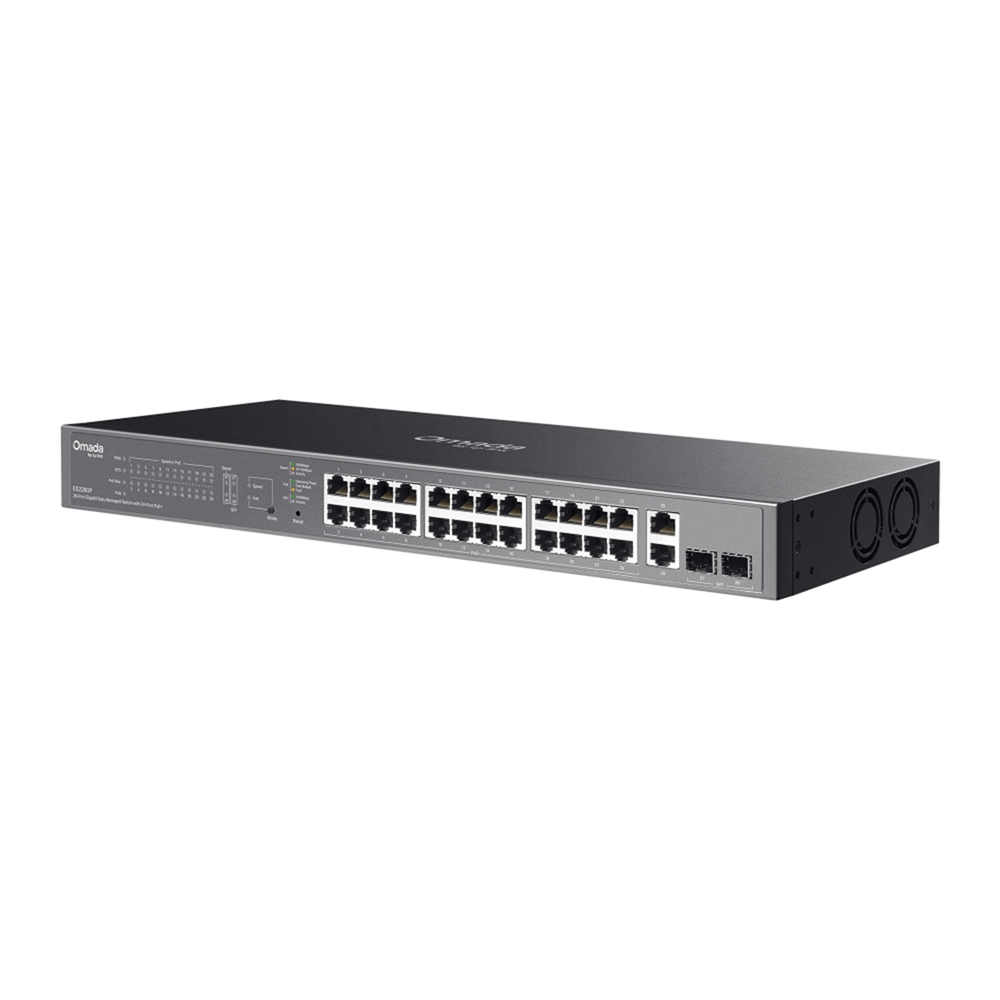

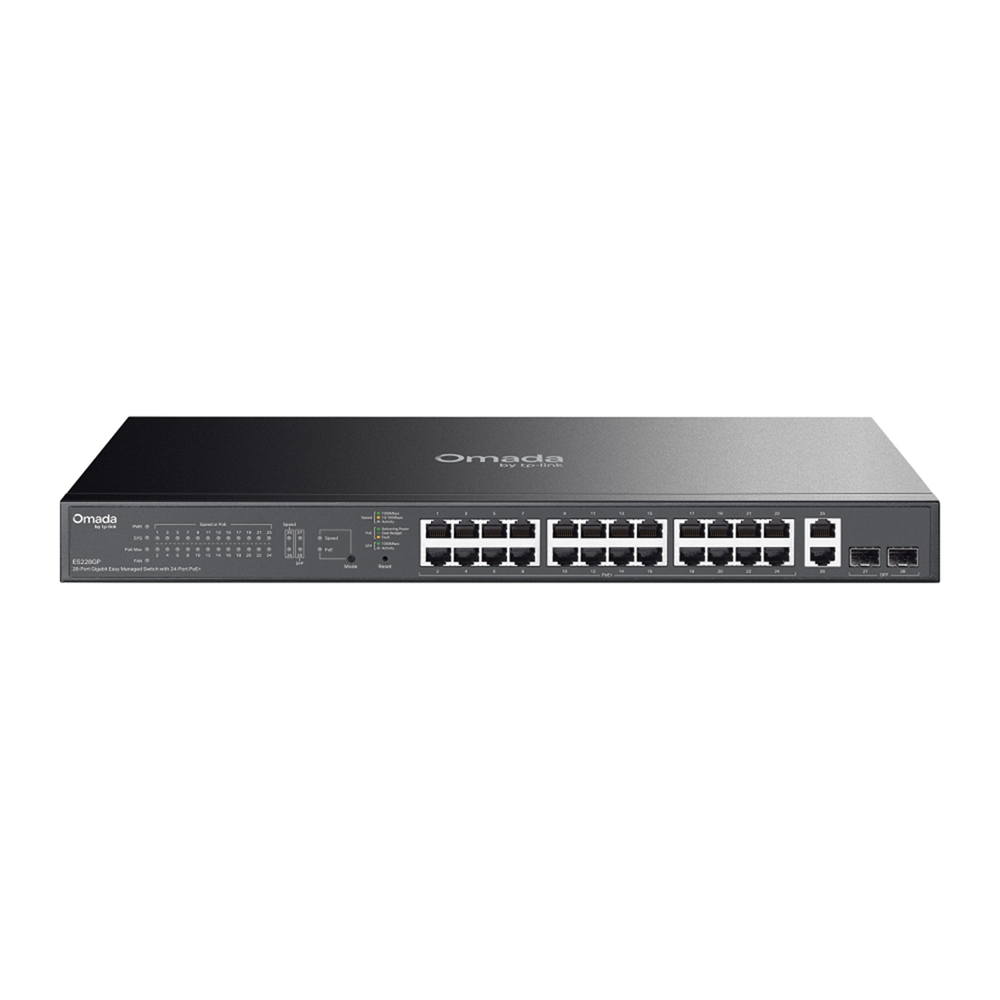

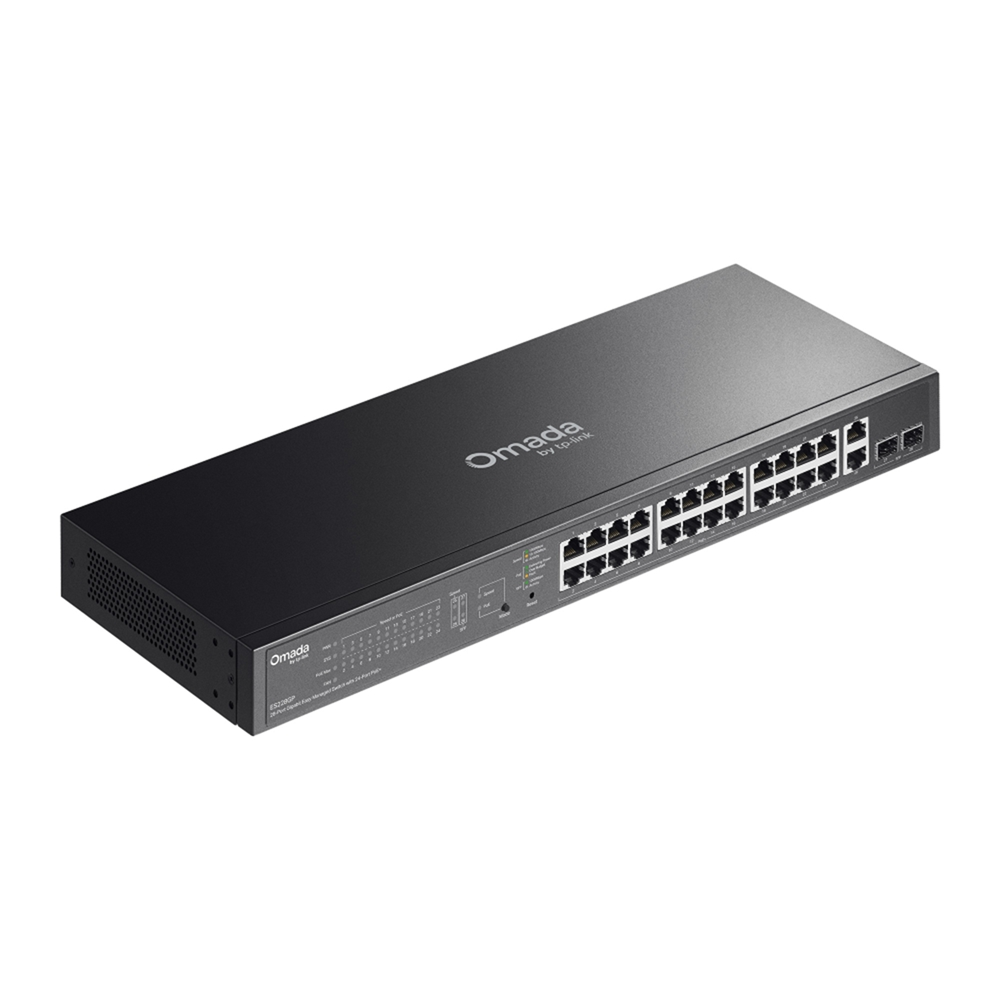

TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
- 59.000 KD
65.000 KD- 59.000 KD
- سعر الوحدة
- لكل
The TP-Link ES228GP Omada is a 28-port Gigabit managed switch designed for small to medium business networks. It features 24 ports with PoE+ support, delivering up to 30W per port for powering IP cameras, access points, and VoIP phones without additional power supplies. Built on the Omada platform, this switch offers centralized management through the Omada Controller, simplifying network deployment and monitoring. The 4 additional Gigabit ports provide flexibility for uplink connections or expansion. With a switching capacity of 56 Gbps and support for VLAN, QoS, and IGMP snooping, it ensures reliable performance and traffic prioritization. The finless design keeps operations quiet, while the compact form factor fits easily into standard racks. Ideal for offices, retail locations, and small campuses requiring efficient PoE distribution and easy network management.
- 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
- 2× Gigabit SFP Slots
- 250W PoE Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Up to 820ft PoE, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack mounting design
Specifications
| rand Name |
TP-Link |
|---|---|
| Features |
24-Port, Gigabit, Managed Switch, PoE Switch, PoE+, SFP, Switch |
| Interface | • 26× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× Gigabit SFP Slots • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | 2 |
| Installation | Rackmount |
| Physical Security Lock | √ |
| Power Supply | 100–240V AC, 50/60Hz 4.0A |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 24 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery • Up to 250m PoE transmission distance |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Surge Protection | ±6kV |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
| Certification | FCC, CE, RoHS |
| Package Content | • ES228GP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
| Environment | • Operating Temperature: -5℃~45℃ (23℉~113℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
