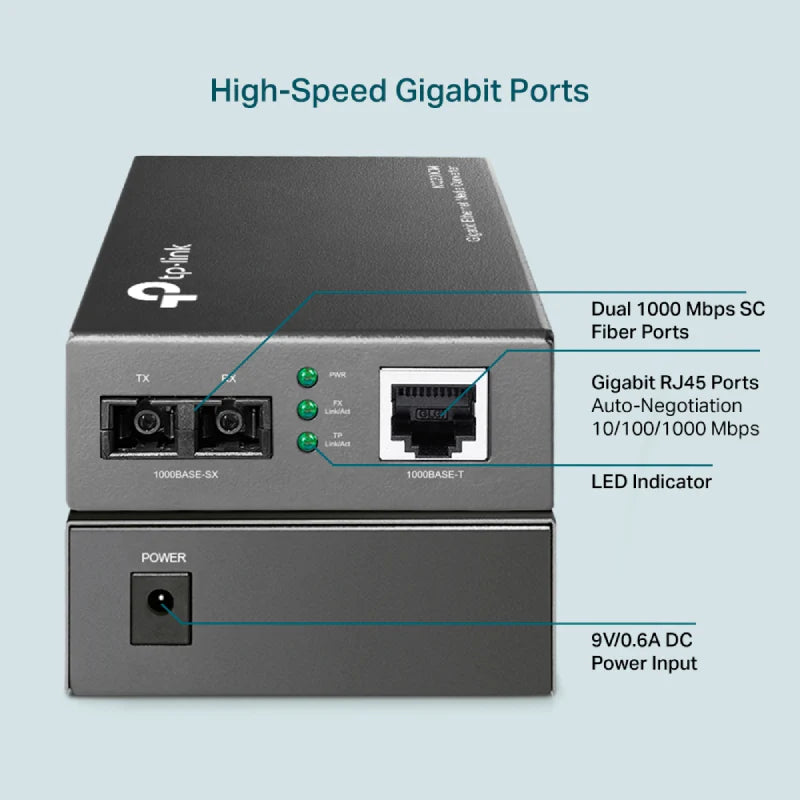

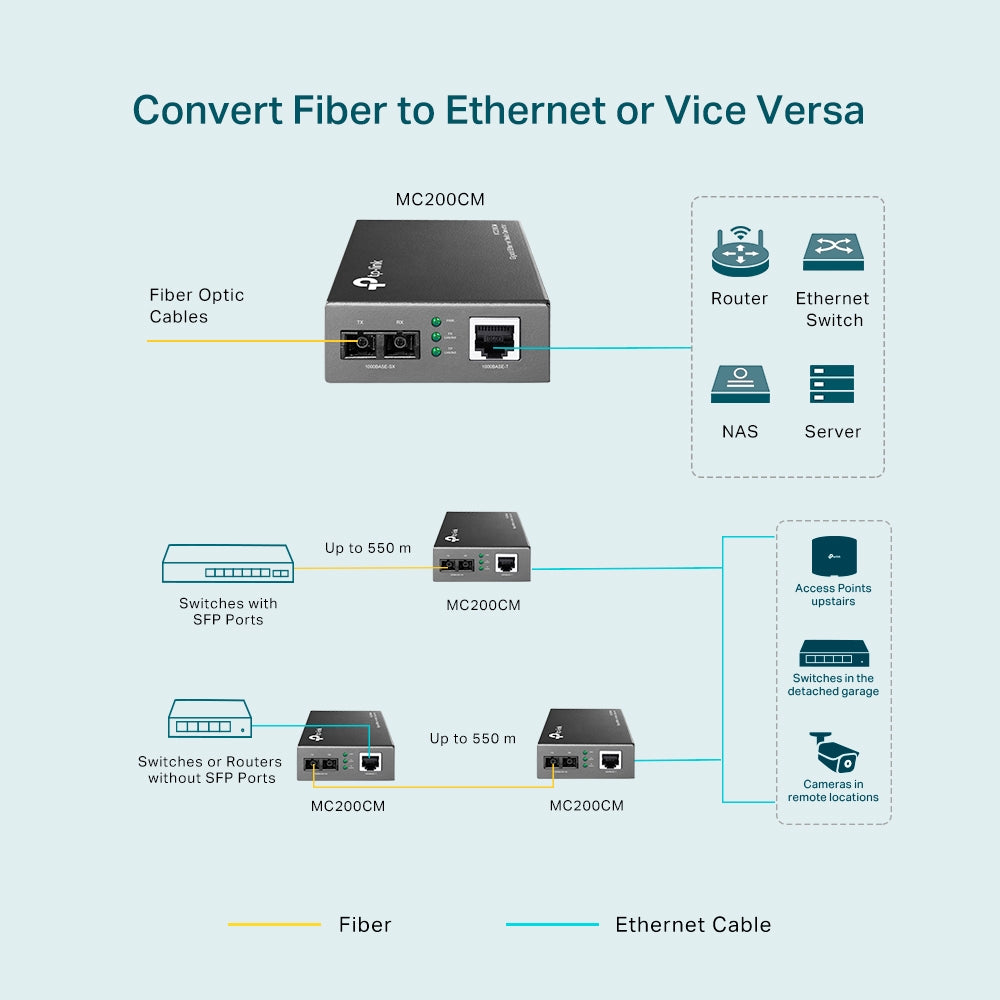

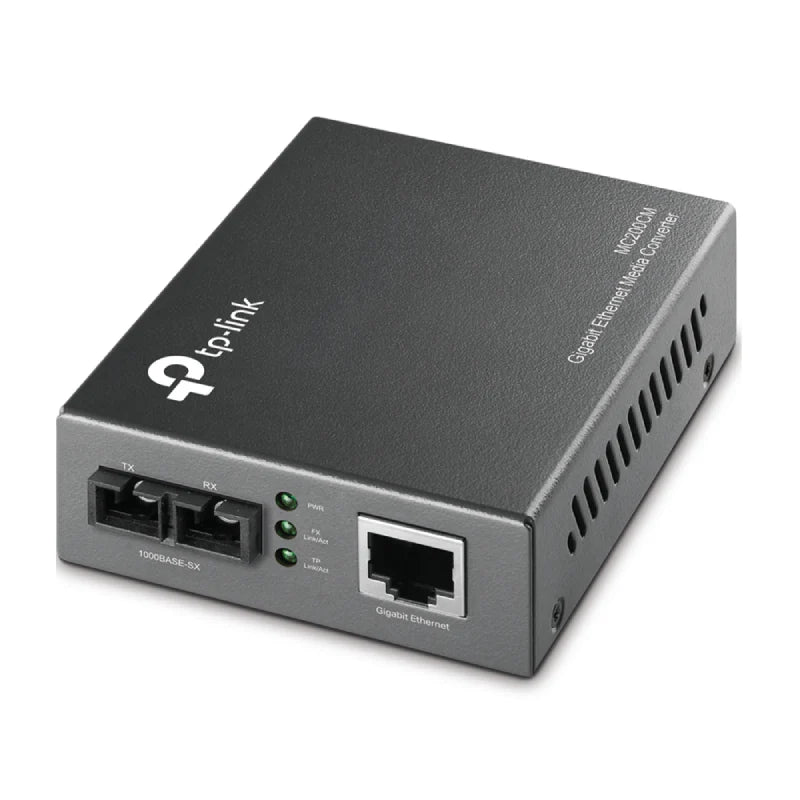

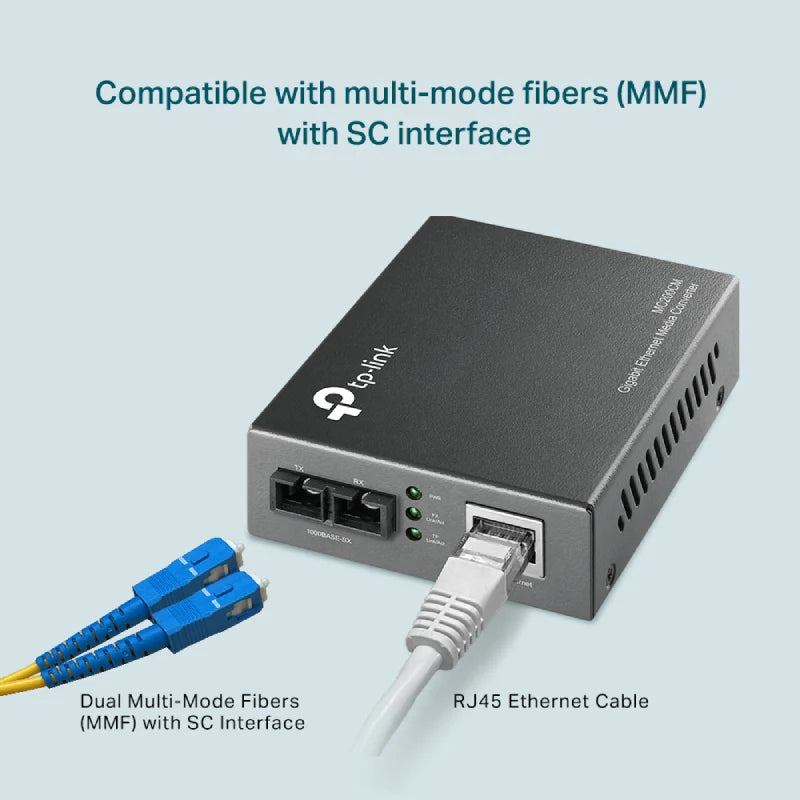

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).
Brand | TP-Link |
Model | MC200CM |
Device Type | Media Converter |
Interface | UPC, LAN |
LED | PWR, Link/Act |
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
Wave Length | 850nm |
Network Media 1000BASE-SX | Multi-mode Fiber |
Network Media 1000BASE-T | UTP category 5, 5e cable |
Power Supply | External power supply |
Power Consumption | 1.66W |

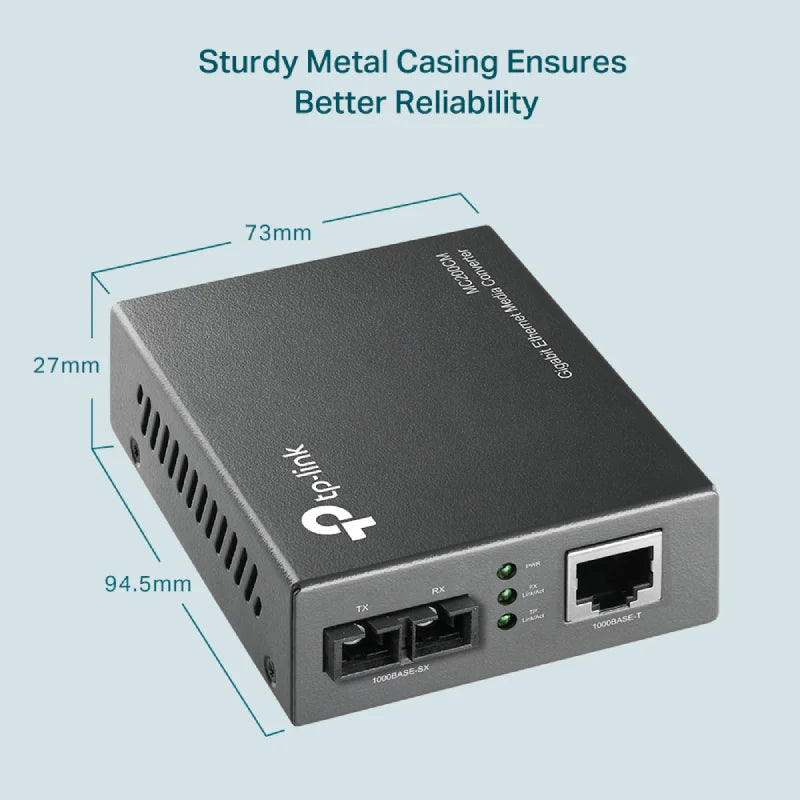

Dimensions ( W x D x H ) | 94.5 x 73.0 x 27.0 mm |
