TP-Link Omada EAP725-Wall BE5000 Wall Plate WiFi 7 Access Point, 2.5GE
- 42.000 KD
50.000 KD- 42.000 KD
- سعر الوحدة
- لكل
The TP-Link Omada EAP725-Wall BE5000 delivers next-generation WiFi 7 connectivity in a sleek wall-plate design. With BE5000 speeds and 2.5GE port support, it seamlessly integrates into your network infrastructure while maintaining a low-profile aesthetic. Ideal for offices, hotels, and commercial spaces requiring reliable, high-speed wireless coverage without visible equipment clutter. Omada management platform compatibility ensures centralized control and monitoring across multiple access points.
- Dual-Band Wi-Fi 7: 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.

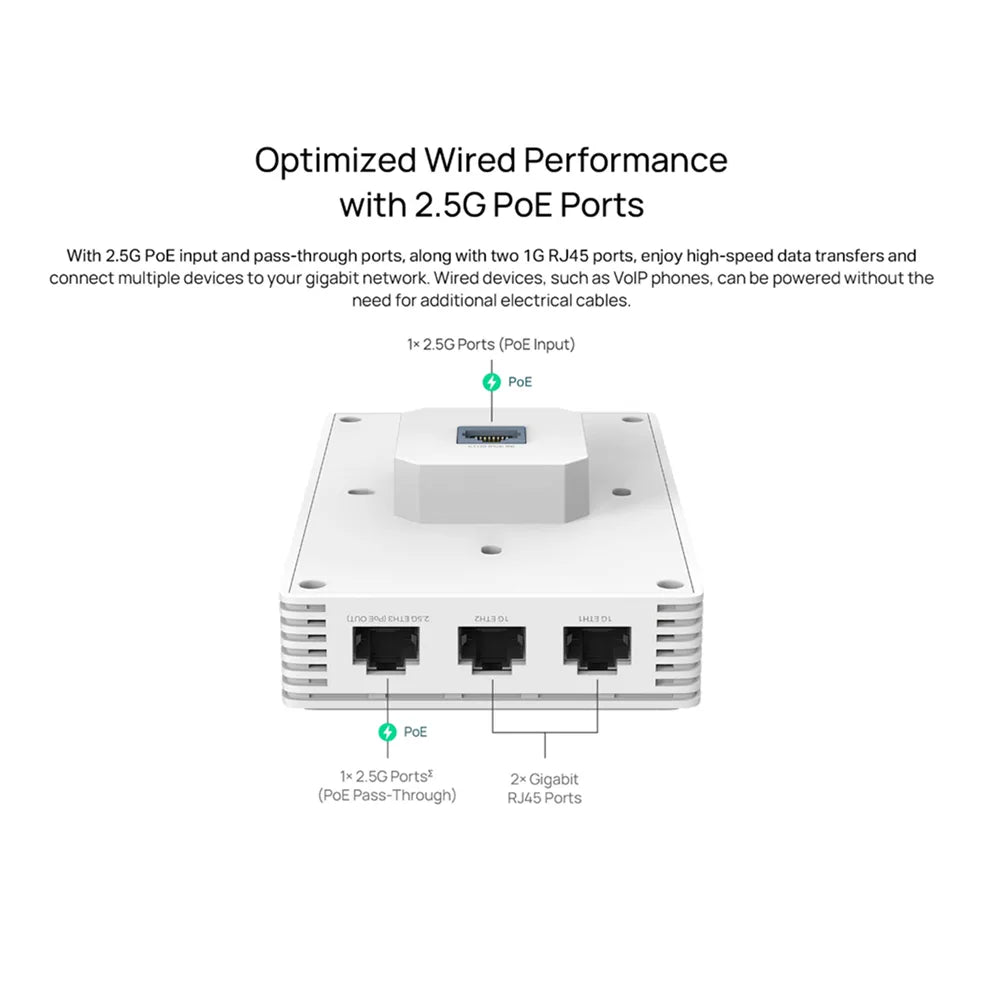

- Versatile Ports with PoE Flexibility: 1× 2.5G PoE Input port, 1× 2.5G PoE pass-through port, and 2× Gigabit downlink ports.
- Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
- Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 750ft² (70 ㎡).
- Flexible Deployment and Easy Setup: Supports 802.3at/bt PoE for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, Mesh, and Seamless Roaming.
- More Connections: Supports 250+ concurrent connections.
Specifications
| Brand Name |
TP-Link |
|---|---|
| Features |
2.5G, Access Point, Gigabit, PoE, WiFi 7 |

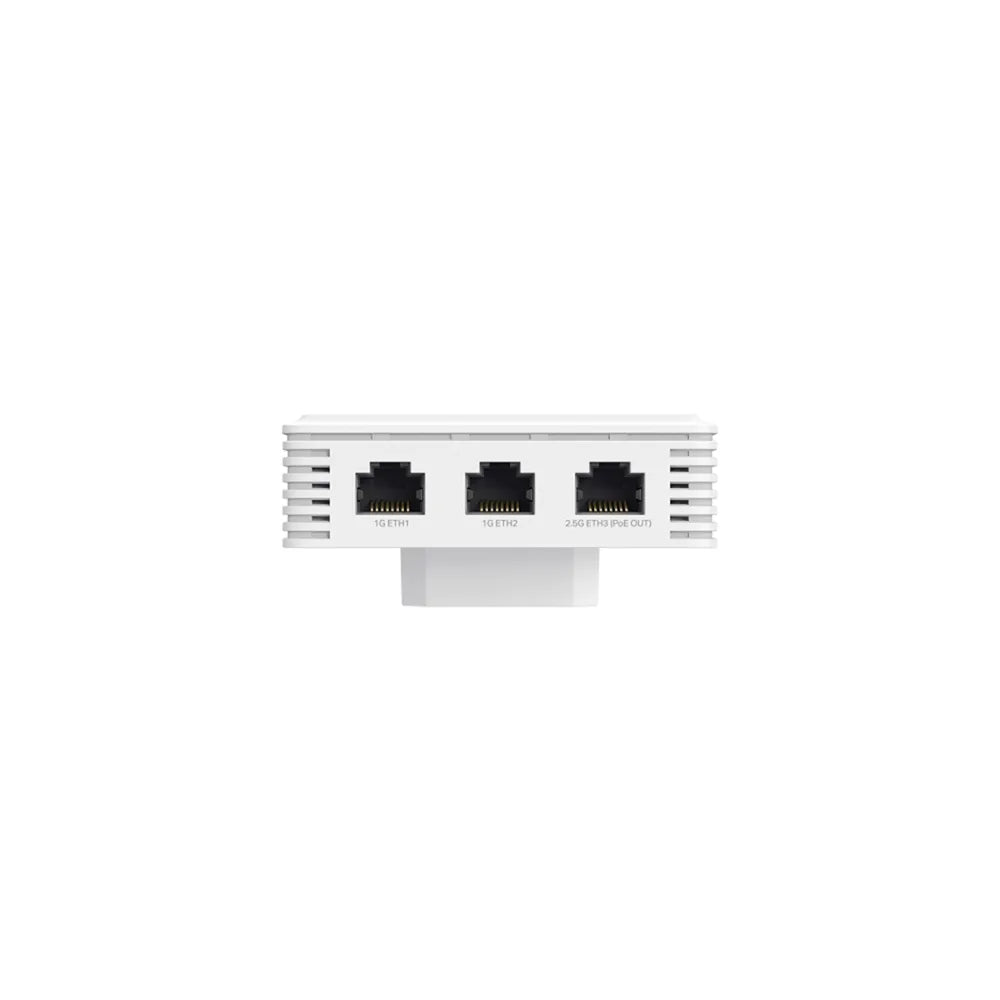

| Interface | • Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through.) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| PoE Out | PoE Passthrough (Pins 1,2-; 3,6+) The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP’s downstream device exceeds 7W, the AP needs an 802.3bt input. |
| Max. Power Consumption | • 802.3bt: 17W (PoE Out support 15.4W) • 802.3at: 17W (PoE Out support 7W) |
| Dimensions ( W x D x H ) | 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) |
| Antenna | 4× Internal Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| Bluetooth | V5.2 |
| Mounting | Wall Mounting (Screws included) |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Coverage | 750ft² (70 ㎡)* |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4324 Mbps • 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • MLO • 4K-QAM • Multi-RUs • 240 MHz Bandwidth • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 4-22 dBm (2.4GHz) 4-22 dBm (5GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3/ISM) |
| Certification | CE, RoHS |
| Package Content | • EAP725-Wall • Installation Guide • Mounting Screws |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
