TP-Link VIGI NVR2008H-8MP VIGI 8 Channel PoE+ Network Video Recorder
- 51.900 KD
70.000 KD- 51.900 KD
- سعر الوحدة
- لكل
The TP-Link VIGI NVR2008H-8MP is a professional-grade 8-channel network video recorder designed for comprehensive surveillance systems. This NVR supports up to 8MP resolution cameras, delivering crystal-clear video footage for detailed monitoring and evidence capture. Equipped with integrated PoE+ technology, it powers compatible cameras directly through network cables, eliminating the need for separate power supplies and simplifying installation. The device features robust storage capacity and advanced video management capabilities, making it ideal for small to medium-sized businesses, retail spaces, and residential properties requiring reliable security coverage. With intelligent playback, backup, and remote access features, the NVR2008H-8MP enables efficient video review and real-time monitoring from anywhere. Its user-friendly interface and compatibility with VIGI cameras ensure seamless integration into modern surveillance networks. Built for durability and performance, this recorder provides the foundation for a dependable security infrastructure.
Key Features
- 8-Channel Live View and 4K HDMI Video Output
- 8× 10/100 Mbps PoE+ Ports with 90 W PoE Budget*1
- Up to 8-ch @ 4MP / 4-ch @ 8MP Decoding Capability
- 8-Channel Synchronous Playback*2
- 160 Mbps Incoming Bandwidth and 160 Mbps Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB*3
- H.265+ Compression Technology
- HDMI and VGA Independent / Simultaneous Output
- Remote Monitoring
Specifications
| IP Video Input | 8-Channel |
|---|---|
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI and VGA Independent / Simultaneous Output |
| Multi-View Display | 1/4/6/8/9 |
| AI by NVR | • Motion Detection • Line Crossing Detection • Intrusion Detection Note: Enhanced with Human & Vehicle Classification for more accurate alerts Number of Channels • Up to 4-ch Simultaneous Output |
| AI by Camera | • People & Vehicle Attributes Analytics • Motion Detection • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection Note: Enhanced with Human & Vehicle Classification for more accurate alerts |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8-Channel*2 |
| Capability | • 30fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP |
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+), Safari (11+) |
| Interoperability | ONVIF Profile S/T, CGI |

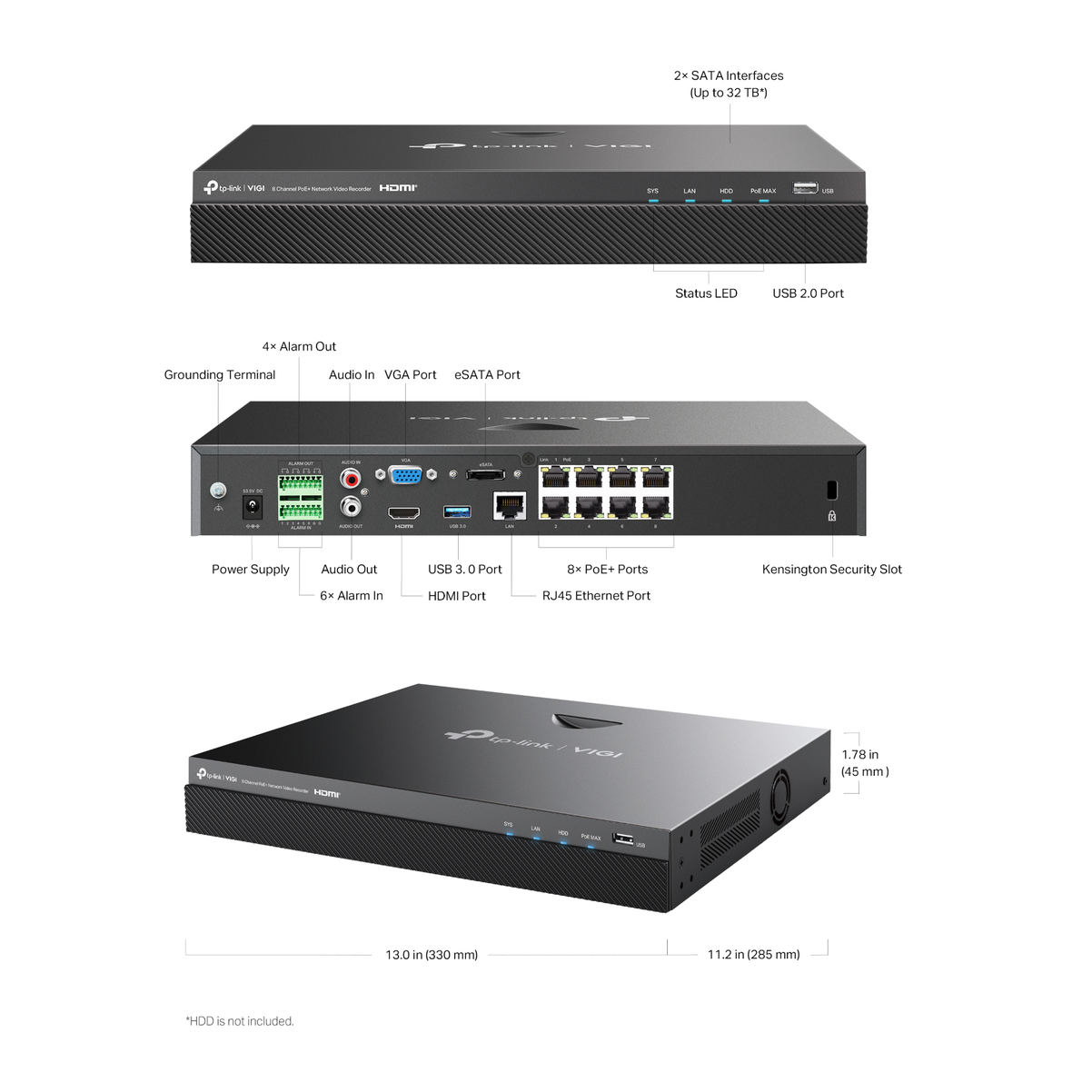

| Network Interface | 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 6/4 |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 1 |
| VGA | 1 |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16 TB Capacity for Each HDD*3 |
| Standard | 802.3at/af Compliant |
| Interface | 8, RJ-45 10/100 Mbps PoE+ Ports |
| PoE Budget | 90 W*1 Available for All PoE+ Ports, 30 W Max per Port |
| Storage Temperature | -40 ℃ to 70 °C (-40 ℉ to 158 ℉) |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Content | • VIGI Network Video Recorder • Power Adapter • HDD Power Cables • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet • Mouse • Quick Installation Guide |
| Working Temperature | • NVR: -10 ℃ to 55 °C (14 ℉ to 131 ℉） • Power Adapter: 0 ℃ to 40 °C (32 ℉ to 104 ℉) |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 13 × 11.2 × 1.8 in (330 × 285 × 45 mm) |
| Net Weight | 2.1 Kg*4 |
| Gross Weight | 3.9 Kg*4 |
| Power Supply | 53.5V DC/2.43A |
| Max. Power Consumption | • 8.5 W (Without Disk) • 40 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
