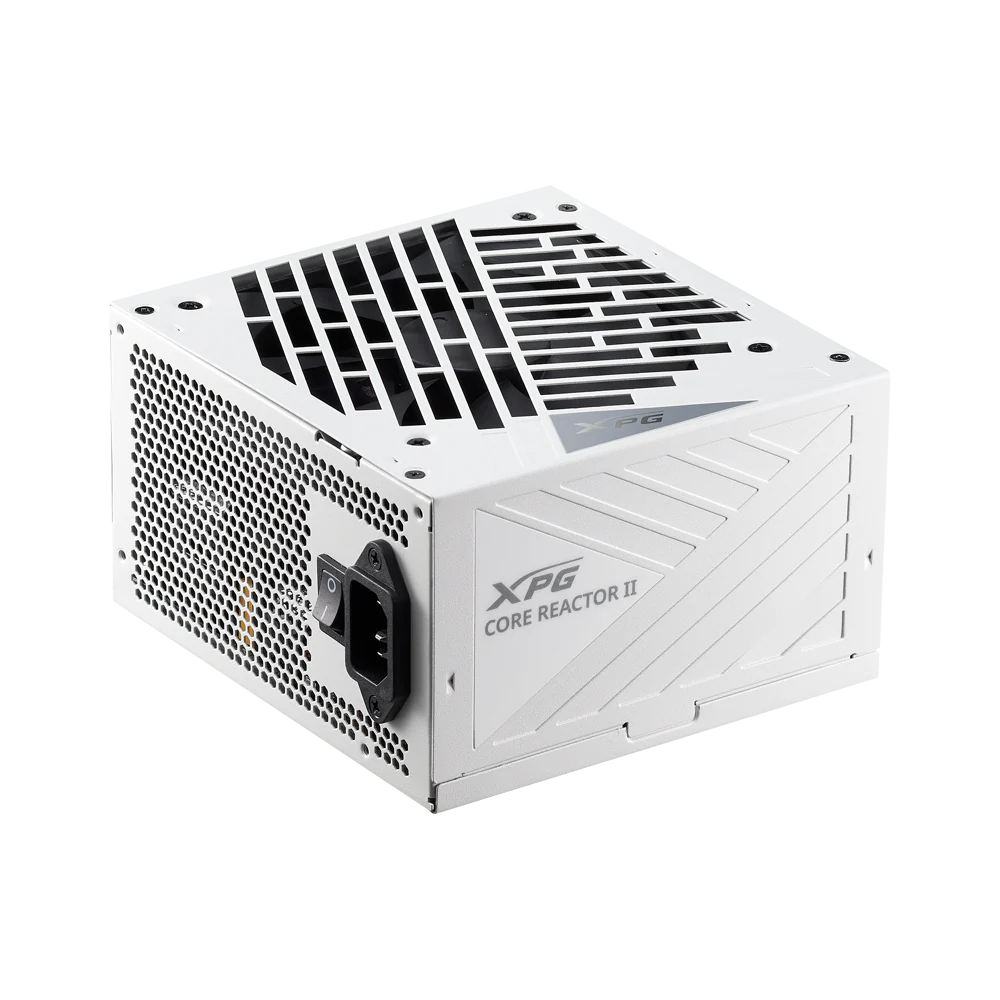

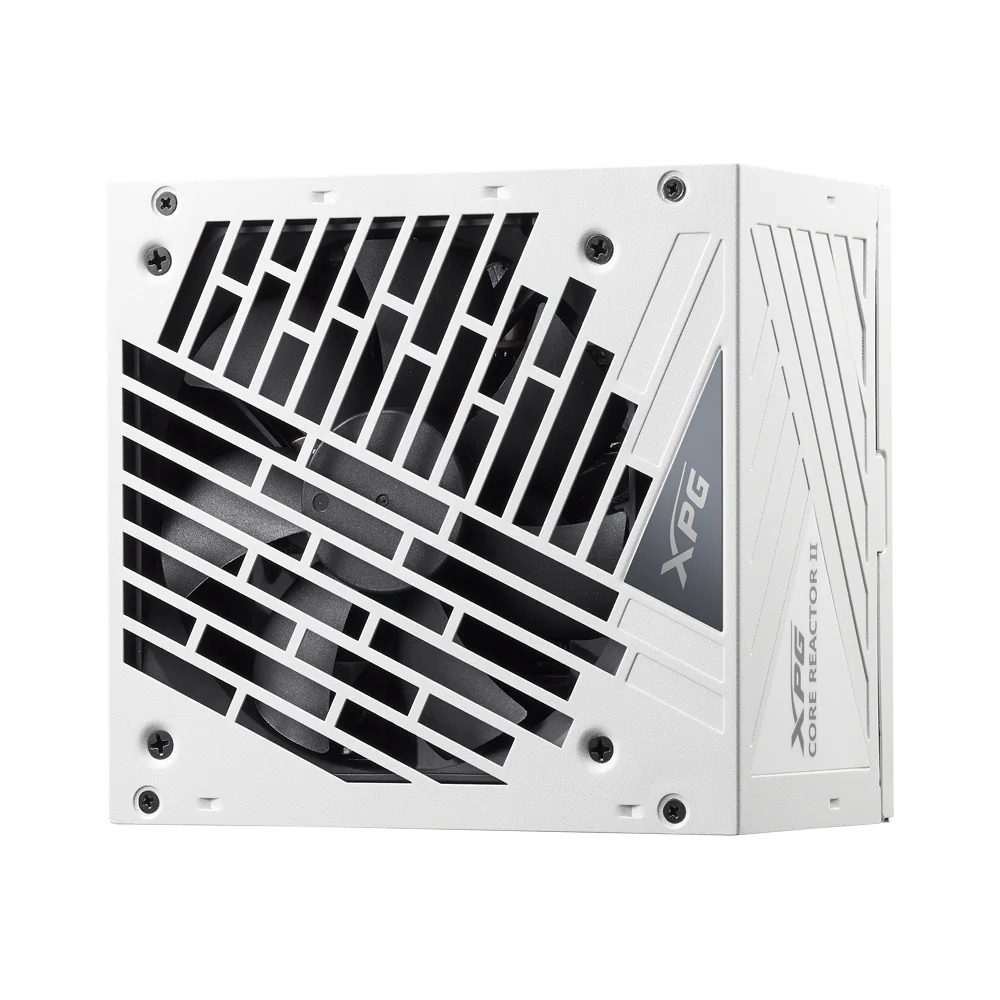

XPG CORE REACTOR II 850W ATX 3.1 80 Plus Gold Full Modular Power Supply - White

The XPG CORE REACTOR II delivers reliable power for high-performance gaming and workstation builds. This 850W fully modular power supply features 80 Plus Gold efficiency, reducing energy waste and lowering electricity costs. ATX 3.1 compatibility ensures seamless integration with next-generation components and graphics cards. The modular cable design minimizes clutter inside your case, improving airflow and simplifying cable management. Built with premium components for stable, consistent power delivery under demanding loads. The sleek white finish complements modern PC aesthetics while maintaining professional-grade performance standards.

CORE COMPETENCE
XPG CORE REACTOR II VE empowers your system with efficient power delivery. It’s compatible with Intel’s latest ATX 3.1 design guidelines and has a dedicated 12V-2x6 connector for the latest graphics cards. This unit boasts a DC-DC circuit design for enhanced performance, stability, and consistency, with exceptional ripple control and hold-up time surpassing Intel's specifications. It has 8 industrial protections fortifying its durability, safeguarding both the unit and your system.

ATX 3.1 Compatible
XPG CORE REACTOR II VE integrates seamlessly with ATX 3.1 standards, enhancing performance and reliability. With a dedicated 12V-2x6 connector, it ensures optimal compatibility with the latest graphics card requirements, delivering advanced power delivery and efficiency.

12V-2x6 Connector
The provided 12V-2x6 connector ensures direct and efficient power delivery to critical components, maximizing system stability and performance. By minimizing voltage drops and optimizing efficiency, this connector guarantees consistent and reliable power for your system's demanding needs.

Specifications

• Dimensions (L x W x H) : 140 x 150 x 86mm
• Cybenetics Rating : GOLD
• 80 Plus Rating : GOLD
• ATX Version : Intel ATX 12V v3.1
• Protections : OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
• Certification : CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus
• PFC : 0.99
• Input Voltage : 100-240V
• Input Current : 850W: 12A
• Input Frequency : 47Hz-63Hz
• DC Output Voltage : +5V | +3.3V | +12V | -12V | +5Vsb
• Total Output : 850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
• Power Excursion : 850W: 1997W (*up to 235% of the PSU's rated power for 100μs)
• Operating Temperature : 40°C
• Fan Size : 120mm FDB Fan
• Fan Bearing : FDB (Fluid Dynamic Bearing)
• Fan Speed : 2400 RPM
• MTBF : 100K hours at full load
• ATX 24 Pin Connector : 1
• EPS 8 Pin Connector : 2
• PCI-E 6+2 Pin Connector : 850W : 3
• Molex 4 Pin Connector : 2
• 12V-2x6 (12+4) Connector (600W) : 850W : 1
• SATA Connector : 6
• Weight : 850W : Product + Cables: 1450g+1350g
• with Package: 3.03kg
