XPG CORE REACTOR II VE 750W ATX 3.1 80 Plus Gold Fully Modular Power Supply - Black

The XPG CORE REACTOR II VE delivers reliable power for demanding gaming and workstation builds. This 750W fully modular power supply features 80 Plus Gold efficiency, reducing energy waste and lowering electricity costs. ATX 3.1 compliance ensures compatibility with next-generation graphics cards and components. The modular cable design minimizes clutter inside your case for improved airflow and easier maintenance. Built with premium components for stable, consistent performance under load. Ideal for high-performance systems requiring dependable power delivery.

CORE REACTOR II VE CORE COMPETENCE

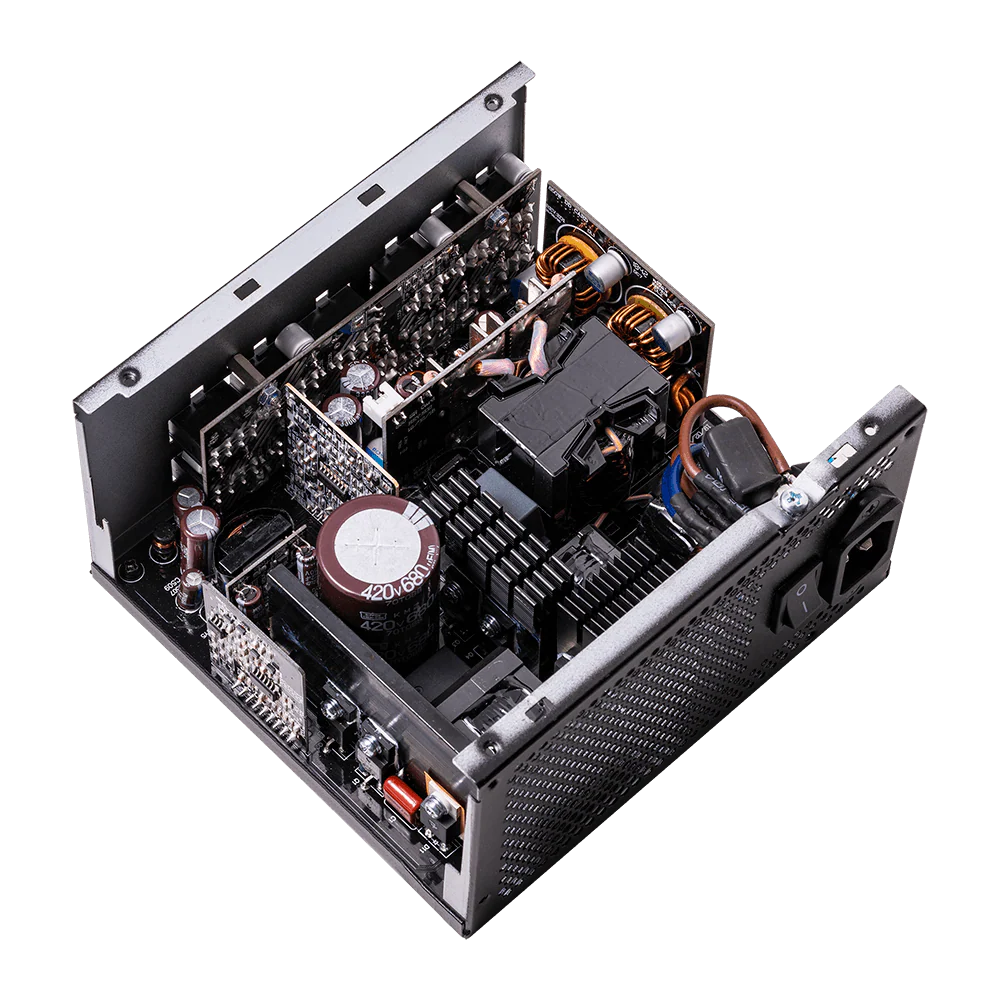

XPG CORE REACTOR II VE empowers your system with efficient power delivery. It’s compatible with Intel’s latest ATX 3.1 design guidelines and has a dedicated 12V-2x6 connector for the latest graphics cards. This unit boasts a DC-DC circuit design for enhanced performance, stability, and consistency, with exceptional ripple control and hold-up time surpassing Intel's specifications. It has 8 industrial protections fortifying its durability, safeguarding both the unit and your system.

ATX 3.1 Compatible
XPG CORE REACTOR II VE integrates seamlessly with ATX 3.1 standards, enhancing performance and reliability. With a dedicated 12V-2x6 connector, it ensures optimal compatibility with the latest graphics card requirements, delivering advanced power delivery and efficiency.

12V-2x6 Connector
The provided 12V-2x6 connector ensures direct and efficient power delivery to critical components, maximizing system stability and performance. By minimizing voltage drops and optimizing efficiency, this connector guarantees consistent and reliable power for your system's demanding needs.

Specifications

• Dimensions (L x W x H) : 140 x 150 x 86mm
• Cybenetics Rating : GOLD
• 80 Plus Rating : GOLD
• ATX Version : Intel ATX 12V v3.1
• Protections : OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP
• Certification : CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus
• PFC : 0.99
• Input Voltage : 100-240V
• Input Current: 850W: 12A
• 750W: 10A
• 650W: 10A
• Input Frequency : 47Hz-63Hz
• DC Output Voltage : +5V | +3.3V | +12V | -12V | +5Vsb
• Total Output : 850W:750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
• Power Excursion : 750W: 1762W (*up to 235% of the PSU's rated power for 100μs)
• Operating Temperature : 40°C
• Fan Size : 120mm FDB Fan
• Fan Bearing : FDB (Fluid Dynamic Bearing)
• Fan Speed : 2400 RPM
• MTBF : 100K hours at full load
• ATX 24 Pin Connector : 1
• EPS 8 Pin Connector :" 2
• PCI-E 6+2 Pin Connector: 750W: 3
• Molex 4 Pin Connector : 2
• 12V-2x6 (12+4) Connector (600W) : 750W: 1
• SATA Connector : 6
• Weight : 750W:Product + Cables: 1450g+1350g
• with Package: 3.03kg
