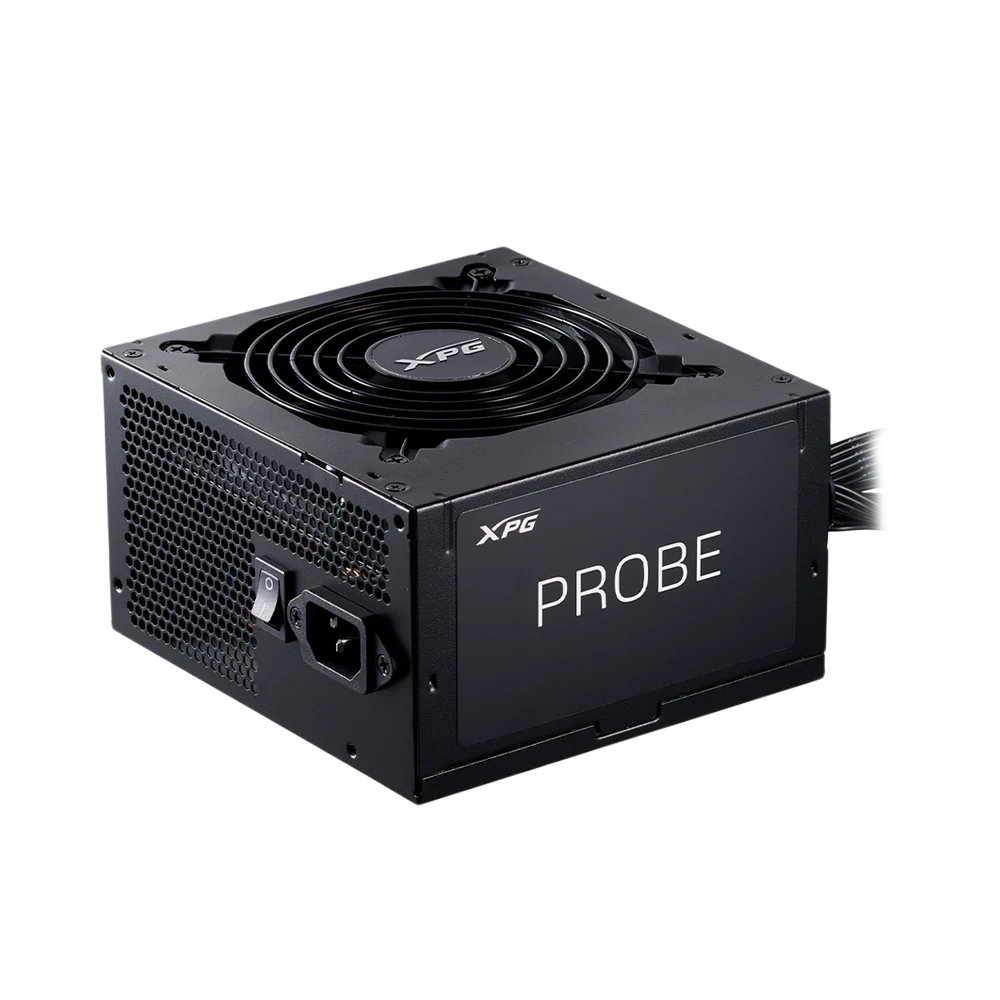

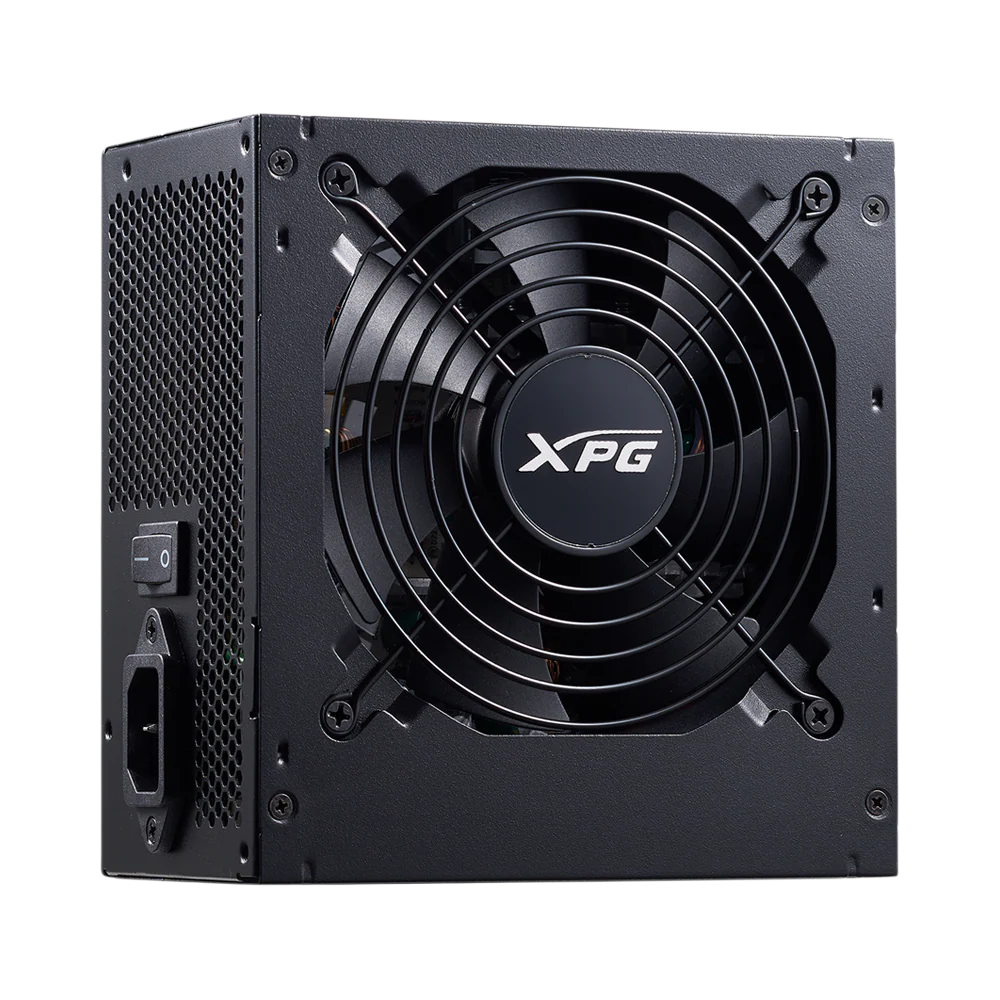

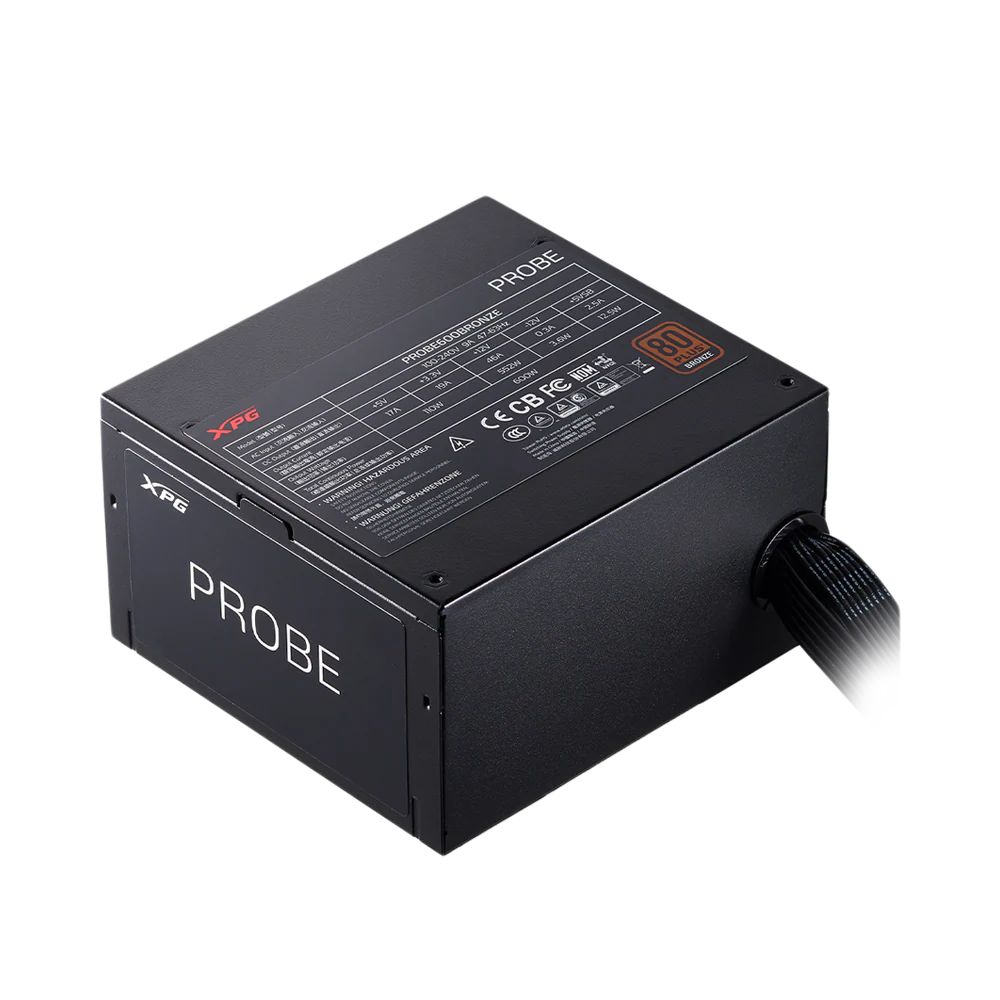

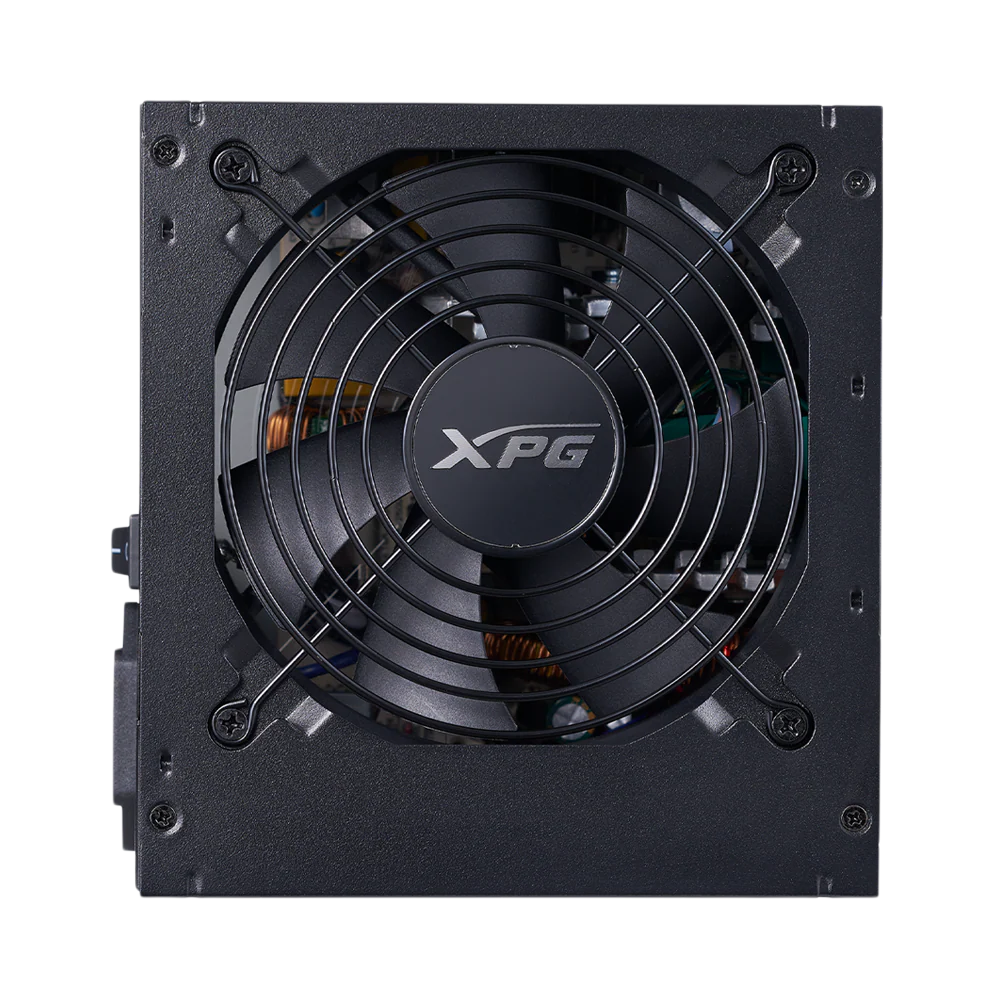

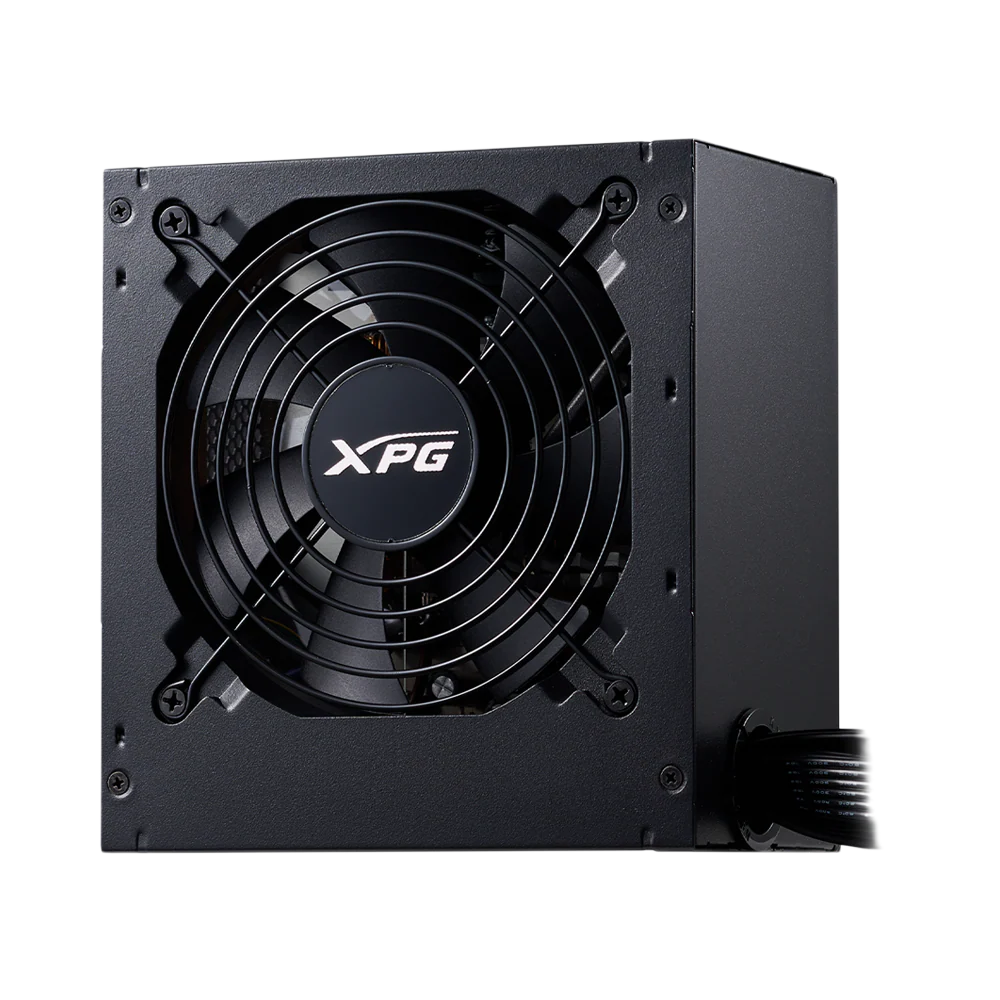

XPG PROBE 600W - 80 Plus Bronze Power Supply Unit - Black

Experience reliable power delivery with the XPG PROBE 600W Power Supply Unit. This 80 Plus Bronze certified PSU efficiently converts AC to DC power, reducing energy waste and heat generation. Featuring a compact black design, it's engineered to support mid-range gaming and productivity builds. With stable voltage regulation and built-in protections, the PROBE 600W ensures your components receive consistent, clean power for optimal performance and longevity.

VIABLE, APPLIABLE, & RELIABLE
With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!

80 Plus Bronze Efficiency
XPG PROBE exceeds 80 Plus Bronze certification requirements with up to 87% efficiency at 50% load, ensuring stable power delivery to all components, minimizing the risk of power-related damage.

Enhanced Safety in Operation
Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.

Key Features:

• Total Power Output : 600W
• Form Factor : ATX 2.52
• Efficiency : 80 PLUS Bronze (up to 87% @ 50% load)
• Modular Cabling : Yes
• Fan Specs : 120mm sleeve bearing, 2400 ±10% RPM
• Cooling Curve : Intelligent fan curve for quiet cooling
• MTBF : >100,000 hours @ 25°C
• Safety Protections : OVP, UVP, SCP, OPP, OTP, SIP
• Connectors: 1× ATX 24-pin, 2× EPS 8-pin, 2× Molex, 5× SATA
• Dimensions : 140 × 150 × 86 mm
• Weight: ~1480g
• Certifications: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA, EAC, RCM

Specifications

• Dimensions (L x W x H) : 140 x 150 x 86mm
• 80 Plus Rating : BRONZE
• ATX Version : ATX 2.52
• Protections : OVP / OPP / SCP / UVP / OTP / SIP
• Certification : CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
• PFC : > 0.99 @ Typical load
• Input Voltage : 100-240V, 47~63Hz
• Input Current : 9A - 10A
• Input Frequency : 47 - 63Hz
• DC Output Voltage : +5V | +3.3V | +12V | -12V | +5Vsb
• Total Output :600W: +5V: 17A, +3.3V:19A, +12V:46A, -12V:0.3A, +5Vsb:2.5A
• Power Excursion : Total:700W +5V/+3.3V:110W, +12V:648W, -12V:3.6W, +5Vsb:12.5W Total:600W +5V/+3.3V:110W, +12V:552W, -12V:3.6W, +5Vsb:12.5W
• Operating Temperature : 0~40°C
• Fan Size : 120mm
• Fan Bearing : Sleeve Bearing Fan
• Fan Speed : 2400 ± 10% RPM
• MTBF : >100,000 hours @ 25°C
• ATX 24 Pin Connector : 1
• EPS 8 (4+4) Pin Connector : 2
• Molex 4 Pin Connector : 2
• SATA Connector : 5
• Weight : 600W:1480.1g
